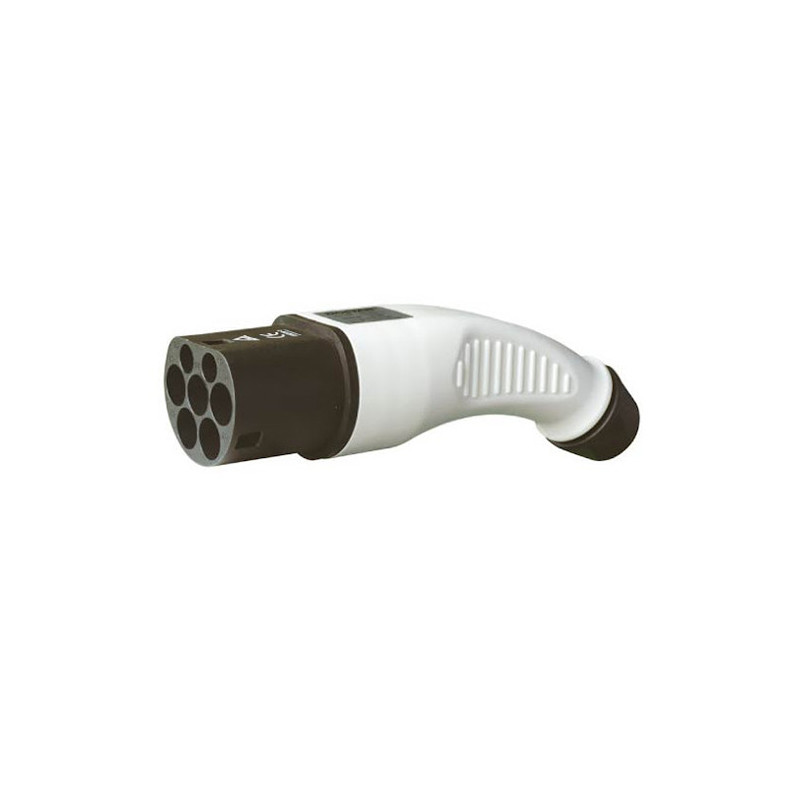

Electric vehicle charging station plug Duosida Type 2 (Male), 32A, 3-phase
Product reference:
14-9990000200184
Plug for electric vehicles Type 2 (Male) (to the station), 32A, 3-phase, without cable. The plug is designed to create your own charger by choosing the desired cable length and connectors.
Electric vehicle charging station plug Duosida Type 2 (Male), 32A, 3-phase
Product reference:
14-9990000200184
Plug for electric vehicles Type 2 (Male) (to the station), 32A, 3-phase, without cable. The plug is designed to create your own charger by choosing the desired cable length and connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Electric vehicle charging station plug Duosida Type 2 (Male), 32A, 3-fazė
Plug for electric vehicles Type 2 (Male) (to the station), 32A, 3-fazė, without cable. The plug is designed to create your own charger, choosing the desired cable length and connectors.
Technical data:
- EV connector type: IEC 62196, Type 2 (European), Mennekes, 7 pins.
- Rated current: 32A.
- Operating voltage: 415V AC.
- Maximum charging power: 22kW (3-fazė).
- Material: thermoplastic, fire resistance UL94 V-0.
- Cable contacts: copper alloy, silver plating.
- Dimensions of the applicable cable: 5x6mm²+ 1x0.75mm² (3-fazė).
- Number of contacts 7.
- Safety class: IP44.
- Operating temperature: -30°C~+50°C.
- Certificates: CE, TUV.
- Color: black / white.
| Height | 150mm |
| Length | 200mm |
| Weight | 750 g |
| Width | 75 mm |
