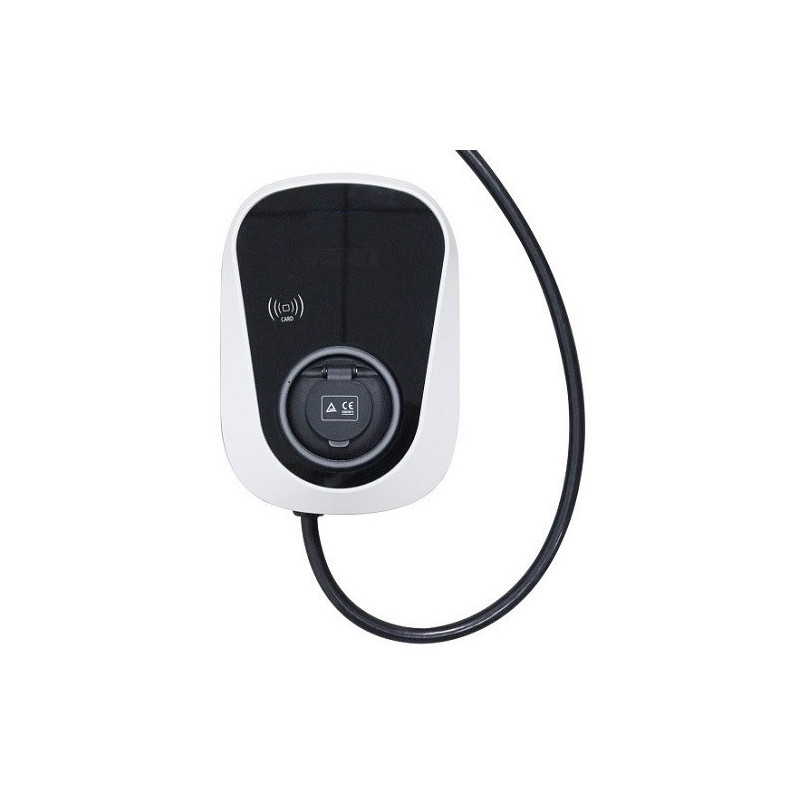

Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase
Product reference: 14-9990000200603
Station with Type2 socket, standard throughout Europe.

Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase

Product reference: 14-9990000200603
Station with Type2 socket, standard throughout Europe.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
77610
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Charging station for electric vehicles 22kW, 32A, 3-phase, with Type 2 socket, wall-mounted, IP54 suitable for indoor and outdoor conditions.
Features:



  • The charging station allows charging with up to 22kW of power.

  • Station with Type2 socket, standard throughout Europe.

  • You can connect an appropriate cable or adapter to it, the connector of which is compatible with your vehicle (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo, etc.).



Technical data:



  • Max charging current: 32A (3-phase).

  • Max. charging power: 22kW (3-phase).

  • Input: 400V AC (3-phase), 32A (max.), 50/60Hz.

  • Output: IEC 62196, Type2 (European), Mennekes, 7 pins.

  • Charging control: PlugPlay / RFID card / mobile app.

  • Display: OLED display.

  • Body material: thermoplastic.

  • Front panel: tempered glass.

  • Operating temperature: -30°C-50°C.

  • Operating humidity: <95% RH.

  • Safety class: IP54 (suitable for indoor and outdoor conditions).

  • Certificates: CE, TUV.

  • Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit,

  • overvoltage, leakage; grounding.

  • Cooling: natural.

  • Size: 460 x 410 x 650 mm.

  • Weight: 6kg.
