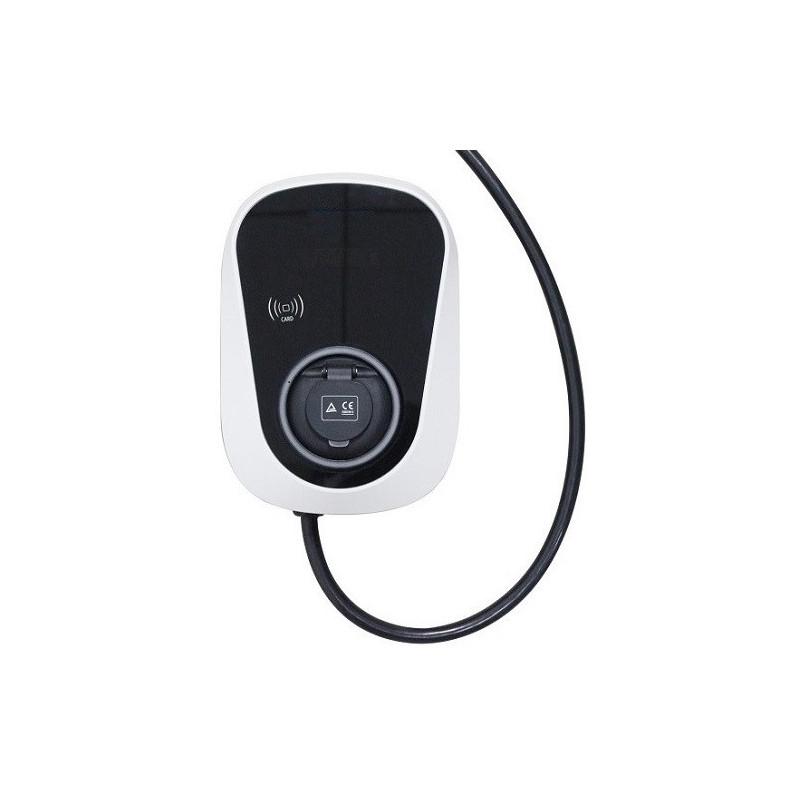

Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase
Product reference: 17-9990000200603
Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase

Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase

Product reference: 17-9990000200603
Electric vehicle charging station Duosida, Type 2, 22kW, 32A, 3-phase
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
84999
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
1 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

Charging station for electric vehicles 22kW, 32A, 3-phase, with Type 2 socket, wall-mounted, IP54 suitable for indoor and outdoor conditions.
Features:
The charging station allows charging with up to 22kW of power.
The station has a Type2 socket, standard throughout Europe. You can connect an appropriate cable or adapter to it, the connector of which is compatible with your vehicle (Type 1 Yazaki, Type 2 Mennekes, Tesla, Chademo, CCS combo, etc.).
Technical data:
Max charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 400V AC (3-phase), 32A (max.), 50/60Hz.
Output: IEC 62196, Type2 (European), Mennekes, 7 pins.
Charging control: PlugPlay / RFID card / mobile app.
Display: OLED display.
Body material: thermoplastic.
Front panel: tempered glass.
Operating temperature: -30°C-50°C.
Operating humidity: <95% RH.
Safety class: IP54 (suitable for indoor and outdoor conditions).
Certificates: CE, TUV.
Protection against: overheating, overvoltage, overload, voltage fluctuations, short circuit,
overvoltage, leakage; grounding.
Cooling: natural.
Size: 460 x 410 x 650 mm.
Weight: 6kg.
Warranty: 24 months
