Electric Vehicle Charger - BESEN SQ20-22KW-APP 22 kW Electric Vehicle Charger 3.5 inch LCD 32 A IP66
Product reference:
14-5907085525365
Wall-mounted 22 kW AC electric vehicle charger with a 3.5-inch color LCD display, up to 32 A current and an IP66 protection class housing. Controlled via a Bluetooth app, you can set charging schedules, adjust the current, remotely start or stop charging, view charging history and update the software.
Electric Vehicle Charger - BESEN SQ20-22KW-APP 22 kW Electric Vehicle Charger 3.5 inch LCD 32 A IP66
Product reference:
14-5907085525365
Wall-mounted 22 kW AC electric vehicle charger with a 3.5-inch color LCD display, up to 32 A current and an IP66 protection class housing. Controlled via a Bluetooth app, you can set charging schedules, adjust the current, remotely start or stop charging, view charging history and update the software.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

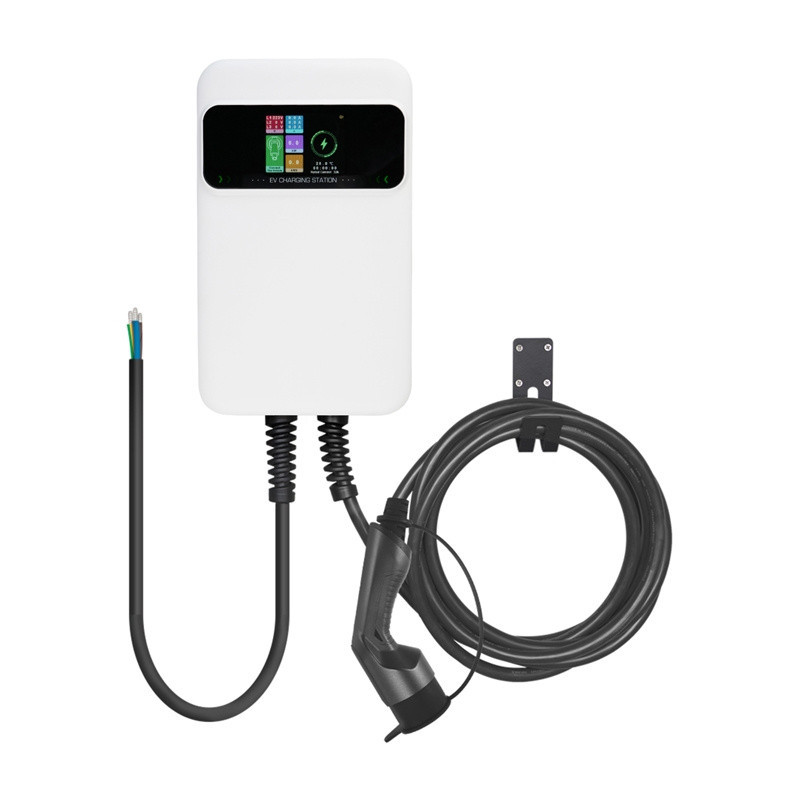

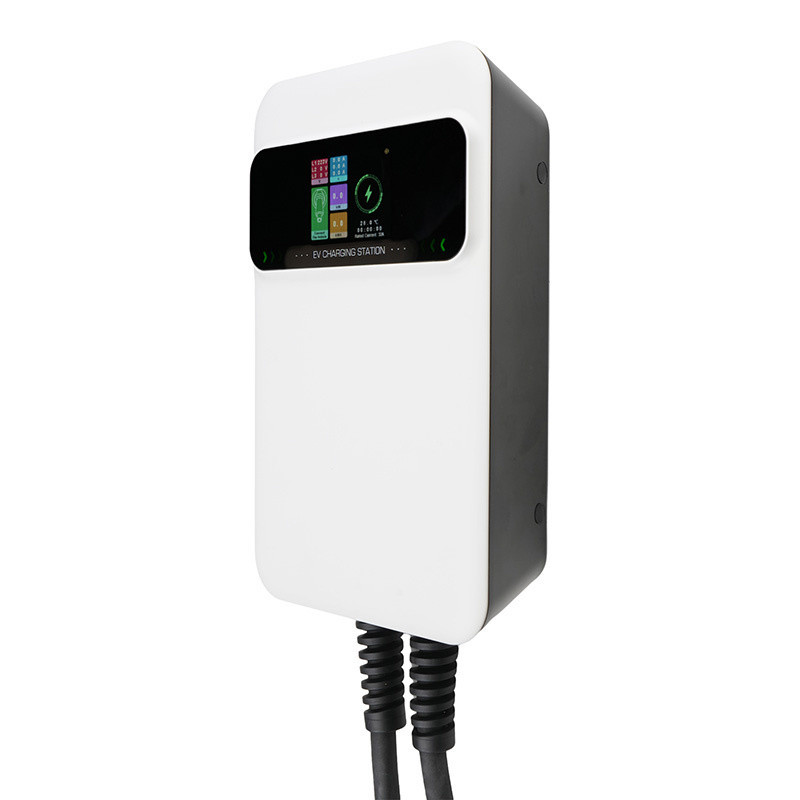

BESEN SQ20-22KW-APP 22 kW electric car charger
Wall-mounted 22 kW AC electric vehicle charger with 3.5-inch color LCD display, maximum current of 32 A and IP66-rated housing. Using Bluetooth connectivity and an app, you can set charging schedules, adjust current, remotely start and stop charging, view charging history and update software.
- 22 kW three-phase AC charging with a maximum current of 32 A ensures fast and reliable charging of electric vehicles
- Remote charging control using the EVSEMaster app and Bluetooth connection: schedule setting, current adjustment, start and stop charging, and view charging history
- 3.5-inch color LCD screen displays charging time, voltage, current, temperature and power consumption in real time
- Comprehensive safety features and an IP66-rated housing help protect against overvoltage, overheating, overload, short circuit, ground fault and lightning
Product information | |
|---|---|
| Product type | Wall-mounted AC electric vehicle charger |
| Brand | Besen |
| Model | SQ20-22KW-APP |
| Installation | Wall mounted |
Electrical specifications | |
| Charging type | Three-phase alternating current |
| Input/output voltage | AC 400 V |
| Operating frequency | 47-63 Hz |
| Compatible charging interfaces | SAE J1772, IEC 62196-2 and GB/T |
| Standby power consumption | <8W |
Terms of Use | |
| Ambient temperature | -25°C-+55°C |
| Humidity | 0-95%, non-condensing |
| Maximum working height | <2,000 m |
| Environmental protection class | IP66 |
Additional information | |
| App | EVSEMaster via Bluetooth connection |
| Software updates | Supported via app |
| Dimensions | 295 × 195 × 65mm |
| Weight | 8 kg |

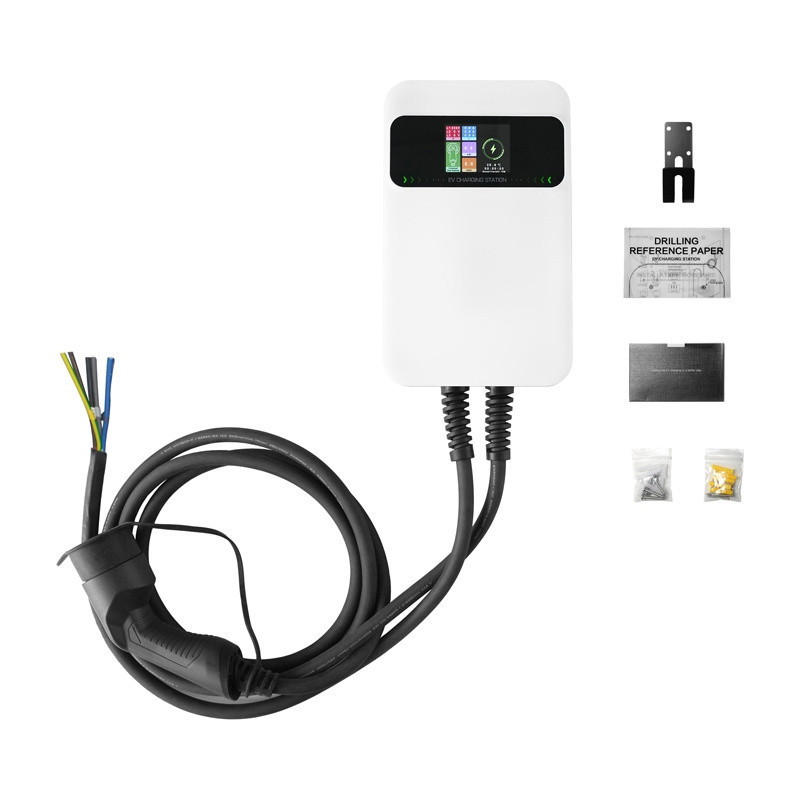

| Included accessories | Mounting screws, metal bracket, positioning sheet, user manual and quick start guide |
| Safety warning | Only for charging compatible electric vehicles. Installation and electrical connection must be carried out by a qualified professional in accordance with local regulations. Disconnect the power supply before installation or maintenance. Do not use the charger if the housing, cable or connectors are damaged. Although the housing is IP66 rated, do not immerse the charger in water or use it outside the specified conditions. |
| Height | 150mm |
| Length | 400mm |
| Weight | 10400 grams |
| Width | 250mm |
