Electric Vehicle Charger - BESEN BS20 22 kW Wall Mounted Electric Vehicle Charger
Product reference: 14-5906168438776

Wall-mounted AC electric vehicle charger with adjustable power up to 7.2 kW in single-phase or up to 22 kW in three-phase mode, 5 m cable and 3.5-inch color display. IP66 and IK10 protections, Type A or Type A+6 mA DC leakage current relay and protection against voltage fluctuations, short circuit, overheating and lightning allow the device to be installed indoors or outdoors.

Electric Vehicle Charger - Besen BS20-BC 22kW Wall Charger with IP66 Protection, 3.5" LCD Screen, Black
Electric Vehicle Charger - Besen BS20-BC 22kW Wall Charger with IP66 Protection, 3.5" LCD Screen, Black
Electric Vehicle Charger - Besen BS20-BC 22kW Wall Charger with IP66 Protection, 3.5" LCD Screen, Black

Electric Vehicle Charger - BESEN BS20 22 kW Wall Mounted Electric Vehicle Charger

Product reference: 14-5906168438776

Wall-mounted AC electric vehicle charger with adjustable power up to 7.2 kW in single-phase or up to 22 kW in three-phase mode, 5 m cable and 3.5-inch color display. IP66 and IK10 protections, Type A or Type A+6 mA DC leakage current relay and protection against voltage fluctuations, short circuit, overheating and lightning allow the device to be installed indoors or outdoors.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
368,54 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

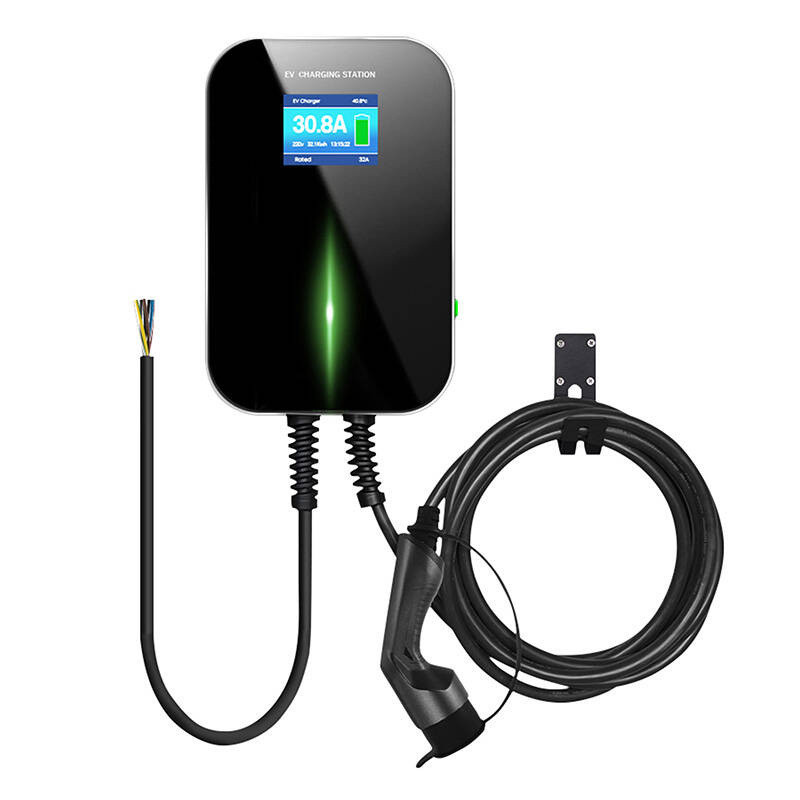

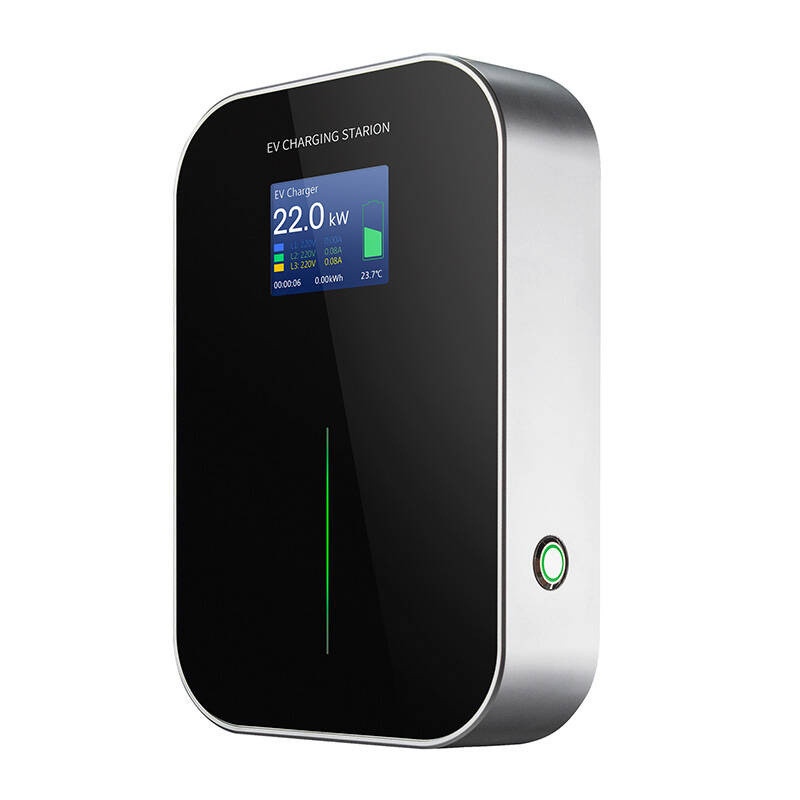

BESEN BS20 22 kW wall charger for electric vehicles


Wall-mounted AC electric vehicle charger with adjustable power up to 7.2 kW in single-phase mode or up to 22 kW in three-phase mode. The charger has a 5 m cable and a 3.5-inch color display. IP66 and IK10 protection, type A or type A + 6 mA DC leakage current relay and integrated protection against voltage fluctuations, short circuit, overheating and lightning allow the device to be installed indoors or outdoors.


  • Provides up to 22 kW in three-phase mode and up to 7.2 kW in single-phase mode. Adjustable charging current ensures flexible charging of electric vehicles.
  • The 3.5-inch color LCD screen and intelligent vehicle recognition allow you to clearly see charging information and conveniently use the device.
  • Suitable for indoor and outdoor use. Robust stainless steel and aluminum construction, weather resistance according to IP66 and impact resistance according to IK10 ensure reliable operation.
  • Type A or Type A + 6 mA DC leakage current relay and protection against overvoltage, undervoltage, short circuit, overheating and lightning ensure safer use.

Product information

Product type Wall-mounted AC electric vehicle charger
Brand Besen
Model BS20-BC-22KW
Installation Mounted on a wall indoors or outdoors
Construction Stainless steel and aluminum

Electrical specifications

Input voltage AC 230V / 400V
Input frequency 47-63 Hz
Maximum output current 32 A
Current regulation Adjustable
Connector compatibility SAE J1772, IEC 62196-2 or GB/T, depending on the configured version
Standby power consumption Less than 8W

Control and communication

Screen 3.5 inch color LCD screen
Vehicle identification Intelligent vehicle recognition
LED indicator Yes
Optional connection Ethernet, Wi-Fi, 4G or Bluetooth

Terms of Use

Operating temperature −25 °C-55 °C
Relative humidity 0-95%, non-condensing
Maximum installation height Less than 2,000 m

Physical specifications

Dimensions 295 × 195 × 65mm
Weight 6-8 kg

Security and compliance

Residual current protection Type A or Type A + 6 mA DC
Additional protection Protection against overvoltage, undervoltage, short circuit, overheating and lightning
Certificates CE, FCC, CSA, RoHS and ETL
Safety warning Only intended for charging compatible electric vehicles. Installation and electrical connection must be carried out by a qualified professional in accordance with local regulations. Disconnect power before performing maintenance. Do not use the charger if the housing, cable or connector is damaged.

Height350mm
Length150mm
Weight9100 grams
Width250mm
