Electric car charger Reach PEVC4 3-phase Type2 32A 22kW 7.0m

Specification:

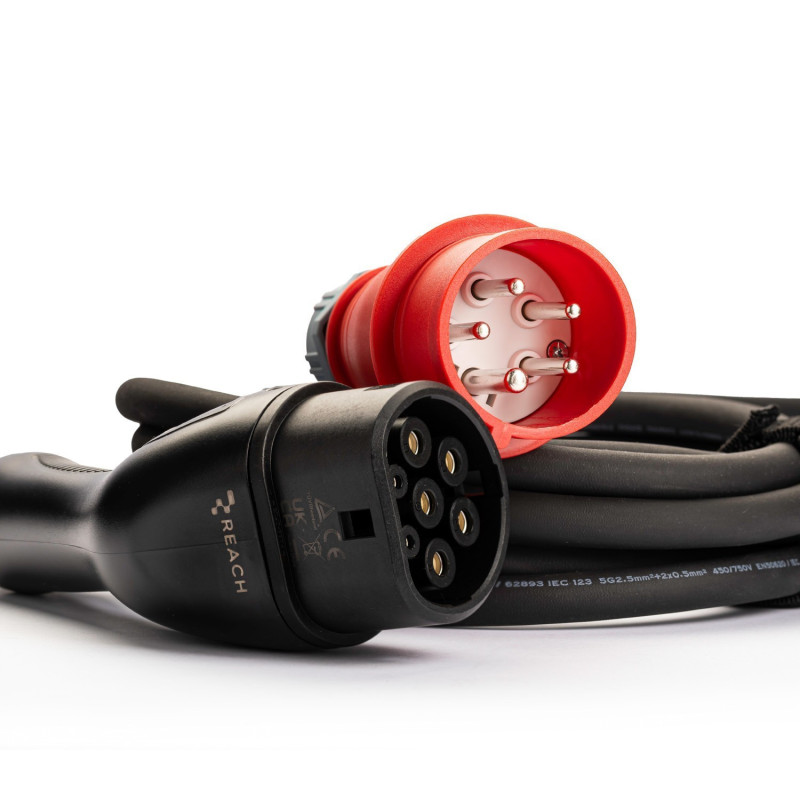

Connector type: Type 2 and CEE red plug
Charging current: 6-32 A (3 phase, adjustable)
Maximum charging power: 22 kW
Cable length: 7 m
Protection class: IP65
Operating voltage: AC 400-440V
Block size: 220 x 100 x 60 mm
Safety class: IP65
Operating temperature: -35°C ~ +50°C
Operating humidity: 5% ~ 95% HR
Overheating protection, surges, overloads, voltage fluctuations, short circuits, overvoltages, leakage; grounding.
Warranty: 24 months.

Real-Time Charging Management

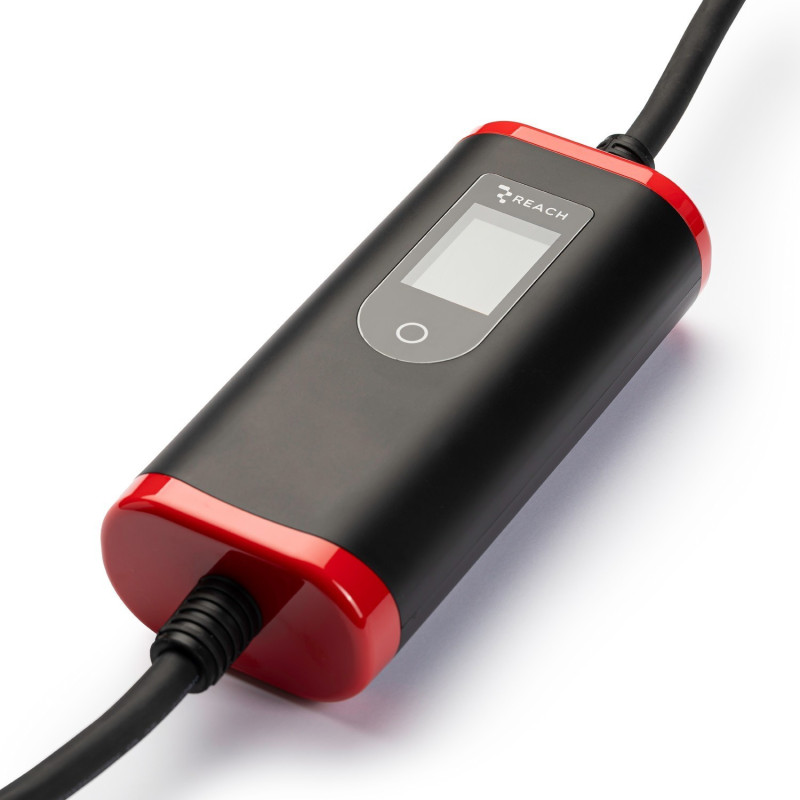

The integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:
Maximum current: The highest current that the charging station can use.
Accumulated energy: The total energy accumulated during the charging session.
Charging duration: How long the charging process is taking.
Charging pad temperature: The current temperature of the charging pad.
Grid voltage: The current grid voltage.
Instantaneous charging power: The actual power currently being supplied to the car.
Instantaneous charging current: The current charging current.
Charging status: Waiting, Charging, Completed.
On-screen control menu options:
Current change: Ability to change the charging current from 6 A to 32 A.
Charging start time setting: Ability to set the charging start time up to 12 hours in advance.
Grounding mode control: Enable/disable grounding modes depending on the usage circumstances.

Control via mobile app, and kai does not have a network, via Bluetooth
The device has an integrated smart control system, which you can access via a mobile app or Bluetooth.
The app allows you to:

• Start charging


• View charging history


• Set charging time


• Adjust charging power
