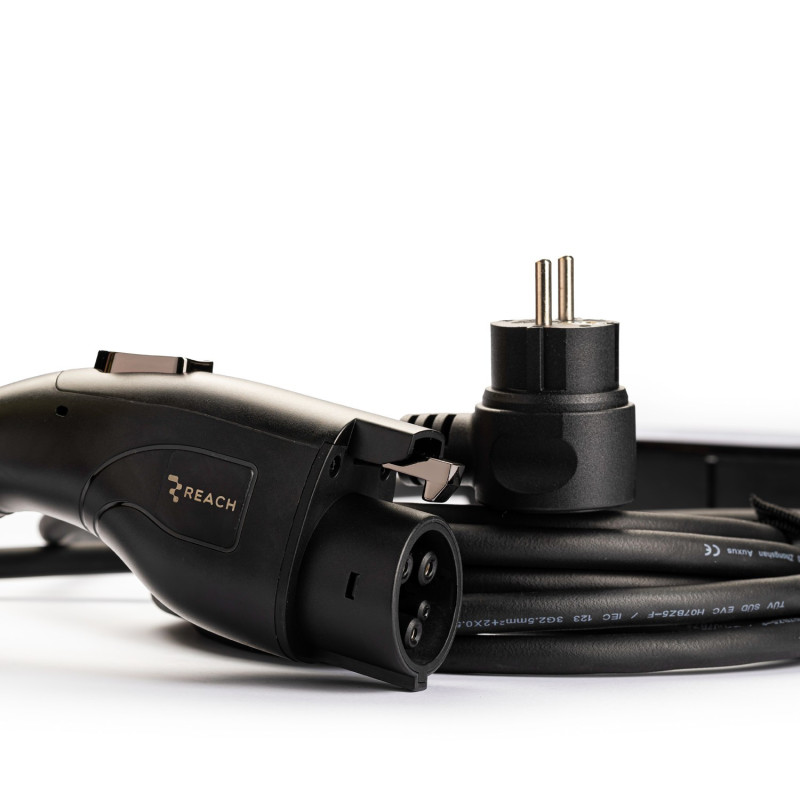

Electric car charger Reach PEVC1 220V Type1 16A 3.5kW 5.0m

Specification:Connector type: Type 1 and Schuko plug Charging current: 6-16 A (1 phase, adjustable) Maximum charging power: 3.5 kW Cable length: 5 m Protection class: IP65 Operating voltage: AC 200-250V Block size: 220 x 100 x 60 mm Protection class: IP65 Operating temperature: -35°C ~ +50°C Operating humidity: 5% ~ 95% HR Protection against overheating, overvoltage, overload, voltage fluctuations, short circuit, surges, leakage; grounding. Warranty: 24 months.

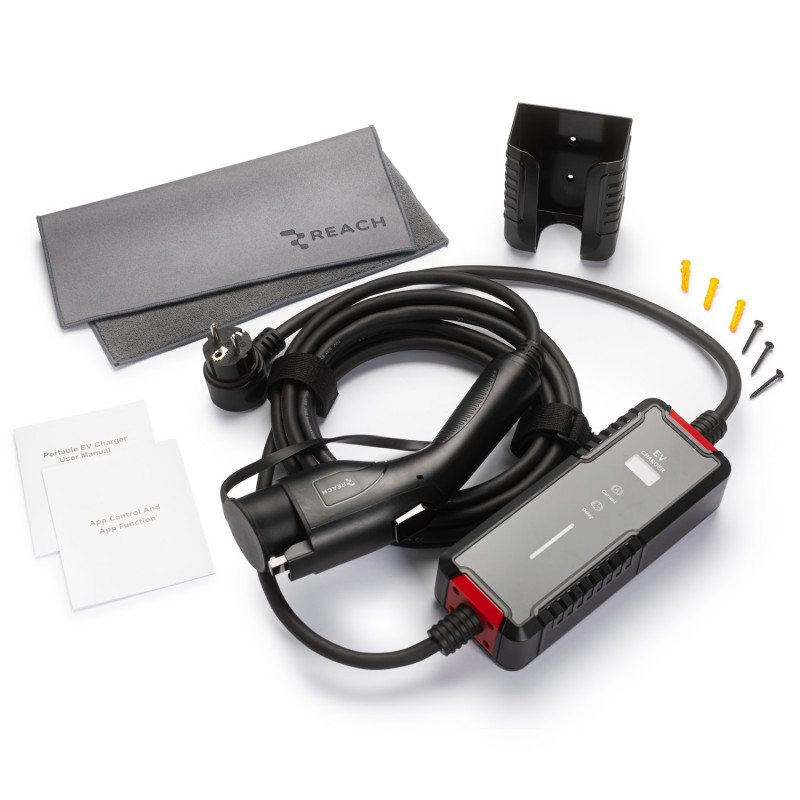

The set includes: charging station, power cord, wall mount with mounting screws, cleaning cloth.

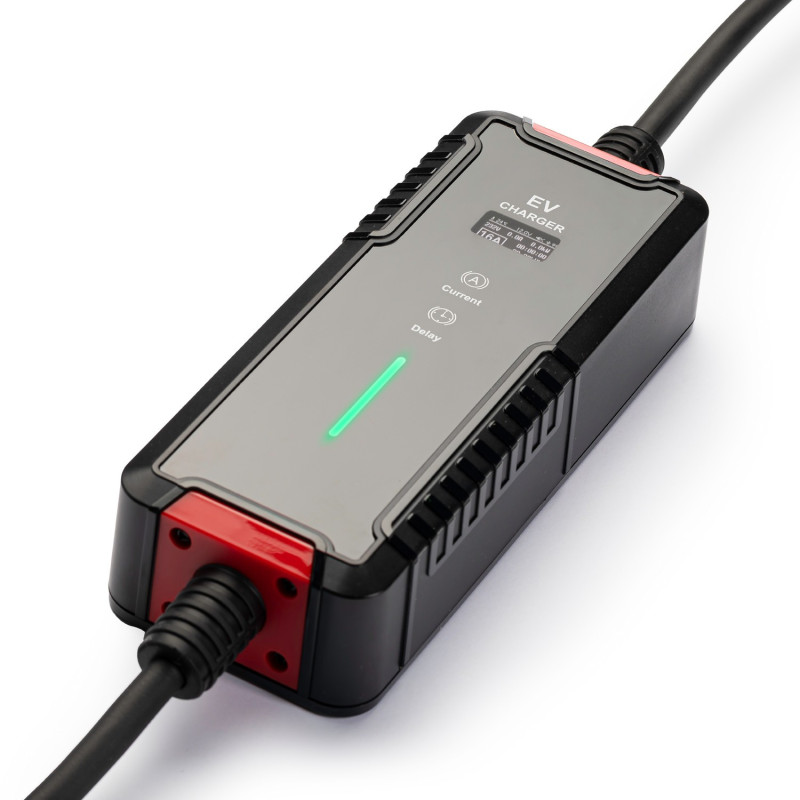

Real-time charging managementThe integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:Maximum current: The maximum current that the charging station can use. Accumulated energy: The total energy accumulated during the charging session. Charging time: How long the charging process is taking place. Charging unit temperature: The current temperature of the charging unit. Grid voltage: The current grid voltage. Instantaneous charging power: The actual power currently being supplied to the car. Instantaneous charging current: The current charging current.On-screen control menu options:Current change: Ability to change the charging current from 6 A to 16 A. Charging start time setting: Ability to set the charging start time up to 12 hours in advance. Grounding mode control: Enable/disable grounding modes depending on the usage circumstances.

Control via mobile app, and when there is no network, via BluetoothThe device has an integrated smart control system, which you can access via a mobile app or Bluetooth. The app allows you to:

• Start charging


• View charging history


• Set charging time


• Adjust charging power
