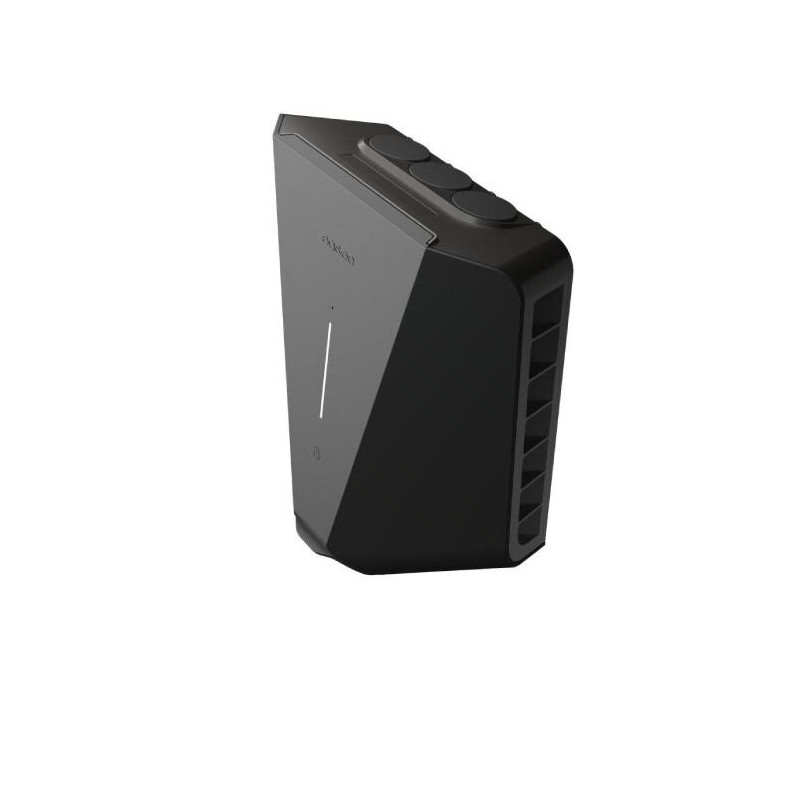

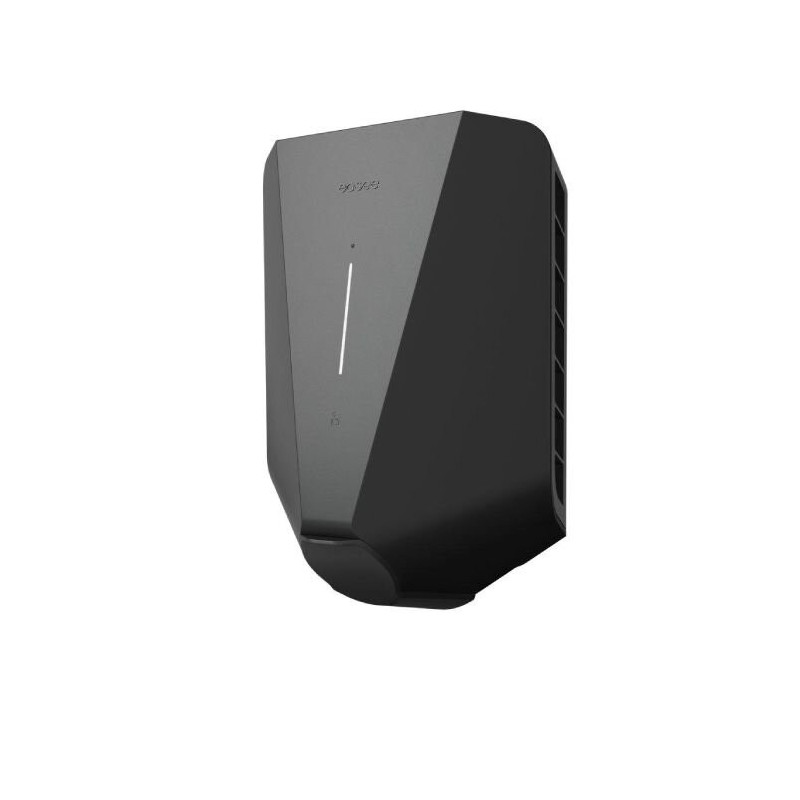

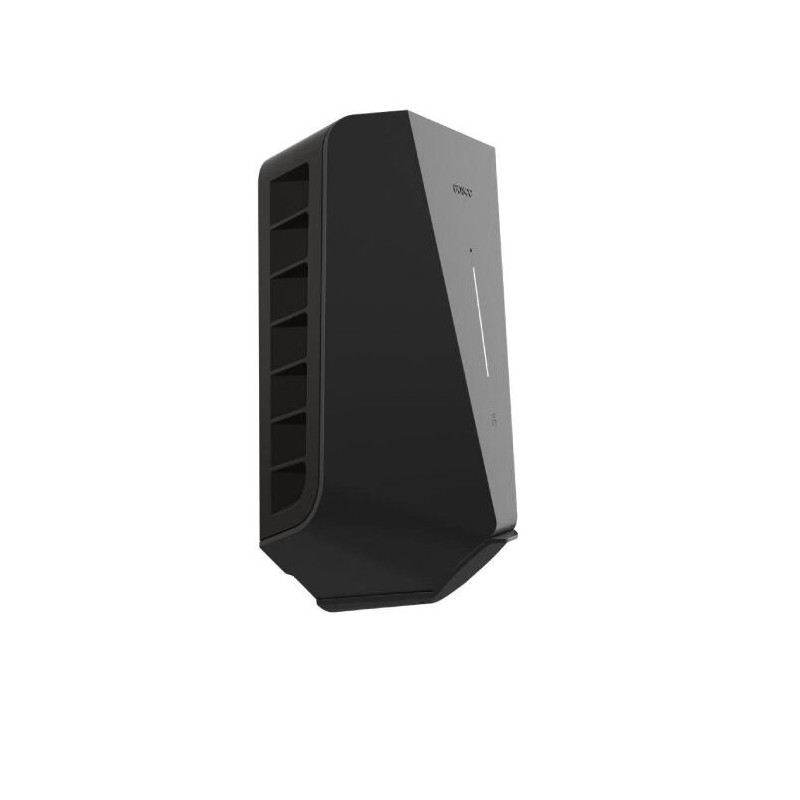

Easee charging station 22 kW

Easee Charge Lite 22 kW - Smart and compact electric vehicle charging station without integrated cable. Supports up to 22 kW of power, has Wi-Fi, Bluetooth and 4G connectivity, can communicate with solar power plants and automatically adjust charging power. Controlled via the Easee app, suitable for use with state support.

Charge Lite is a reliable charging station for all your home charging needs.

Bluetooth control provides a reliable connection, while advanced product protection features ensure safe charging.

The thoughtful design of the station combined with Norwegian product quality provides an easy charging experience.

+ One universal model suitable for 1 and 3 phases with charging power from 4 kW to 22 kW
+ Scandinavian quality, made in Norway
+ Unique and modern design
+ Dynamic power management (DLM) function (additionally required Easee Equalizer or Equalizer
Amp meter kit)
+ Autonomous power balancing between stations ensuring that the distribution of electricity
is evenly distributed
+ Communication with solar power plants
+ Control with a free app (Wifi, Bluetooth) and integrated free 4G internet connection
for communication
+ 5 year warranty or 2000 charging cycles, whichever comes first

Features Charge Lite can charge up to 7.4 kW on a single-phase network and up to 22 kW on a three-phase network.

Up to three chargers can be installed in one facility.
- Easee Link™ local power balancing
- Power balancing between the building input and įkroviklio1
- Integration and communication with solar elektrinėmis1
- Automatic updates

The charger is constantly updated with the latest features.
- Standard black cover
- 5 year warranty

Security

Protection Meets these standards

2014/53/EU (RED).
2011/65/EU (RoHS).
2014/30/EU (EMC).
2014/35/EU (LVD).
EV (smart charging stations) legislation 2021
Integrated ACDC RCD apsauga.2
Temperature sensors.
Overload protection.
Impact resistance: IK10.
Insulation class: I.
Overvoltage category III.
Theft protection.

Technical

Charging Connectivity
Wi-Fi 2.4 GHz b/g/n.
Bluetooth 4.3.
Built-in eSim (Cellular LTE).
OCPP 1.6.
Easee LinkRF (between charger and Equalizer).
RFID/NFC counter
Control charging with the Easee application
IT 3-fazės: 3 x 9 A = 6.4 kW.
TN 3-fazės: 3 x 32 A = 22 kW.
IT/TN 1-fazė: 1 x 32 A = 7.4 kW.
Voltage: 3x 230 V / 400 V AC (±10%).
Mains frequency: 50 Hz.
Mains: TN, IT, TT.

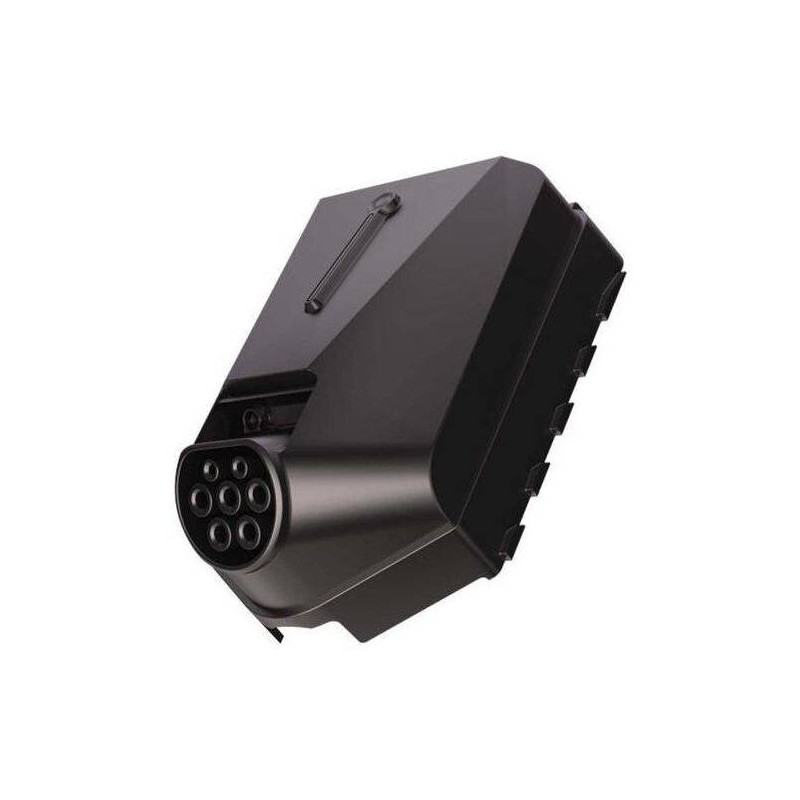

Connector type: Type 2 socket.
Automatic charging speed regulation according to
current stiprumą1
Automatic charging using solar energiją1
Automatic phase balansavimas1
Built-in energy meter
General
Dimensions (mm): H: 256 x W: 193 x D: 106.
Wall mounting (mm): c/c H: 160 x W: 125.
Working temperature: -30 °C to +40 °C.
Weight: 1.5 kg.

Easee Application

Reliable local management

- Control charging Get powerful local charger control while connected

- Check the charger status via Bluetooth and access many useful features
- Lock/unlock the charging cable
- Start charging via the app
- Charging session summary
- Consumption accounting
- Overview of available power
- Configuration
