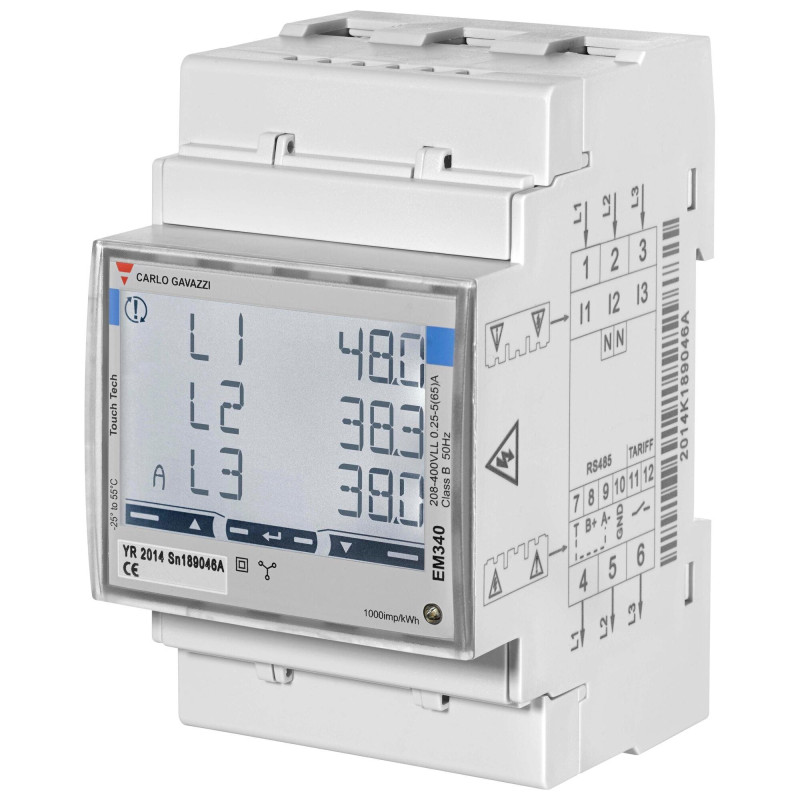

Dynamic power controller Carlo Gavazzi 65A EM340

A dynamic power controller is a device designed to control and monitor the flow of electrical energy. It measures energy consumption, import or export, and optimizes the load, ensuring efficient energy distribution. It is often used in domestic or industrial electrical systems.

Three-phase energy meter with illuminated LCD display. Designed for energy metering and cost allocation up to 65 A (direct connection), with the ability to manage two tariffs.

This dynamic power controller can measure imported and exported energy or can be programmed to take into account only imported energy.

Enclosure for DIN rail mounting with IP51 front degree of protection.

Features

•
  Digital input (for tariff control)


•
  Easy connection or detection of wrong current direction


•
  Accuracy ±0.5 % RDG (current/voltage)


•
  Direct current measurement up to 65 AAC


•
  Illuminated LCD display (3x 8 digits) with integrated touch keyboard


•
  Energy readings on display: 8 digits


•
  Variable display: 4-digit display

Specifications

•
  Width 63 mm


•
  Height 54 mm


•
  Depth 90 mm


•
  Weight 240 g
