DC type charging station - 60 kW CCS2 with 5m cable (LAN, WLAN + GMS) OCPP 1.6
Product reference:
32-5568745600065
DC type charging station - 60 kW CCS2 with 5m cable (LAN, WLAN + GMS) OCPP 1.6
Product reference:
32-5568745600065
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days
DC charging station - this A fast charging device that supplies direct current (DC) to electric vehicles via a CCS connector. Such stations allow charging the battery in a short time, are often used in public places or on highways, and support up to 60 kW of power.

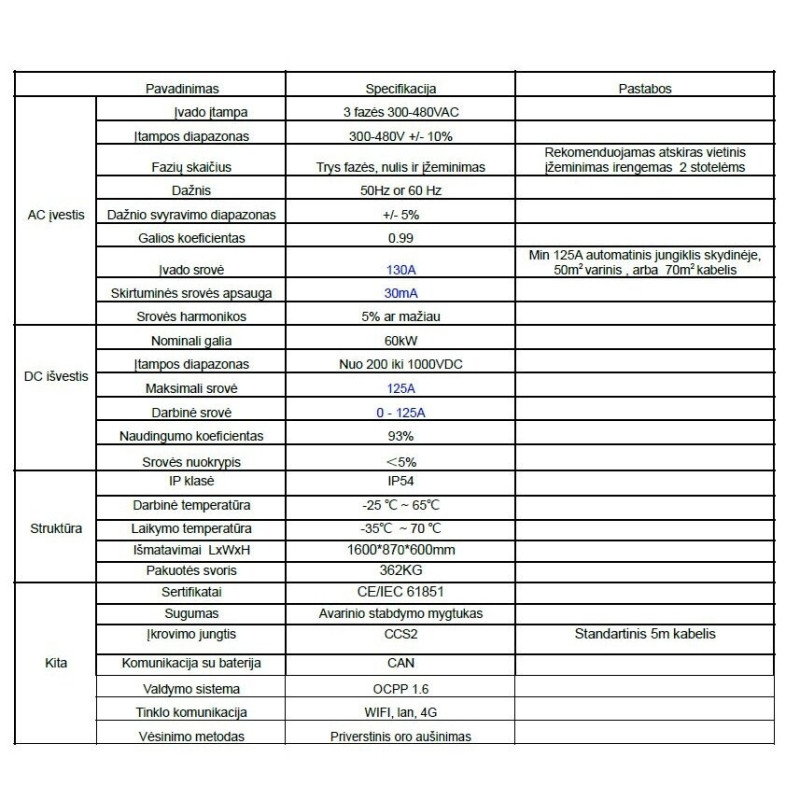

Name | Specification | Specification | Notes |
AC input | Input voltage | Phase 3 300-480VAC | |
Voltage range | 300-480V +/- 10% | ||
Number of phases | Three phases, neutral and ground | Separate local grounding is recommended for 2 stations | |
Frequency | 50Hz or 60 Hz | ||
Frequency range | +/- 5% | ||
Power factor | 0.99 | ||
Input current | 130A | Min 125A circuit breaker in the panel, 50m2 copper, or 70m2 cable | |
Residual current protection | 30mA | ||
Current harmonics | 5% or less | ||
DC output | Nominal power | 5% or less | |
Voltage range | 60kW | ||
Maximum current | From 200 to 1000VDC | ||
Operating current | 0 - 125A | ||
Efficiency coefficient | 93% | ||
Current deviation | ＜5% | ||
Structure | IP class | IP54 | |
Operating temperature | -25 ~ 65 | ||
Storage temperature | -35 ~ 70 | ||
Dimensions LxWxH | 1600*870*600mm | ||
Package weight | 362KG | ||
Other | Certificates | CE/IEC 61851 | |
Security | Emergency stop button | ||
Charging connector | CCS2 | Standard 5m cable | |
Communication with battery | CAN |
Other | Management system | OCPP 1.6 | |
Network communication | WIFI, LAN, 4G | ||
Cooling method | Forced air cooling |
| Height | 7000mm |
| Length | 3000mm |
| Width | 3000mm |
| Weight | 100000 grams |
