charging station with Type 2 cable 5m long, 11kW and three-phase plug

Electric vehicle charging station

This charging station is suitable for all electric vehicles and plug-in hybrid vehicles.

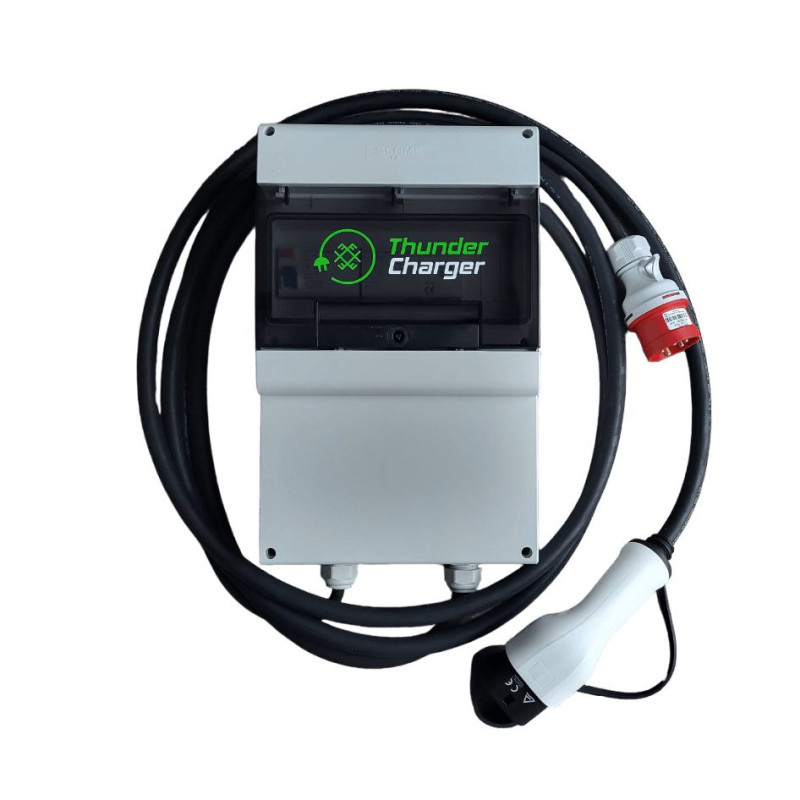

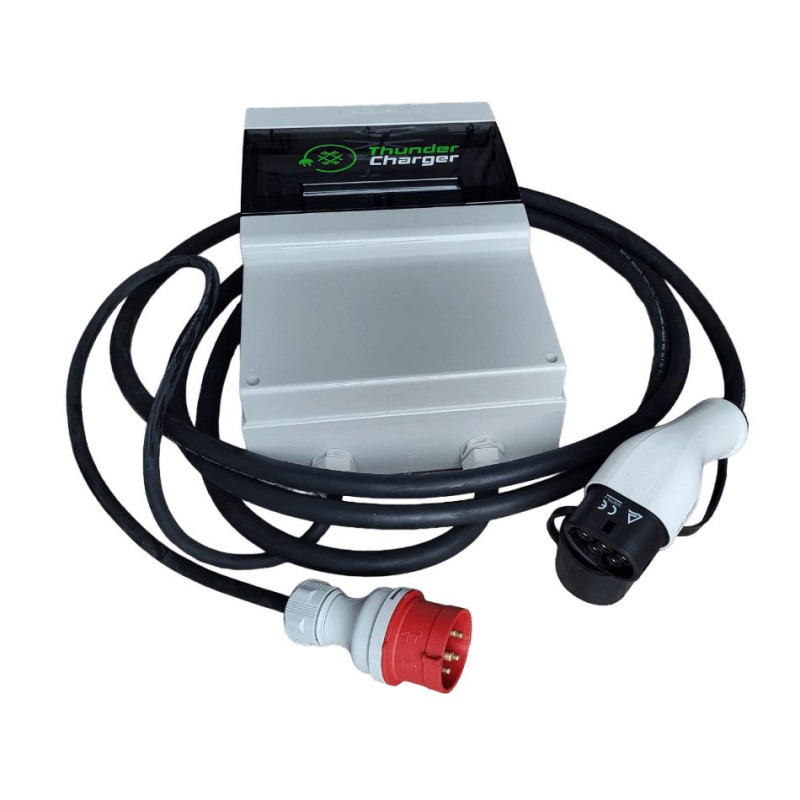

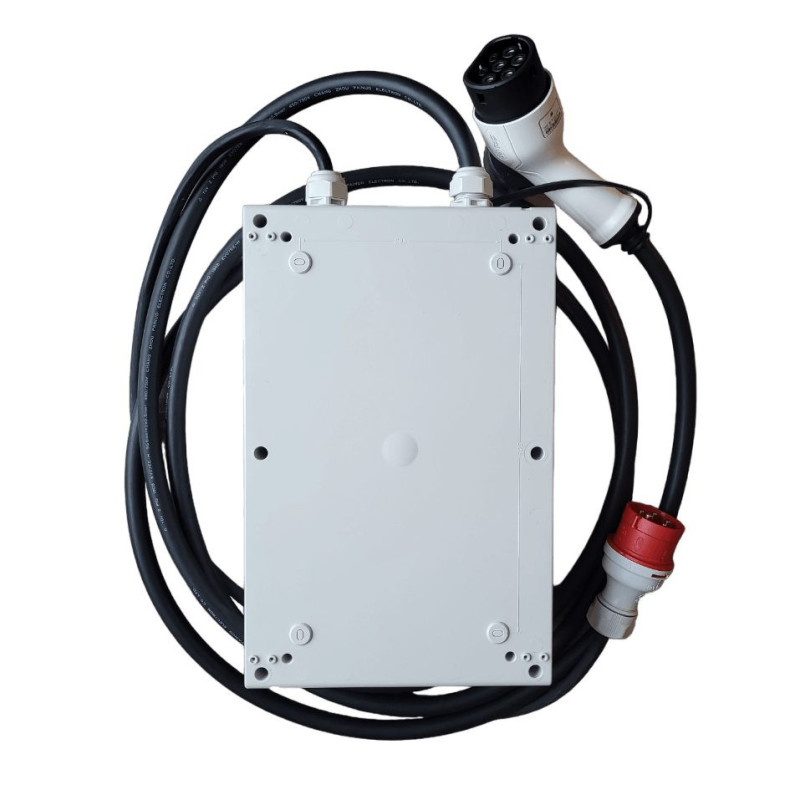

Charging station with Type 2 cable, 5 m, 11 kW - three-phase station with adjustable current (6A-16A), suitable for all electric vehicles. The set includes a three-phase plug for quick connection. Protections include grounding check and voltage monitoring. Additional functions, such as Wi-Fi control, are available on request.

The station is equipped with ABB, Schneider, Hager components and a controller based on OpenEVSE made in Lithuania. All safety measures necessary for safe charging of an electric vehicle have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 6A to 11A every 2A (3kW - 11 kW)

Charging socket - Type2

Charging current - 6A-16A (3kW-11kW);

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

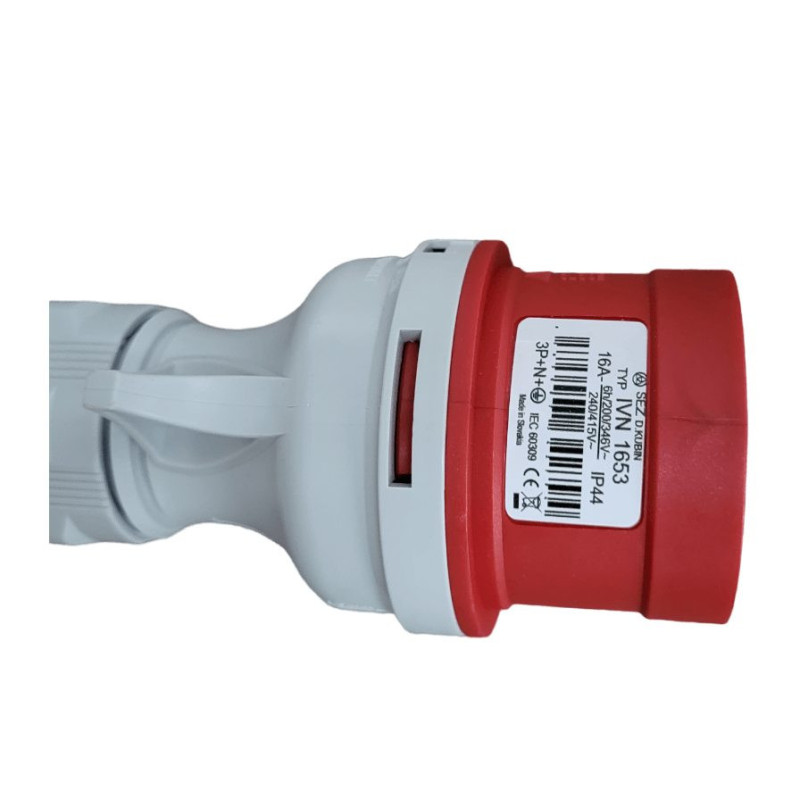

The station is equipped with a 0.5m long three-phase 16A (11kW) red plug, which you can conveniently and quickly connect to the station itself.

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Earth fault detection
AC leakage relay 40A 40mA
Operating temperature: -30 to + 50
Storage temperature: -40 to + 85

Additional functions available upon request:

Type 2 socket locking + 80 Eur

electricity consumption accounting module + 100 Eur

Charging activation Wi-Fi + 120 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 120 Eur

Additional 16A Schuko socket. + 60 Eur

Warranty 2 years.

Additional warranty can be extended +3m (additional 50 Eur)

There is an option to connect the entire charging station management via the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), give other users the opportunity to connect to the charging station or block charging of the charging station. The price of this app is + 200 Eur.

Type 2 - European standard used by European-made electric cars, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-market Volkswagen e-Golf or BMW i3 or others
