charging station with Type 2 cable 4.8m long, 3 Phase, 22 kW

The most popular electric vehicle charging stations

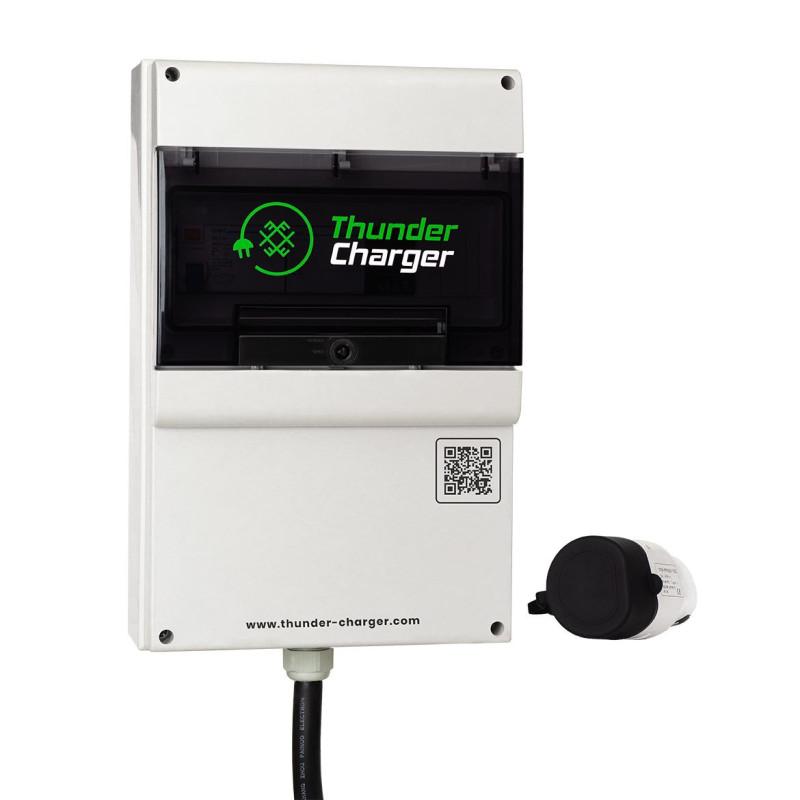

Our main and most popular charging stations are Wallbox type wall-mounted with Type 2 cable 4.8m long, 3 Phase, 22kW

This charging station is suitable for all electric vehicles and plug-in hybrid vehicles.
The station is equipped with ABB, Schneider, Hager components and a controller made in Lithuania based on OpenEVSE. All safety measures necessary for safe charging of an electric vehicle have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 10A-32A (4kW-22kW);

Charging socket - Type2 charging cable

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Ground fault detection
AC leakage relay 40A 40mA
Operating temperature: from -30 to + 50
Storage temperature: from -40 to + 85

Additional functions are available upon request:

Type 2 socket locking + 60 Eur

electricity consumption accounting module + 80 Eur

Charging activation Wi-Fi + 80 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 100 Eur

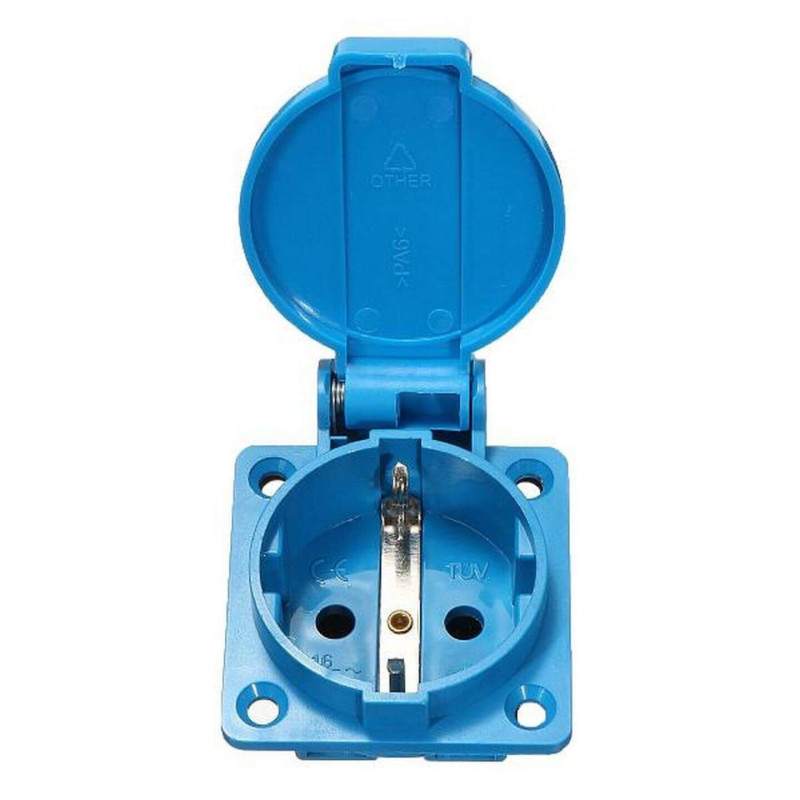

Additional 16A Schuko socket. + 40 Eur

Painting the charging station in green or dark gray (as shown in the photos) + 40 Eur.

Warranty 2 years.

Additional warranty can be extended +3m (additional 50 Eur)

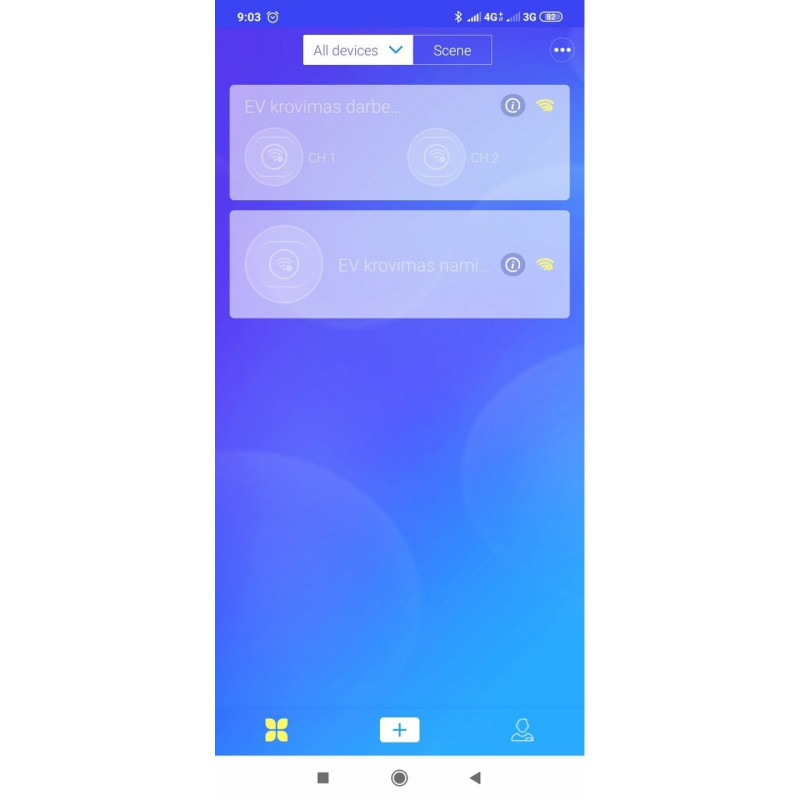

There is an option to connect the entire charging station to the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), provide opportunities for other users to connect to the charging station or block charging from the charging station. The price of this program is + 200 Eur.

Type 2 - European standard used by European-made electric vehicles, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-made Volkswagen e-Golf or BMW i3 or others

OUR PRACTICAL ADVICE

If you have a single-phase electric vehicle or a Plug-in hybrid vehicle ( which accepts up to 7kW per phase), it is important to choose the right charging station station to ensure the most efficient charging. EVvaidai recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW station will make optimal use of the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW of charging power with one phase.

This is an efficient and effective solution for those seeking maximum charging power for their electric vehicle or hybrid.
