charging station with Type 2 cable 4.8m long, 3 Phase, 22 kW

Most popular electric car charging stations

Our main and most popular charging stations are Wallbox type wall-mounted with Type 2 cable 4,8m length, 3 Phase, 22kW

This charging station is suitable for all electric cars and plug-in hybrid cars.

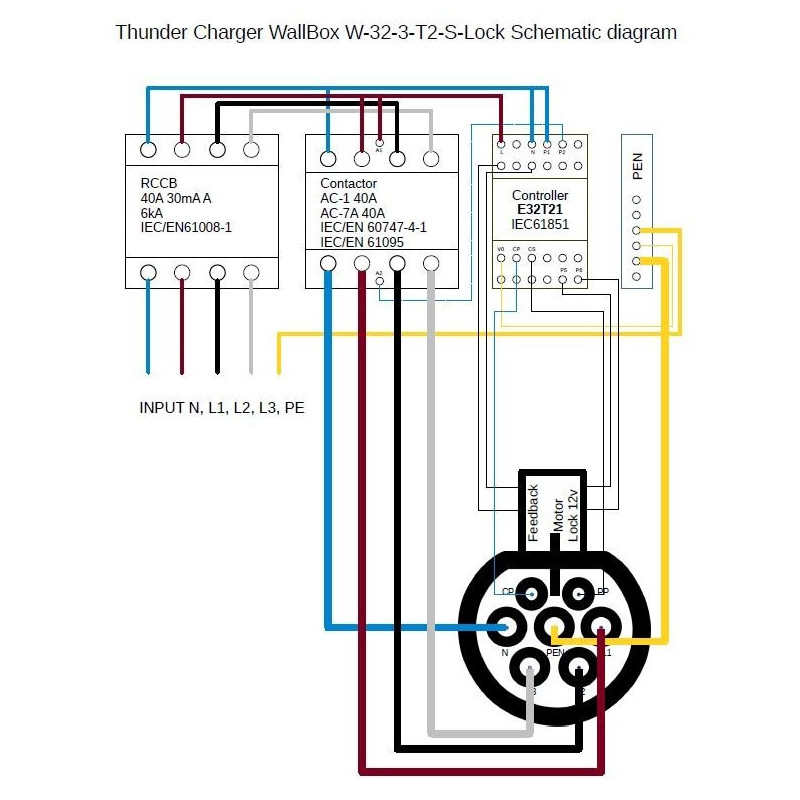

The station is equipped with ABB, Schneider, Hager components and a controller made in Lithuania based on OpenEVSE. All safety measures necessary for safe charging of an electric car have been implemented (grounding check, electric car connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 10A-32A (4kW-22kW);

Charging socket - Type2 charging cable

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

Protection:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Ground fault detection
AC Leakage relay 40A 40mA
Operating temperature: -30 to + 50
Storage temperature: -40 to + 85

Additional functions are available if needed:

Type 2 rosette locking + 60 Eur

electricity consumption accounting module + 80 Eur

Charging activation Wi-Fi + 80 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 100 Eur

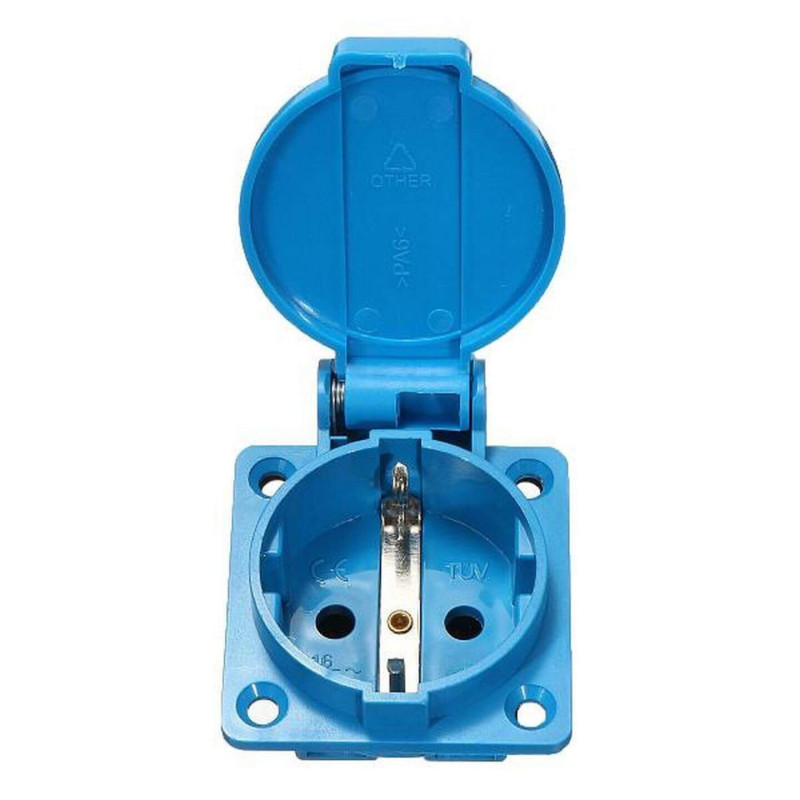

Additional 16A Schuko socket. + 40 Eur

Painting the charging station in green or dark gray (as shown in the photos) + 40 EUR.

Warranty 2 years.

Additional warranty extension possible +3m (additional 50 Eur)

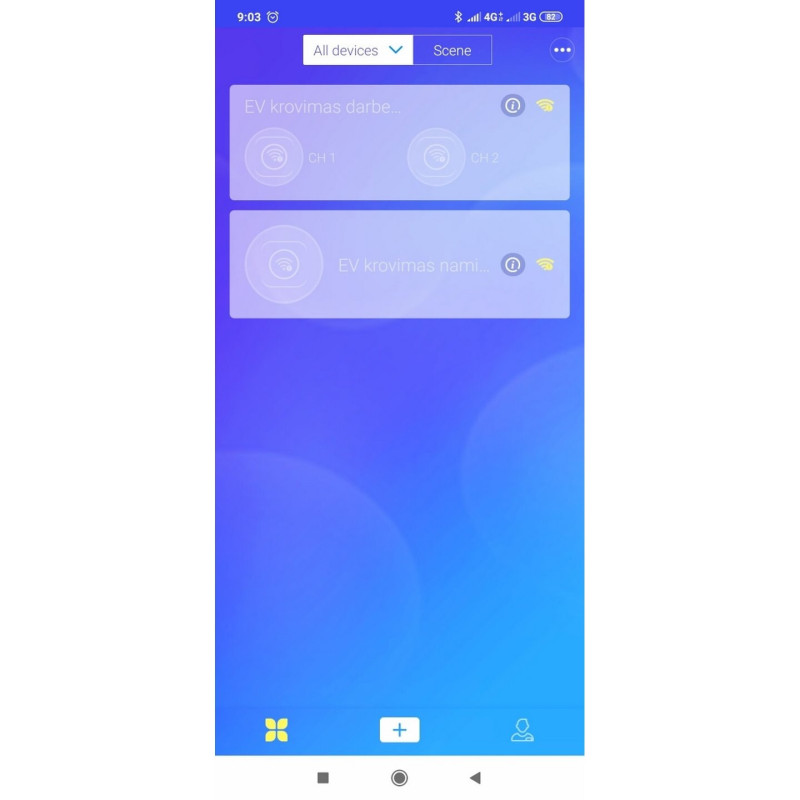

There is an option to connect the entire charging station management via the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), provide opportunities for other users to connect to the charging station or block charging of the charging station. The price of this app is + 200 Eur.

Type 2 - European standard used by Electric cars made in Europe , such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and the Volkswagen e-Golf for the European market or BMW i3 or others

OUR PRACTICAL ADVICE

If you have a single-phase charging electric vehicle or a Plug-in hybrid vehicle ( who accept up to 7kW during phase 1), It is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
