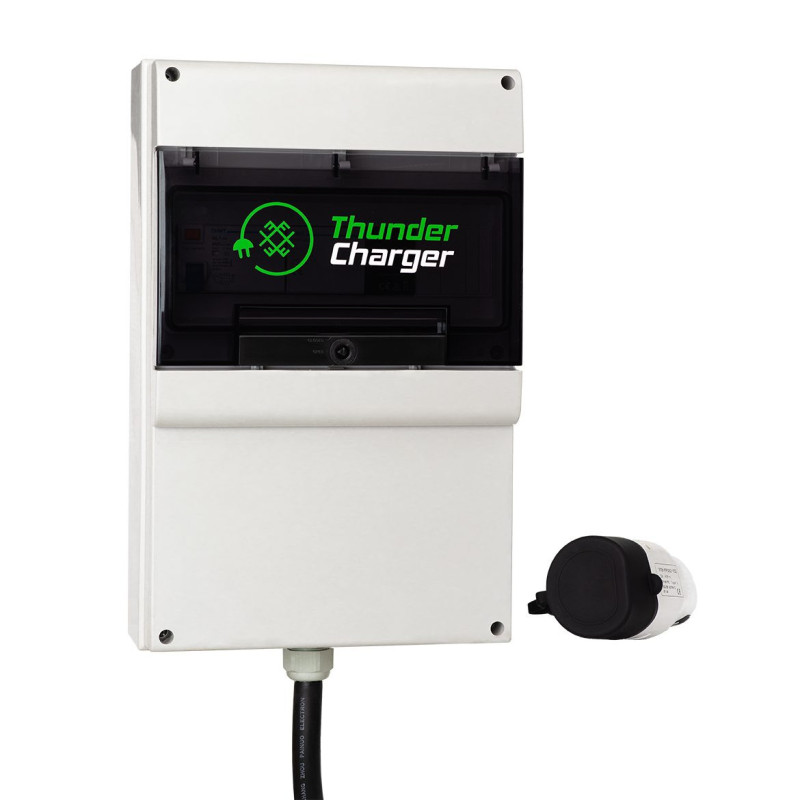

charging station with Type 1 cable 4.8m long, 7kW

Electric vehicle charging station

This charging station is suitable for all electric vehicles and plug-in hybrid vehicles.

The station is equipped with ABB, Schneider, Hager components and a controller based on OpenEVSE made in Lithuania. All safety measures necessary for safe charging of electric vehicles have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current from 6A to 32A every 2A (1.3kW - 7.2kW)

Charging socket - Type1;

Charging current - 10A-32A (4kW-7kW);

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Ground fault detection
AC leakage relay 40A 40mA
Operating temperature: from -30 to + 50
Storage temperature: from -40 to + 85

Additional functions are available upon request:

Type 2 socket locking + 80 Eur

electricity consumption metering module + 100 Eur

Charging activation Wi-Fi + 120 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 120 Eur

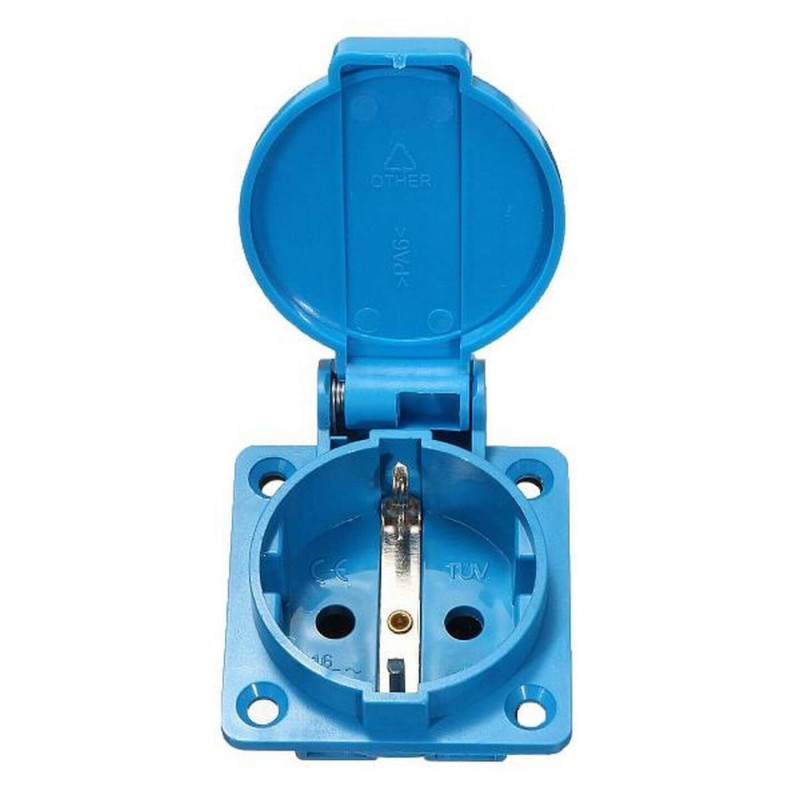

Additional 16A Schuko socket. + 60 Eur

Warranty 2 years.

Additional warranty can be extended +3m (additional 50 Eur)

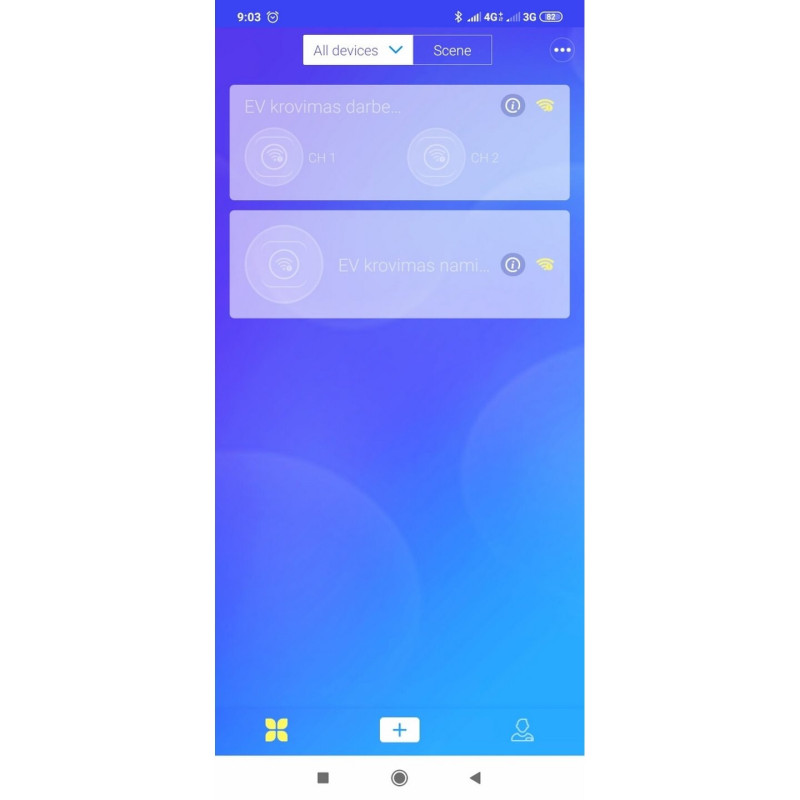

There is an option to connect the entire charging station to the app (which works via Wi-Fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), provide opportunities for other users to connect to the charging station or block charging from the charging station. The price of this program is + 200 Eur.

Type 2 - European standard used by European-made electric vehicles , such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-market Volkswagen e-Golf or BMW i3 or others
