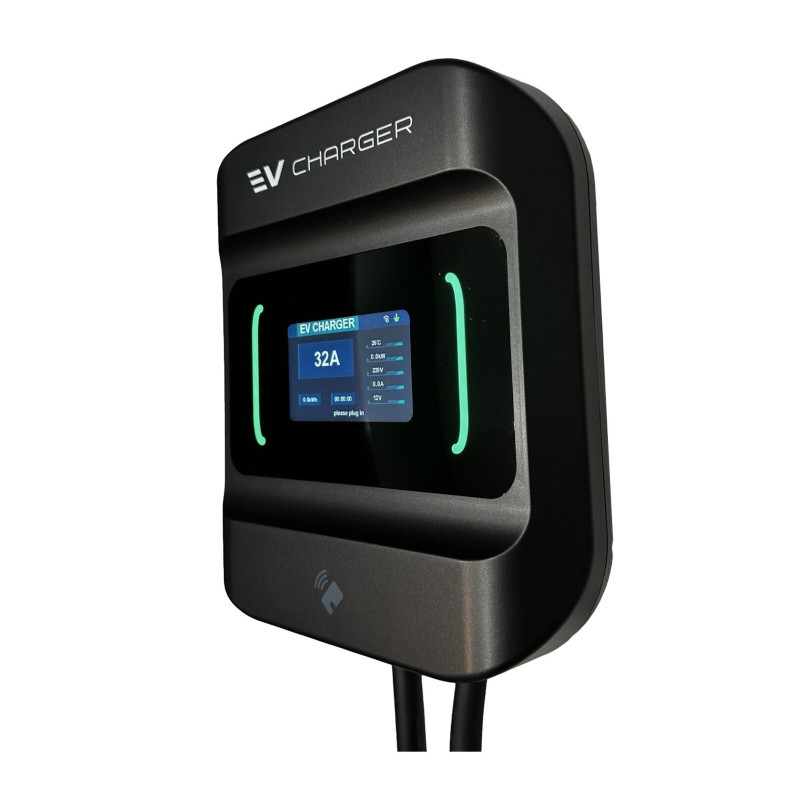

Charging station VCS-MB 22kW without app
Product reference:
32-2326565203224
Technical information - click on the pdf logo
Charging station VCS-MB 22kW without app
Product reference:
32-2326565203224
Technical information - click on the pdf logo
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days
Rated power 22 kW
Cable routing
Dimensions 290x180x95 mm
Input frequency 50/60 Hz
Output voltage 200-240V
Output current 32A
Charging cable length 5m
Protections against overcurrent, overvoltage, against low voltage
Over-temperature protection value
Electric leakage protection value
PEN protection
Operating temperature -35°C~50°C
Operating humidity -5%~95% non-condensing
Protection level IP54
Cooling model Natural cooling
MTBF 50,000 hours
| Height | 150 mm |
| Power | 22 kW |
| Length | 200 mm |
| Cable shape | Straight |
| Cable length | 5 m |

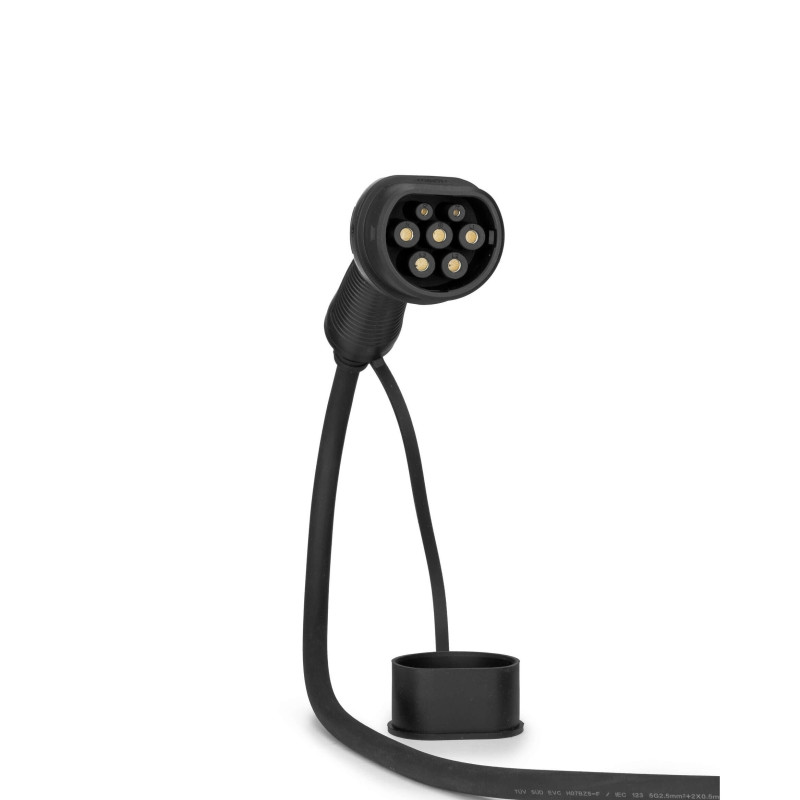

| Cable type | type 2 |
| Width | 200 mm |
| With cable | Yes |
| Weight | 4000 g |
