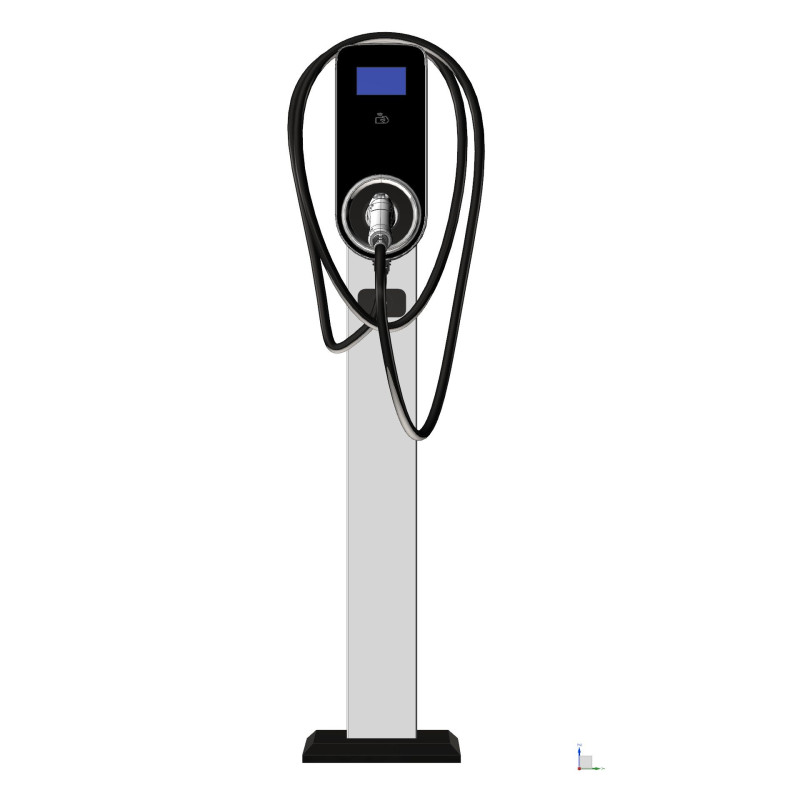

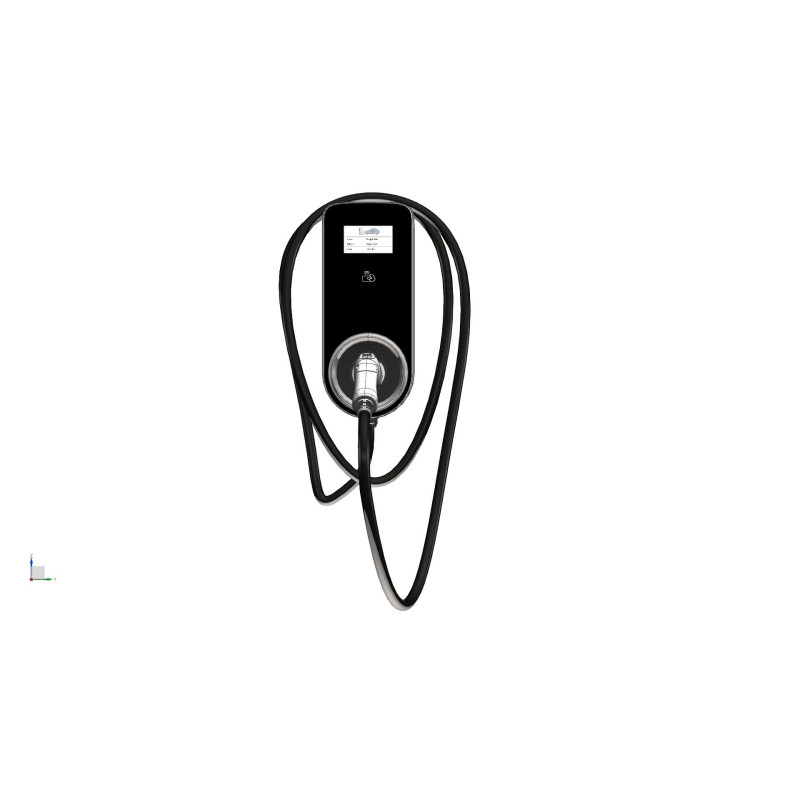

Charging station FSEV32 11kW (without cable)

Name/Model JSAC23032A-E
Input single phase 32/VAC230V±20%
Input frequency 50Hz
Single-phase output 32/VAC230V±20%
Maximum power 11KW
Input cable 3*10mm2
Connector IEC62196 250V32A

Electricity
index
Voltage accuracy <1% (Load current: 0%-100%)
Current accuracy <1% (rated output current: 20%-100%)
Current harmonics <5% (load 50%-100%)
Efficiency > 96%
Power factor > 0 99 fLoad 50%-100%)
Output ripple
<±0.5% (Load current variation:! 0%-100%, Output power variation:85%-115%)

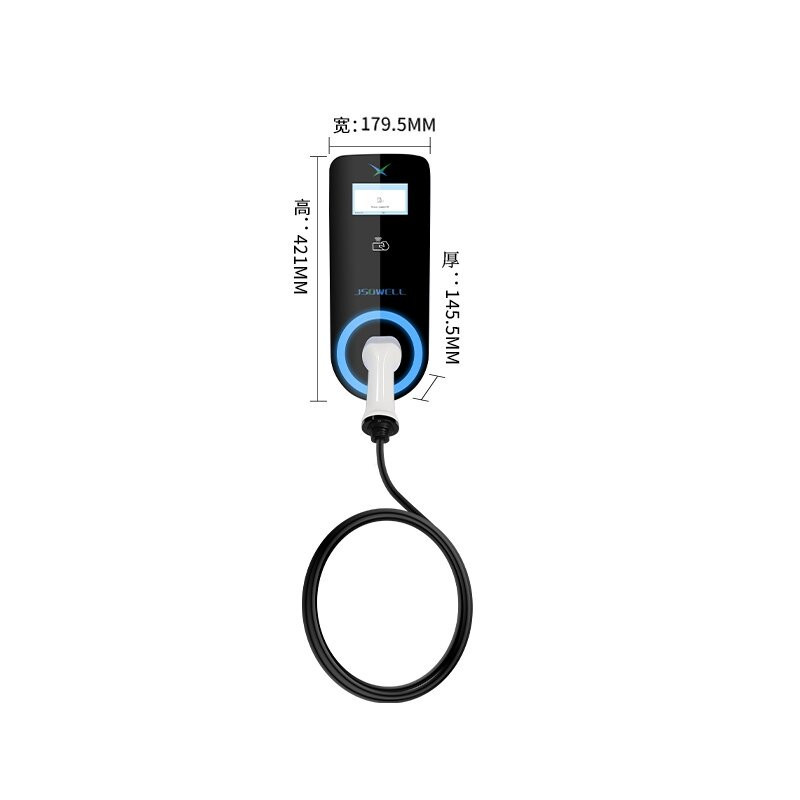

Overall dimension (mm) H179 5*W145 5*D421
Weight (KG) About 6-7KG
Housing material/color PC+ABS Flame retardant and fire resistant, UL-94 VOAA/hite
Cable length 5 m / 1 Ohm (optional)

Interface No display / 4.3 inch LCD color display (optional), LED indicator light
Installation mode Wall hanging/stacking (optional)
Routing mode Lower incoming line (L,N,PE), weapon line (L,N,PE,CP,PP)

Control mode
Plug and play^ Charge by swiping the card, 4G network, Ethernet network: Optional
Charging mode Auto filk Constant power、Fixed amount Fixed time: Optional
Payment method Card payment, Online payment: Optional
Connection mode 4G / Ethernet (optional)
Measurement accuracy 0.5 level

Security

)connection connection moc DIN70121/ISO15118
Communication protocol OCPP1 6J
Charging interface type IEC 62196-2, TYPE2
Communication standard IEC 61851

Security function
Overvoltage protection, Undervoltage protection, Overload protection, Short circuit protection
protection、Grounding protection、Overheating protection Low temperature
protection, insulation monitoring and protection, reverse polarity protection,
Lightning protection, emergency stop protection, leakage protection

Use environment outdoor/indoor
Ambient temperature (°C) -30°c~50°c
Storage temperature (°C) -40。。〜80。。No corrosive gases
Operating humidity 5% ~ 95% No frost
Operating altitude Less than: 2000 m

Three protections against moisture/mildew/salt fog protection
Protection level IP55
Cooling mode Forced air cooling
Noise control <65dB
Safety index Insulation resistance greater than: 1 OmQ、Withstand voltage: 1500V1min
MTBF 30,000H
