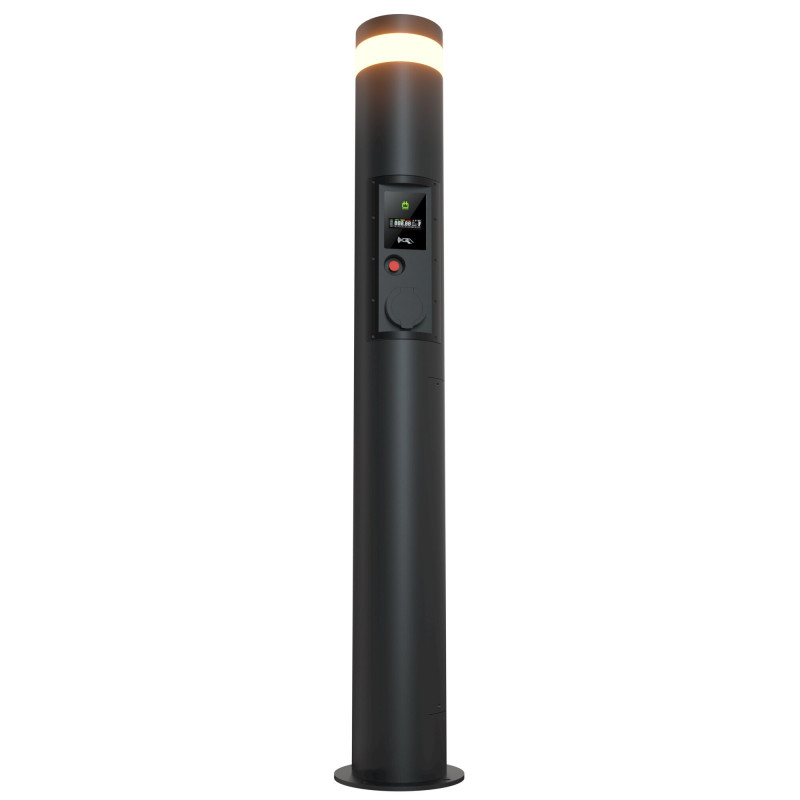

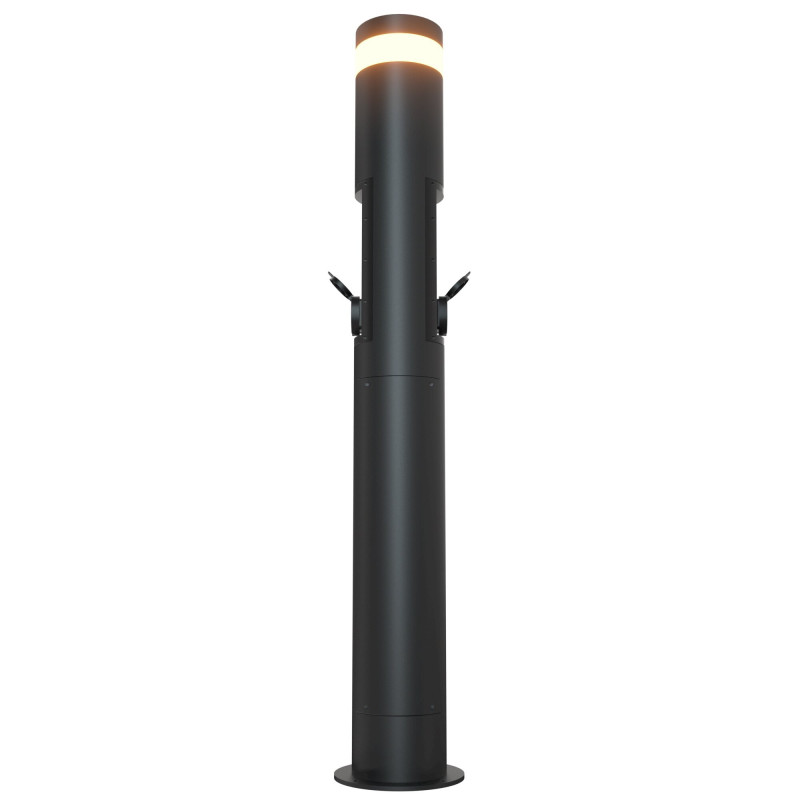

Charging station EcoPillar 2x22kW with OCPP protocol, Wi-fi control

Specification (charging station):

charging station EcoPillar 2x22kW, 2 pcs type 2 plug sockets, with OCPP protocol, Wi-fi control (X Smart b EVSE app).

The station is intended for commercial activities and is proposed to be used together with the partner's "Stuart" app to collect money from users who come to charge their car.

TECHNICAL DATA
Net weight 17.5 kg
Operating temperature -30°C to +50°C

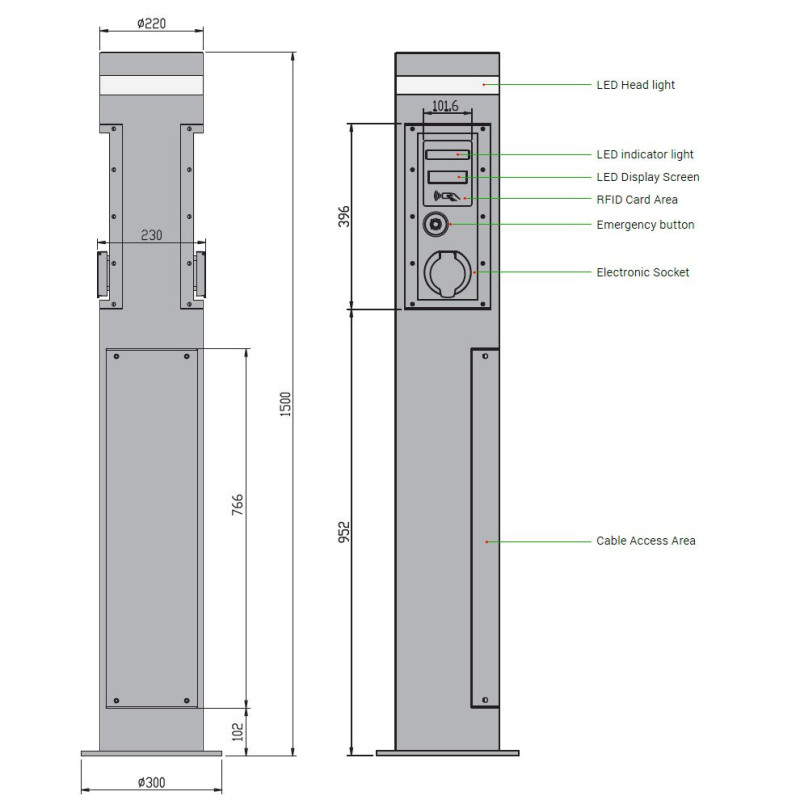

Size: height and width: 1.5m x 0.22m

The charging station is intended for receiving state support under the state support for individuals and legal entities.

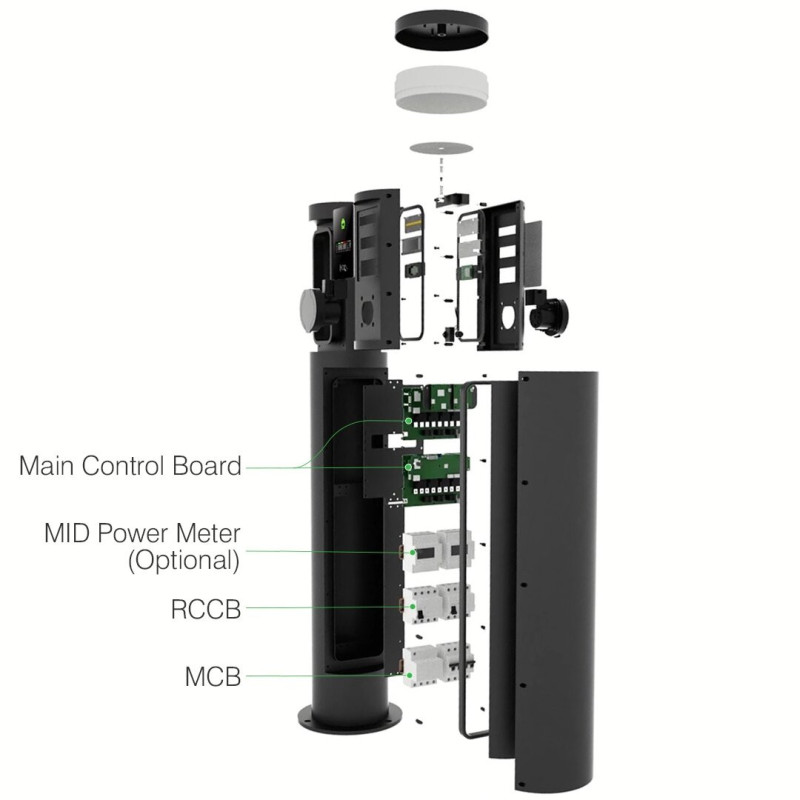

includes a MID power meter and a 4G module

Charging power 2x 22 kW

IP class IP65
Activation via X Smart b EVSE app
Connector type Type 2
Wireless connectivity Wi-Fi, Bluetooth, 4G
Charging protocol OCPP 1.6

Ethernet (RJ45)

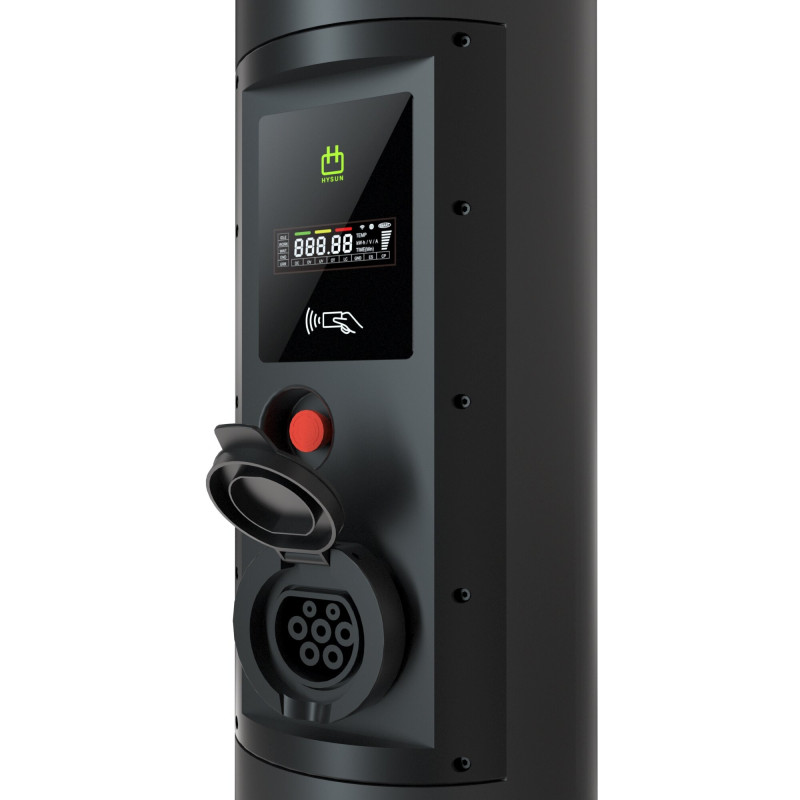

IPSS type 2 socket

4G/LTE (CAT1), 3G, 2G (optional) Yes IK10

RFID card reader

there is an option, a function to pay for charging by card

adjustable power from 8A- 32A (charging power from 7kW to 22kW)

aluminum housing covered with a special anti-corrosion coating

the product is provided with a 24-month warranty

Protections:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance

certificates:

CE & UKCA compliant

2014/53/EU

2011/65/EU
IEC/EN 61851-1, 61851-21
