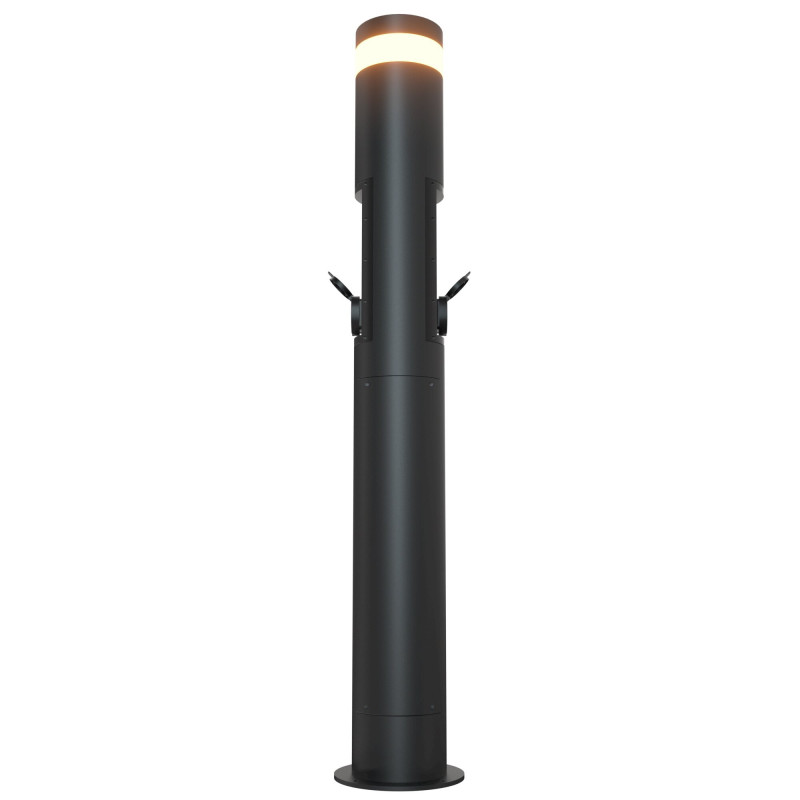

Charging station EcoPillar 2x22kW with OCPP protocol, Wi-fi control

Specification (charging station):

charging station EcoPillar 2x22kW, 2 pcs type 2 plug sockets, with OCPP protocol, Wi-fi control (app X Smart b EVSE).

The station is intended for commercial activities and is proposed to be used in conjunction with the partner's "Stuart" app to collect money from users who arrive and want to charge their car.

TECHNICAL DATA
Net weight 17.5 kg
Operating temperature -30°C to +50°C

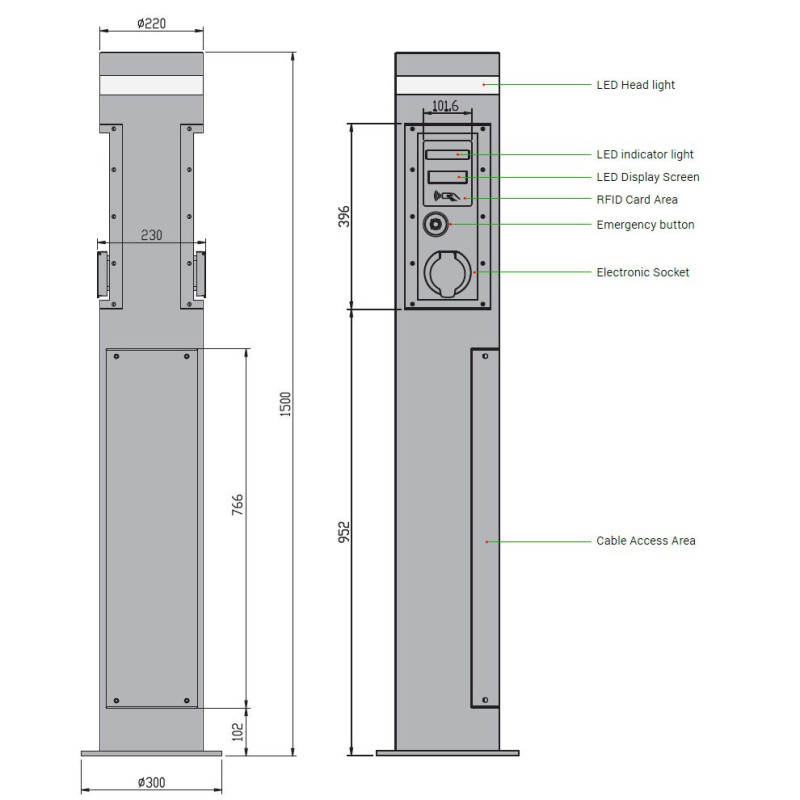

size: height and width: 1,5m x 0,22m

The charging station is intended to receive state support under the state support for natural and legal persons.

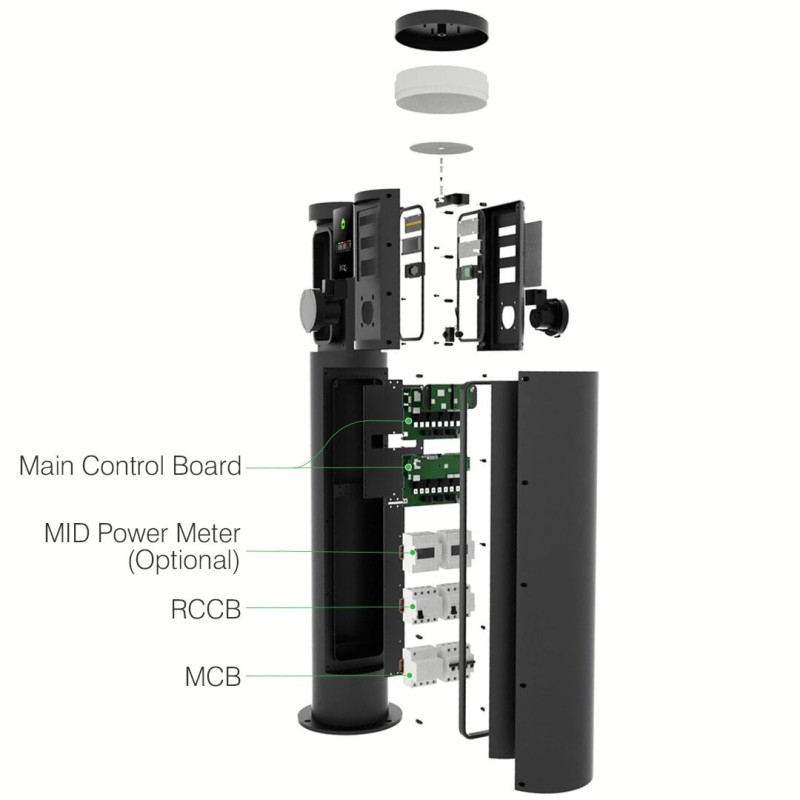

The package includes a medium power meter (MID power meter) and a 4G module

Charging power 2x 22 kW

IP class IP65
Activation via app X Smart b EVSE
Connection type Type 2
Wireless connectivity Wi-Fi, Bluetooth, 4G
Charging protocol OCPP 1.6

Ethernet (RJ45)

IPSS socket type 2

4G/LTE (CAT1), 3G, 2G (optional) Yes IK10

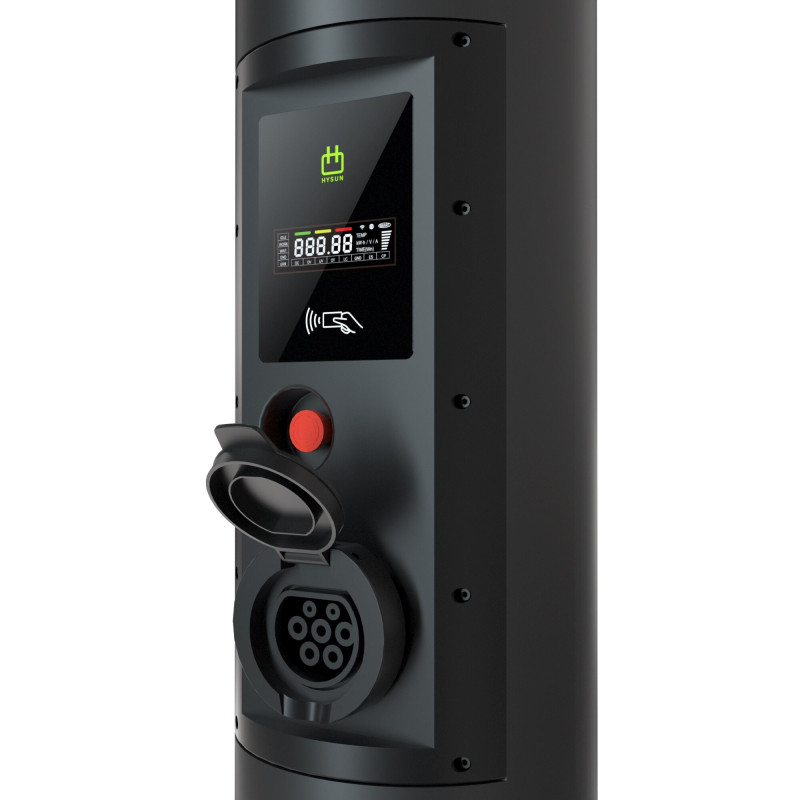

RFID card reader

there is an option, a function to pay for charging by card

adjustable power from 8A- 32A (charging power from 7kW to 22kW)

aluminum body covered with a special anti-corrosion coating

The product comes with a 24-month warranty.

Protection:

Output voltage and current monitoring
Temperature monitoring
Input voltage monitoring
Integrated RCD (30 mA AC / 6 mA DC)
Standard: IEC62752:2016
Earth fault detection
Shock resistance

certificates:

CE UKCA compliant

2014/53/EU

2011/65/EU
IEC/EN 61851-1, 61851-21
