Charging station CityCharge-Mini2-Plus-3
Product reference:
32-6598595023045
Technical characteristics of the station
Charging station CityCharge-Mini2-Plus-3
Product reference:
32-6598595023045
Technical characteristics of the station
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

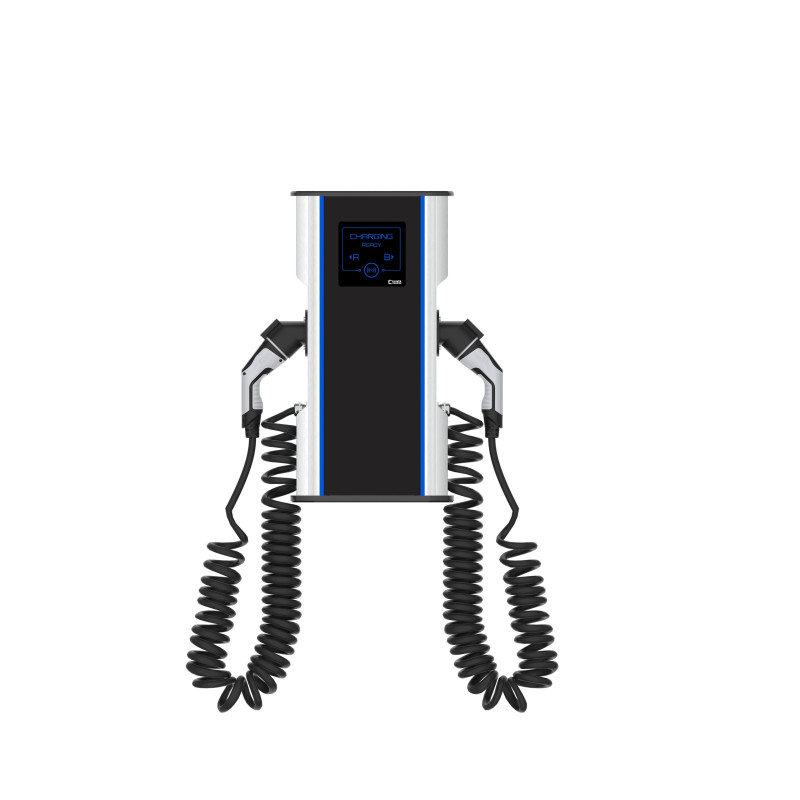

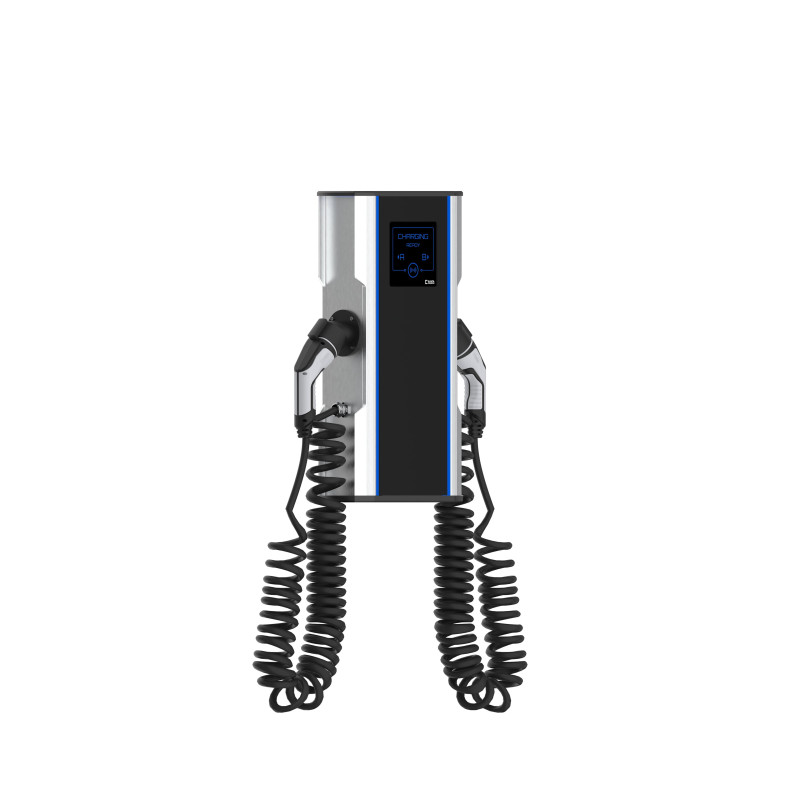

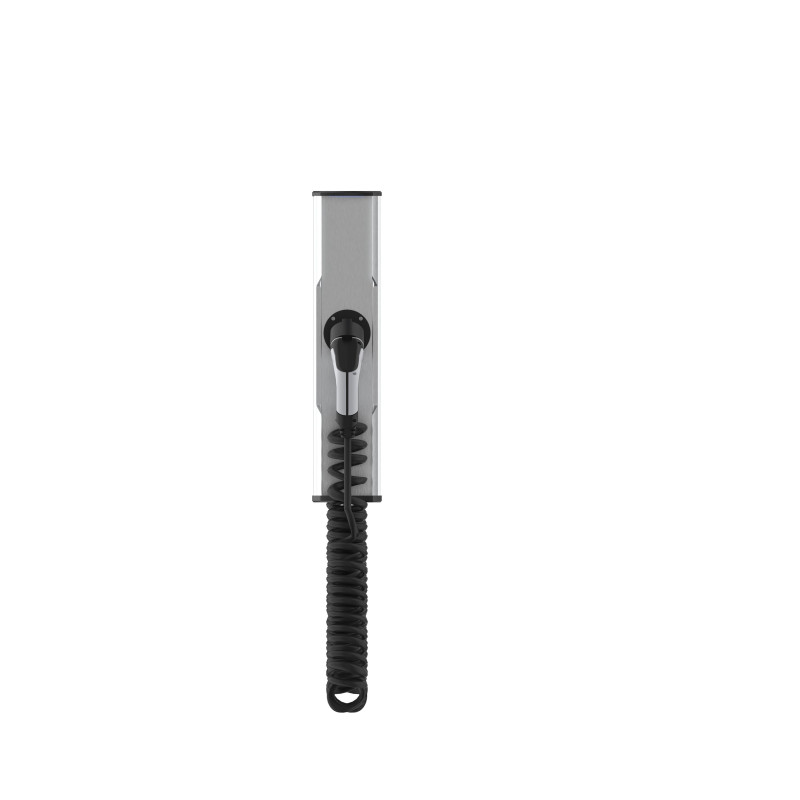

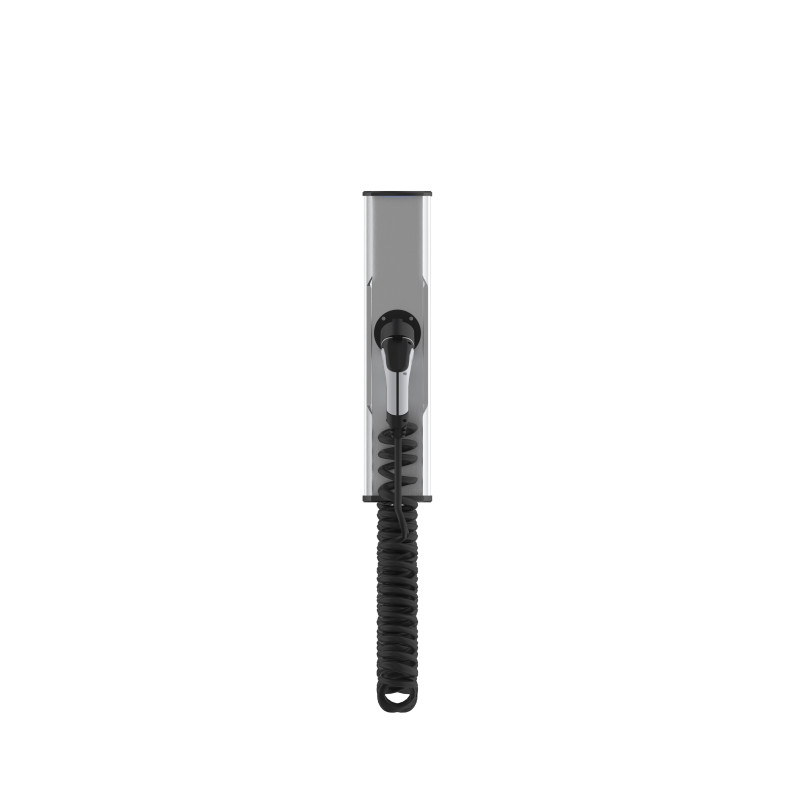

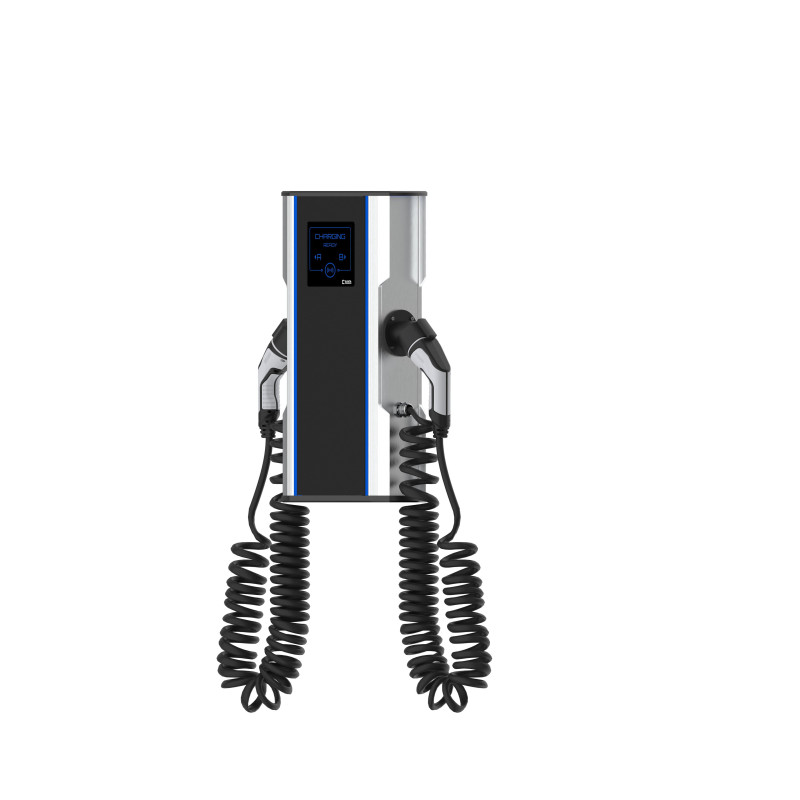

CityCharge Mini2 Plus up to 2x22 kW with integrated 4 m cables + LAN + RFID + 3 pcs. RFID tags + AC/DC leakage current detection (RCM) + MID
2 charging cables Type 2, up to 2 x 22 kW
Wall mountable
Bright LED backlight display
Robust aluminum housing
Integrated smart energy metering (MID)
RFID identification
Power distribution-balancing system
4G / Ethernet / OCPP
Elios.cloud online administration
We can additionally install the following into the stations:
external dynamic power balancing system (DLM) with smart energy meter (MID) - 470 Eur incl. VAT
bank card reader (for payment for charging by card) - 540 Eur incl. VAT
4G modem + SIM card (during the warranty period) - for receiving an internet connection, if there is no way to bring an internet cable - 190 Eur incl. VAT
230V/AC sockets (2 pcs) without additional energy metering - 170 Eur incl. VAT
THE CHARGING STATION CAN BE USED FOR:
Public charging station for electric vehicles
In public parking lots
In underground garages
Near office buildings
Near shopping centers
| Height | 1800 mm |
| Power | 44 kW |
| Length | 700 mm |
| Cable shape | Spiral |
| Cable length | 3 m |
| Cable type | type 2 |
| Width | 400 mm |
| With cable | Yes |
| Weight | 20000 g |
