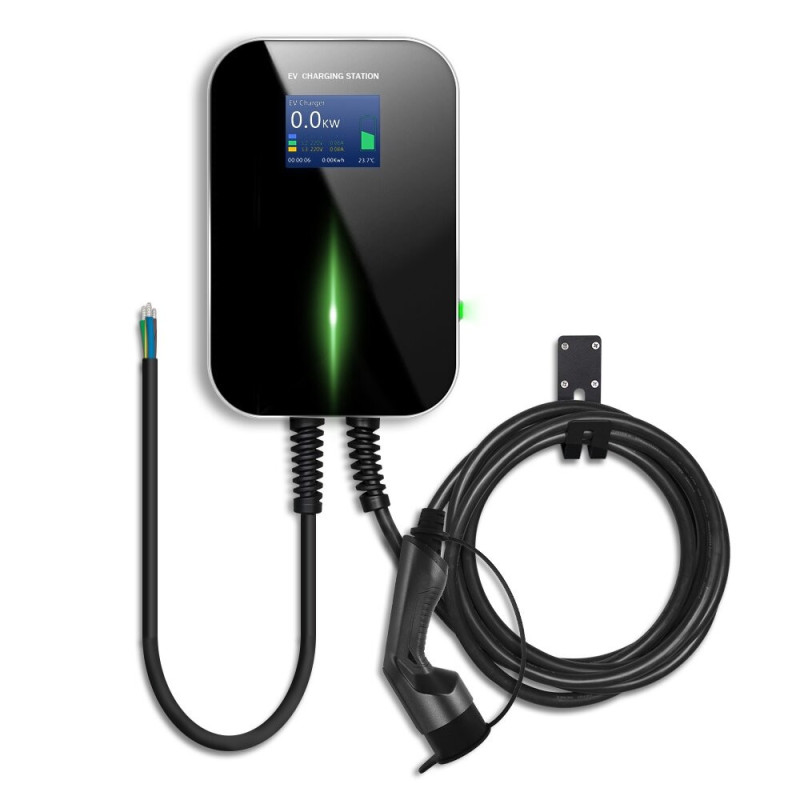

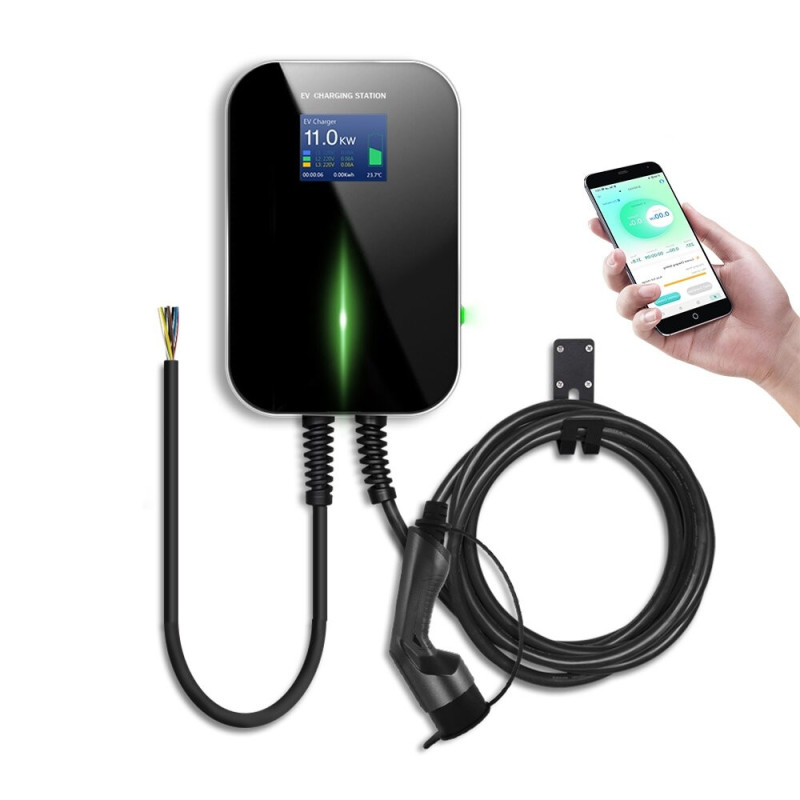

Charging station BS20-BC-11kW with app, type 2 cable 5m long

Charging station charging station BS20-BC-11kW with app, type 2 cable 5m long.

This stop is eligible for state support.

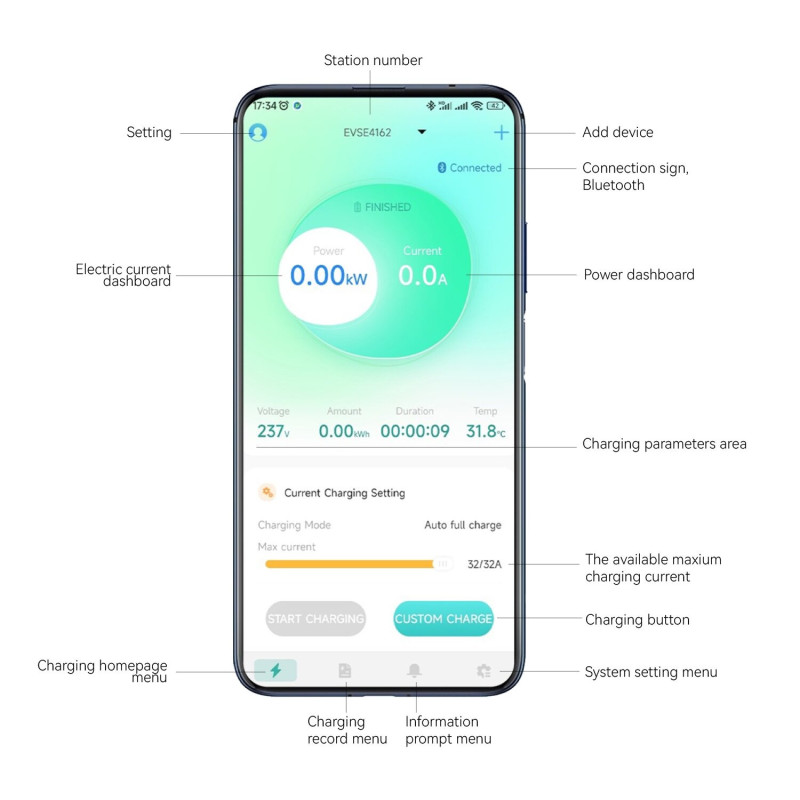

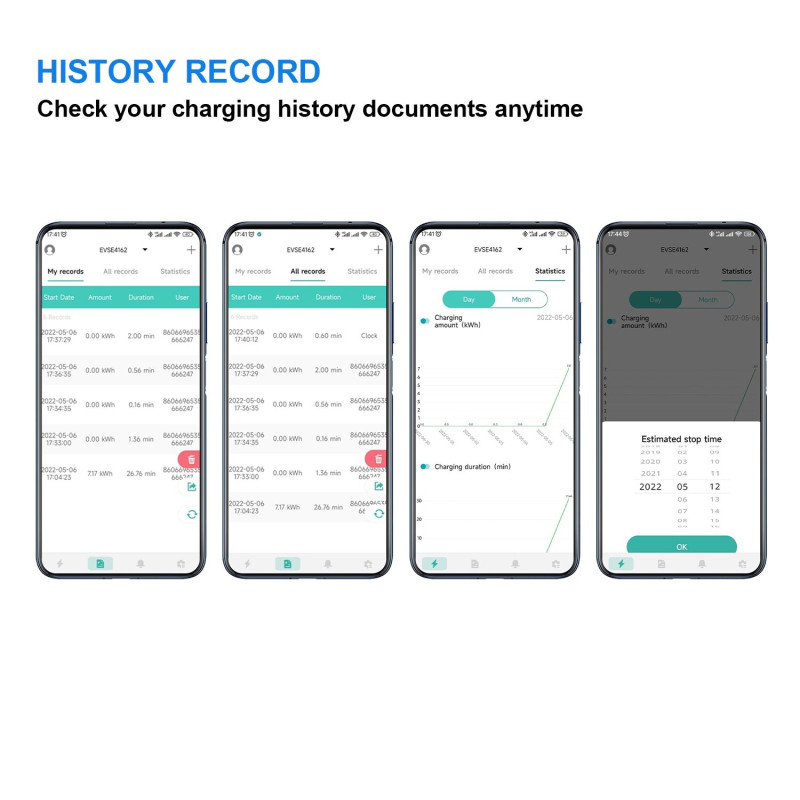

Through the app, you can control charging functions, such as duration, power and other settings, and see consumption history.

The station is controlled via an app by connecting to Wifi or Bluetooth

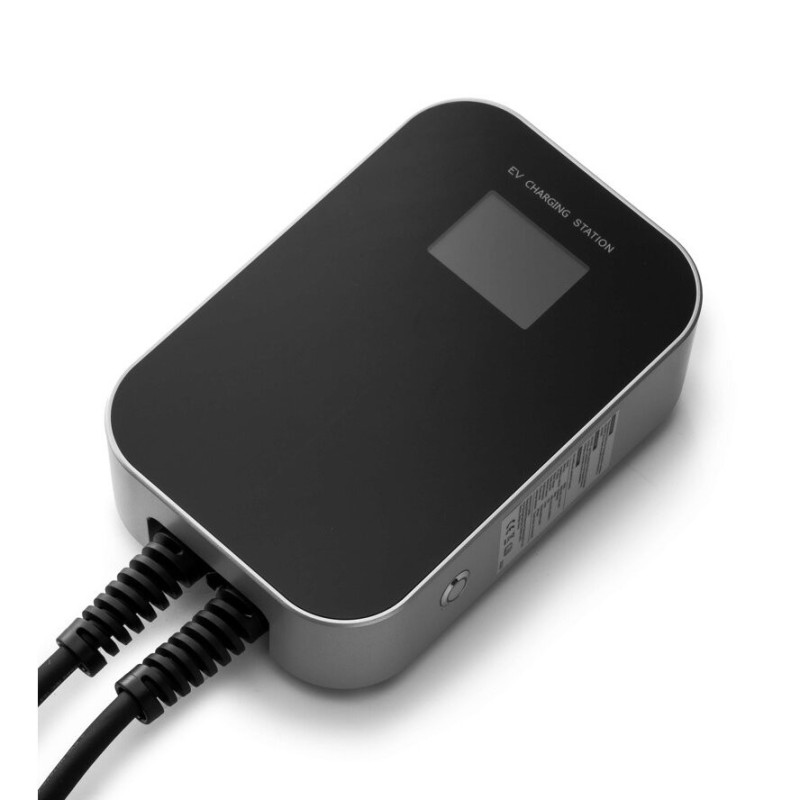

Body material: ABS+PC Plastic body

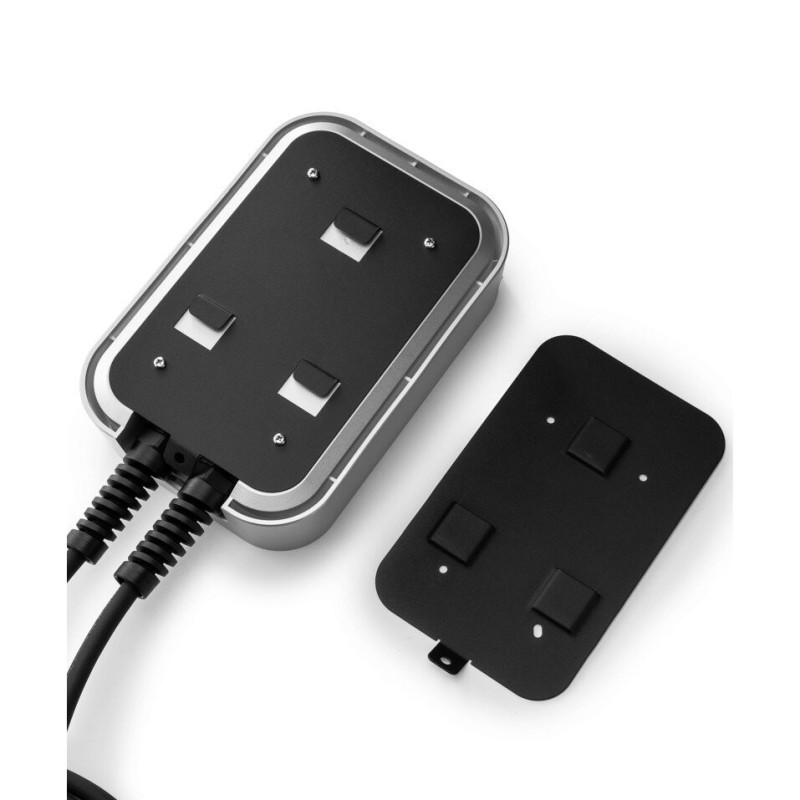

The power cord is connected from the bottom of the station

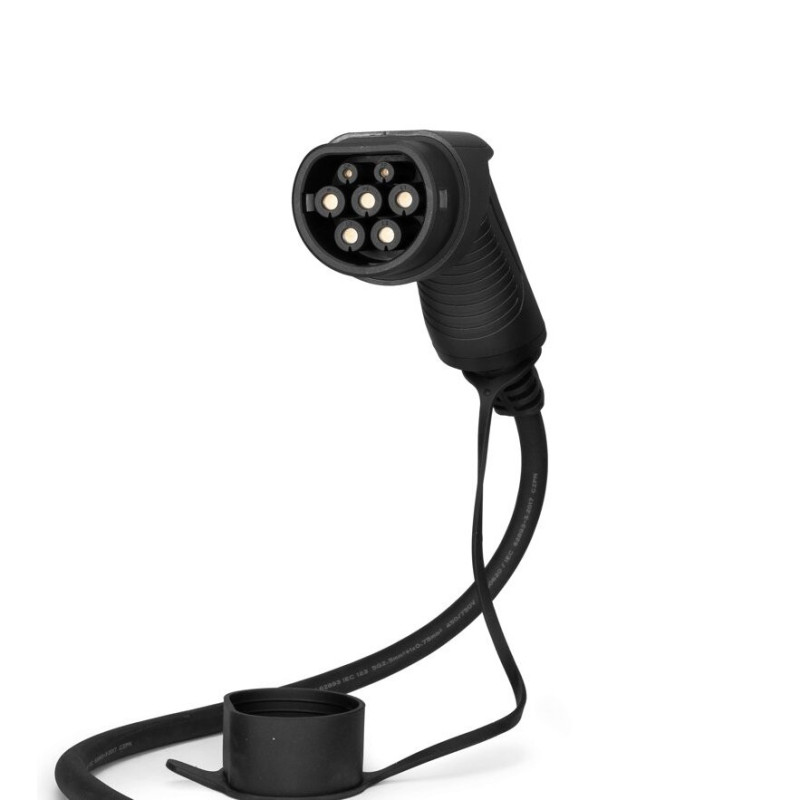

Charging interface Charging connector

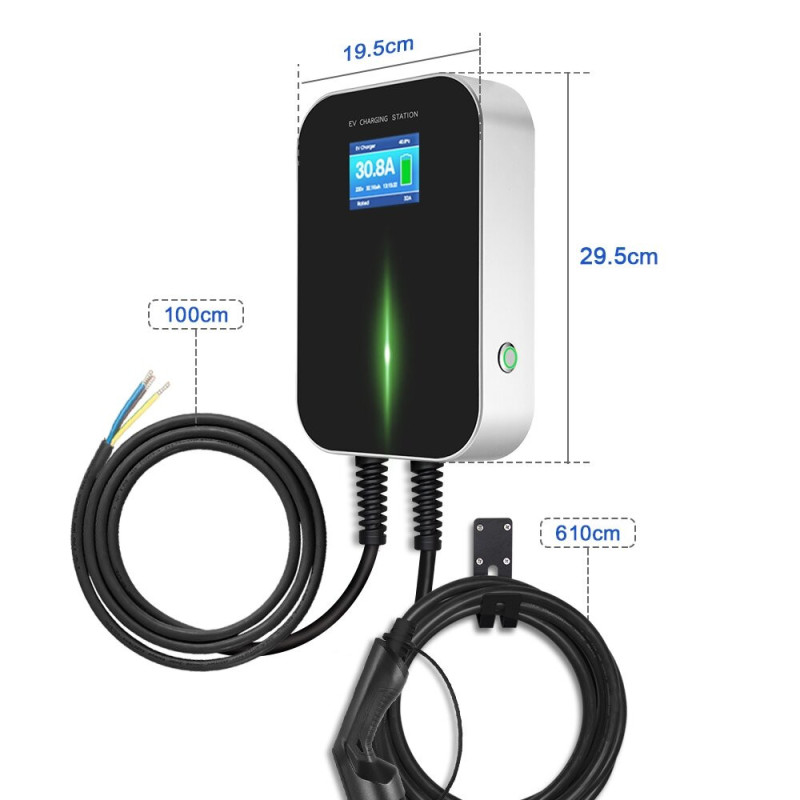

charging station dimensions 186*354*111mm

Weight 5 kg

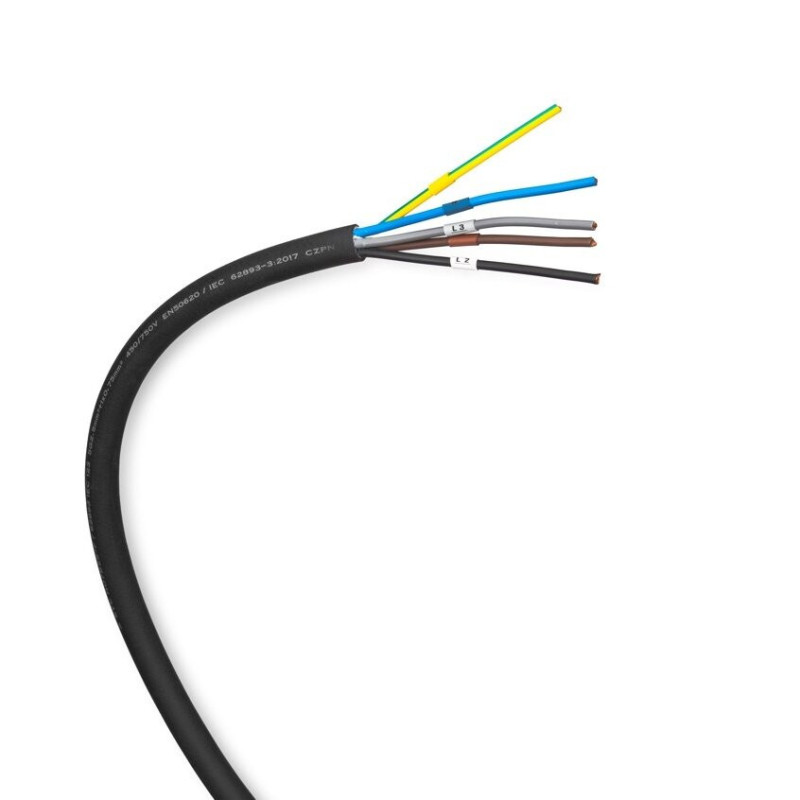

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 16A, 3 phases

Frequency 47Hz /63Hz

Maximum power 11KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V alternating

Output current 16A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+50

Operating humidity 5%～95%

Height ＜2000m

IP rating IP66

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

LED light bulb Yes
