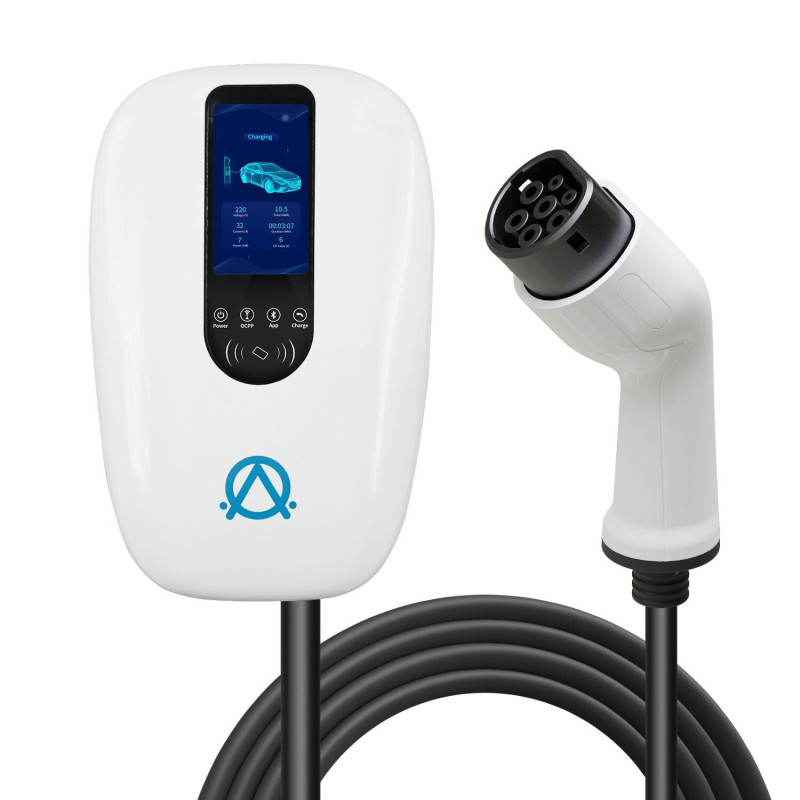

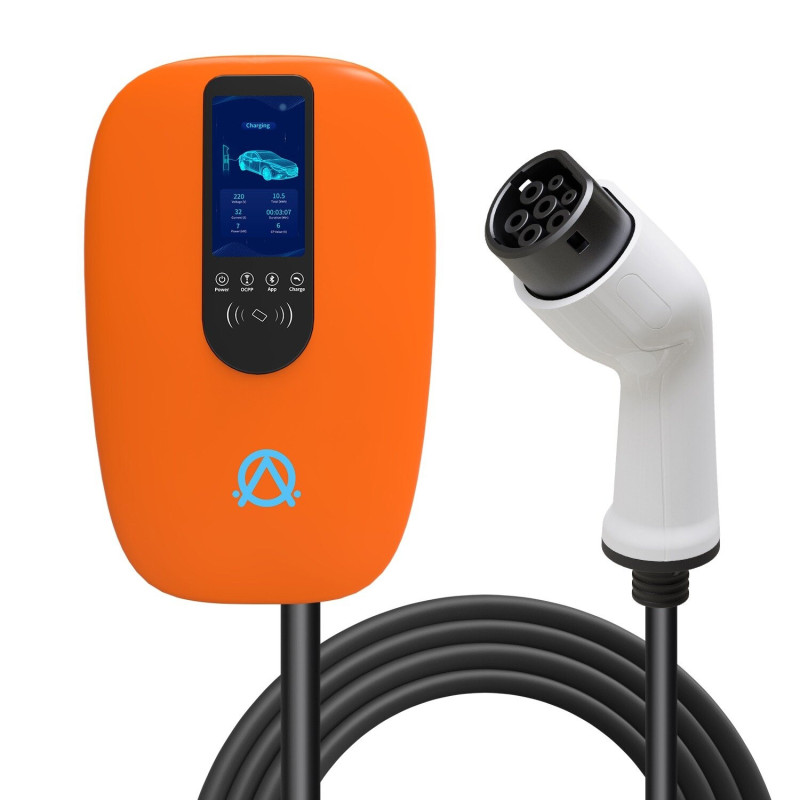

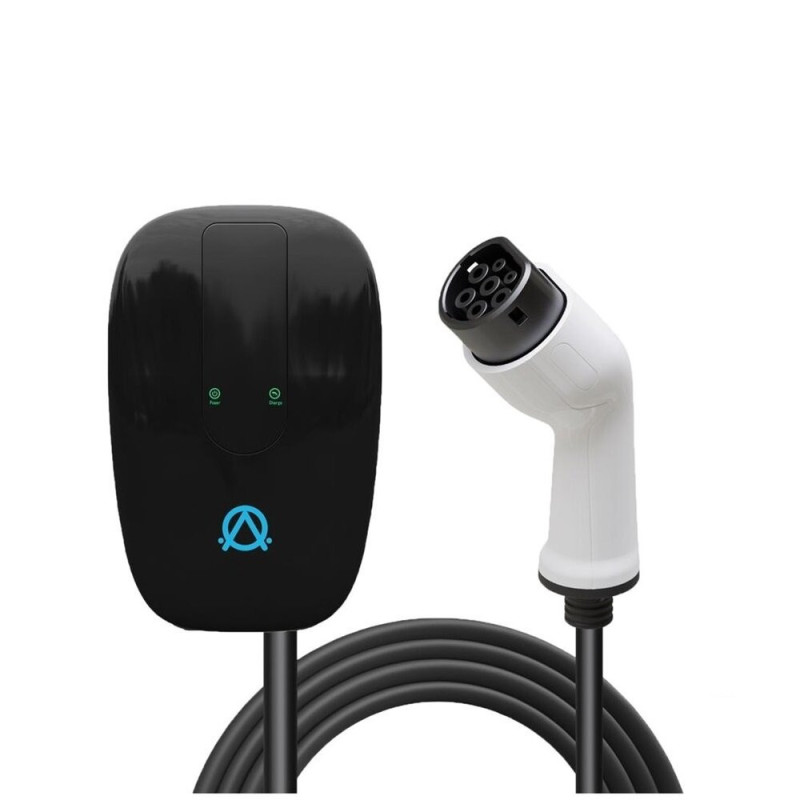

Charging station Aurora 7 kW

Aurora 7kW charging station - technical specifications

The station is controlled with an app

Main features:

Maximum power: 7 kW (32 A, 1 phase)

Charging mode: Mode 3 (according to IEC 61851-1)

Input voltage: 220 V AC ±10 %, 50/60 Hz

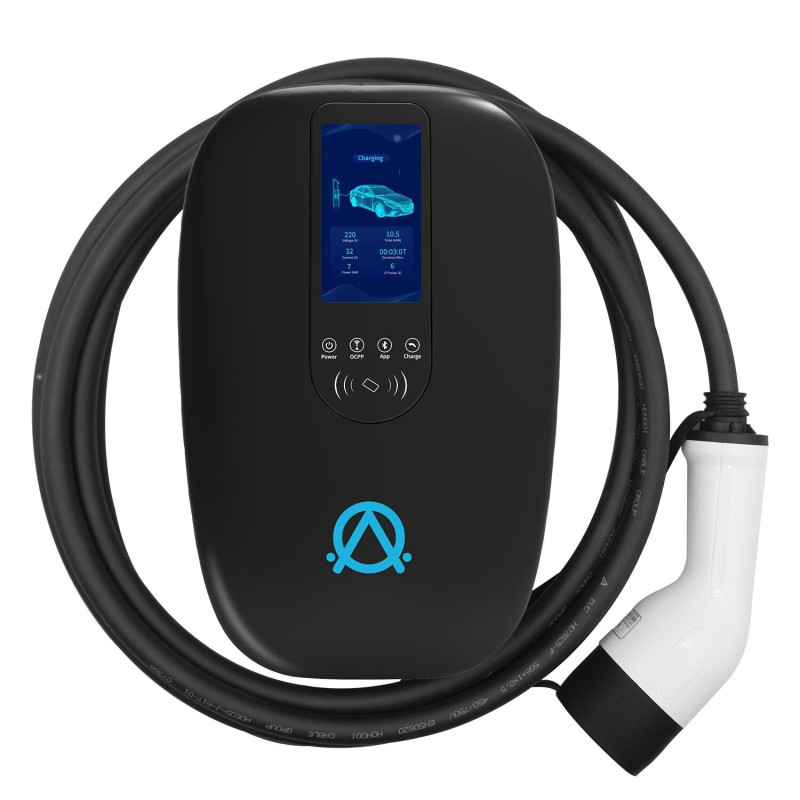

Cable length: 5 meters (integrated Type 2 cable)

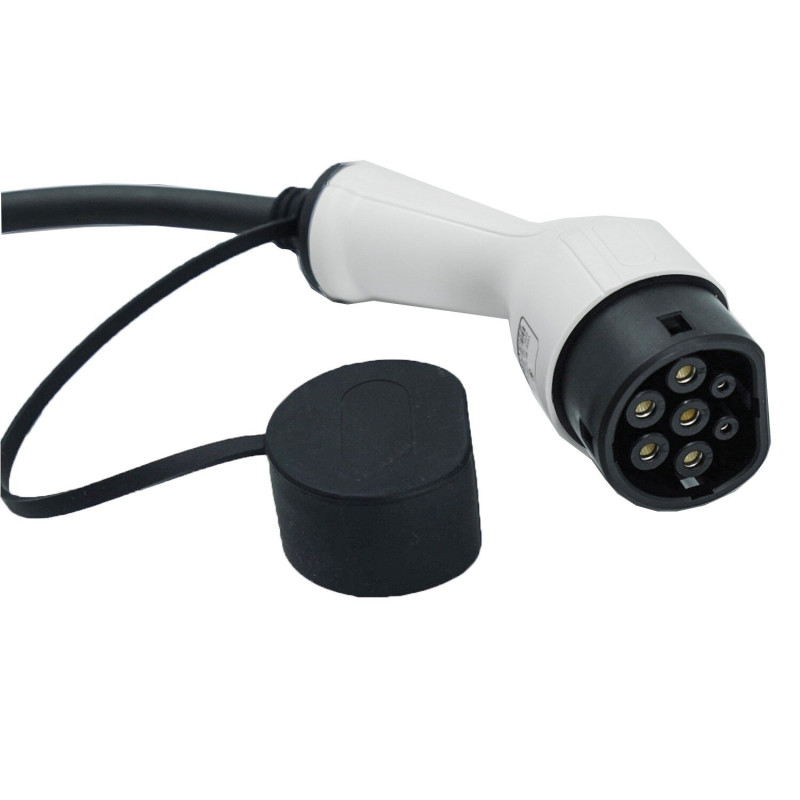

Charging interface: IEC 62196-2 Type 2 (both with integrated cable and with socket)

Protection class: IP54 (with socket) / IP55 (with cable), impact resistance IK10

Operating temperature: -30 °C to +50 °C

Dimensions: 282 x 409 x 148 mm

Weight: approx. 7.5 kg (with cable)
Communications and protocols:

Network interfaces: 4G, Wi-Fi, Ethernet, RS485

Protocols:

EVSE & Backend: OCPP 1.6J

EVSE & EV: ISO 15118 (optional)

RFID reader: ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693

Safety features:

Integrated RCD: DC 6 mA + Type A AC 30 mA

Protections: overcurrent, overvoltage, earth leakage, short circuit, overheating, antishock

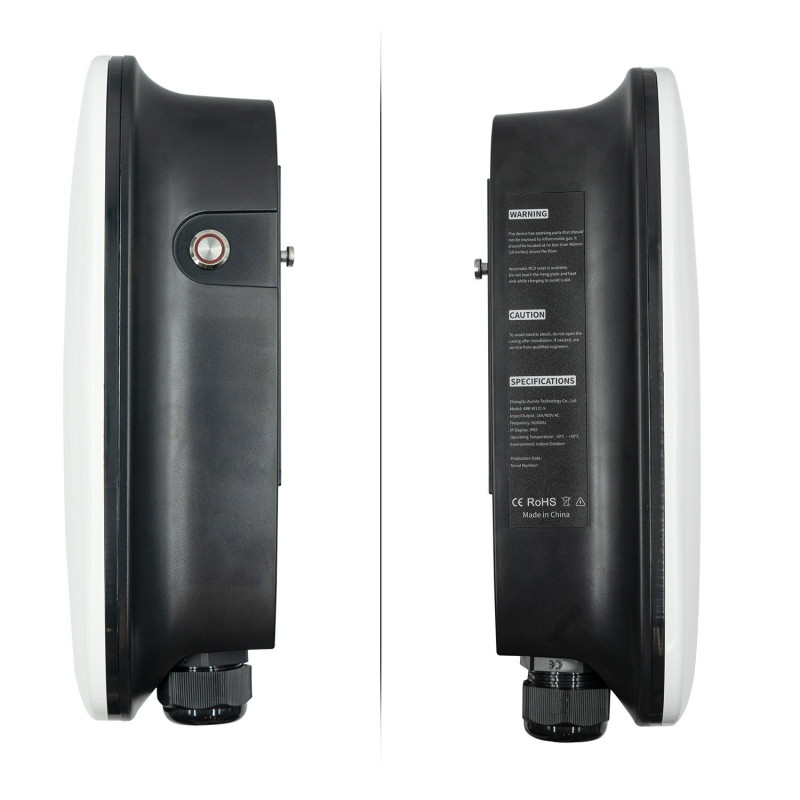

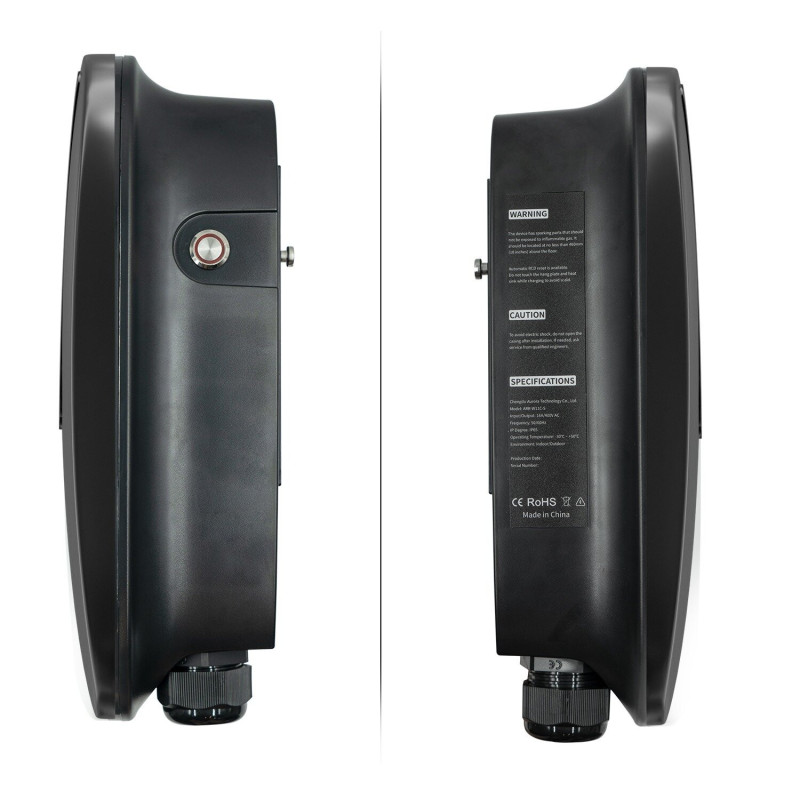

Emergency stop button: yes

User interface:
LED indicators: light ring to indicate charging status

Control: via RFID card, app or credit card (optional)

Display: color LCD to show real-time charging data (optional)

Mounting:

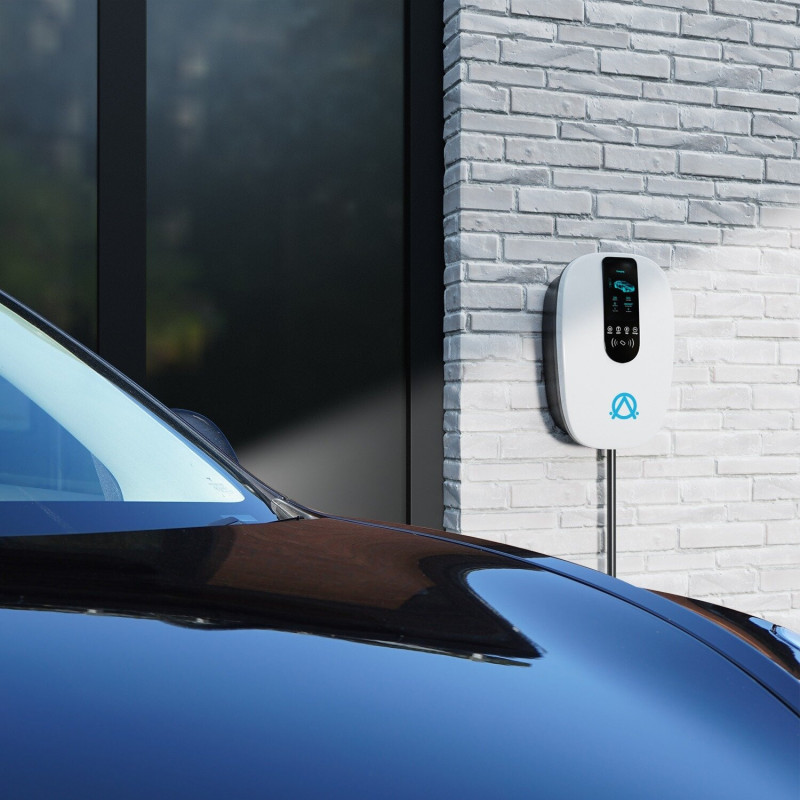

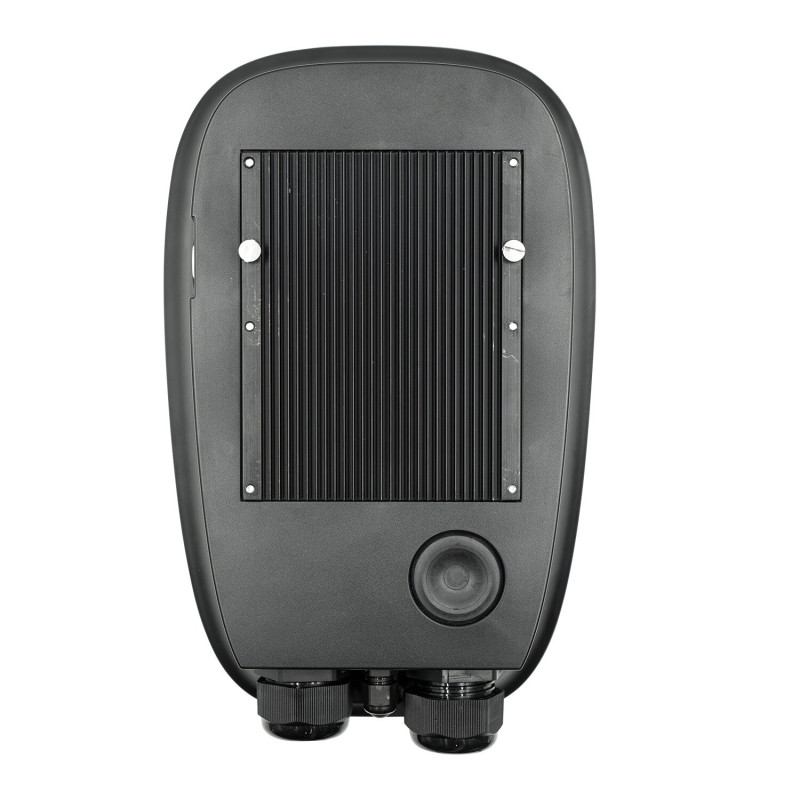

Mounting type: wall or pole (pole optional)

Certifications:
CE-RED, CB, UKCA, TR25, IMDA, WPC, SDPPI (in progress)

Compliant with standards: IEC 61851-1, IEC 61851-21-2, LVD 2014/35/EU, RED 2014/53/EU

This charging station features a modern design, extensive connectivity options and a high level of security, making it ideal for both home and commercial use. Thanks to its support for the OCPP 1.6J protocol, it can be easily integrated into various control systems.
