Charging station Aurora 11 kW

Aurora 11kW charging station - technical specifications

Main features:

Maximum power: 11 kW (16 A, 3 phases)

Charging mode: Mode 3 (according to IEC 61851-1)

Input voltage: 400 V AC ±10%, 50/60 Hz

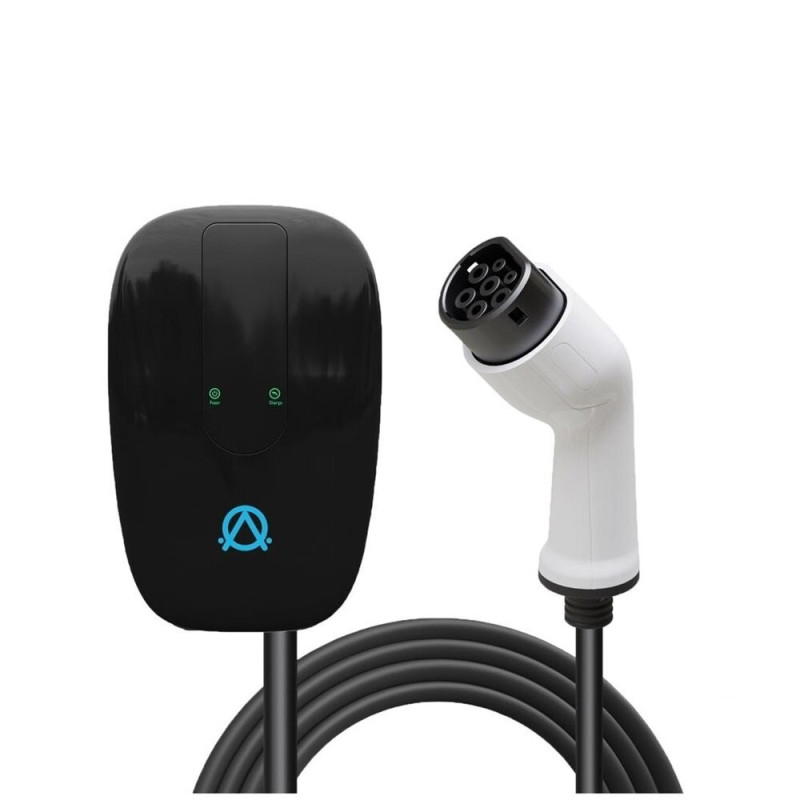

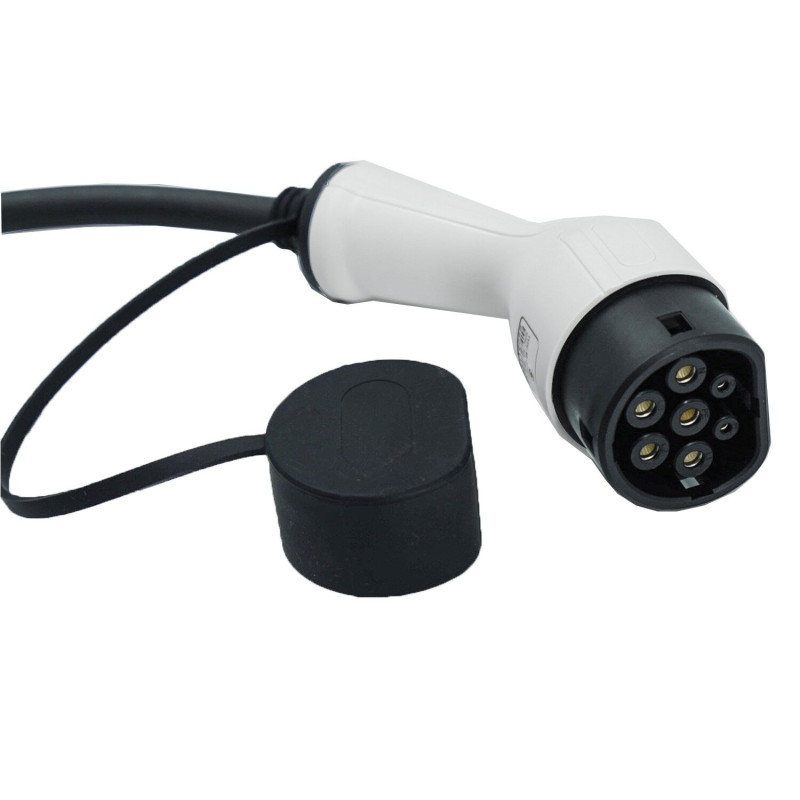

Cable length: 5 meters (integrated Type 2 cable)

Charging interface: IEC 62196-2 Type 2 (both with integrated cable and socket)

Protection class: IP54 (with socket) / IP55 (with cable), impact resistance IK10

Operating temperature: -30 °C to +50 °C

Dimensions: 282 x 409 x 148 mm

Weight: about 7.5 kg (with cable)
Communications and protocols:

Network interfaces: 4G, Wi-Fi, Ethernet, RS485

Protocols:

EVSE Backend: OCPP 1.6J

EVSE EV: ISO 15118 (optional)

RFID reader: ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693

Security features:

Integrated RCD: DC 6 mA + Type A AC 30 mA

Protections: overcurrent, overvoltage, earth leakage, short circuit, overheating, antishock

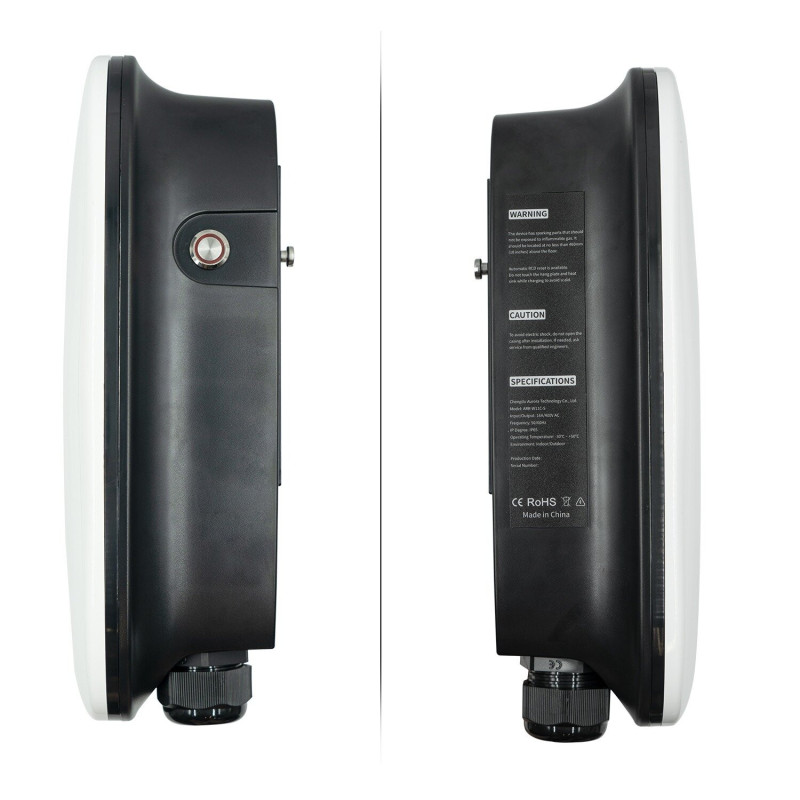

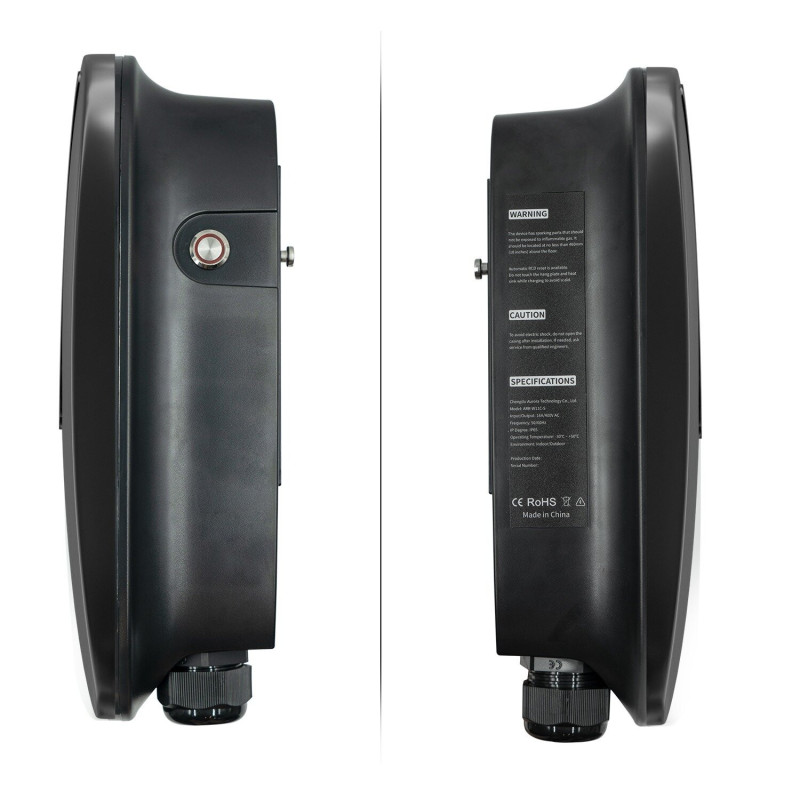

Emergency stop button: yes

User interface:
LED indicators: lighting ring indicating charging status

Control: via RFID card, app or credit card (optional)

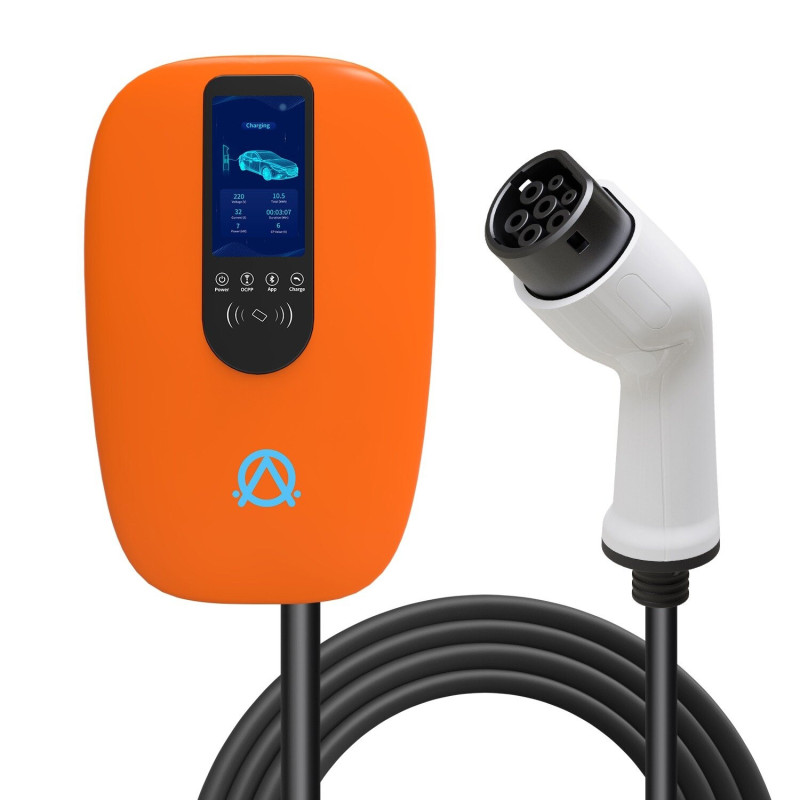

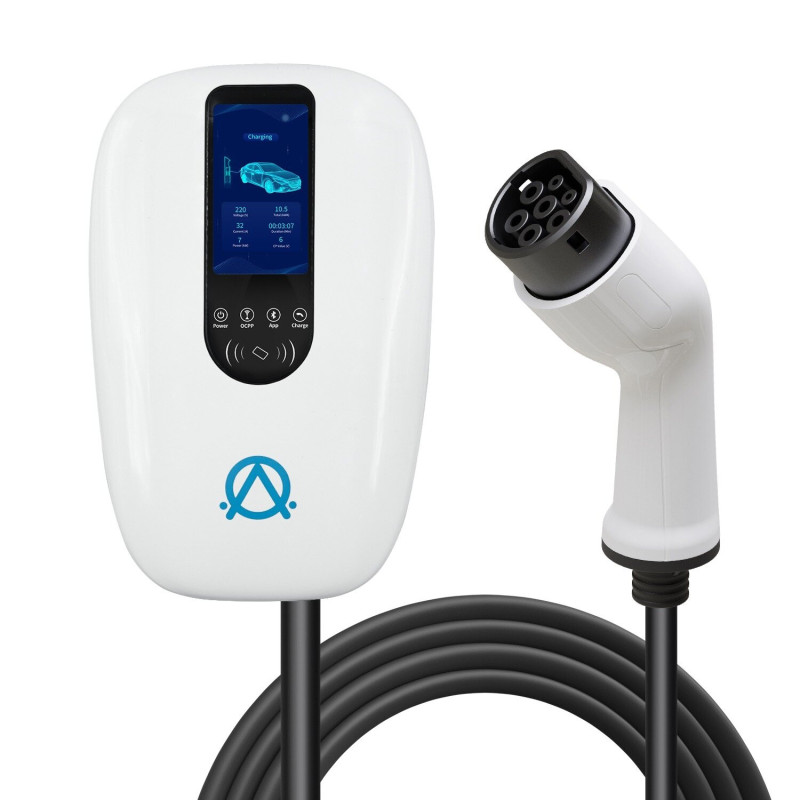

Display: Color LCD screen showing real-time charging data (optional)

Installation:

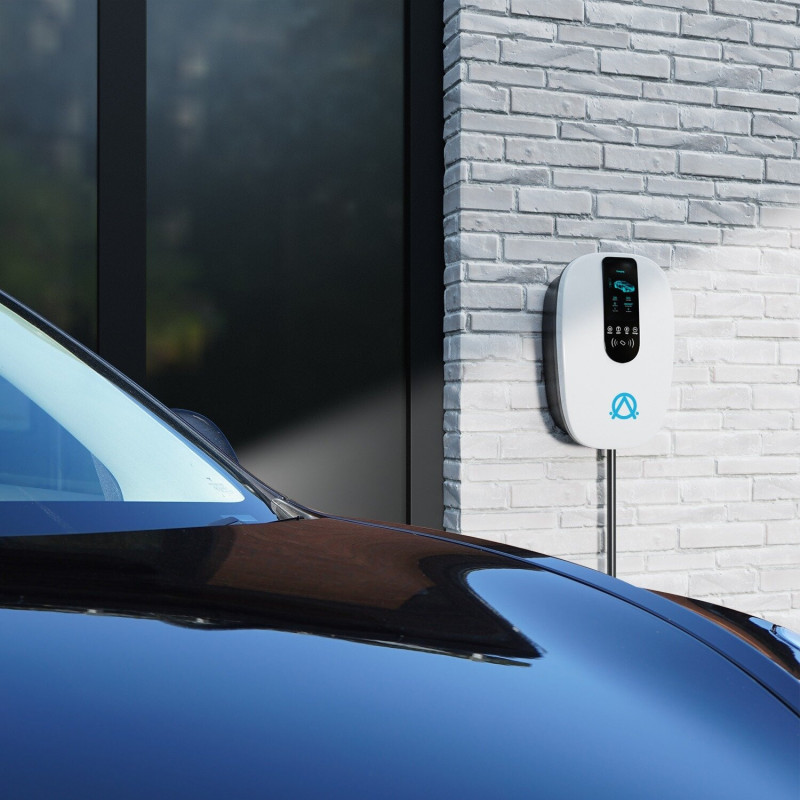

Installation type: wall or pole (pole - optional)

Certificates:
CE-RED, CB, UKCA, TR25, IMDA, WPC, SDPPI (in progress)

Complies with standards: IEC 61851-1, IEC 61851-21-2, LVD 2014/35/EU, RED 2014/53/EU

This charging station features a modern design, extensive connectivity options and a high level of security, making it perfect for both home and commercial use. Thanks to its OCPP 1.6J protocol support, it can be easily integrated into various control systems.
