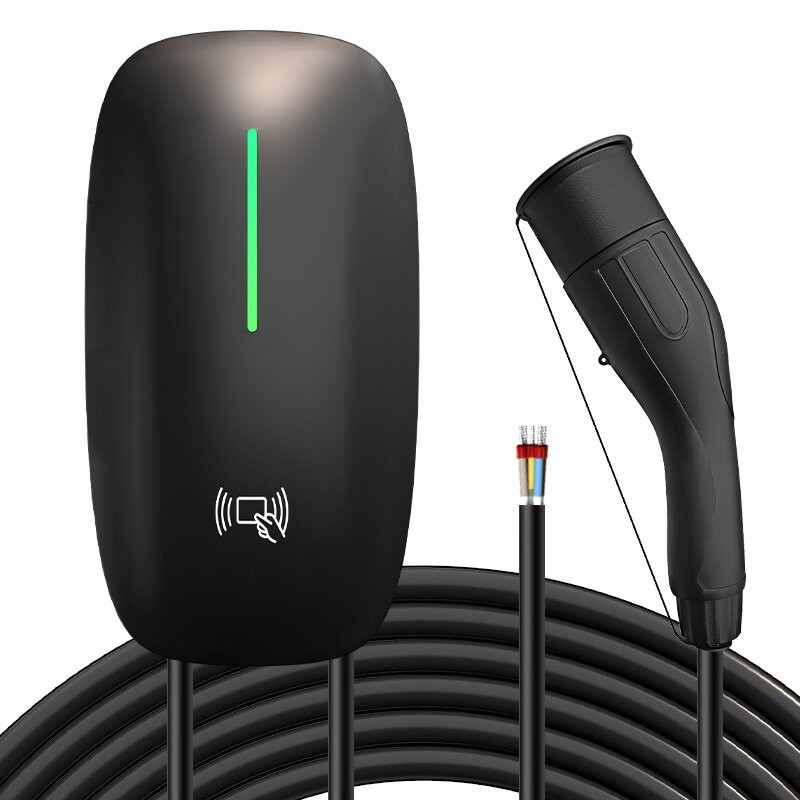

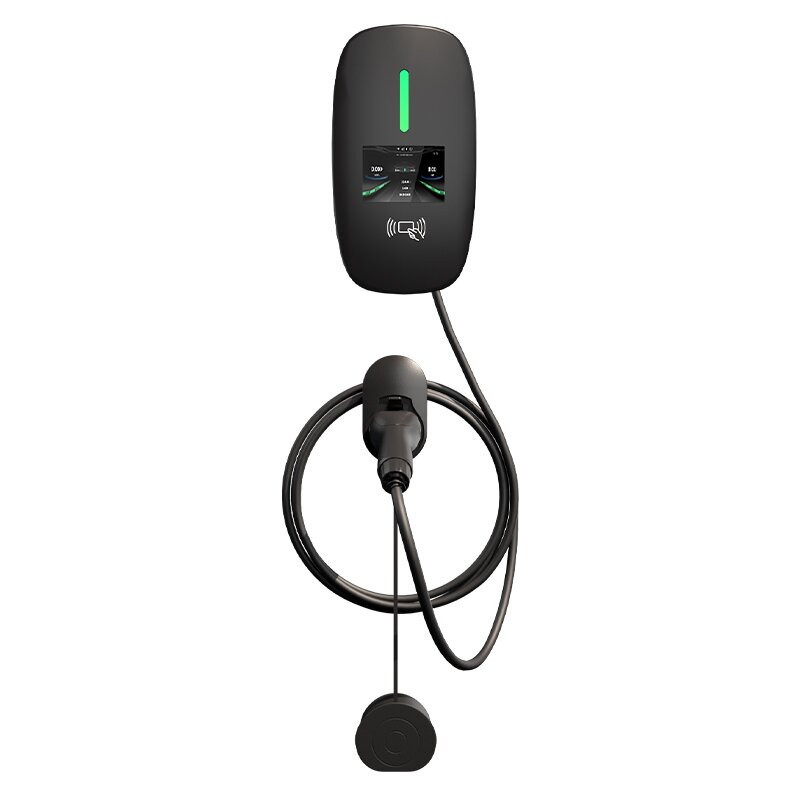

Charging station 7kW with app and - type 2 cable 5m long

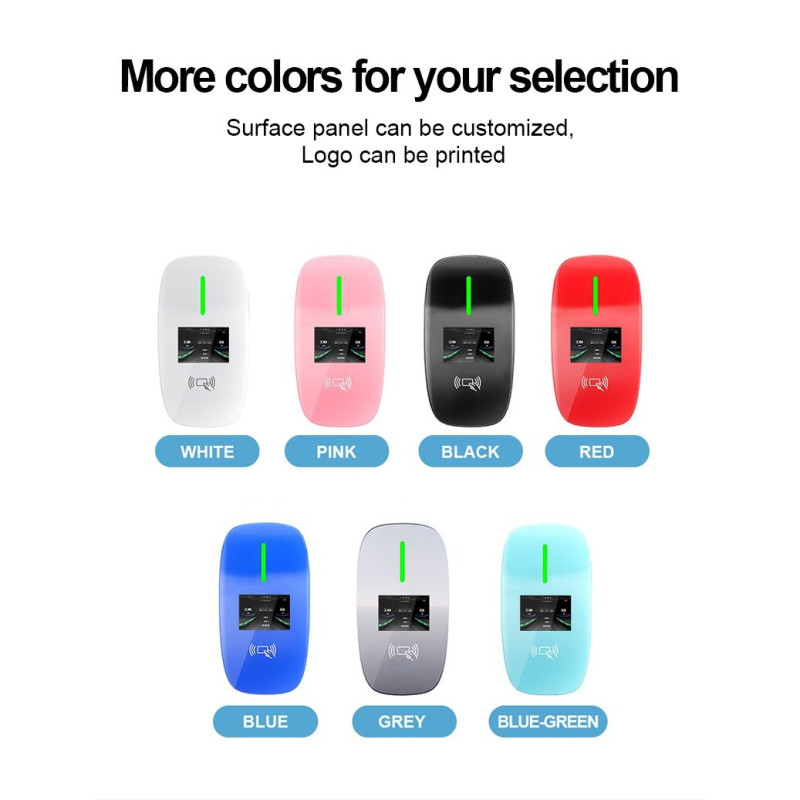

Charging station 7kW with app and - type 2 cable 5m long. The station is white or black and connects to a blue 1-phase max socket. This station is eligible for state support

We can also equip this 7kW station with a type 1 cable (also connected to a blue 7kW socket)

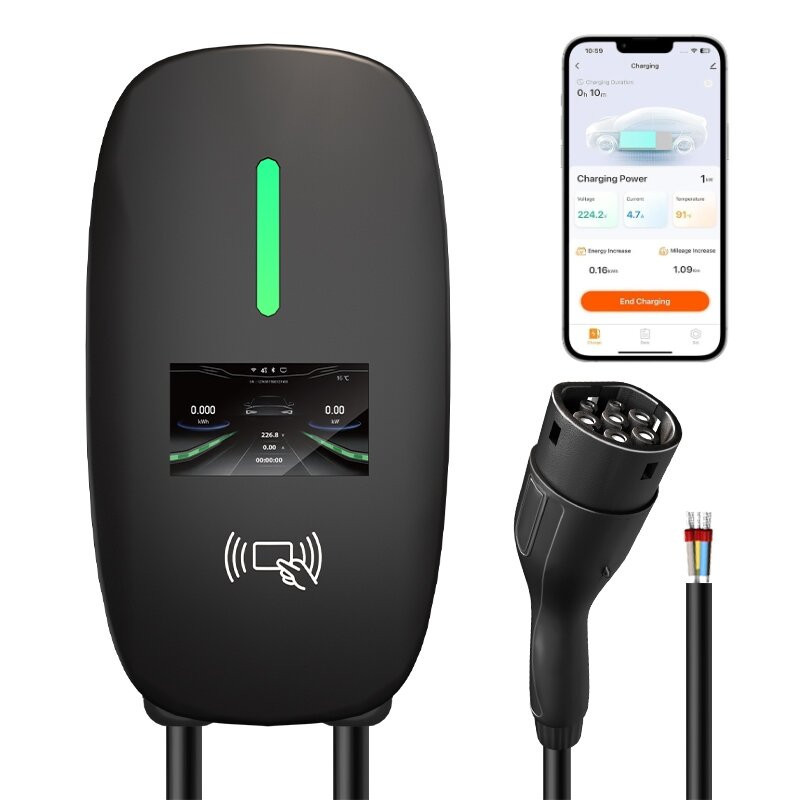

You can control charging functions through the app, i.e. duration, power and other settings, and see consumption history.

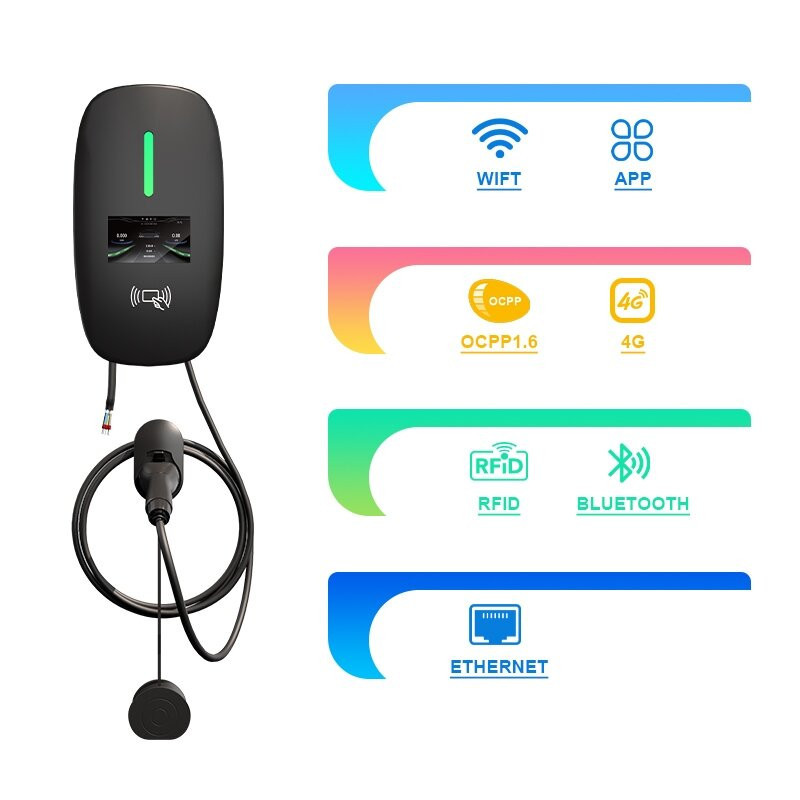

The station is controlled via an app by connecting to Wifi or Bluetooth

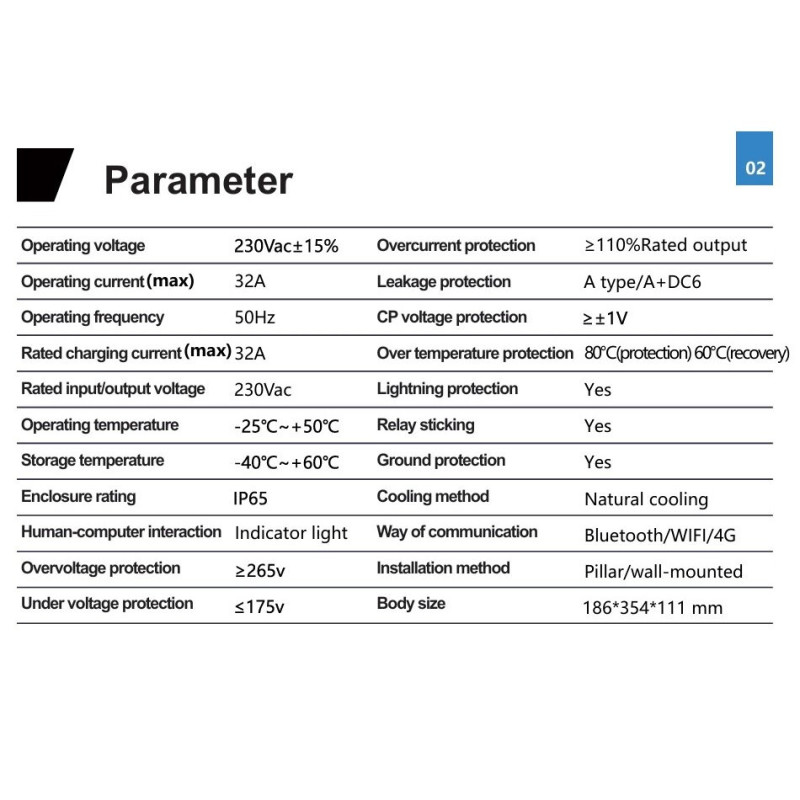

Housing material: ABS+PC Plastic housing

Power cord connected from the bottom of the station

Charging interface Charging connector

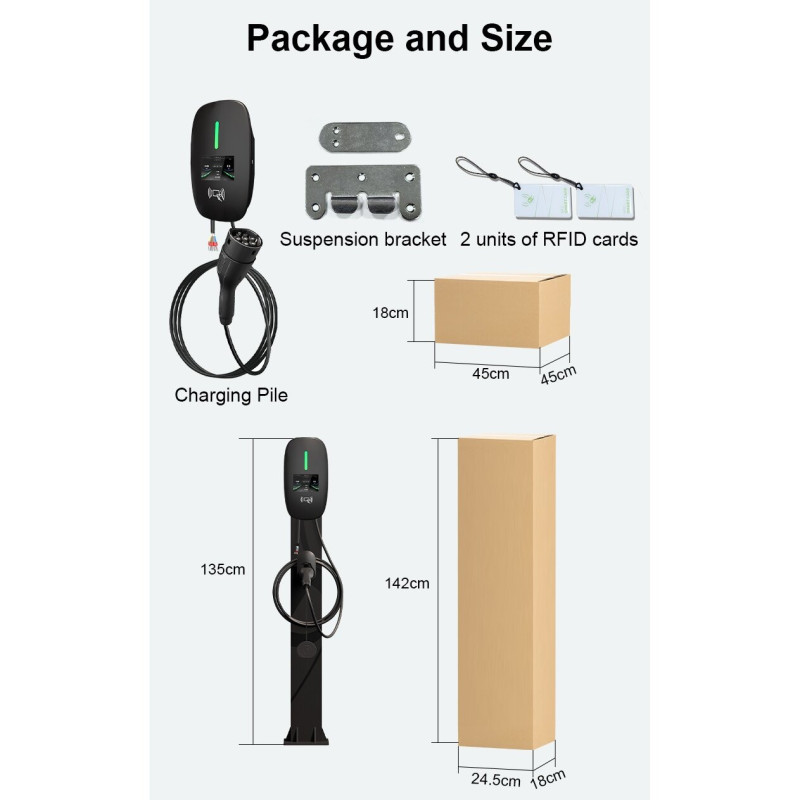

Charging station dimensions 186*354*111mm

Weight 5 kg

Input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 32A, 1 phase

Frequency 50Hz /60Hz

Maximum power 7KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 32A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+50

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP65

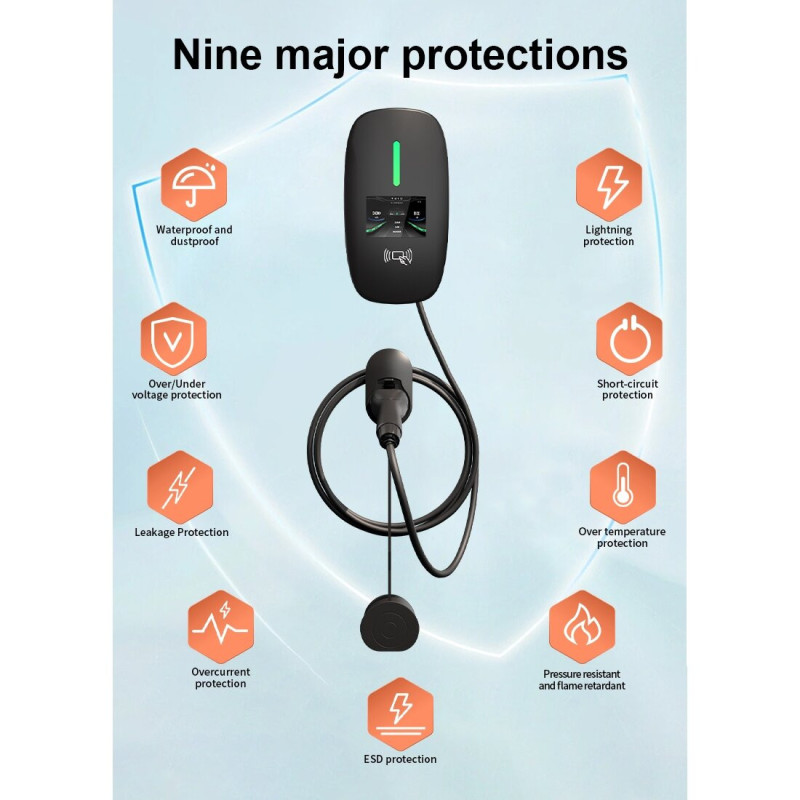

Safety protections:

Overvoltage protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Earth fault protection Yes

Overheat protection Yes

Lightning protection Yes

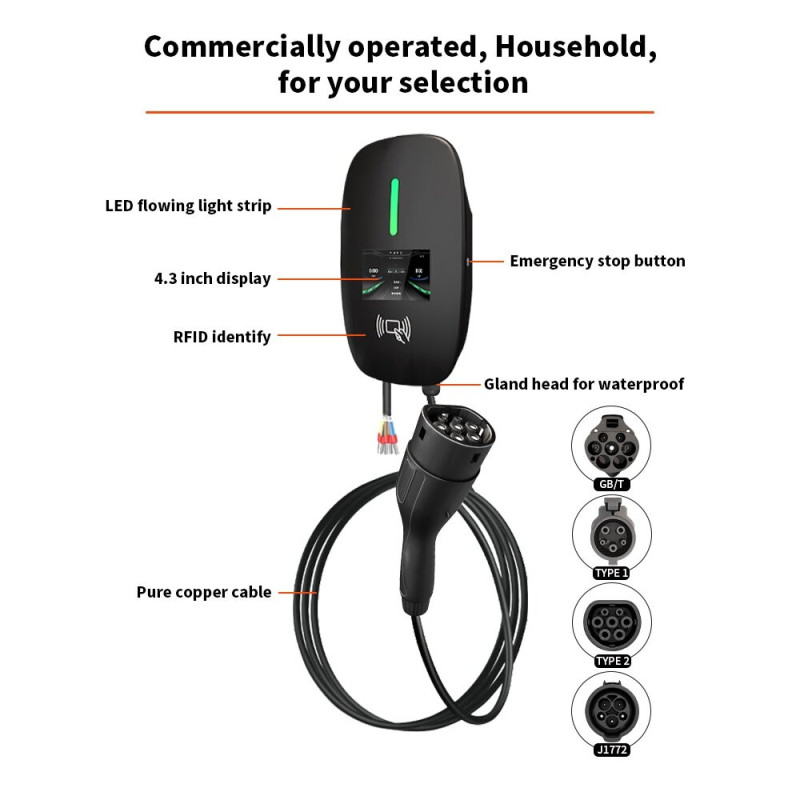

LED light Yes

RFID Only available with RFID version
