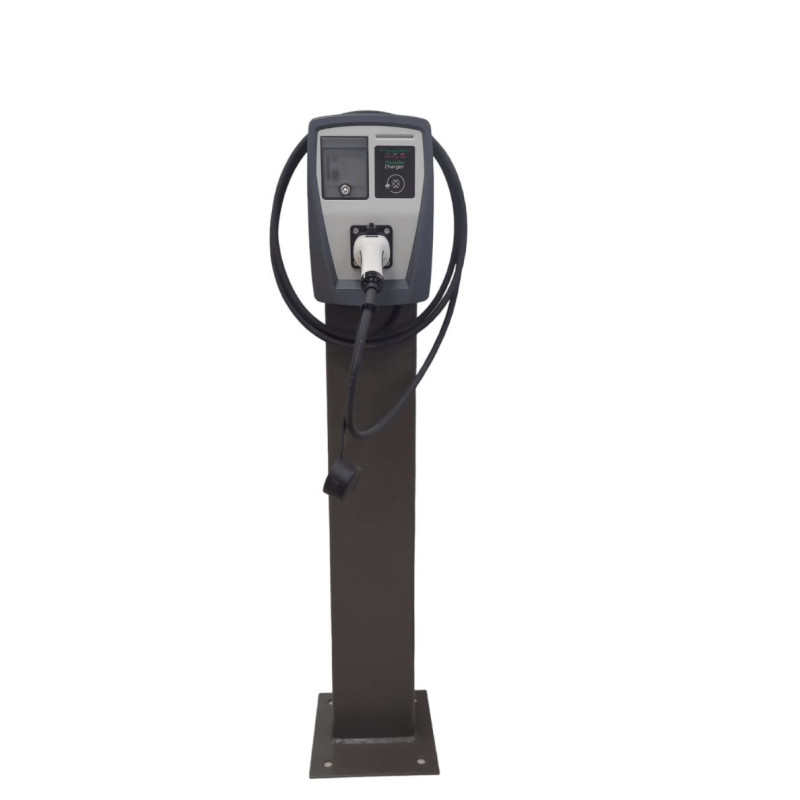

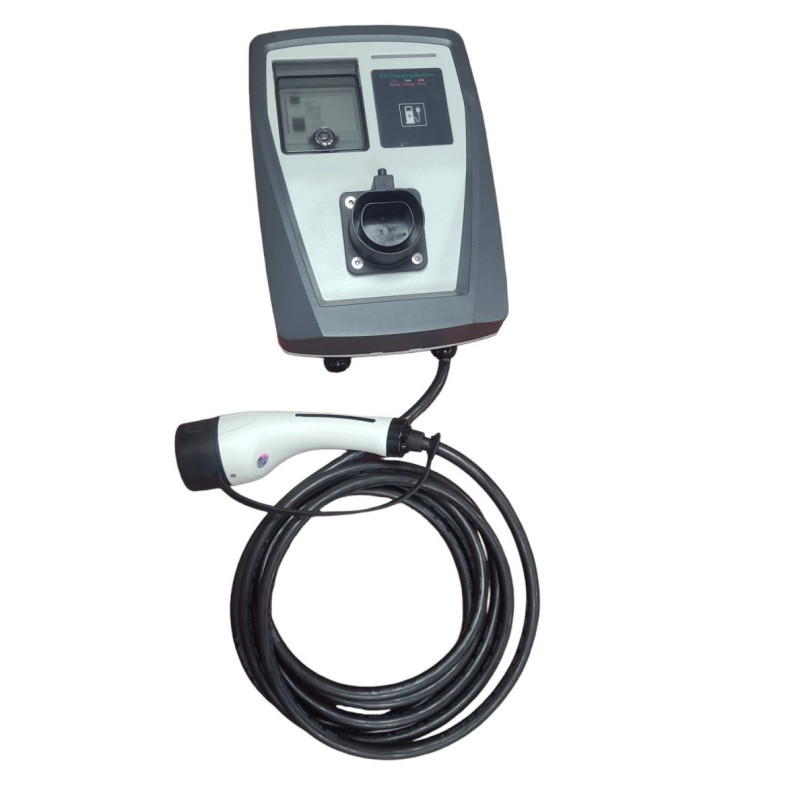

Charging station 3f, 22Kw with type 2 cable + balanced power regulation + OCPP protocol

Technical data:

Connection Mode 3 Type 2 to 22kW

Input power 1 or 3 phase 400 V/AC 50 Hz 32 A

Output power - (optional)

3-phase 400 V/AC 32 A up to 22 kW

1 phase 230 V/AC 32 A up to 7.4 kW

Connection - (optional)

4G, WiFi, LAN OCPP 1.6

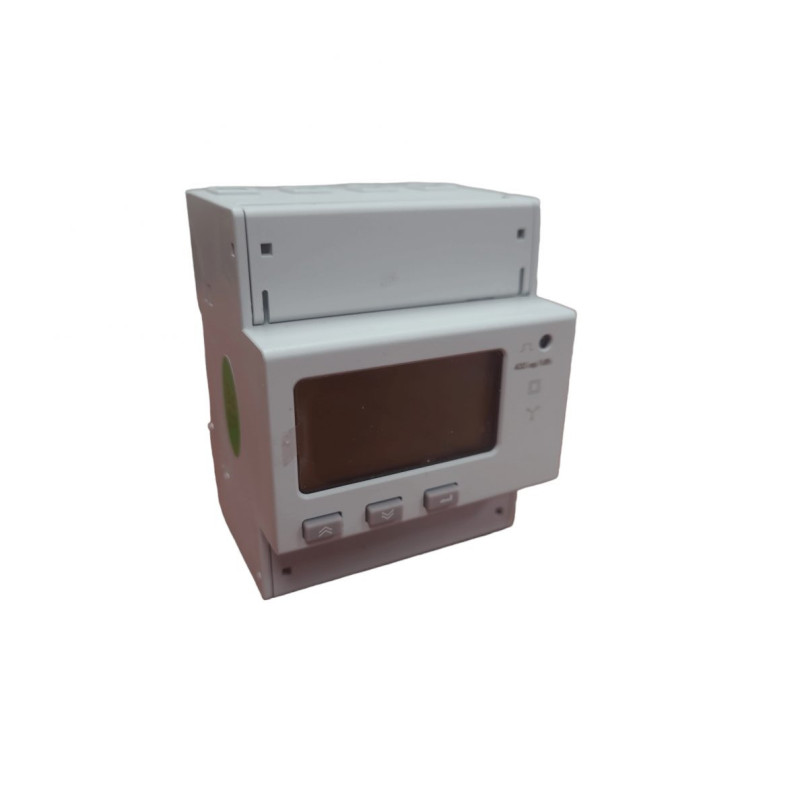

Dynamic power management

User interface 3 colors LED (green, blue, red)

Stop management with RFID

Possibility to use a mobile application

Safety Short circuit protection

Current leakage protection

DC leak detection

EMERGENCY STOP button

Other information

IP54 protection class

IK08 impact resistance

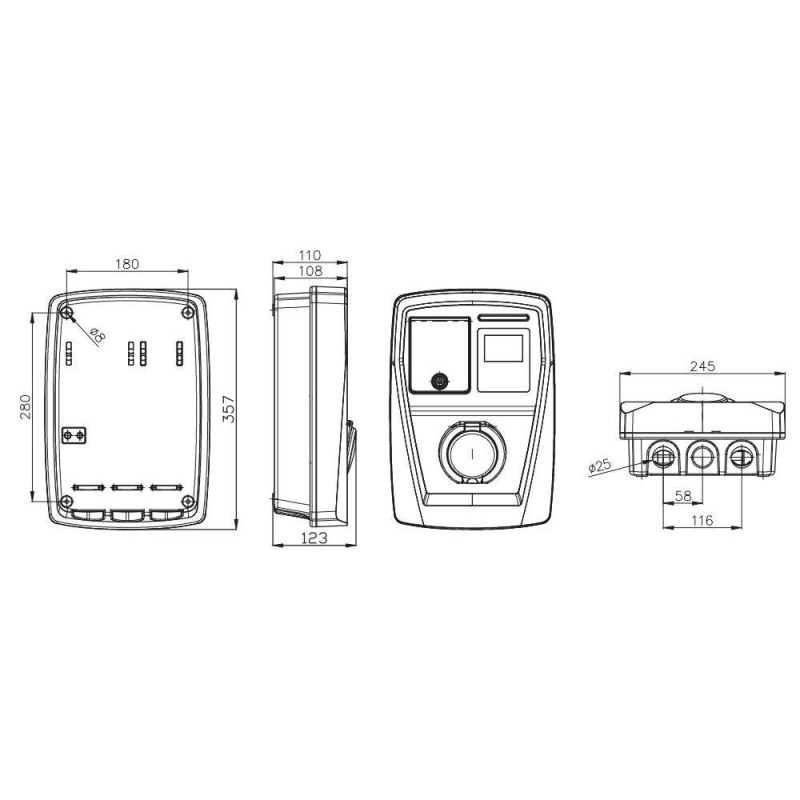

Matmenys:357*245*123mm

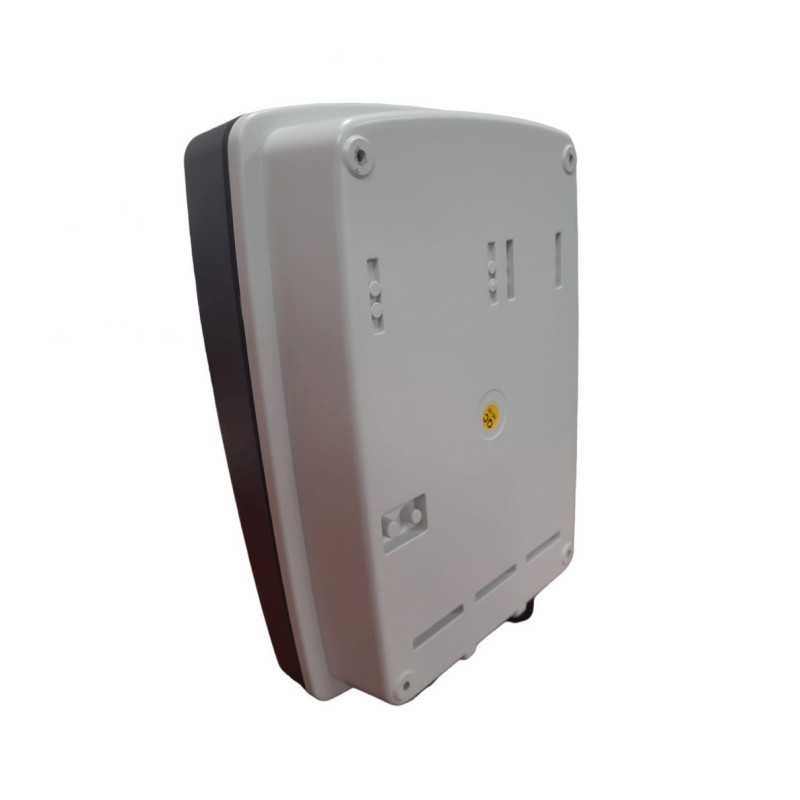

Dimensions for installation: 180*280mm

Weight: up to 4.1 kg

CE certificate

The charging station is eligible for state support under the approved support package for individuals and legal entities.

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 80 Eur

Warranty 2 years

20 EUR +1 year warranty
30 EUR +2 year warranty
40 EUR +3 year warranty

the station has the OCPP protocol, which allows a resident or company to sell it as an electric vehicle charging station charging point. This can be offered as an additional service and value by businesses, shopping centers, accommodation service providers, restaurants, or simply individuals.

•
  Service fee for 1 charging point from 3-5 EUR/month (depending on the number of charging stations) for the first 12 months this fee would not apply (after signing a 2-year contract)


•
  transaction fee, 0.3 Eur (here kai is loaded through the app for money)


•
  10% of the amount of money collected, this fee is collected by the servicing, system support company


•
  After signing a 2-year contract, the customer receives 3 RFID cards for free, based on which they receive reports on how much each person has specifically charged, and based on this, the customer can be billed for charging the machine; the number of cards is unlimited (there is no transaction fee or 10% of the collected pings for these charges)


•
  the client receives 3 RFID cards that show how much each person has charged and based on this the client can be billed for charging the machine;


•
  there is an option to choose to operate more charging stations - by choosing the network operation service - 100 Eur + VAT/month

OUR PRACTICAL ADVICE

If you have a single-phase charging electric vehicle or a Plug-in hybrid vehicle ( who accept up to 7kW during phase 1), It is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
