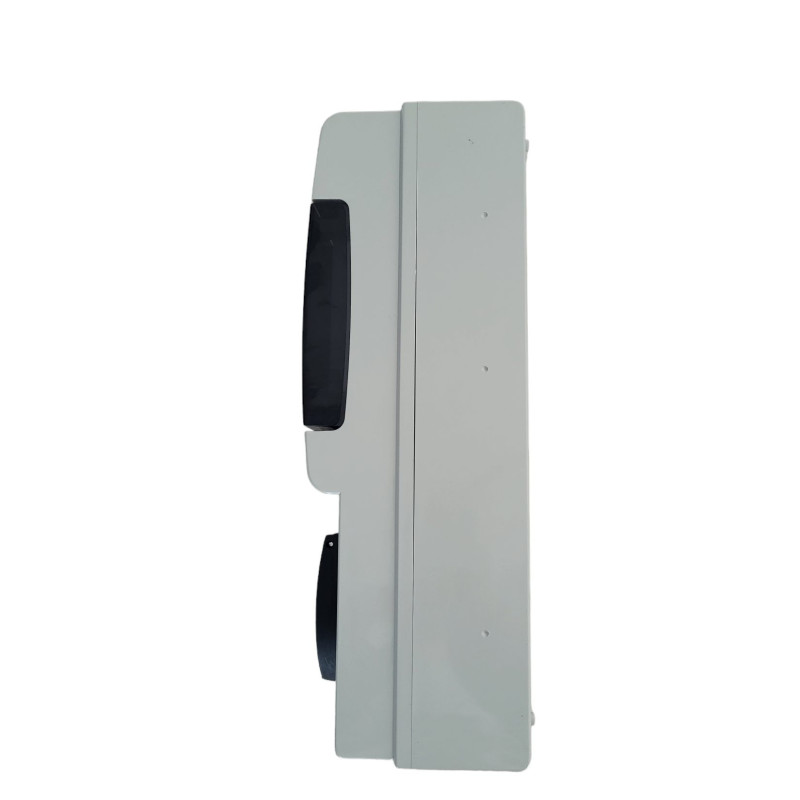

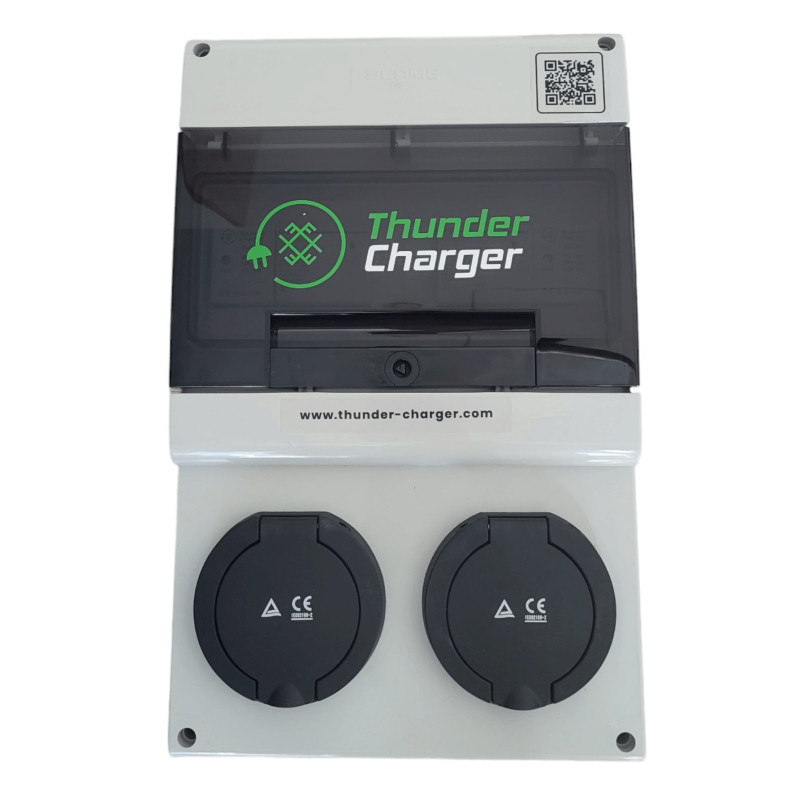

Charging station 3 Phase, 22 kW with Type 2 sockets (2 pcs)

Charging station 22 kW - is a wall-mounted, 3-phase charging station with two Type 2 sockets (total power 44 kW). Suitable for all electric vehicles and plug-in hybrids. Current adjustable from 10A to 32A, equipped with safety features. Additionally supports Wi-Fi control and RFID activation.

Our main and most popular charging stations are Wallbox type wall-mounted with Type 2 sockets (2 pcs), 3 Phases, 22kW each

(total charging power of two type 2 plugs - 44 kW)

This charging station is suitable for all electric cars and plug-in hybrid cars.
The station is equipped with ABB, Schneider, Hager components and a controller made in Lithuania based on OpenEVSE. All safety measures necessary for safe charging of an electric vehicle have been implemented (grounding check, electric vehicle connection "diode" check, protection against stuck contacts).

Standard equipment:

- Adjustable charging current for each socket from 10A-32A (4kW-22kW);

Charging socket - Type2 plug - 2 pcs

Resistance standards - IP66 and IK07;

Dimensions - 400x255x145 mm;

Warranty 2 years.

Additional warranty extension +3m (additional 50 Eur)

Additional functions are available if needed:

Type 2 socket locking + 70 Eur

Charging activation RFID, PIN, RFID+PIN (up to 300 users); + 100 Eur

There is an option to connect the entire charging station control via the app (which works via Wi-fi). That is, with its help you will be able to see the entire accounting of the charging station, set the charging date and time (e.g. at night), give other users the opportunity to connect to the charging station or block charging from the charging station. The price of this program is + 200 Eur.

Type 2 - European standard used by European-made electric cars, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-market Volkswagen e-Golf or BMW i3 or others
