Charging station 22kW with app and type 2 cable 5m long

22 kW electric vehicle charging station - fast, safe and reliable charging

The 22 kW electric vehicle charging station is a modern solution for fast and efficient charging of electric vehicles at home, in apartment parking lots, offices and commercial parking lots. The three-phase 22 kW power allows you to make the most of the AC charging capabilities of your electric vehicle and significantly shortens the charging time compared to conventional household sockets.

The station features a compact design, durable housing and high IP55 protection class, so it can be installed both indoors and outdoors. A high-quality tempered glass front panel and UV-resistant housing ensure durability even in harsh weather conditions.

Key benefits
22 kW maximum charging power (3-phase, 400 V)
Up to 32 A charging current

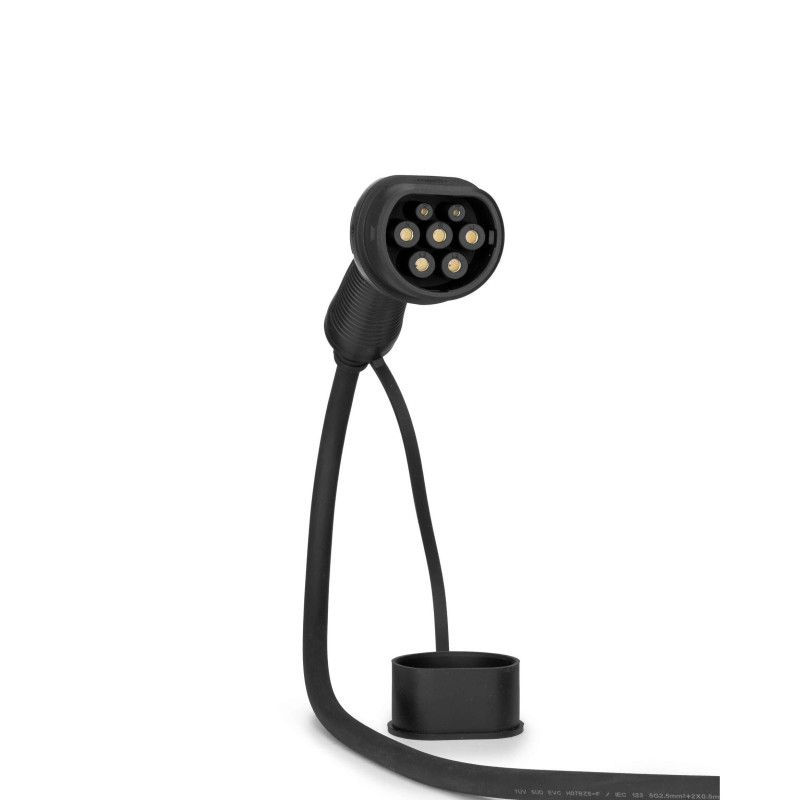

5-meter charging cable
IP55 protection class - suitable for outdoor use
Natural cooling without a fan
Compact dimensions - only 270 × 170 × 85 mm
Modern black tempered glass design
Low power consumption in standby mode (<3 W)
Complies with IEC 61851 electric vehicle charging standard
Maximum safety

Parameter Value (22 kW model)
Charging power 22 kW
Power phases 3 phases (400 V)
Input voltage 380-400 V AC
Frequency 50/60 Hz
Maximum output current 32 A
Output voltage 380 V AC
Charging cable 5 m
Installation method Wall-mounted
Dimensions 270 × 170 × 85 mm
Weight Up to 8 kg
Housing material Black tempered glass front panel and PC plastic housing
Protection class IP55 (dust and splash resistant)
Place of use Indoor and outdoor
Operating temperature From -30 °C to +55 °C
Operating humidity 5-95 % (non-condensing)
Cooling Natural (fanless)
Standard IEC 61851
Expected service life (MTBF) 100,000 hours
UV protection Yes, the housing is UV-resistant

The charging station has integrated advanced protection systems that ensure safe charging of the electric vehicle every time day:

overvoltage protection;
undervoltage protection;
overload protection;
leakage current (earth fault) protection;
grounding protection;
overheating protection;
protection at extremely low temperatures;
protection against lightning surges.
Suitable for use in all seasons

The station is designed for reliable operation in various climatic conditions.

The operating temperature range from -30 °C to +55 °C allows it to be used both in cold winters and hot summers.

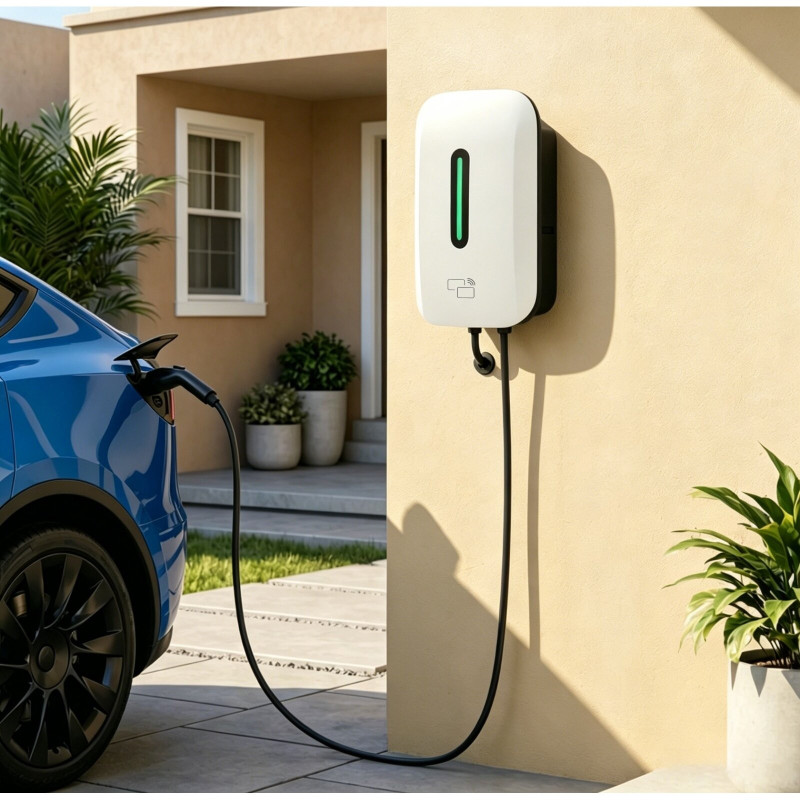

IP55 protection protects the device from dust and splashes of water, making the station perfect for installation near a private house, in a garage, carport or in business premises.

Who is this charging station for?

This 22 kW electric vehicle charging station is recommended for:

private homeowners;
businesses;
office car parks;
apartment building managers;
hotels and rural tourism farms;
commercial car parks.
Compatibility

The station is suitable for most electric vehicles and plug-in hybrids sold in Europe that support AC charging. The maximum power of 22 kW is available for vehicles equipped with a 22 kW three-phase onboard charger. If the car supports a lower AC charging power (e.g. 11 kW or 7.4 kW), the station automatically adjusts the charging power to the car's capabilities.

Why choose a 22 kW charging station?

By investing in a 22 kW electric vehicle charging station, you get a fast, reliable and durable charging solution that ensures convenient everyday use of your electric vehicle. High-quality materials, advanced protection features and resistance to environmental influences allow the station to be used for many years, both at home and in a business environment.
