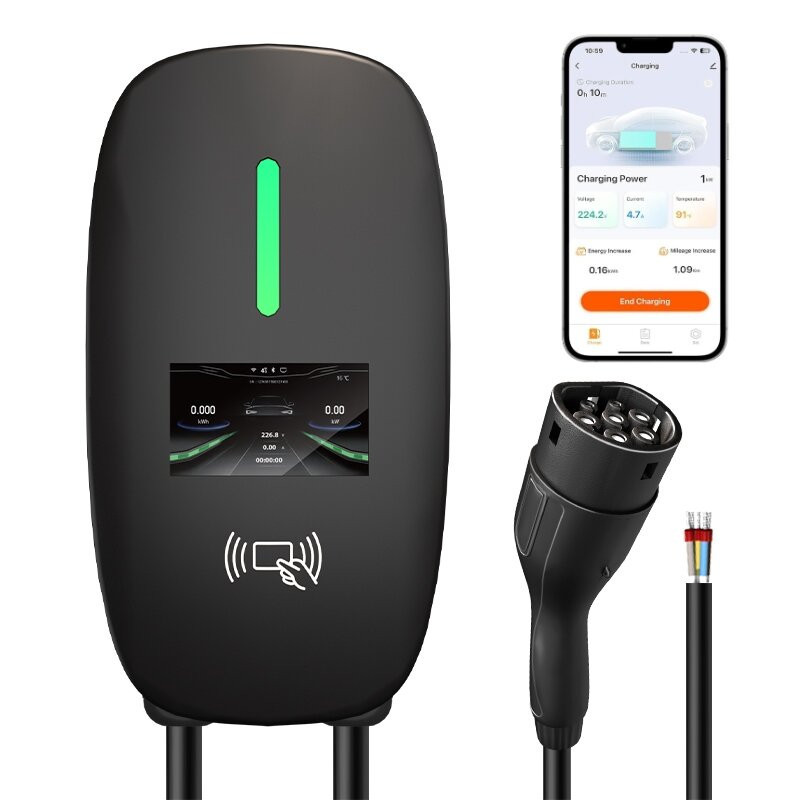

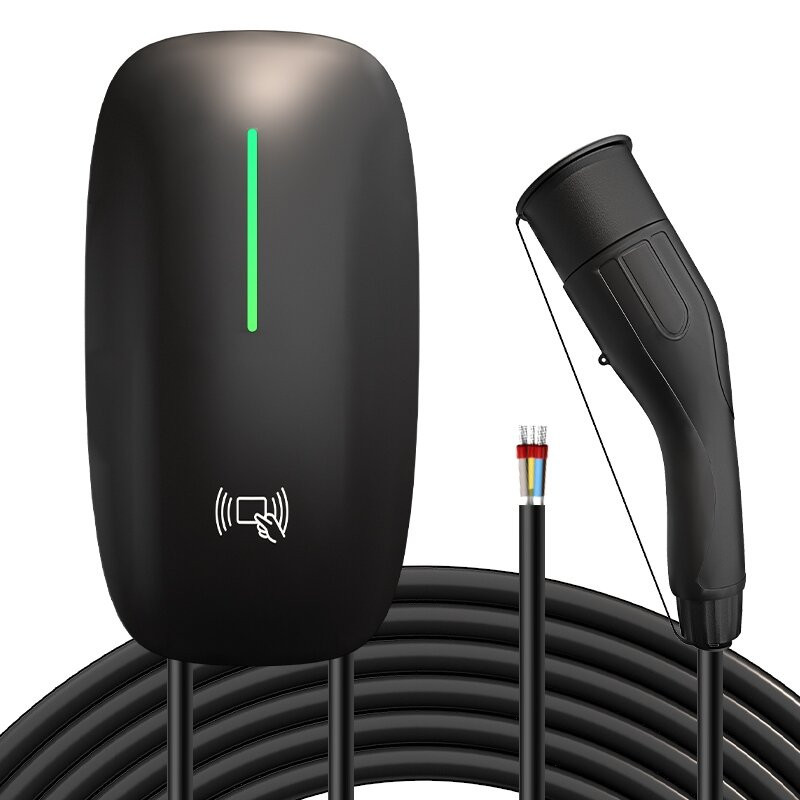

Charging station 22kW with app and - type 2 cable 5m long

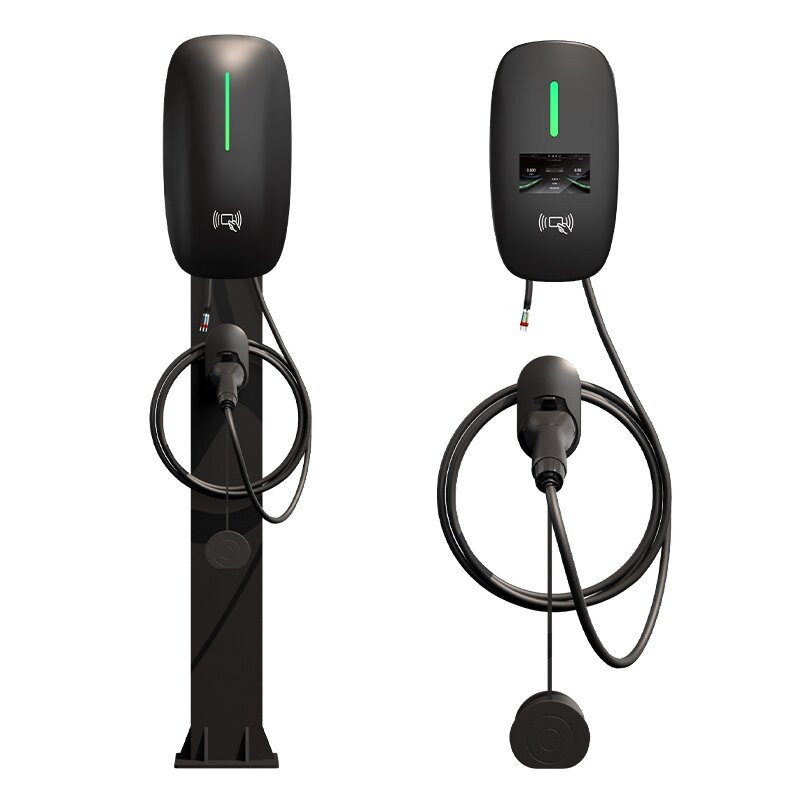

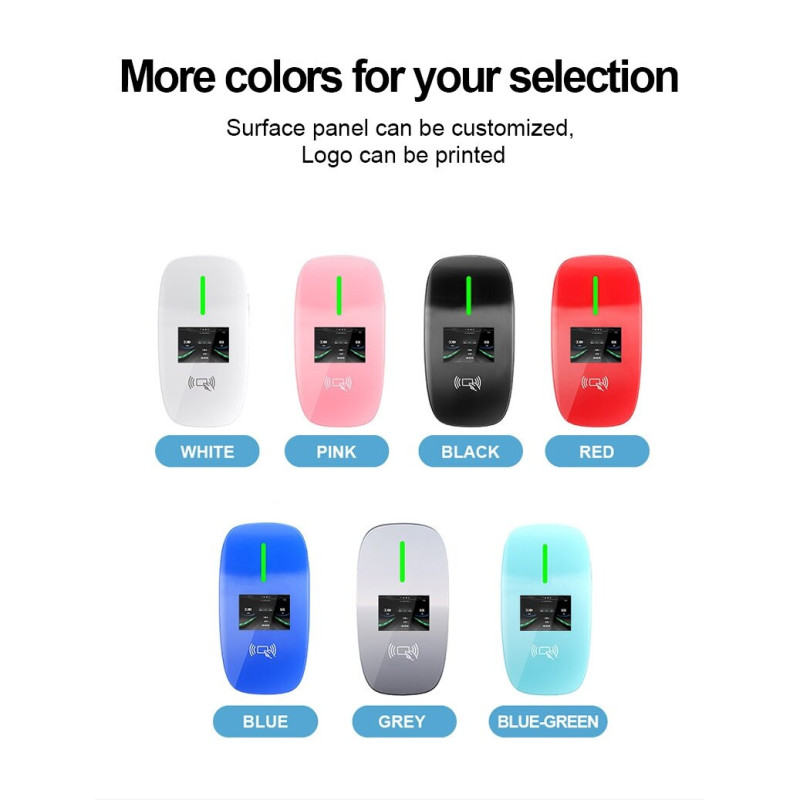

Charging station 22kW with app and - type 2 cable 5m long. The station is white or black and connects to a 22kw red three-phase socket. This station is eligible for state support

Through the app, you can control charging functions, such as duration, power and other settings, and see consumption history.

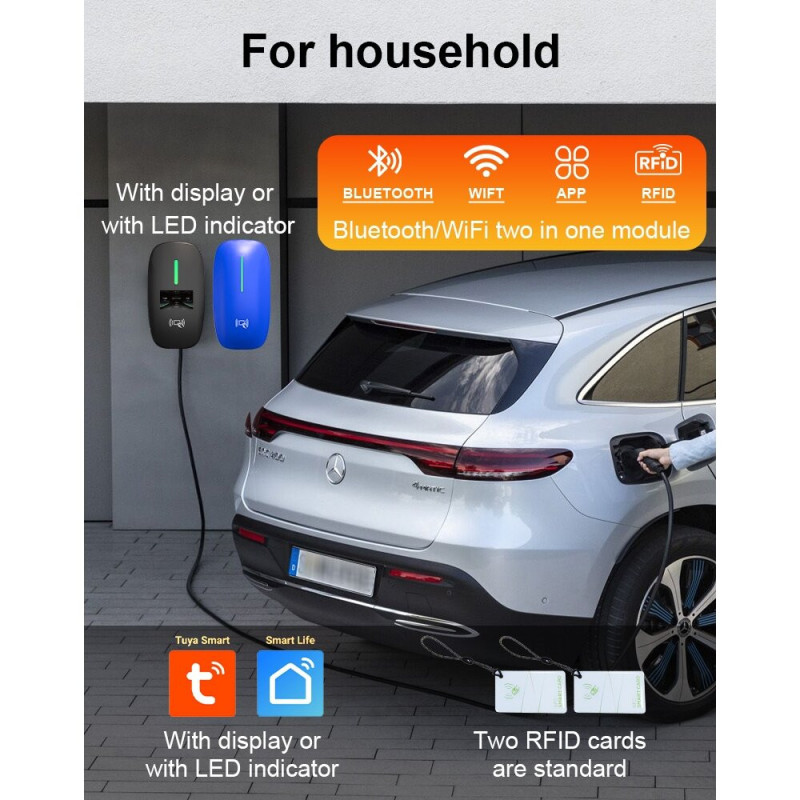

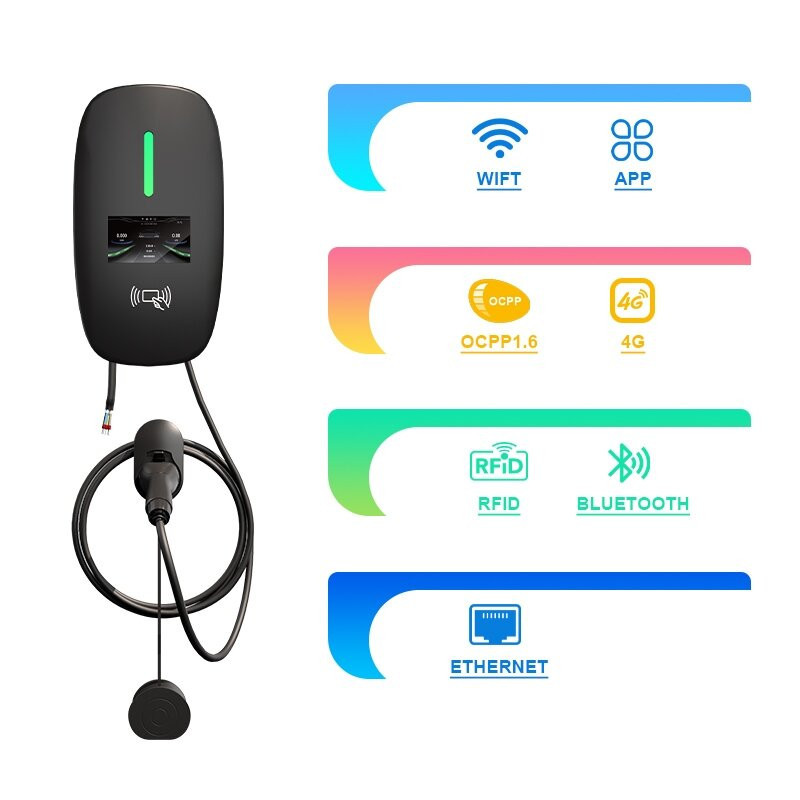

The station is controlled via an app via Wifi or Bluetooth.

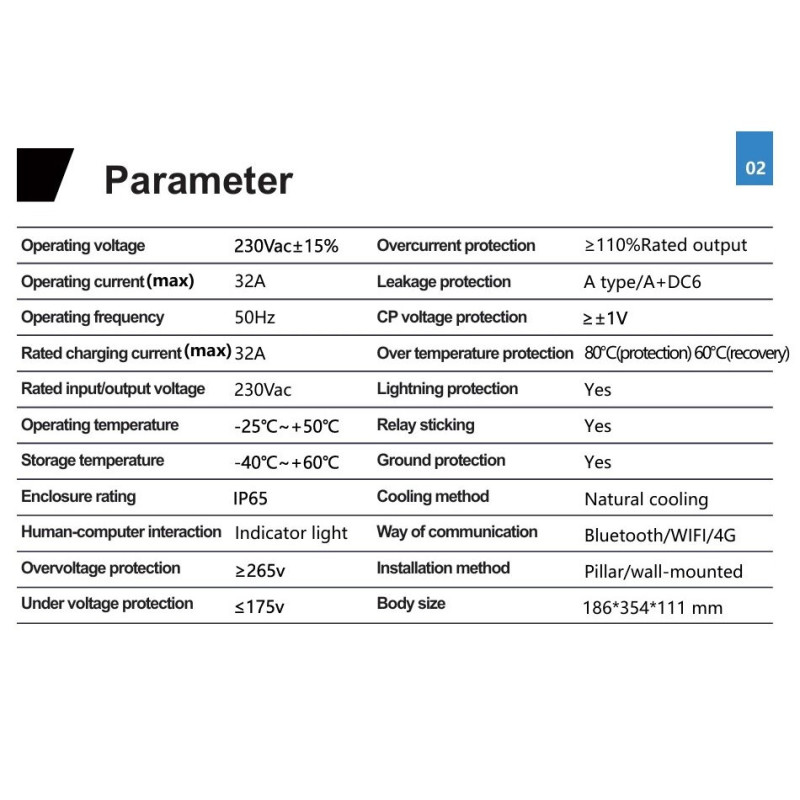

Body material: ABS+PC Plastic body

The power cord is connected from the bottom of the station

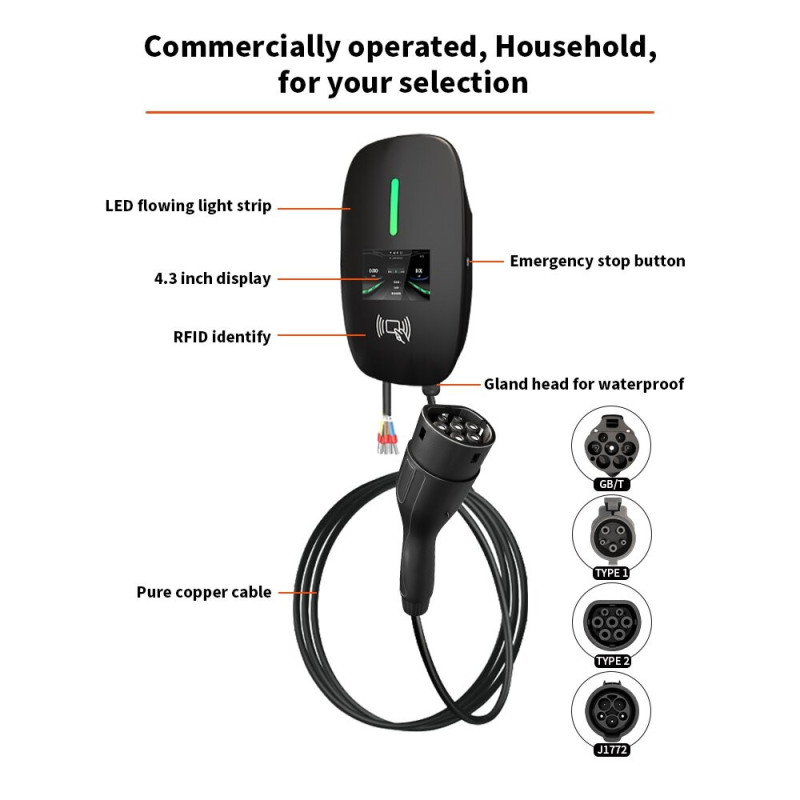

Charging interface Charging connector

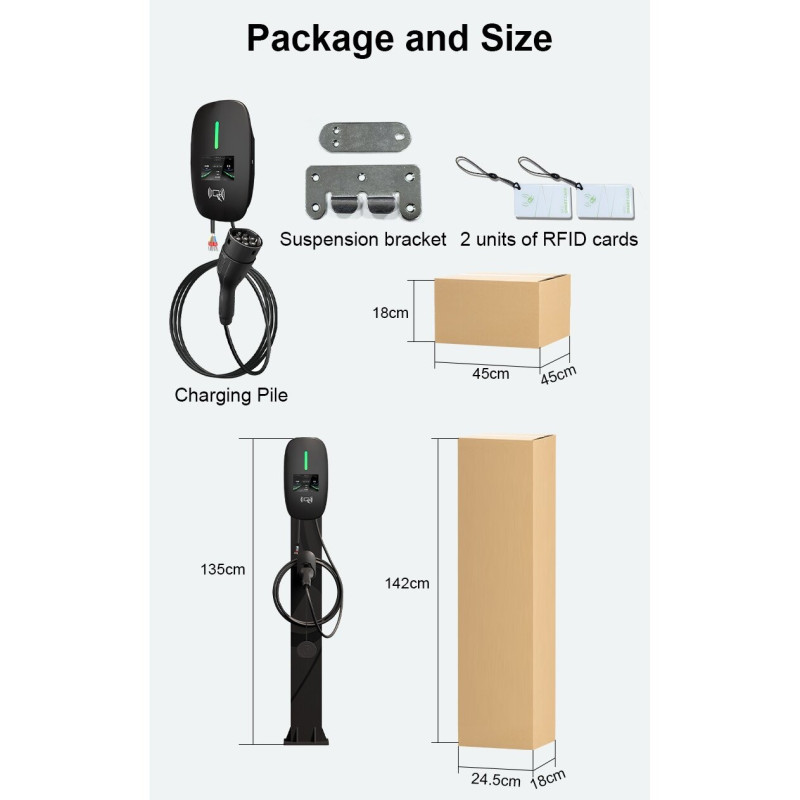

charging station dimensions 186*354*111mm

Weight 5 kg

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 32A, 3 phases

Frequency 50Hz /60Hz

Maximum power 22KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 32A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+50

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP65

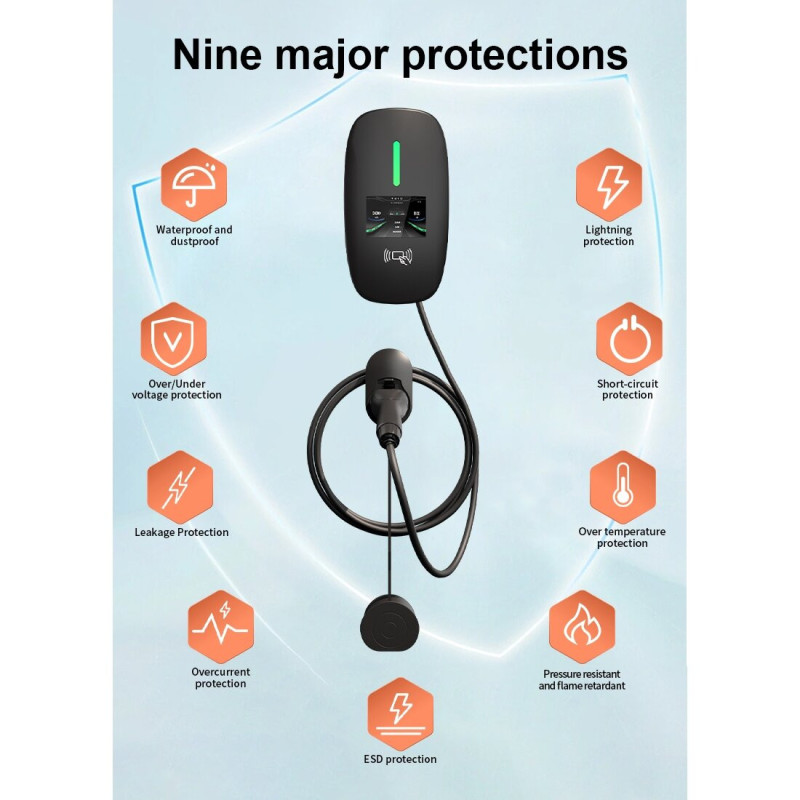

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

LED light Yes

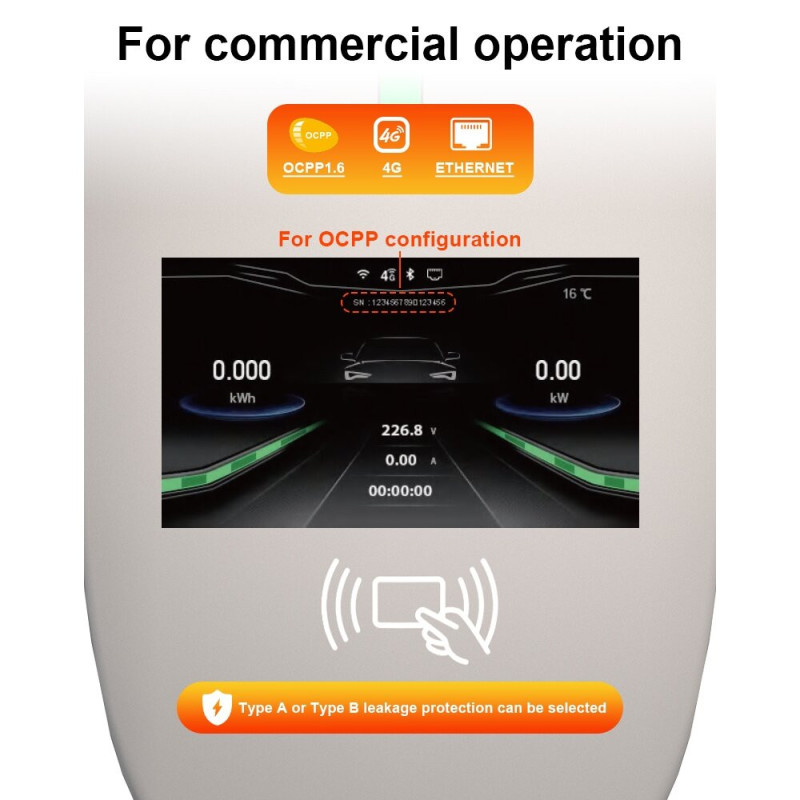

RFID Only available with RFID version

OUR PRACTICAL ADVICE

If you have a single-phase charging electric vehicle or a Plug-in hybrid vehicle ( which accept up to 7kW per 1 phase), it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you will be able to reach m with the help of single phase. approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
