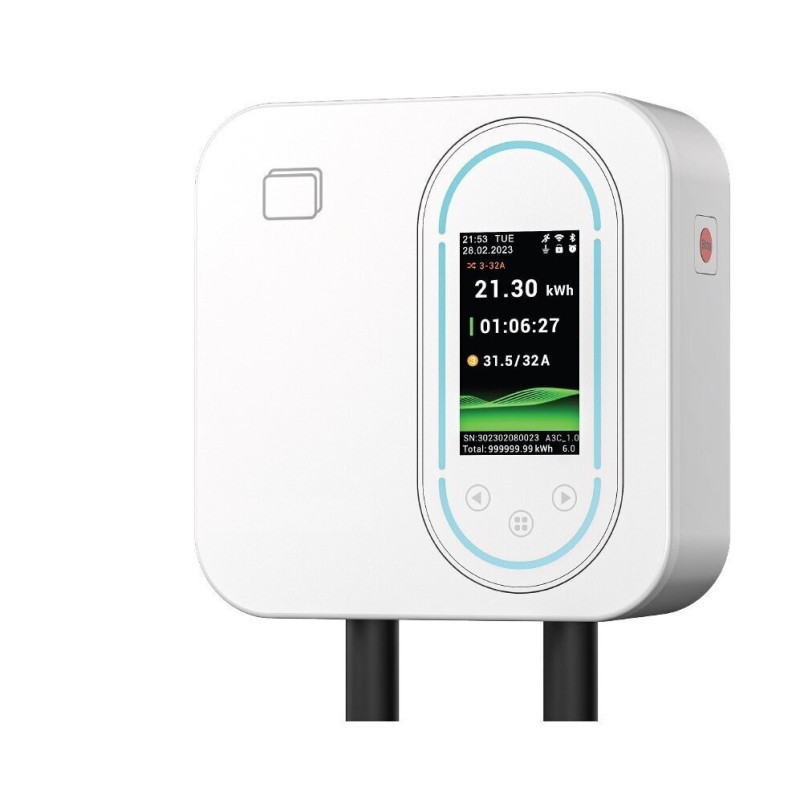

Charging station 22kW CN-ANS, with app, RFID card and OCPP protocol

CHARGING STATION 22 kW CHARGING POWER

Protection:

from overvoltage, from low voltage, from excessive load, from short circuit, from leakage, from excessive temperature, from lightning

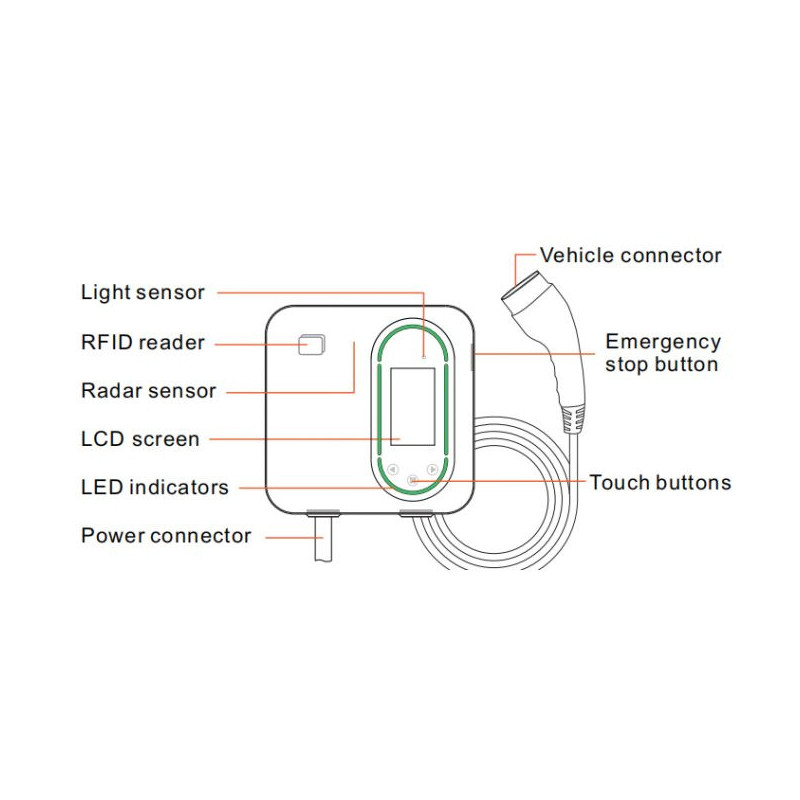

LED indicators

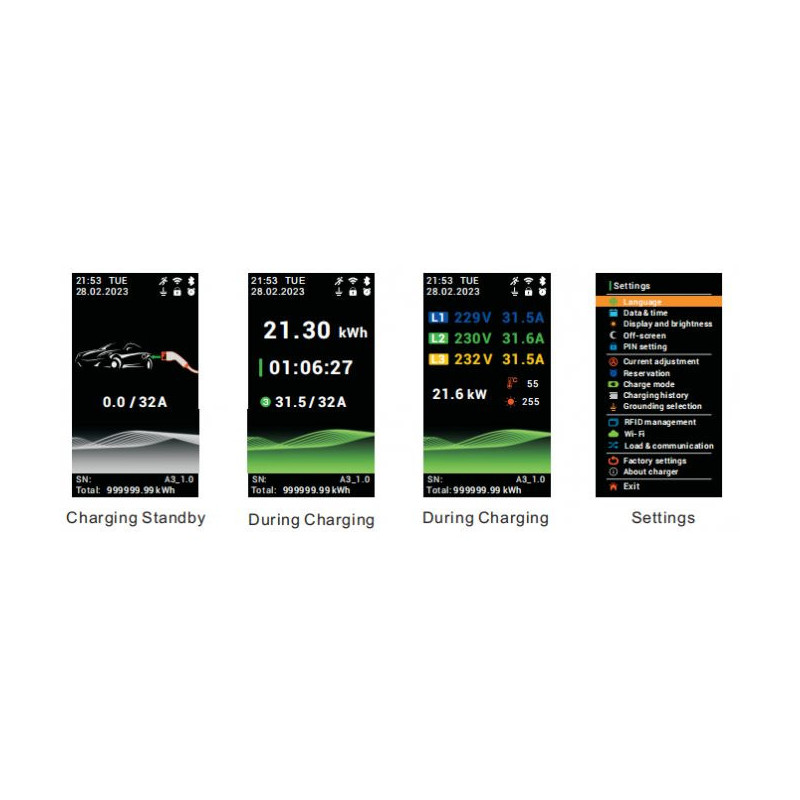

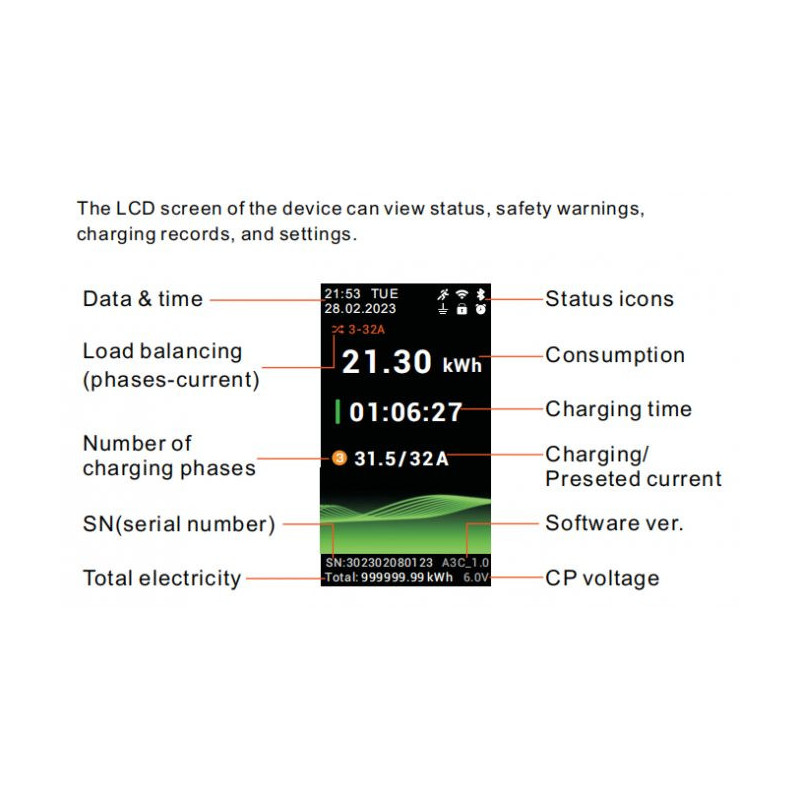

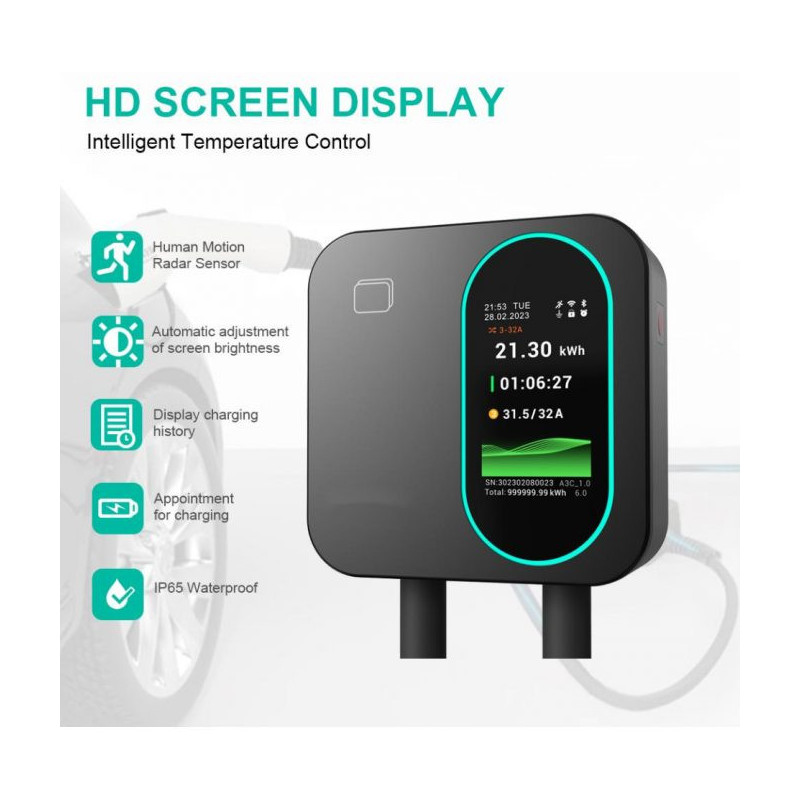

LCD screen 3.0 inches

RCMU Type B (AC 30mA+DC 6mA)

Current regulation - yes

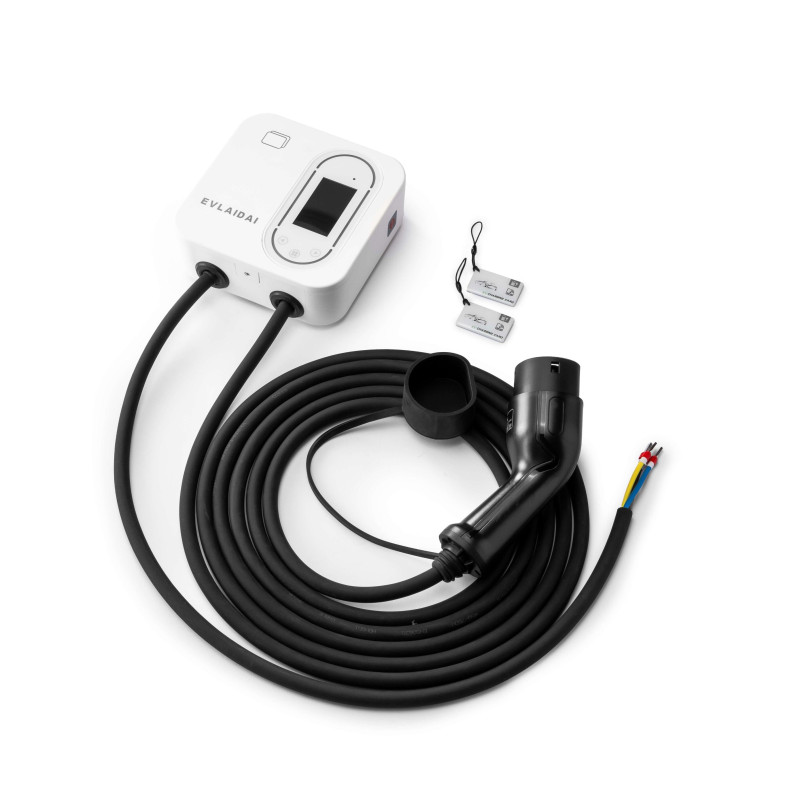

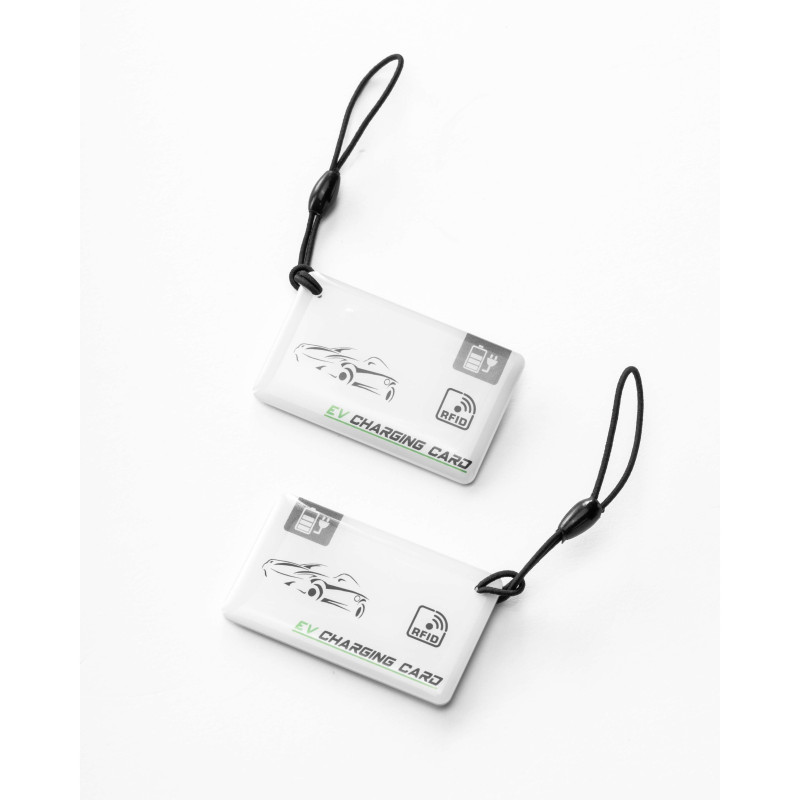

RFID card

WIFI/Bluetooth

Water protection class IP 65

Operating temperature from -30 degrees to 60 degrees

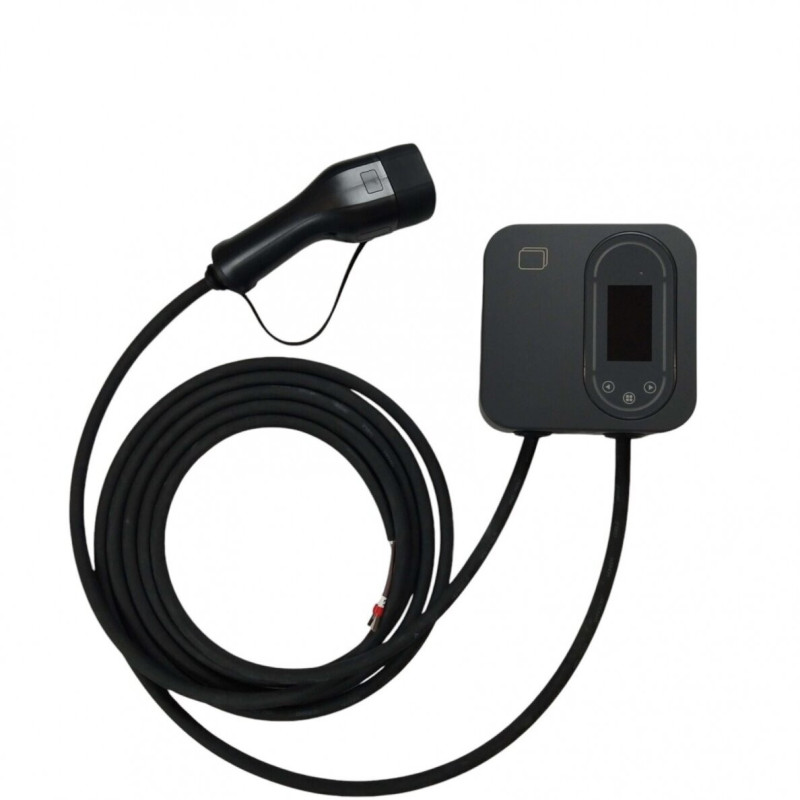

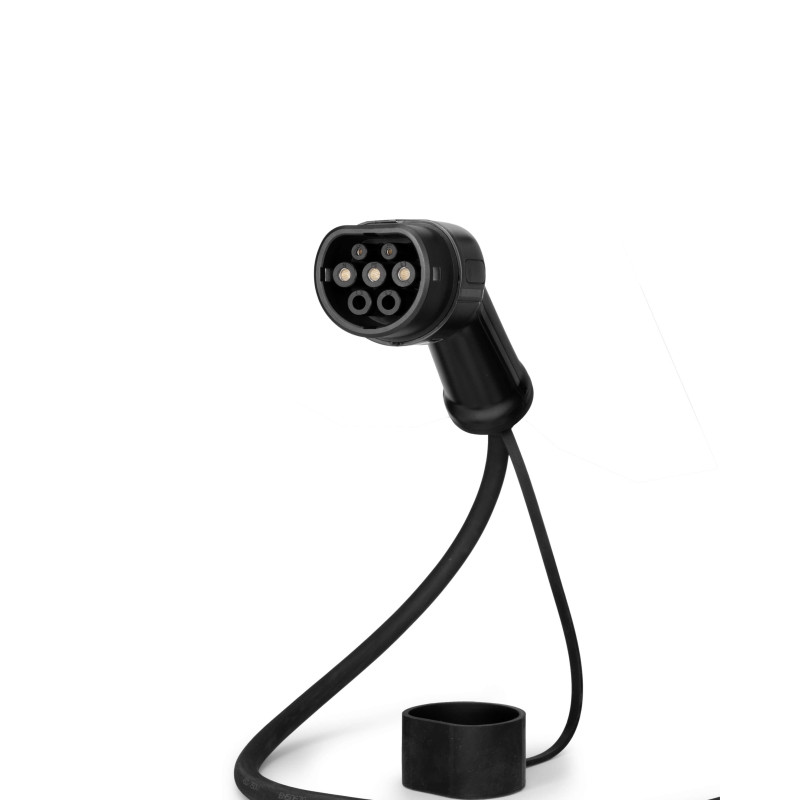

Charging cable length -5m

Standby power consumption lt;5W

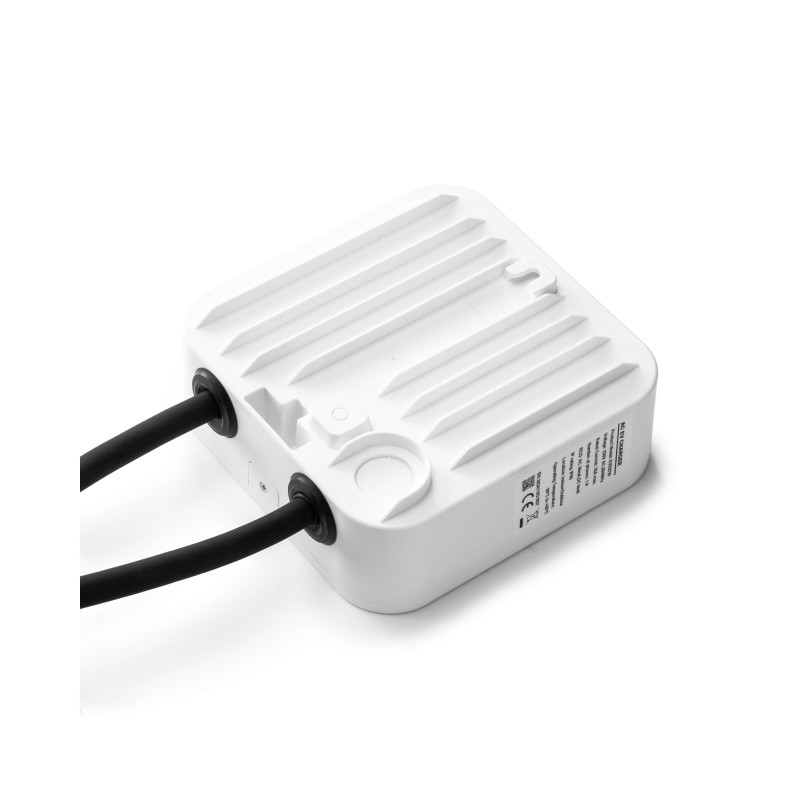

Free air cooling
Color (black or white)

išmatavimai=180mm*180mm*70mm

OCPP protocol (optional) 1.6 or 2.0.1
Standard IEC 61851; GB/T18487

Certificate CE, RoHS

Standard and certificate

AC power input rating SAE standard
IEC standard

Features
✔ Each electric vehicle charging station is equipped with an emergency stop bottom

✔ Each Wallbox EV charger comes with its own APP
✔ A total of 10 languages, including French, German, Russian, etc., also support customization
✔ A+DC6mA type allows for safer charging

✔ Unique design, different from other models on the market

✔ Easy installation, maintenance and stable operation

✔ Standby power consumption lt;5W, saves a lot of energy
✔ 180mm * 180mm * 70mm small design allows you to use it anywhere

✔ Customize designs, logos, colors even for small quantities and small businesses

OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a plug-in hybrid car to (which accepts up to 7kW during phase 1), it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
