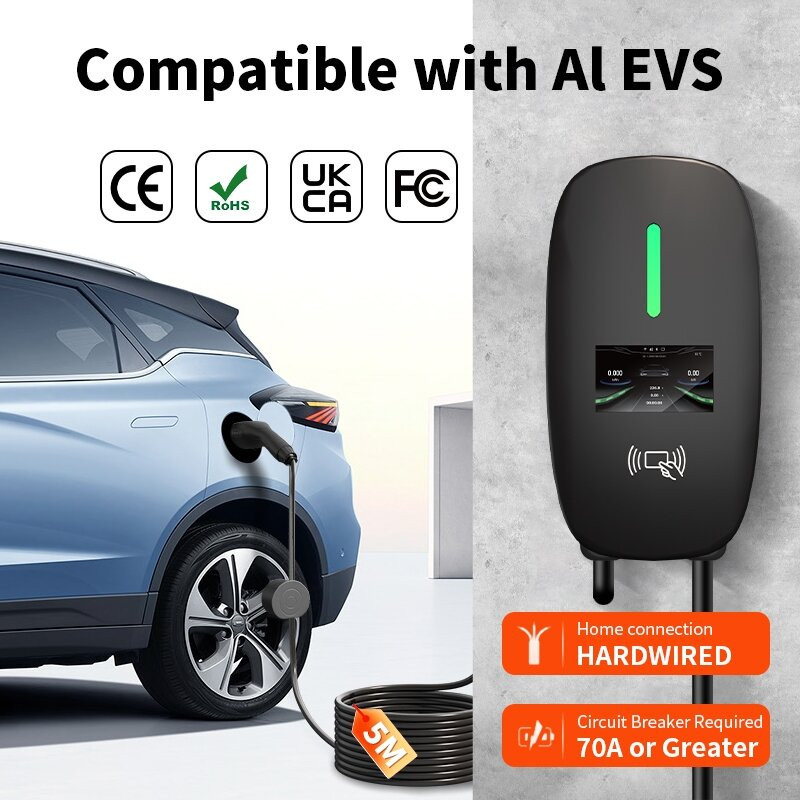

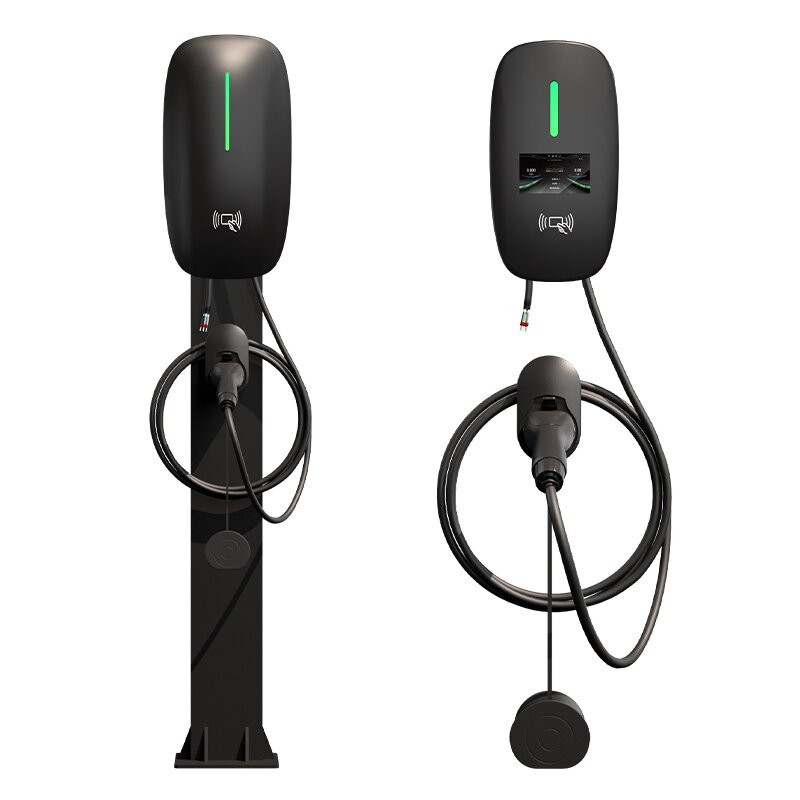

Charging station 11kW with app and - type 2 cable 5m long

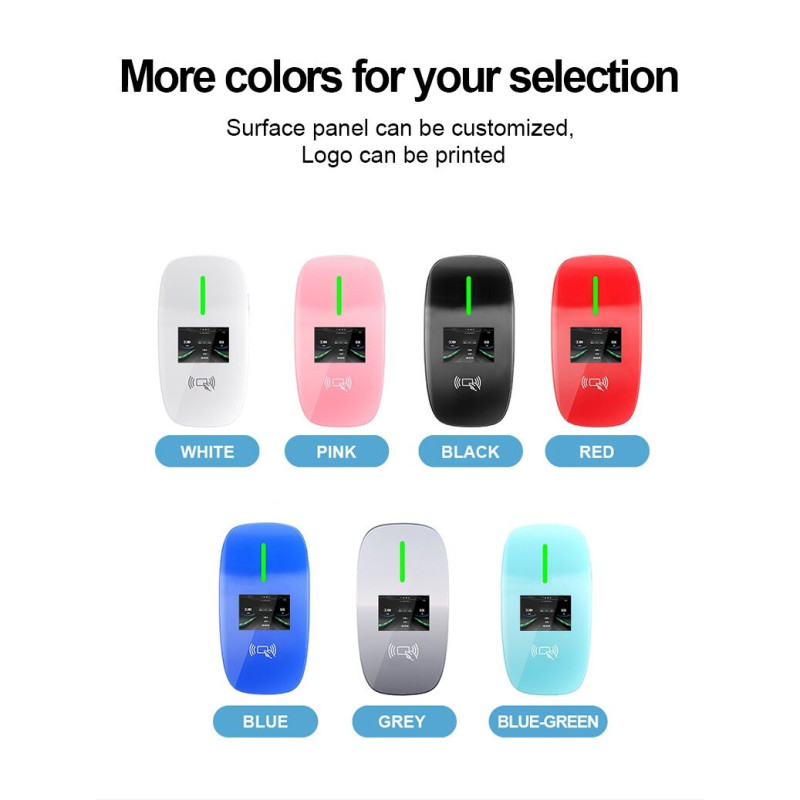

Charging station 11kW with app and type 2 cable 5m long. Stop colors white or black and connects to a red 3-phase socket - 11kW. This station is eligible for state support

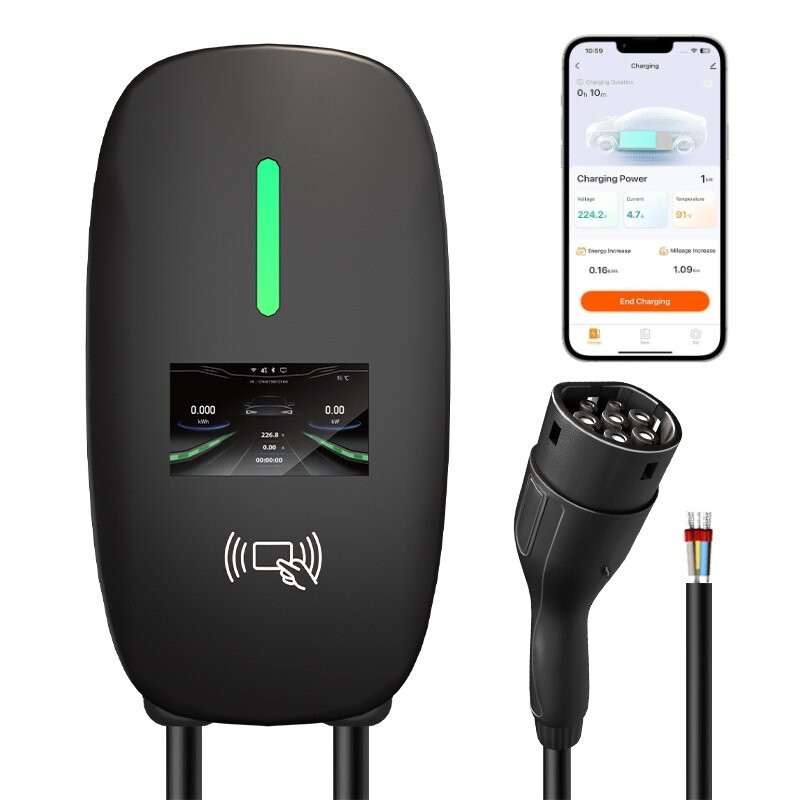

Through the app, you can control charging functions, such as duration, power and other settings, and see consumption history.

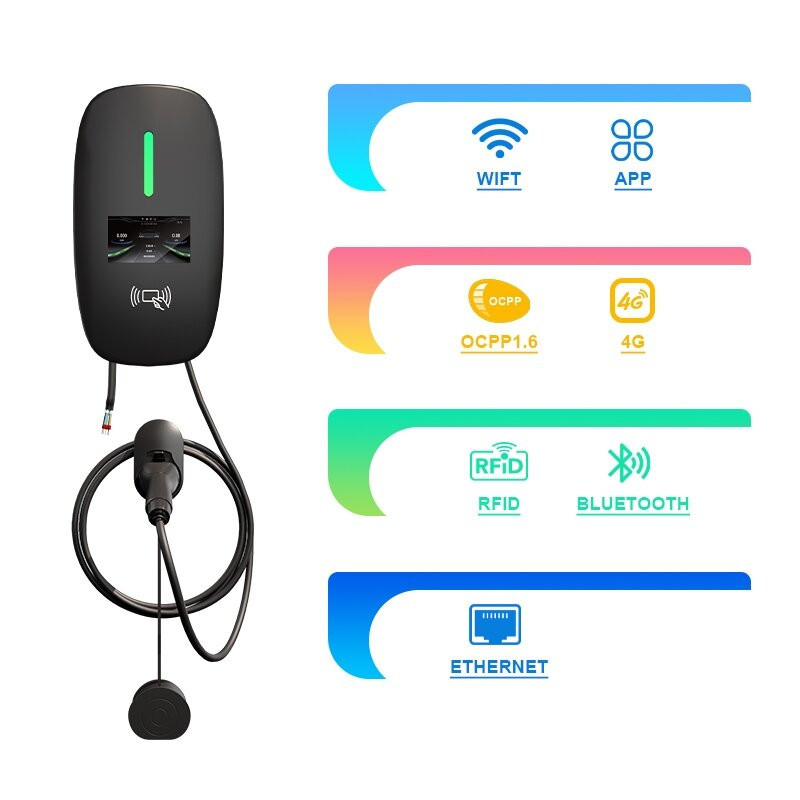

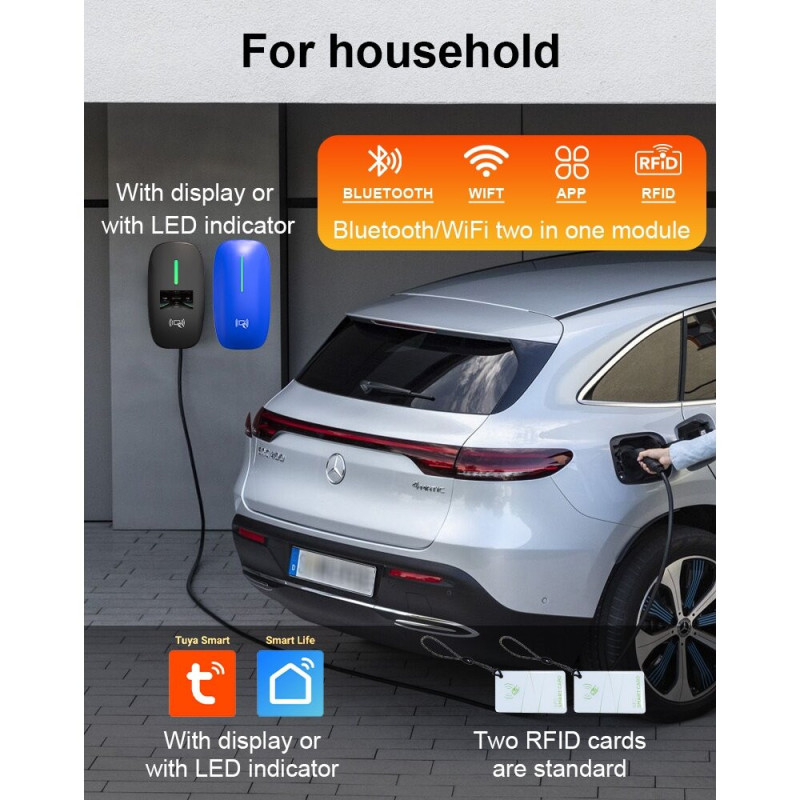

The station is controlled via an app by connecting to Wifi or Bluetooth

Body material: ABS+PC Plastic body

The power cord is connected from the bottom of the station

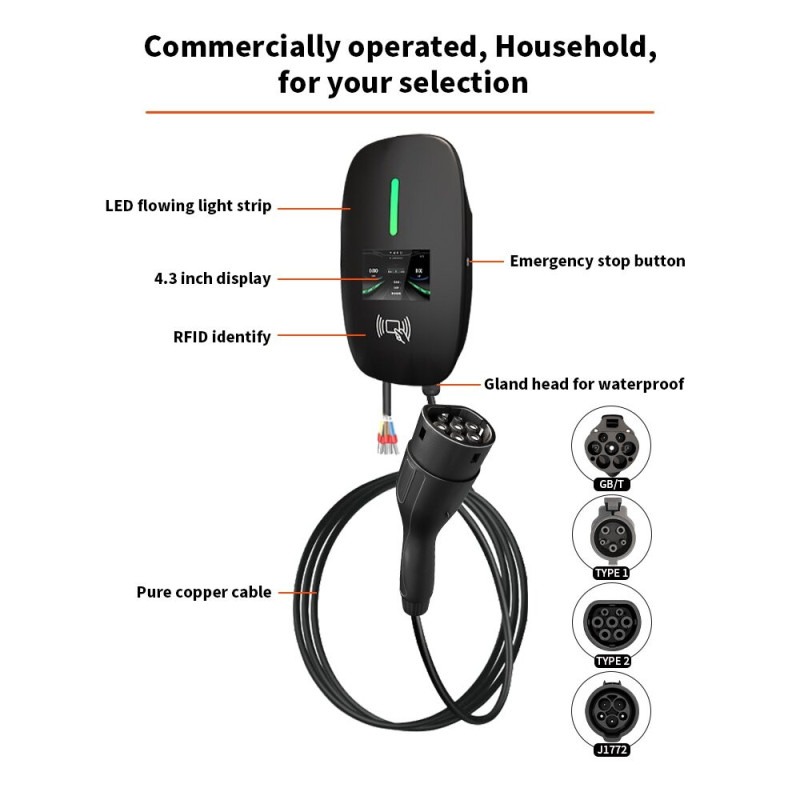

Charging interface Charging connector

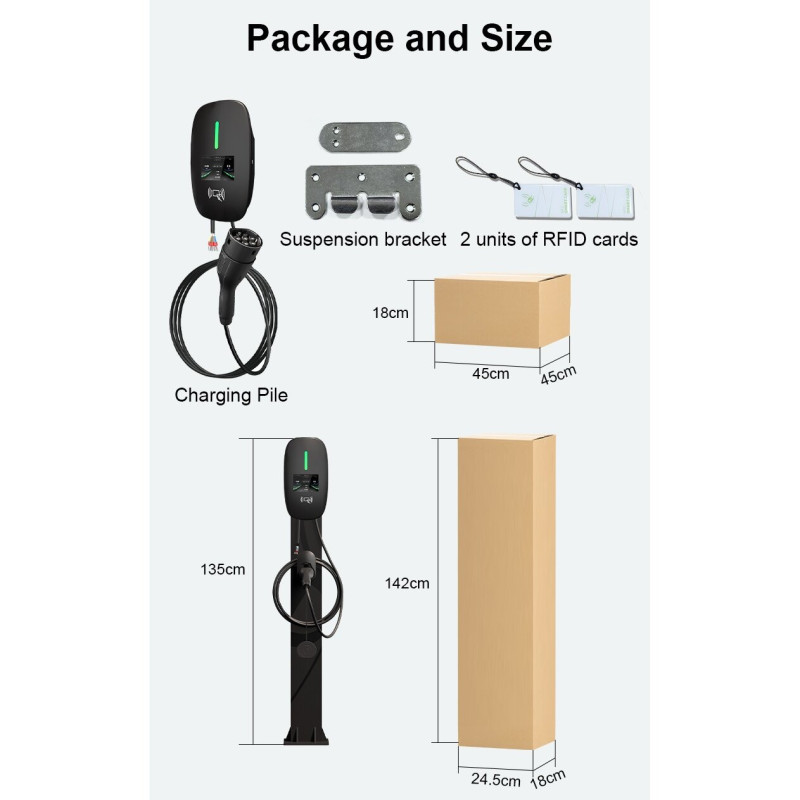

charging station dimensions 186*354*111mm

Weight 5 kg

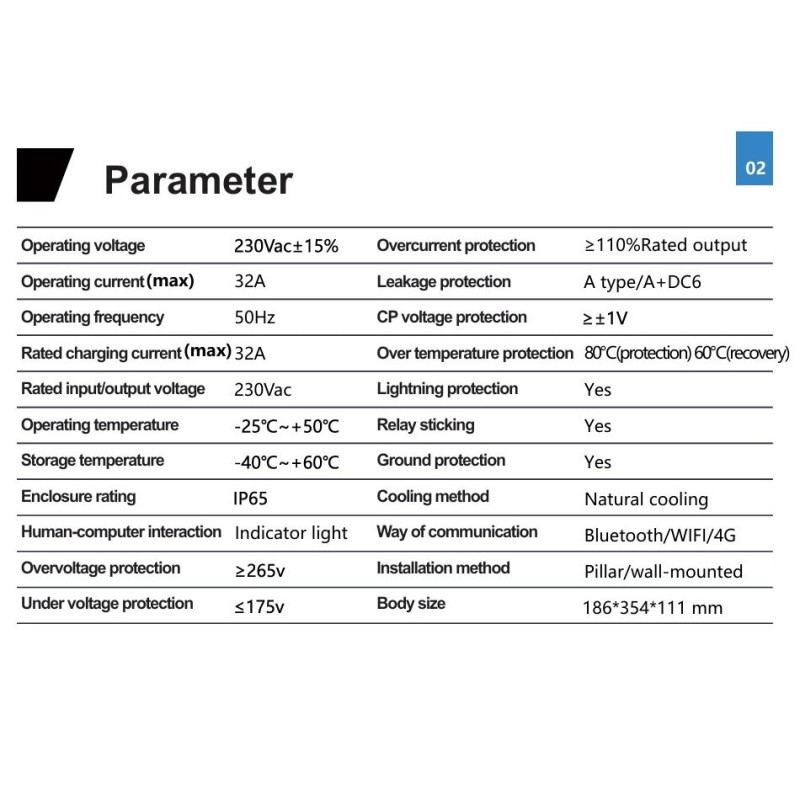

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 16A, 3 phases

Frequency 50Hz /60Hz

Maximum power 11KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 16A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+50

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP65

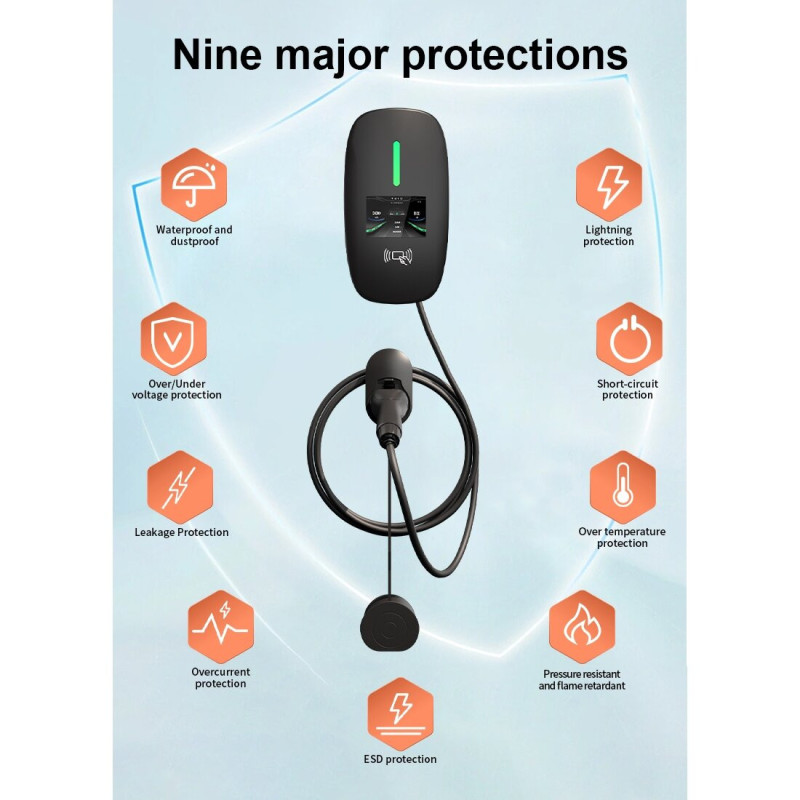

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

LED light Yes

RFID Only available with RFID version
