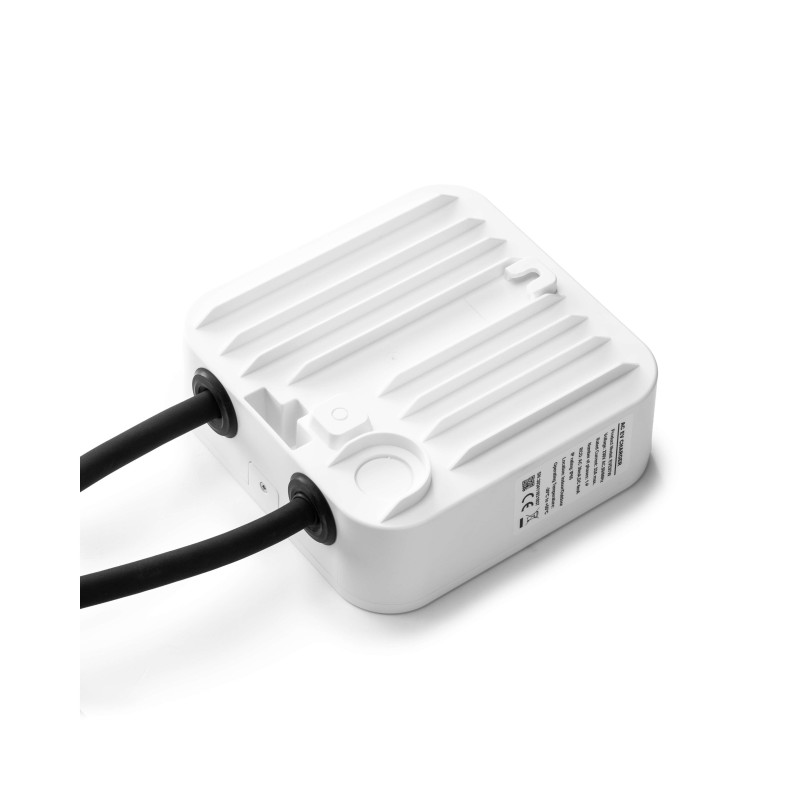

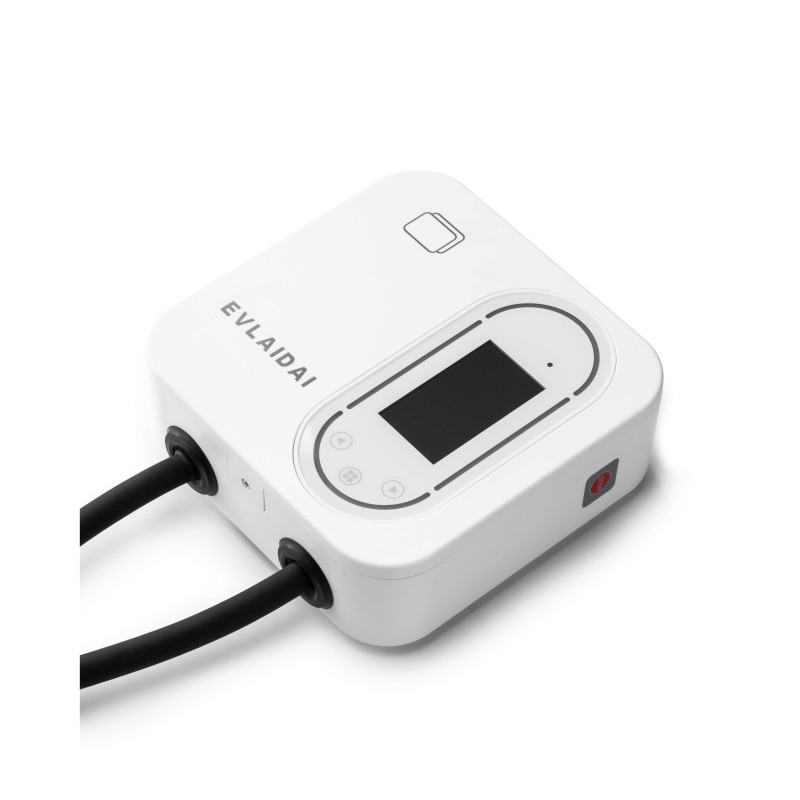

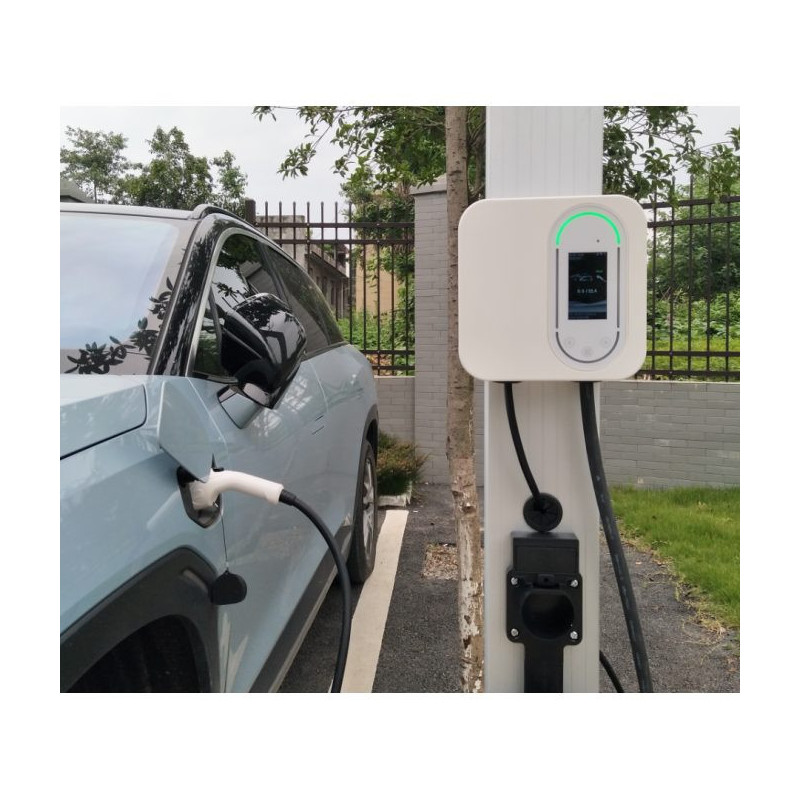

Charging station 11kW CN-ANS, with app, RFID card and OCPP protocol

CHARGING STATION 11 kW CHARGING POWER

Protections:

overvoltage, undervoltage, overload, short circuit, leakage, overtemperature, lightning
LED indicators

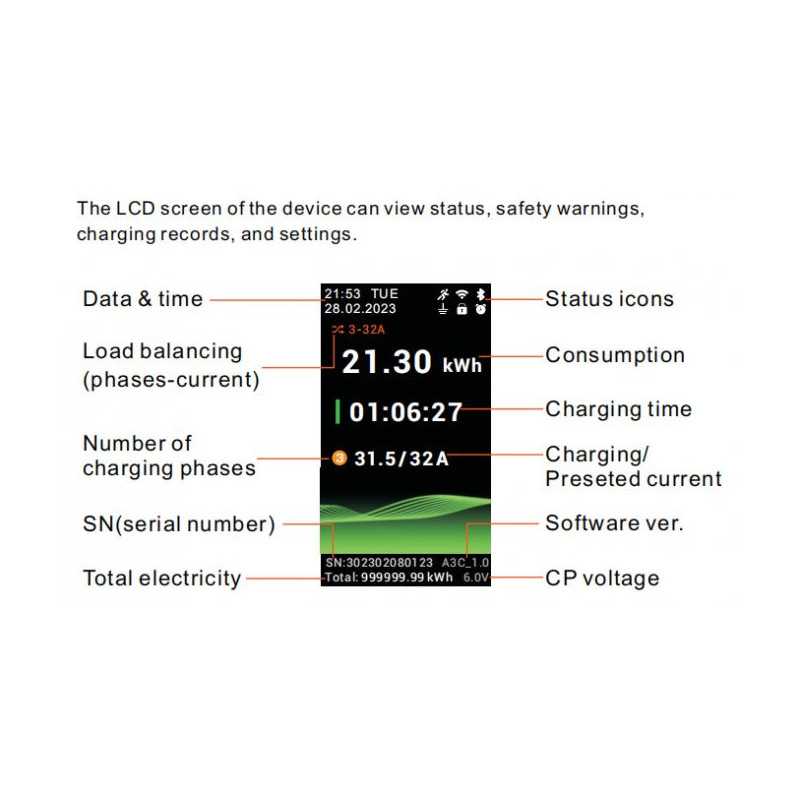

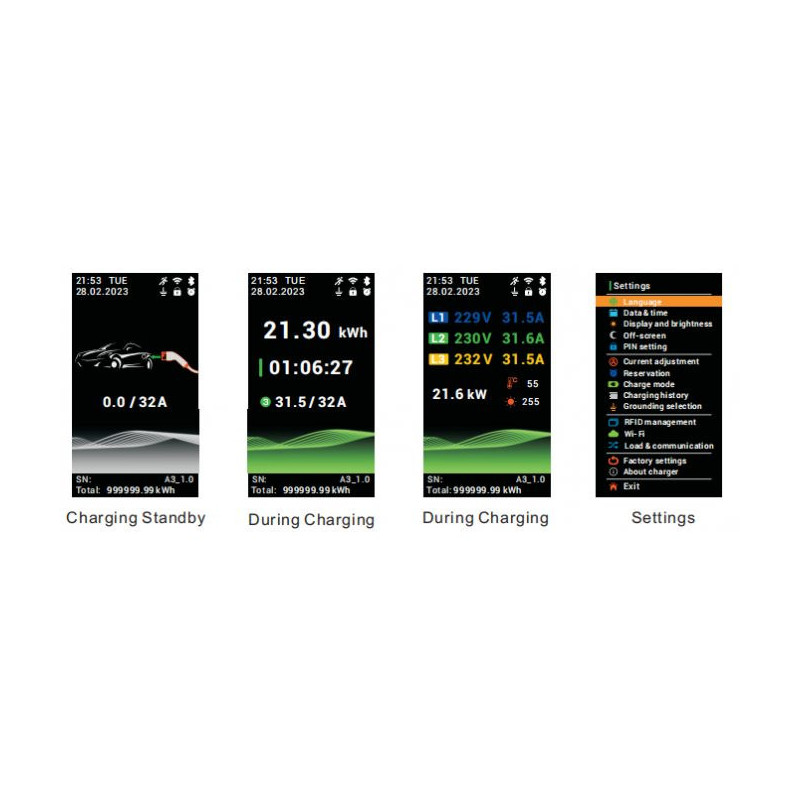

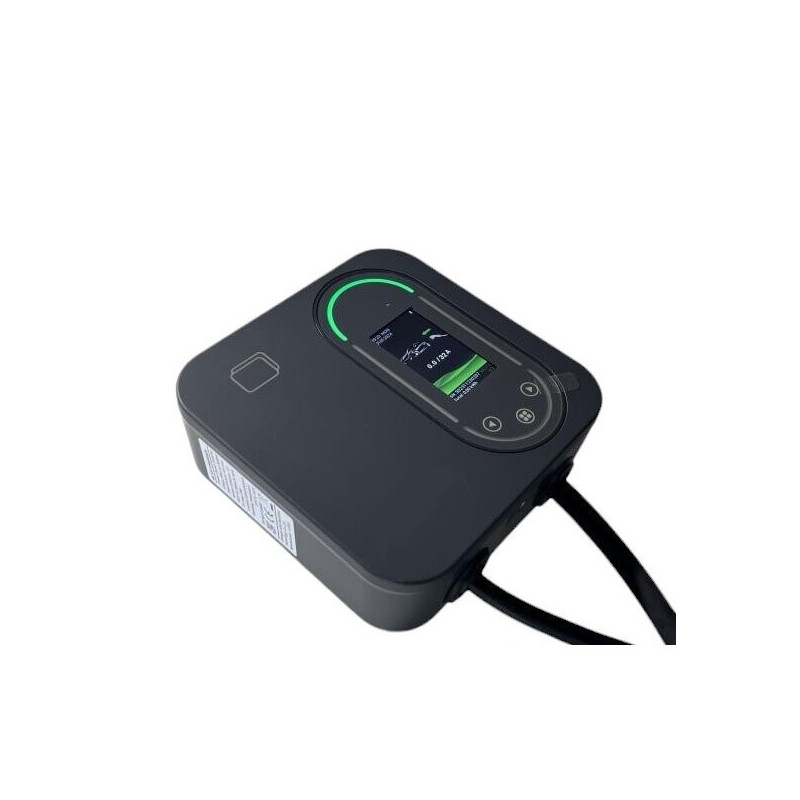

LCD screen 3.0 inches

RCMU Type B (AC 30mA+DC 6mA)

Currents regulation - yes

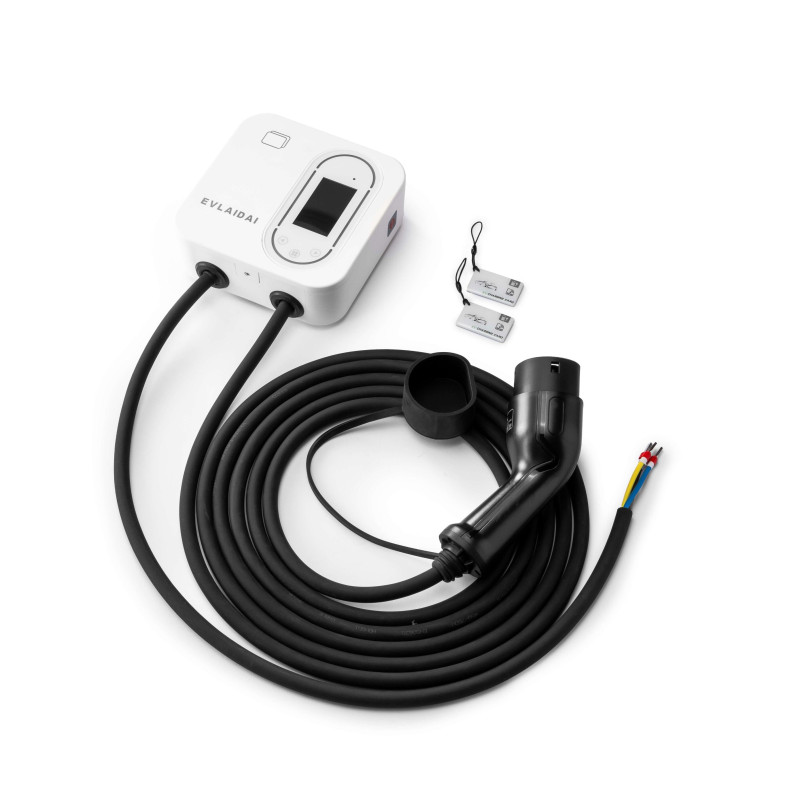

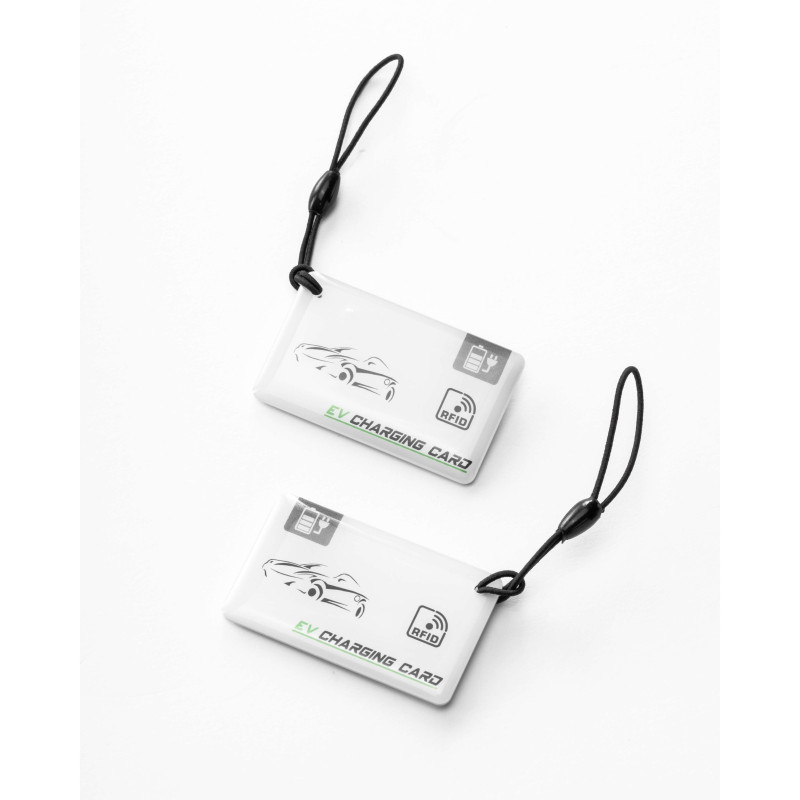

RFID card

WIFI/Bluetooth

Water protection class IP 65

Operating temperature from -30 degrees to 60 degrees

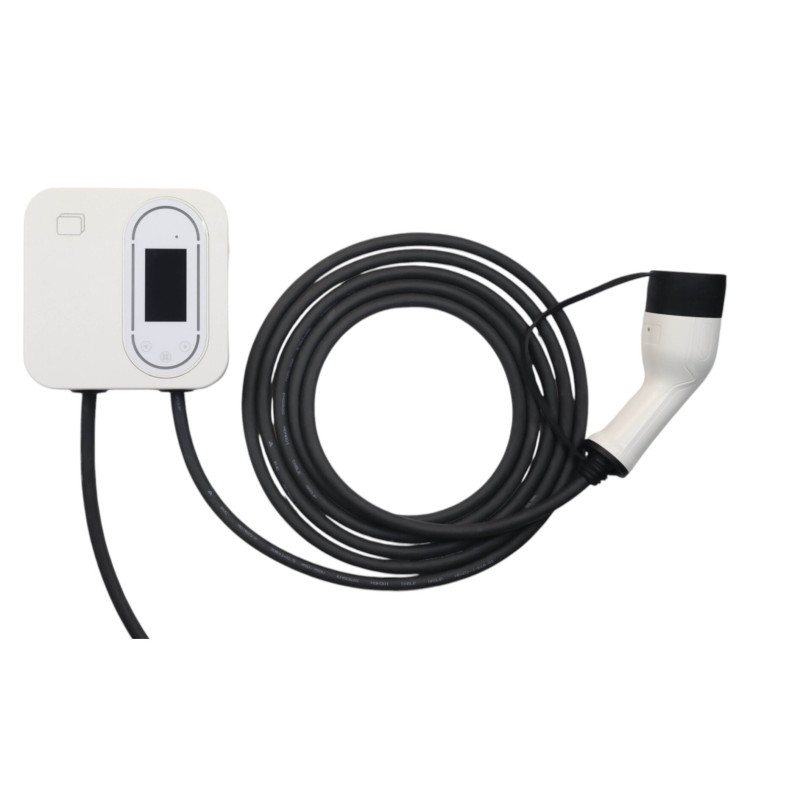

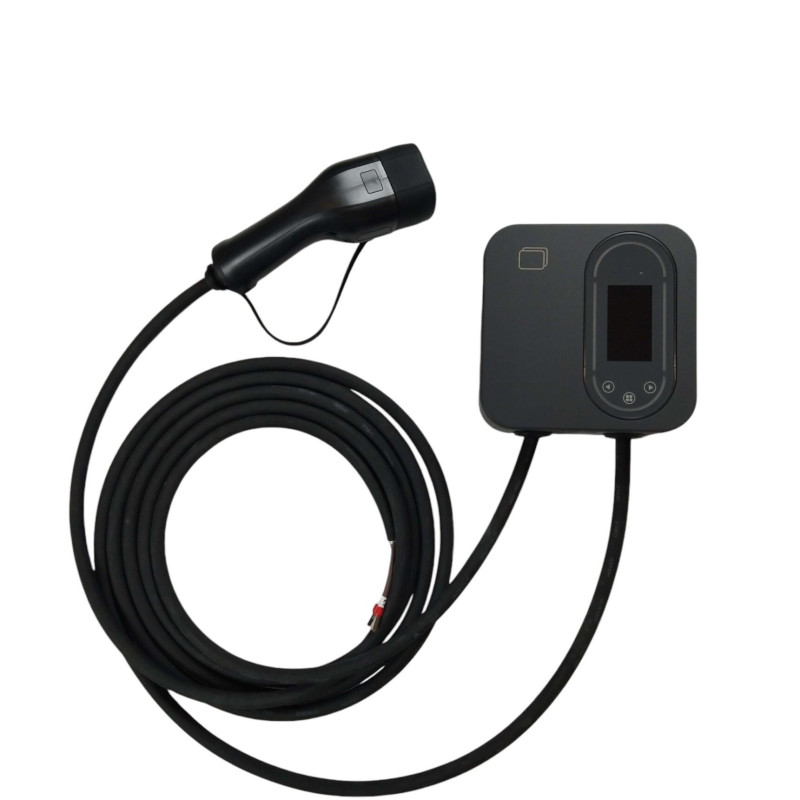

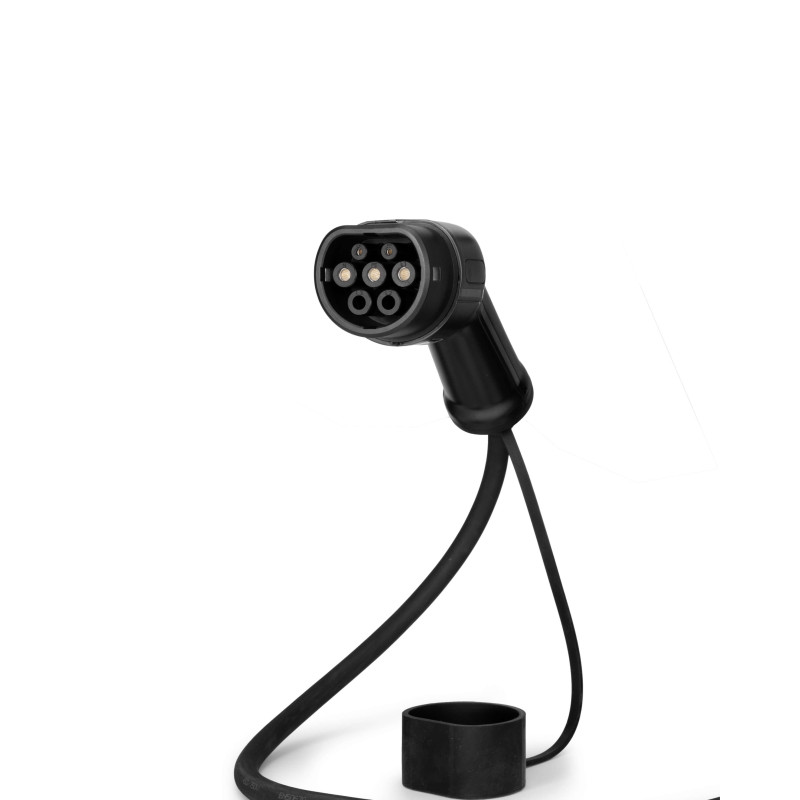

Charging cable length -5m

Standby power consumption <5W
Cooling by natural air
Color (black or white)

dimensions=180mm*180mm*70mm

OCPP protocol (optional) 1.6 or 2.0.1
Standard IEC 61851; GB/T18487

Certificate CE, RoHS

Standard and Certificate

AC Power Input Rating SAE Standard
IEC Standard

Features

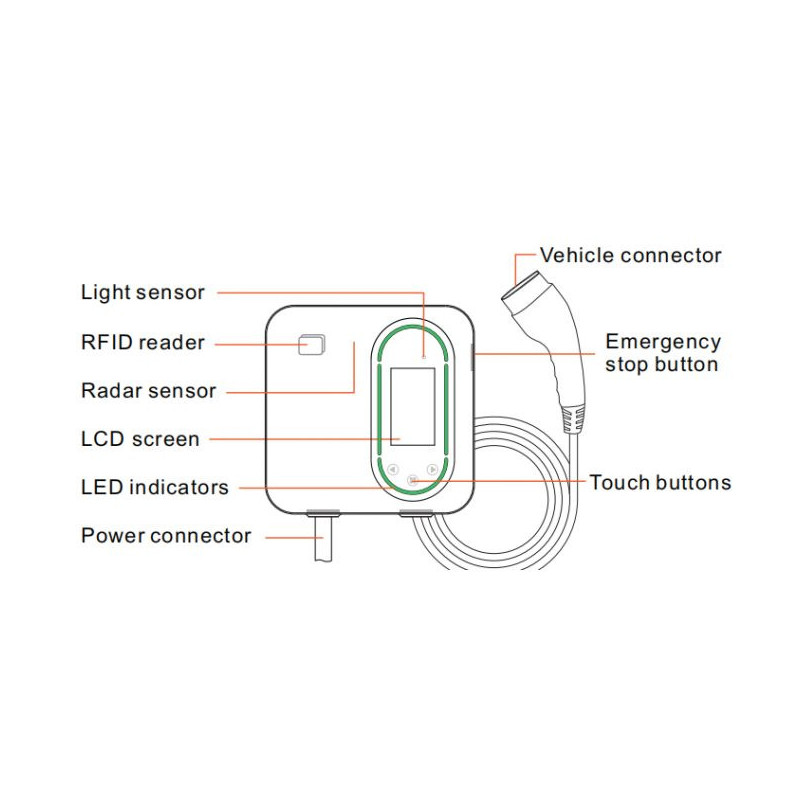

✔ Each EV charging station is equipped with an emergency stop bottom

✔ Each Wallbox EV charger comes with its own APP
✔ A total of 10 languages, including French, German, Russian, etc., the language also supports customization
✔ A+DC6mA type allows charging safer

✔ Self-designed, different from other models on the market

✔ Easy installation, maintenance and stable operation

✔ Standby power consumption <5W, saves a lot of energy
✔ 180mm * 180mm * 70mm small design allows anywhere

✔ Customize design, logos, colors even for small quantity and small business
