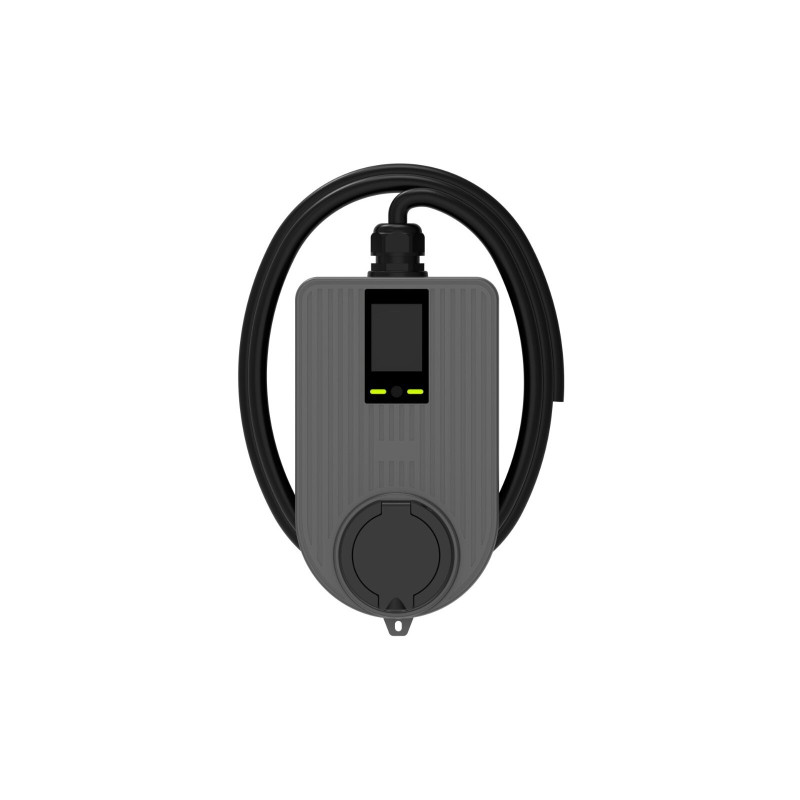

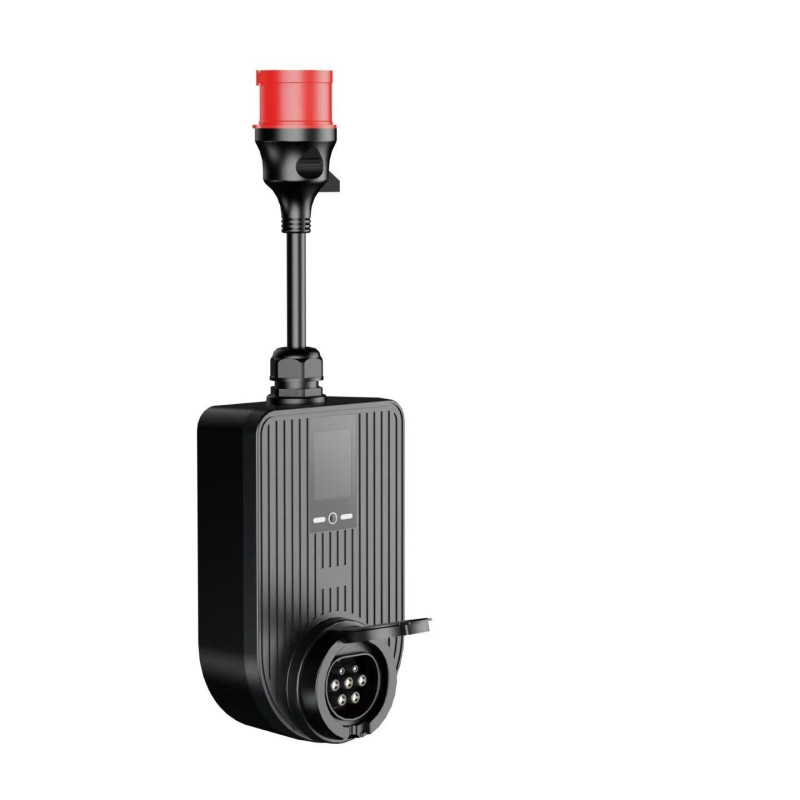

Charging station 11 kW ACH-QE11 with Type 2 socket

11 kW electric vehicle charging station with WiFi, Bluetooth and RFID (Type 2)

This 11 kW electric vehicle charging station is designed for safe, fast and convenient charging of electric vehicles at home, in the office or in commercial parking lots. The charging station supports 3-phase 400 V power supply and provides up to 11 kW of charging power, so you can charge your electric vehicle much faster than using a regular household electrical outlet.

Integrated WiFi and Bluetooth connectivity allows you to control the station with a mobile app - you can adjust the charging current, set a charging schedule, monitor charging progress, and perform software updates (OTA). Additional security is provided by RFID authentication, so only authorized users can start charging.

Main advantages

✅ Power up to 11 kW

✅ Suitable for all electric vehicles that meet European standards

✅ Built-in WiFi and Bluetooth

✅ RFID card authentication

✅ 2.8 inch LCD screen

✅ Ability to adjust charging current

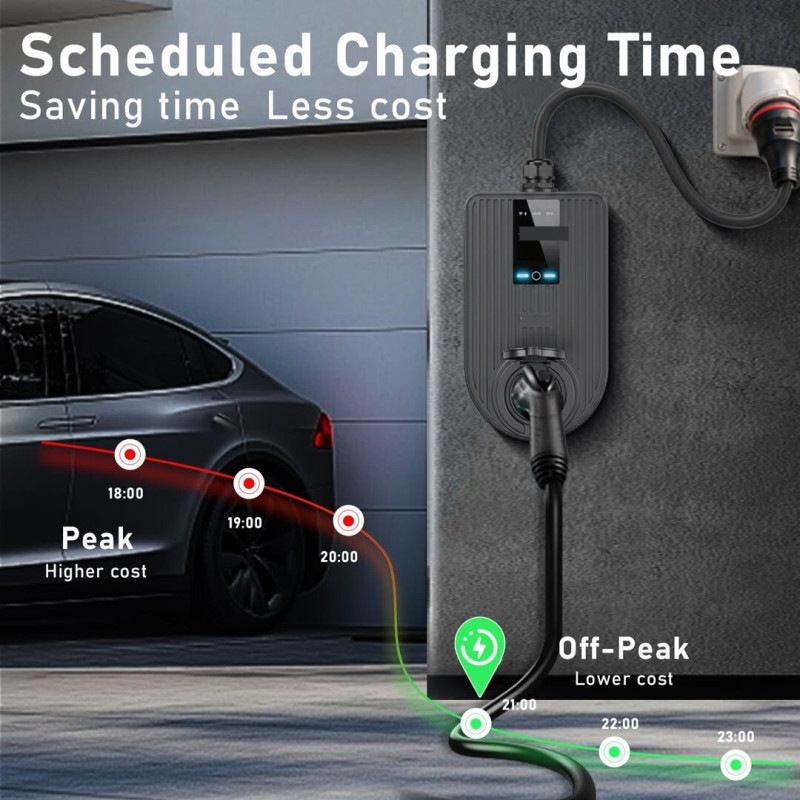

✅ Time planning function via the app

✅ Protection against overload, overvoltage, leakage current and overheating

✅ Dust and moisture resistance - IP54

✅ Operating temperature from -30°C to +55°C

Convenient control

Technical characteristics

Parameter Value
Power 11 kW
Power supply 400 V AC (3 phases)
Current 16 A
Frequency 50 / 60 Hz
Connector Type 2
Display 2.8" LCD
Authentication RFID (ISO14443)
Connection WiFi + Bluetooth
Protection class IP54
Operating temperature -30°C to +55°C
Weight 3.4 kg
Package dimensions 460 × 350 × 165 mm

Technical characteristics and functions correspond to the specification provided by the manufacturer.

The large 2.8-inch LCD screen displays in real time:

charging power;
voltage;
current;
charging status;
other important information.

Using the mobile app you can:

start or stop charging;
set charging time;
adjust charging current;
monitor charging process;
update device software.

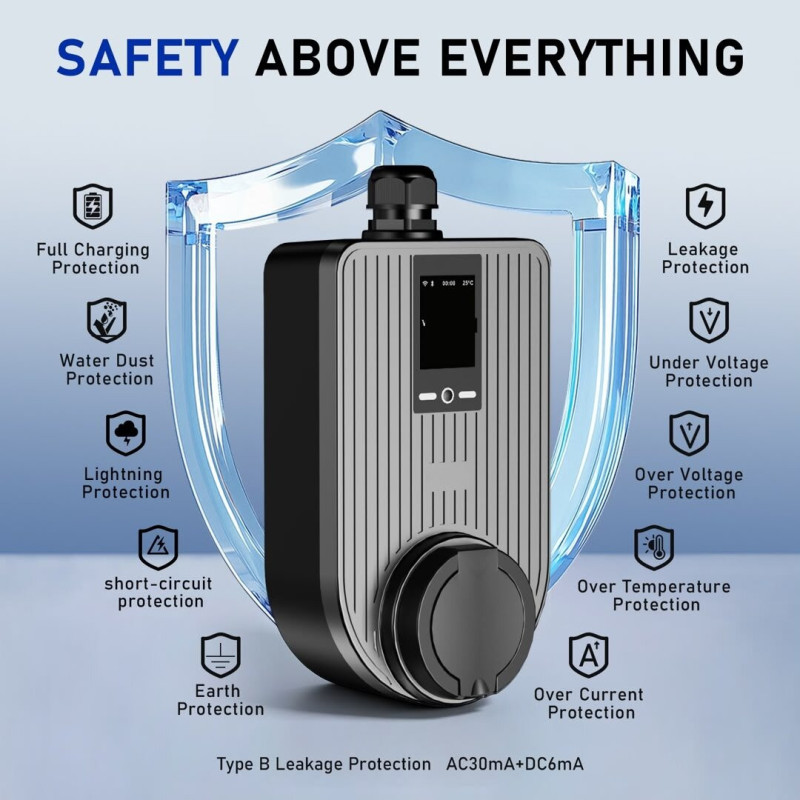

High level of security

The most important security features installed at the station are:

overvoltage protection;
low voltage protection;
overload protection;
overheating protection;
leakage current protection;
grounding control;
lightning protection.

This ensures reliable and safe charging of your electric vehicle every day.

Compatibility

The charging station is compatible with most electric vehicles and plug-in hybrids sold in Europe that have a Type 2 (IEC 61851) connector, including:

Tesla
Volkswagen
Audi
BMW
Mercedes-Benz
Volvo
Hyundai
Kia
Renault
Peugeot
Opel
Škoda
Cupra
Ford
Nissan
MG
BYD and others.

Complete set

11 kW electric vehicle charging station
Mounting bracket
Mounting screws
User manual

Why choose this 11 kW charging station?

If you are looking for a reliable, modern and smart electric vehicle charging station, this model is a great choice. WiFi control, Bluetooth connection, RFID authorization, a clear LCD display and advanced security features ensure convenient everyday use. Due to its compatibility with most electric vehicles used in Europe, this station is perfect for both individual homes and companies or apartment projects.
