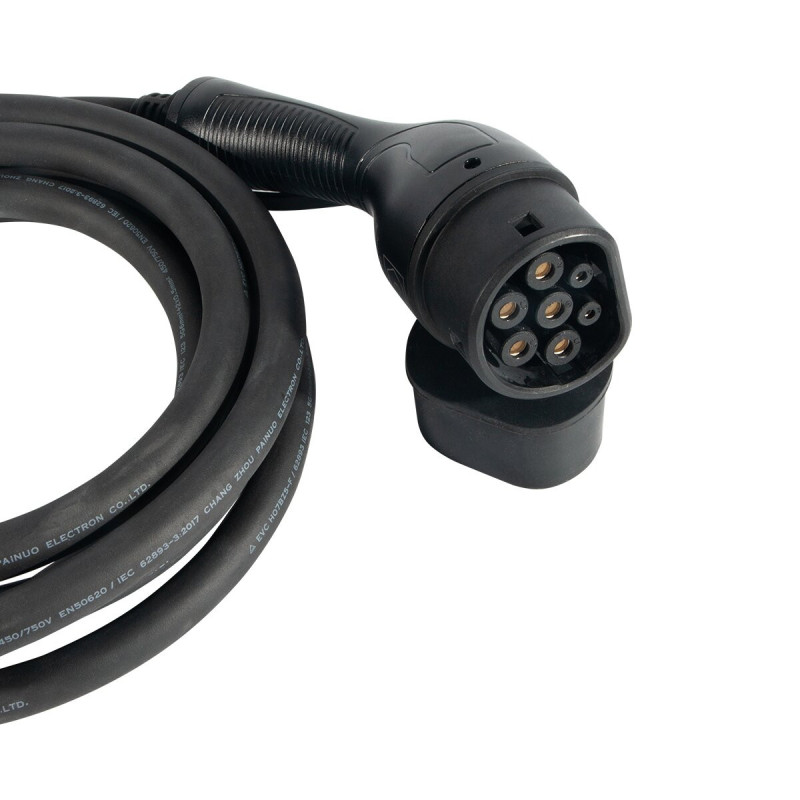

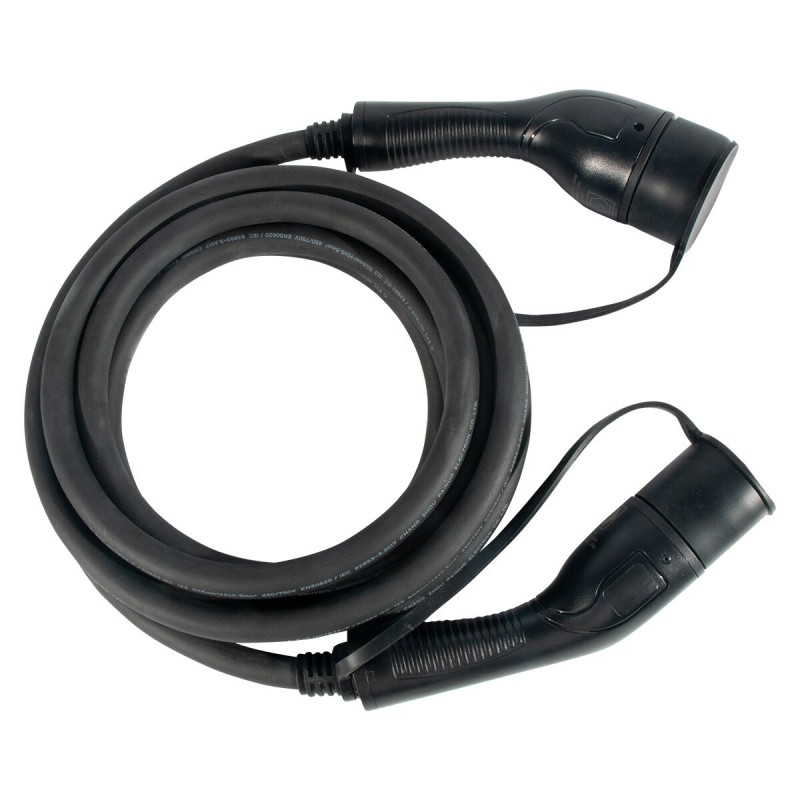

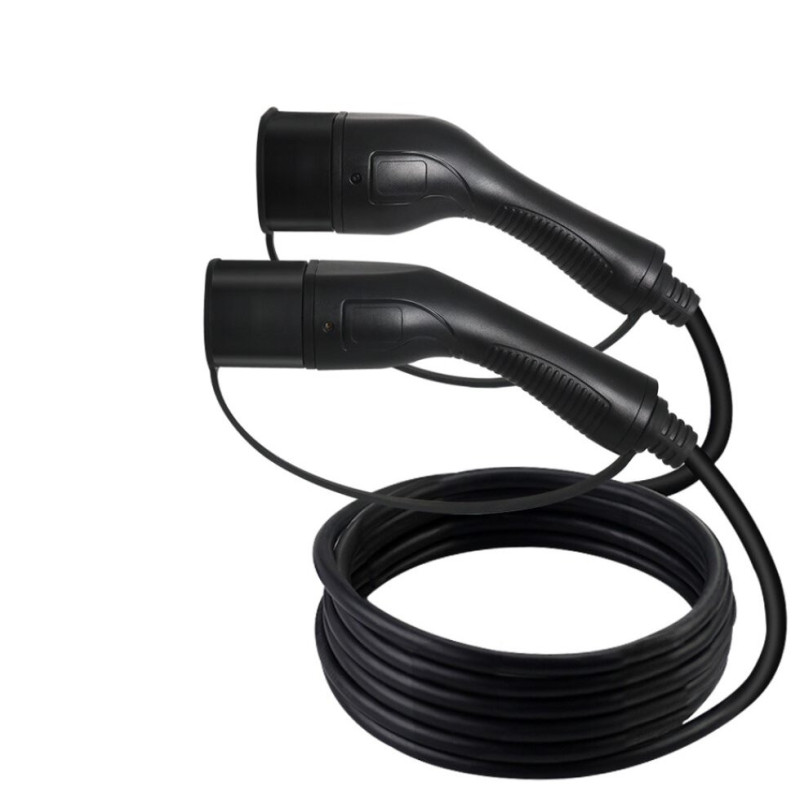

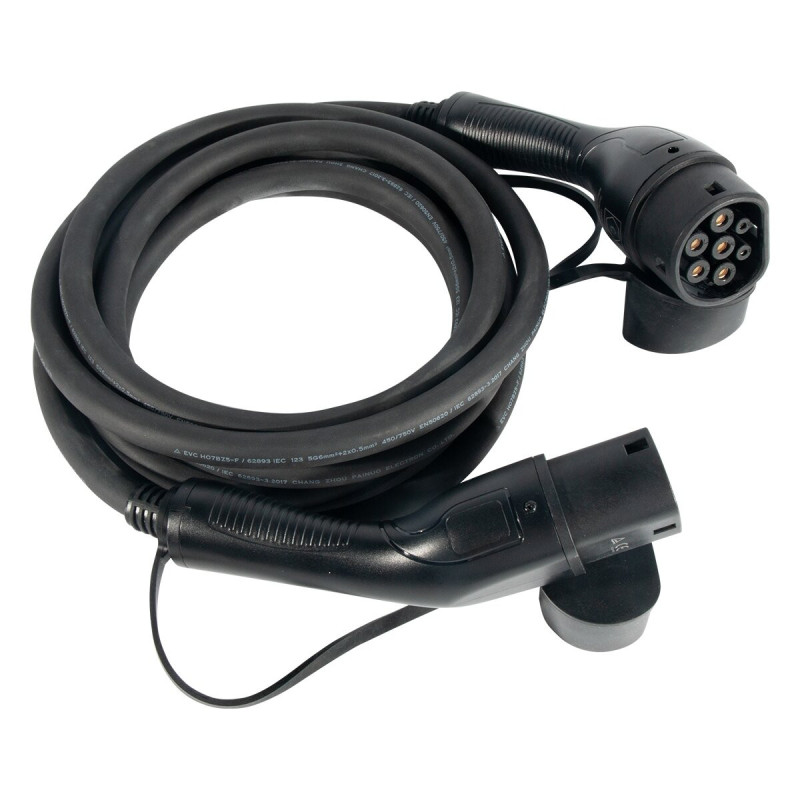

Charging cable Type 2 - Type 2 ( 32A, 1 Phase, 7 KW )
Product reference:
32-4565467587789
Charging cable Type 2 - Type 2 ( 32A, 1 Phase, 7 KW )
Product reference:
32-4565467587789
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

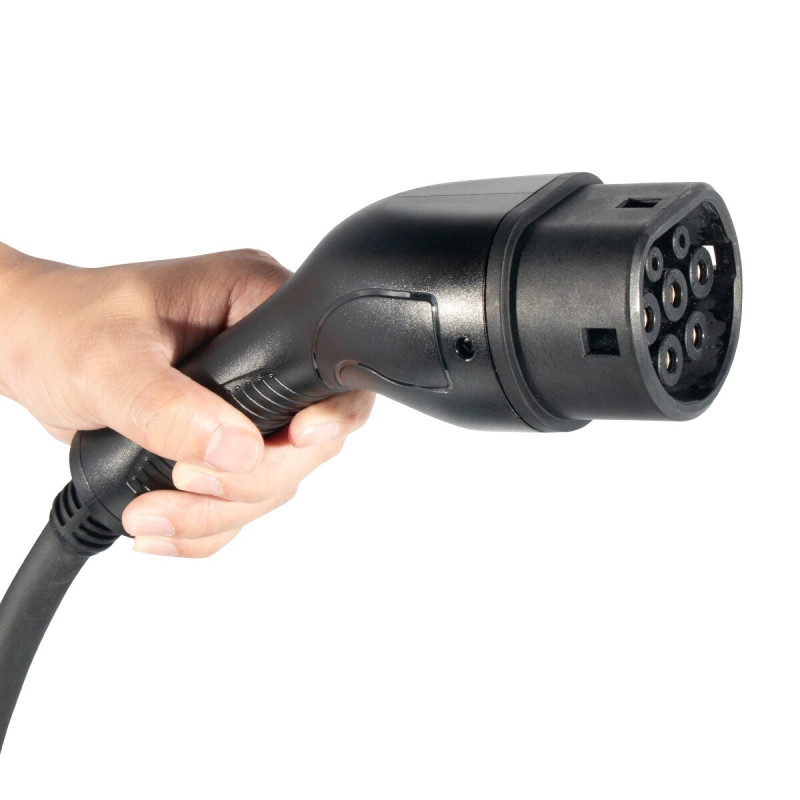

Type 2 charging cable for electric vehicles, 5M long, maximum charging power 7KW, 32A, 1 phase,
The product is provided with a 24-month warranty
Specification:
Rated current: 32A
Cable length: 5.0 meters
Cable specifications: 6mm2 (3 * 6.0mm2 + 2 * 0.5mm2)
Working voltage: 110-250V AC

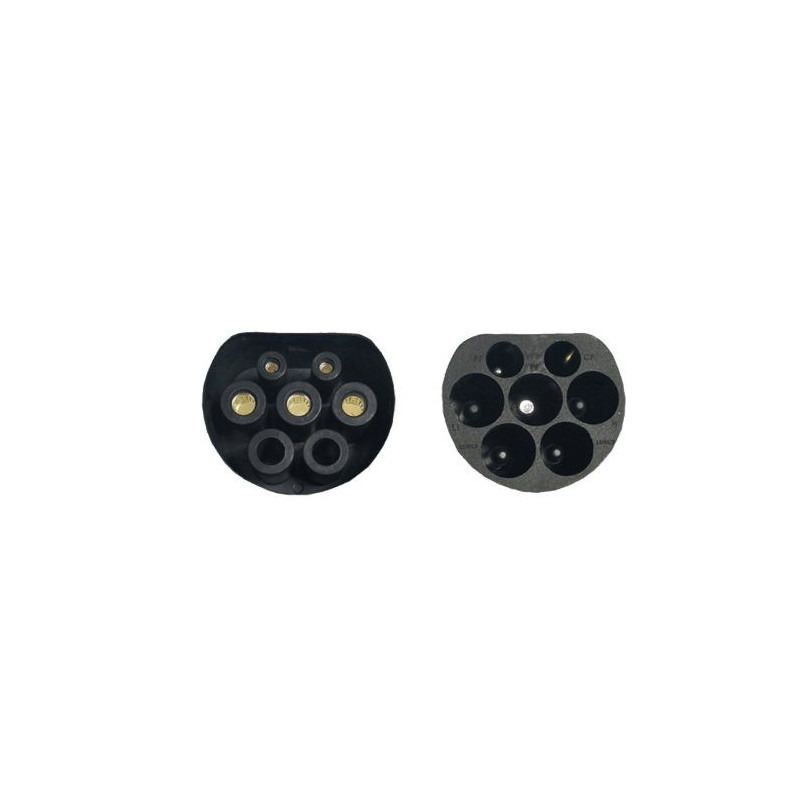

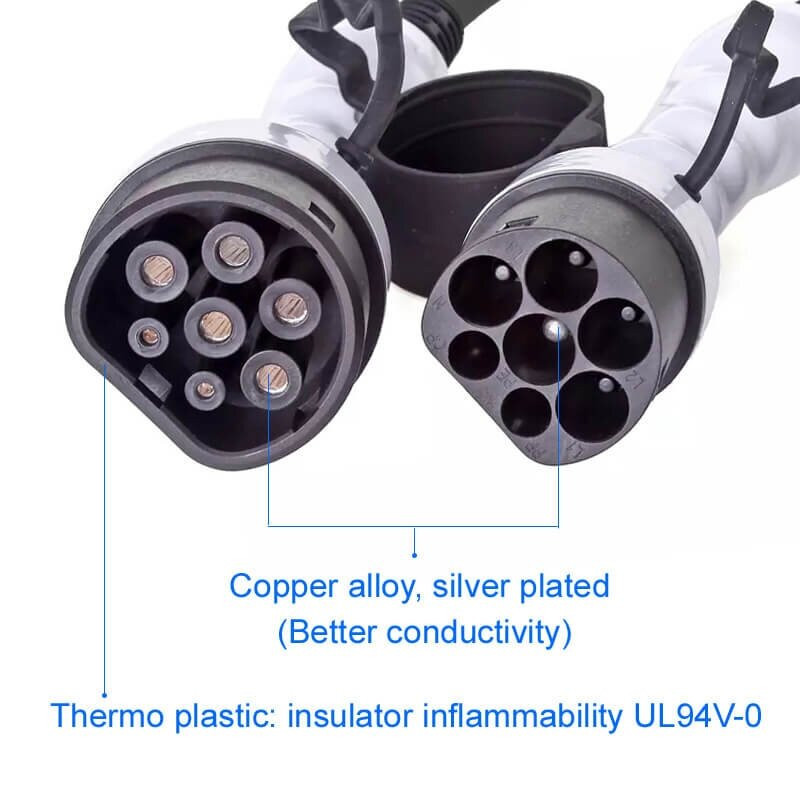

Contact pin: copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
Insulation resistance: > 1000
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5
Vibration resistance: meets the requirements of JDQ 53.3
Working temperature: -30 ° C ~ + 50 ° C
IP rating: IP66
Fire: UL94 V-0
Certifications: CE, TUV approved

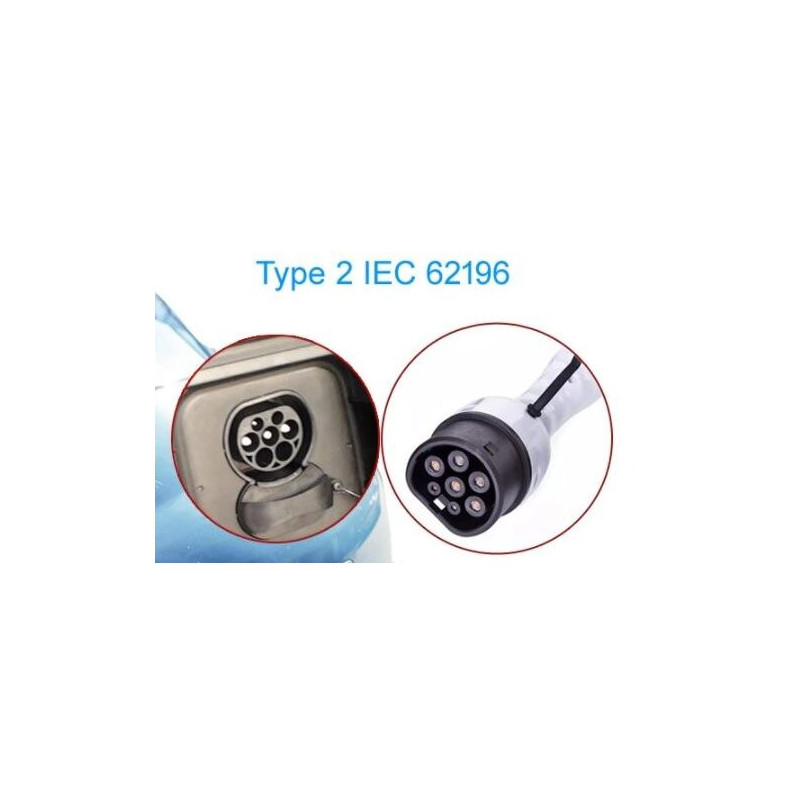

Type 2 - European standard used by European-made electric vehicles, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-made Volkswagen e-Golf or BMW i3 or others
| Height | 150 mm |
| Power | 7 kW |
| Length | 450 mm |
| Charging location | From city stations |
| Cable shape | Straight |
| Cable length | 5 m |
| Cable type | type 2 |
| Width | 450 mm |
| Weight | 2900 g |
