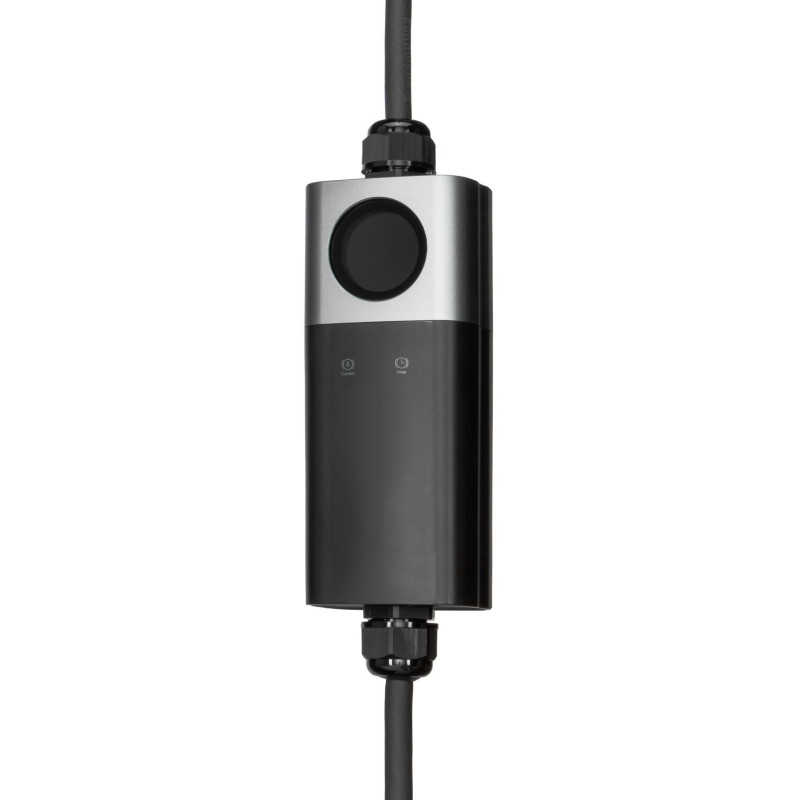

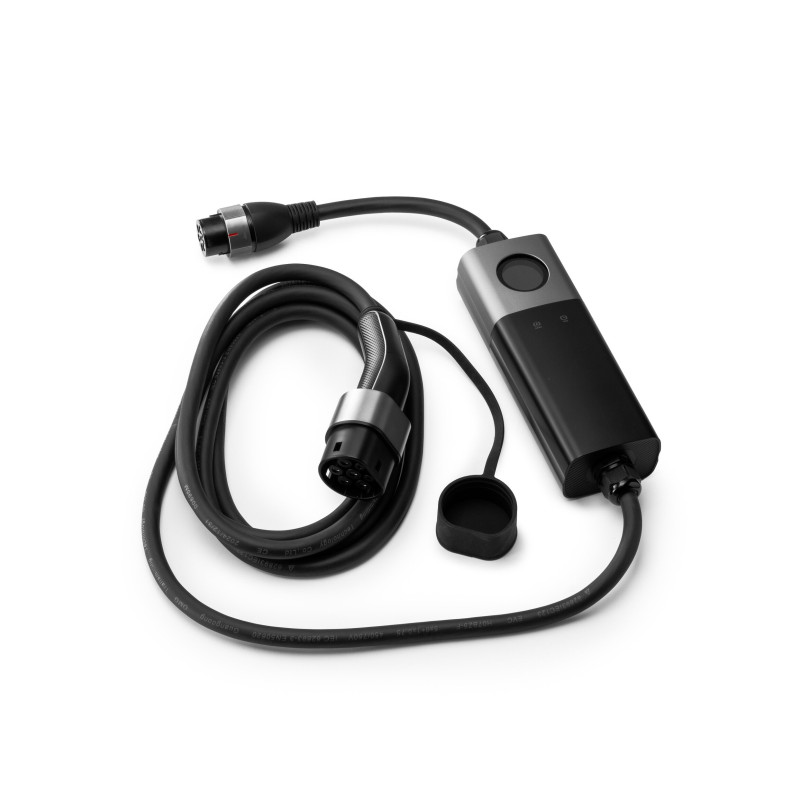

Charging cable 480 V - type 2 (32A, 3 phases 22 kW) with Wi-fi function (Copy)

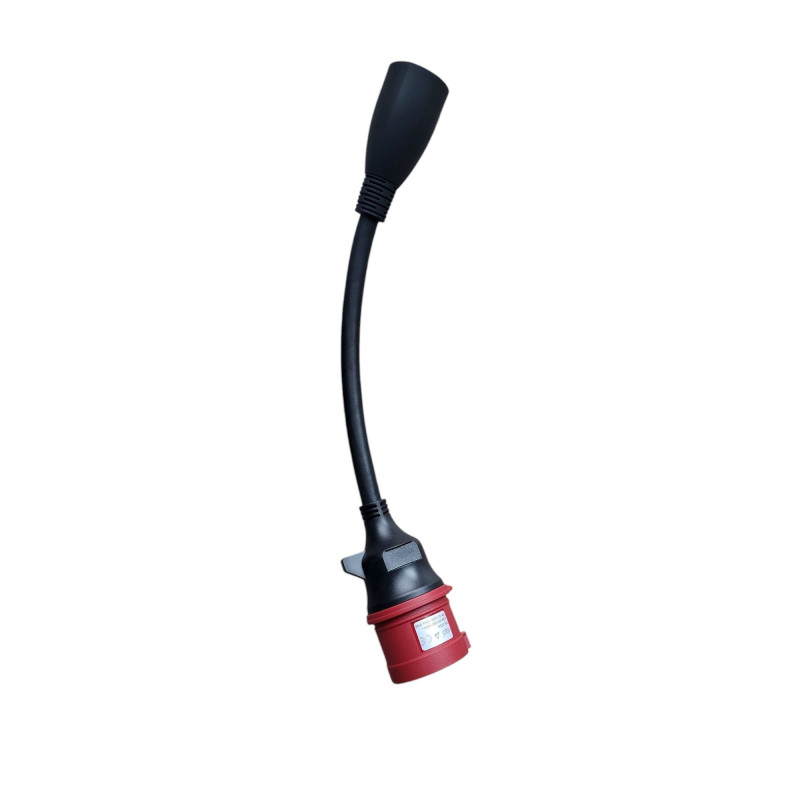

Electric vehicle charging cable 32A, 3 phases, from a three-phase socket to a type 2 connector with Wi-Fi function

Specification:

• Power plug:

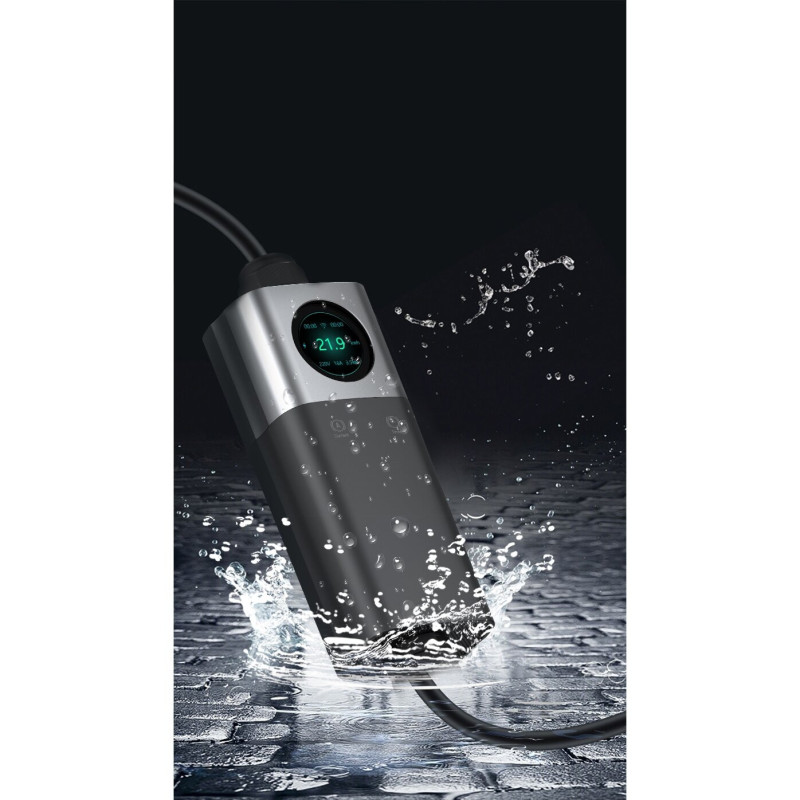

• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 22 KW
• Total length: 5 meters
• Mechanical life: turn on/off > 10000 times
• External force impact: can reach 1 m drop and 2 t vehicle pressure
• Insulation resistance: > 1000MD (DC500V)
• Terminal temperature rise: <50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction to fire resistance level: the grade of flame retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of 10S sample burning tests, the flame is extinguished within 10 seconds. No burning objects shall fall.)

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

This is a compact portable electric car charging cable, which is an ideal solution for cheaply charging your electric car at work, while traveling, or in other places where there is a household outlet.

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and will start charging when the temperature drops to 65°C.

The LED display shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable 6A/10A/16A/20A/24A/32A)

7. Charging speed kW

Method of use:

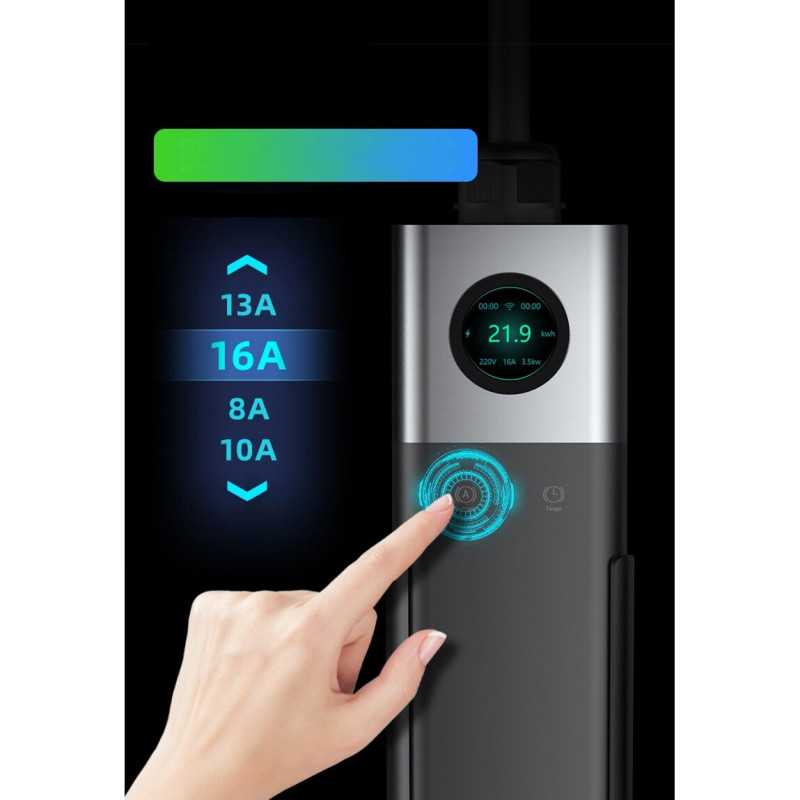

The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE J1772 Type 1 (or Type 2) plug is disconnected. When you get the desired current, connect it and start charging.

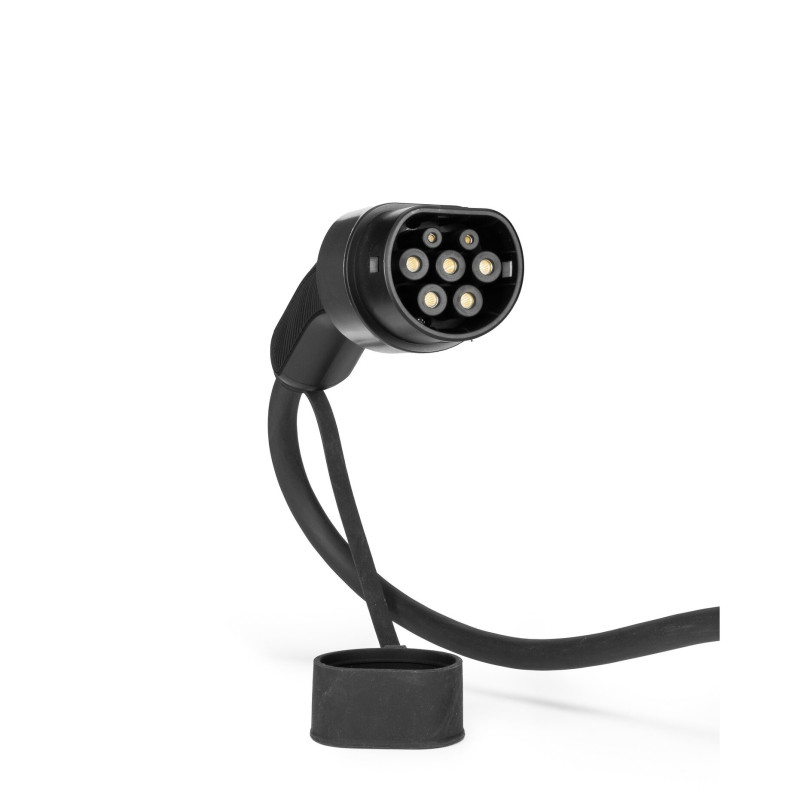

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 or others intended for the European market
