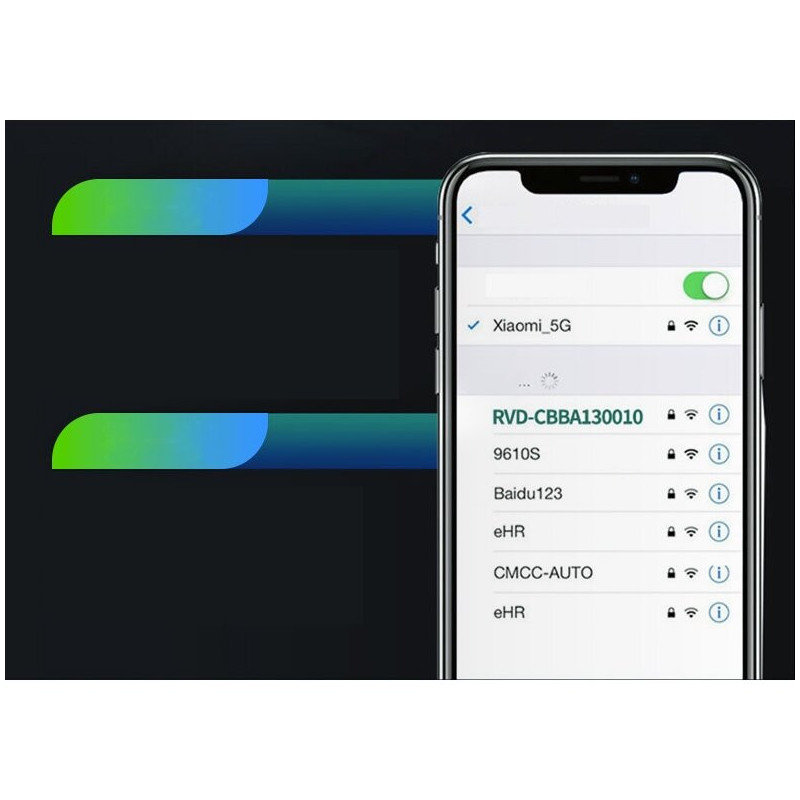

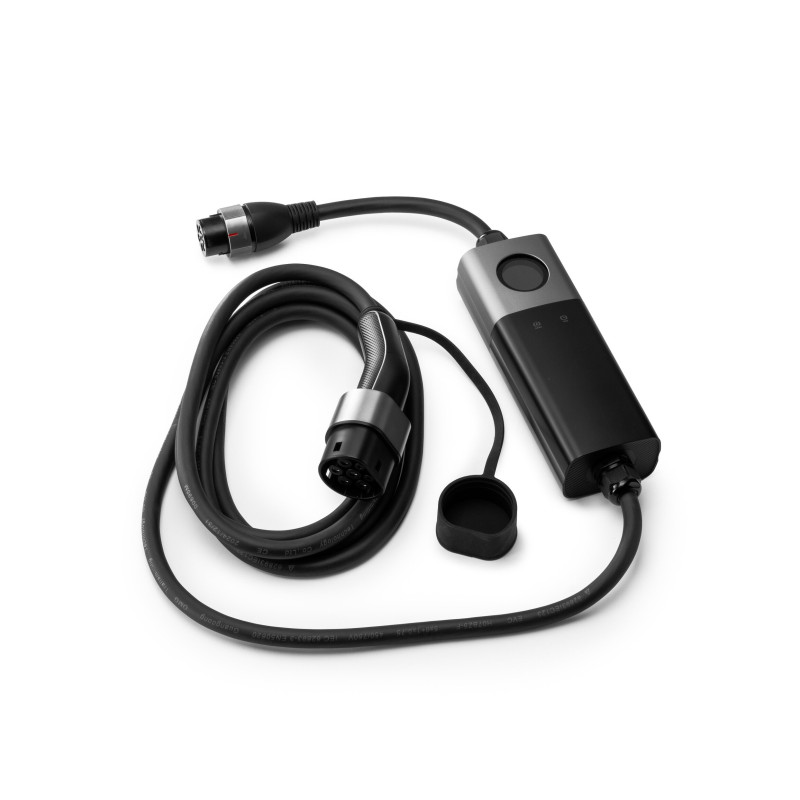

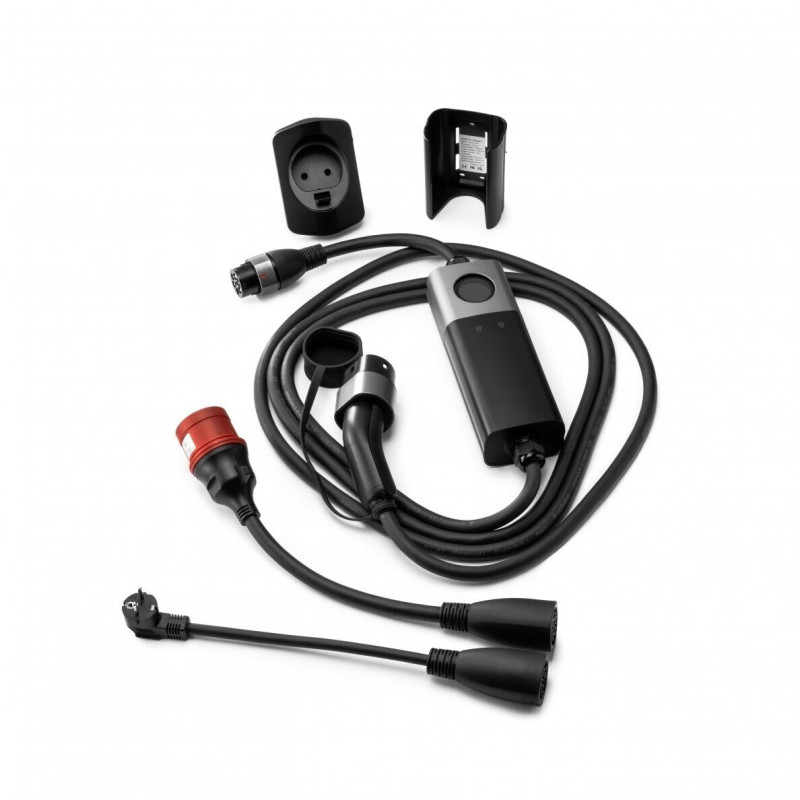

Charging cable 480 V - type 2 (32A, 3 phases 22 kW) with Wi-fi function

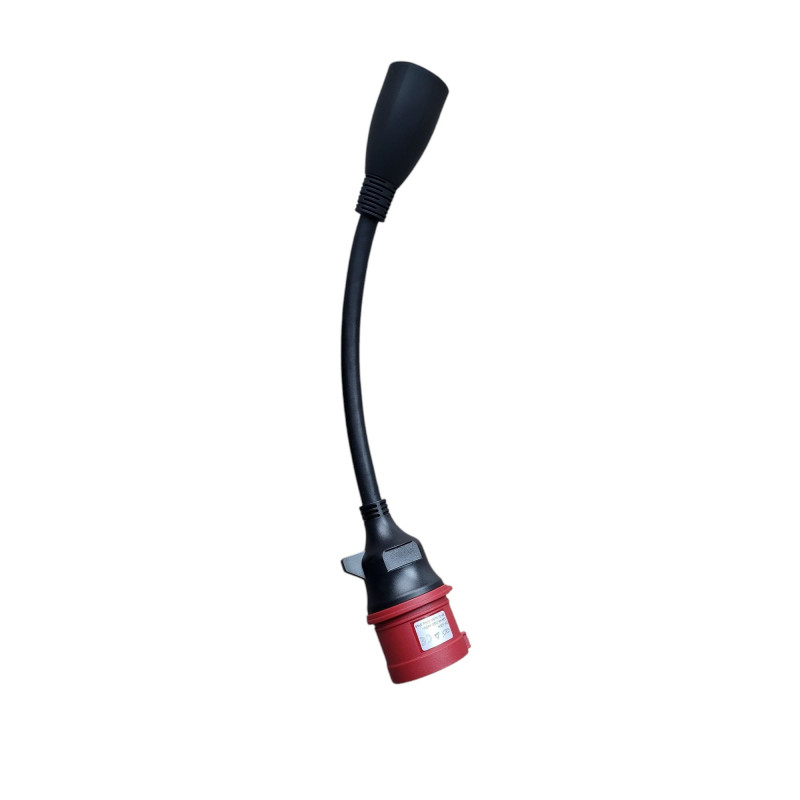

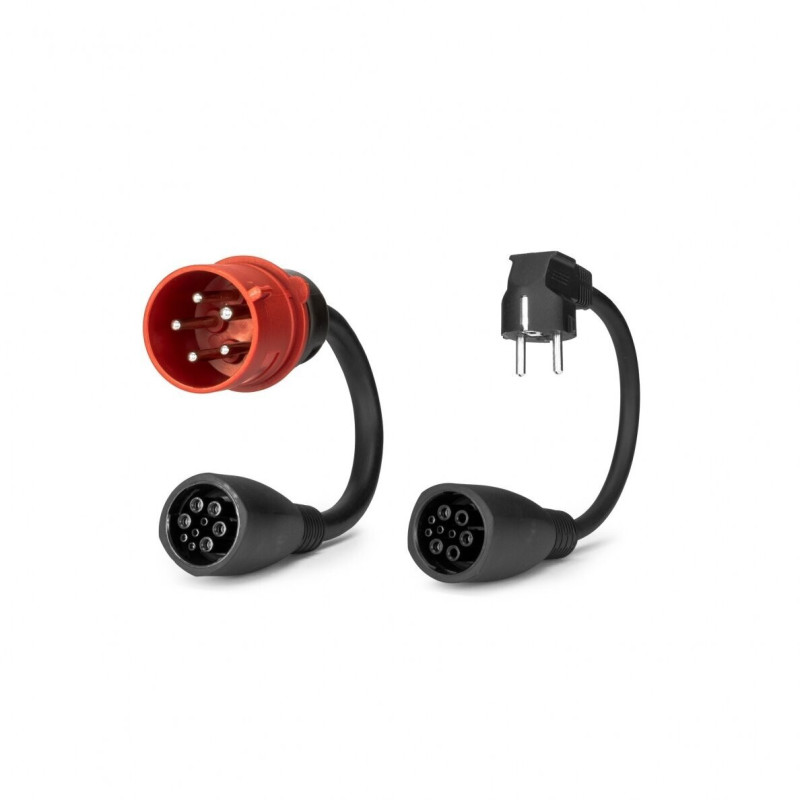

Electric vehicle charging cable 32A, 3 phases, from three-phase socket to type 2 connector with Wi-fi function

Specification:

• Power plug:

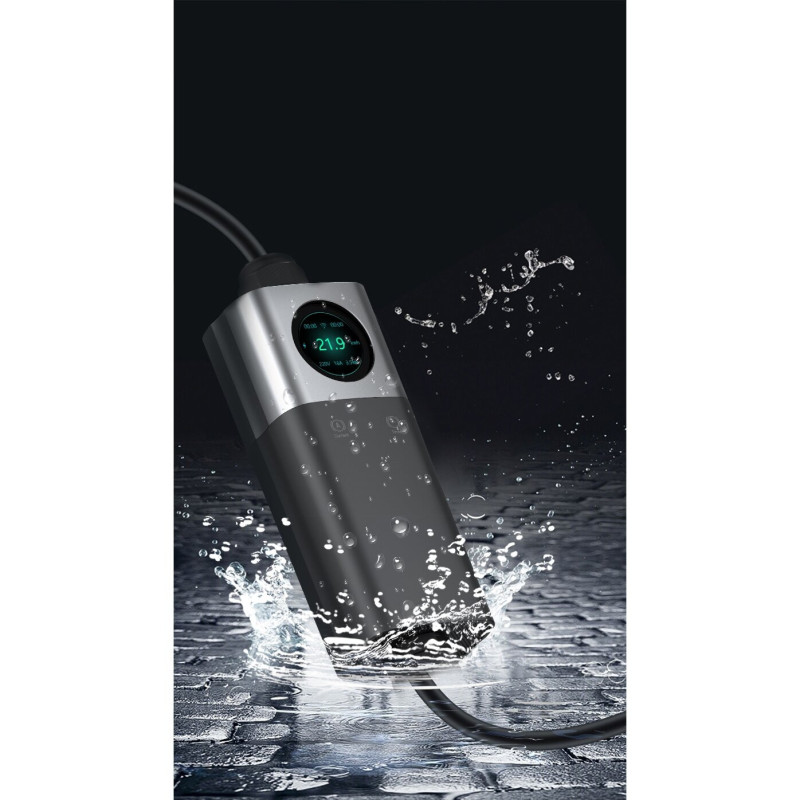

• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 22 KW
• Total length: 5 meters
• Mechanical life: switch on/off > 10000 times
• External force impact: 1m drop and 2t vehicle pressure can be achieved
• Insulation resistance: > 1000MD (DC500V)
• Terminal temperature rise: <50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction to fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of 10S sample burning tests, the flame is extinguished within 10 seconds. No burning objects should fall.)

Functions:

The screen displays real-time charging status data (charging time, charging power kW, temperature, how many kWh of electricity consumed)

This is a compact portable electric vehicle charging cable, which is an ideal solution for cheaply charging an electric vehicle at work, travel or other places where there is household electricity. socket

the charging cable has the following protections:

1. Leakage protection

2. Overvoltage or low voltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

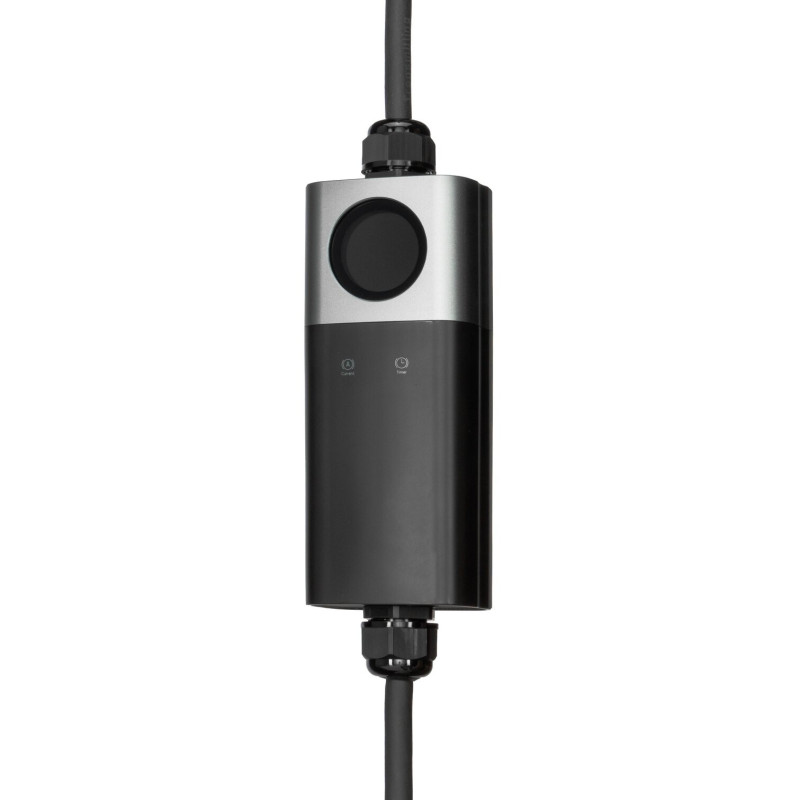

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65°C.

The LED display shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged KW/h

5. Charged time.

6. Set the current (adjustable 6A/10A/16A/20A/24A/32A)

7. Charging speed kW

How to use:

The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE J1772 Type 1 (or Type 2) plug is disconnected. When you get the desired current, connect it and start charging.

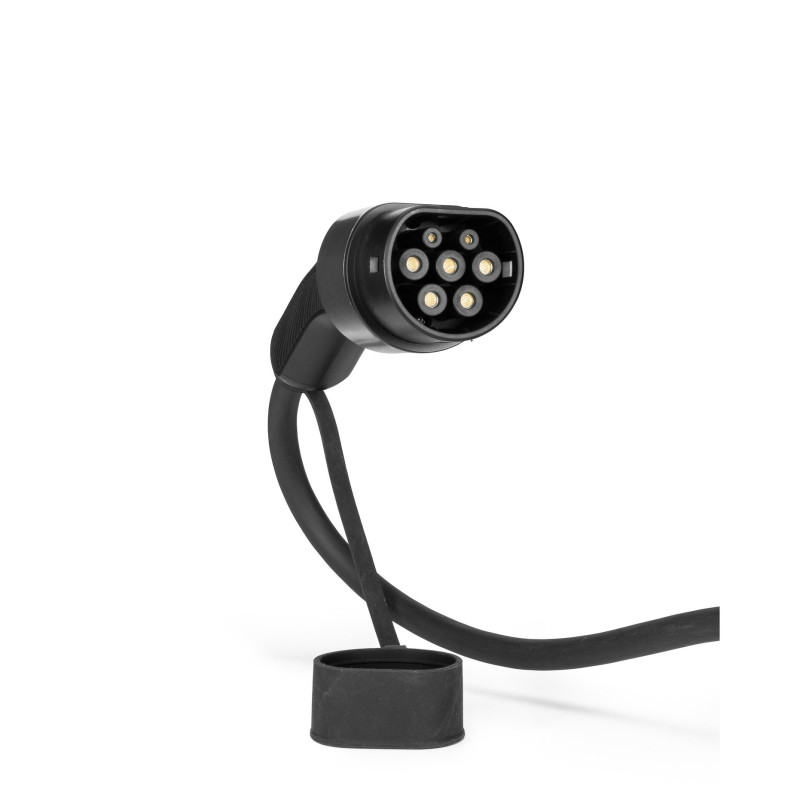

Type 2 - European standard used by European-made electric cars, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and European-market Volkswagen e-Golf or BMW i3 or others
