Charging cable 480 V - type 2 ( 32A, 3 phases 22 kW) with Wi-fi function

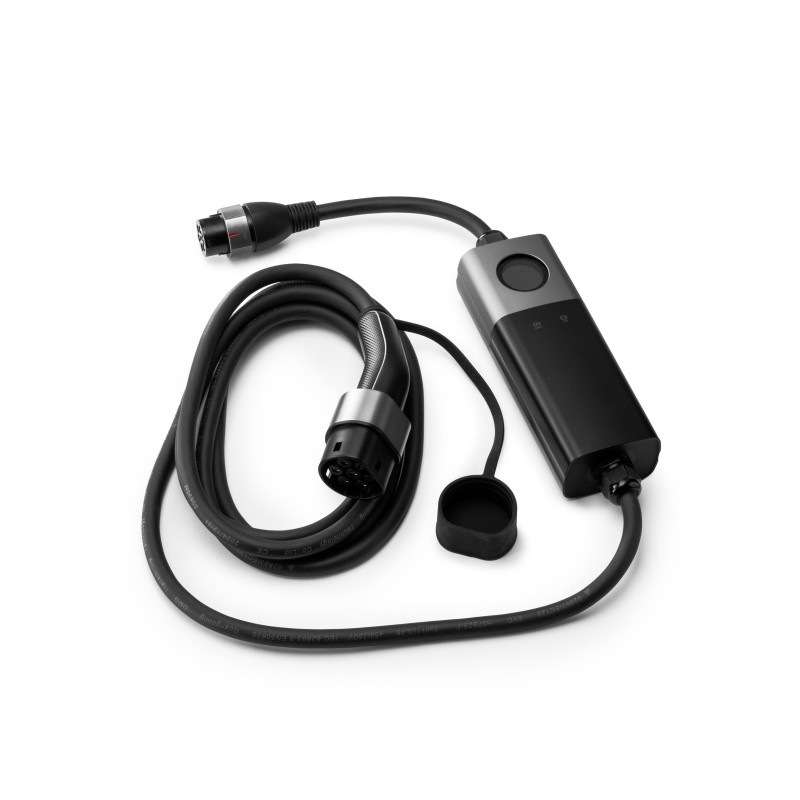

Electric vehicle charging cable 32A, 3 phases, from a three-phase socket to a type 2 connector with Wi-Fi function

Specification:

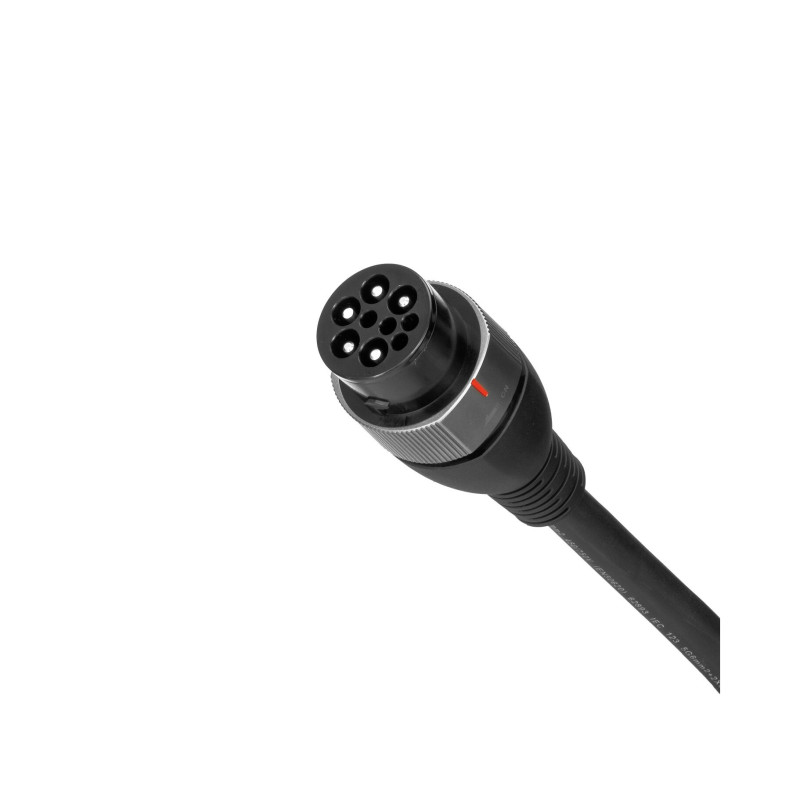

• Power plug:

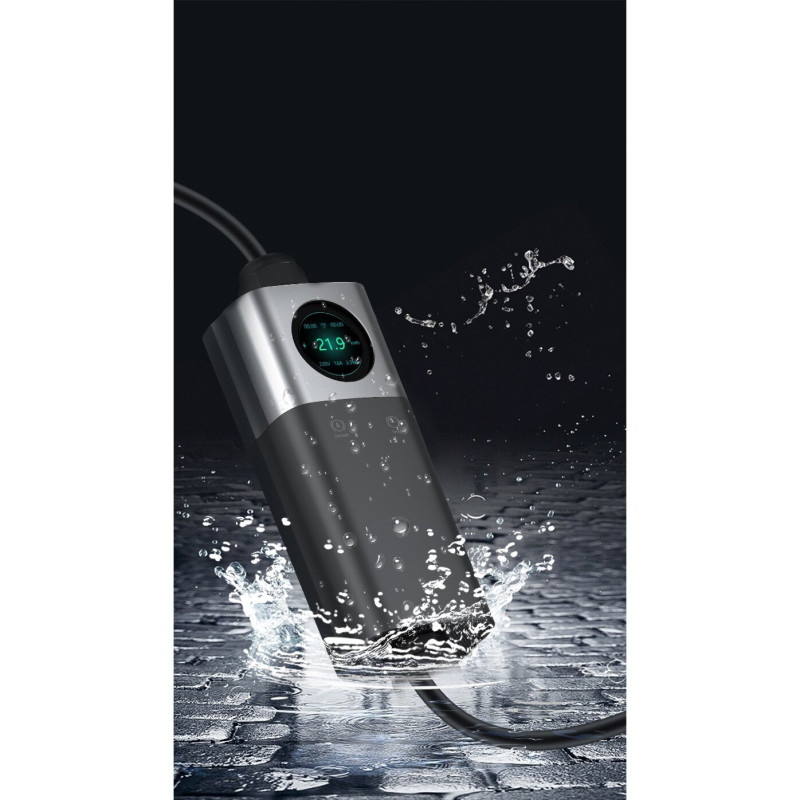

• Protection level: IP54 (working condition)
• Contact bushing: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 22 KW
• Total length: 5 meters
• Mechanical life: turn on/off >10000 times
• External force impact: 1 m drop and 2 t vehicle pressure can be achieved
• Insulation resistance:> 1000MD ( DC500V )
• Terminal temperature rise: lt;50K
• Housing fire resistance: UL94V-0 . Make charging simple and safe!
(Introduction to fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0 . About UL94V-0 : After two burning tests of the 10S sample, the flame was extinguished in 10 seconds. No burning objects should fall.)

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

This is a compact portable electric car charging cable, which is an ideal solution for cheaply charging your electric car at work, while traveling, or in other places where there is a household outlet.

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65 °C.

The LED display shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable by 6A/10A/16A/20A/24A/32A )

7. Charging speed kW

How to use:

The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE Type 1 J1772 (or Type 2) plug is disconnected. When you get the desired current, connect it and start charging.

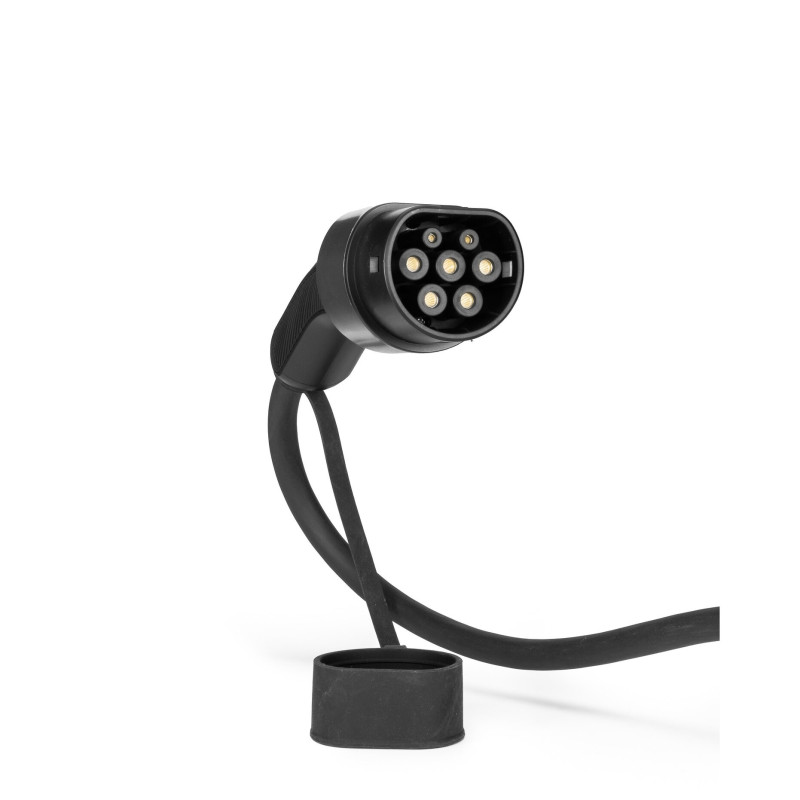

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 designed for the European market or others
