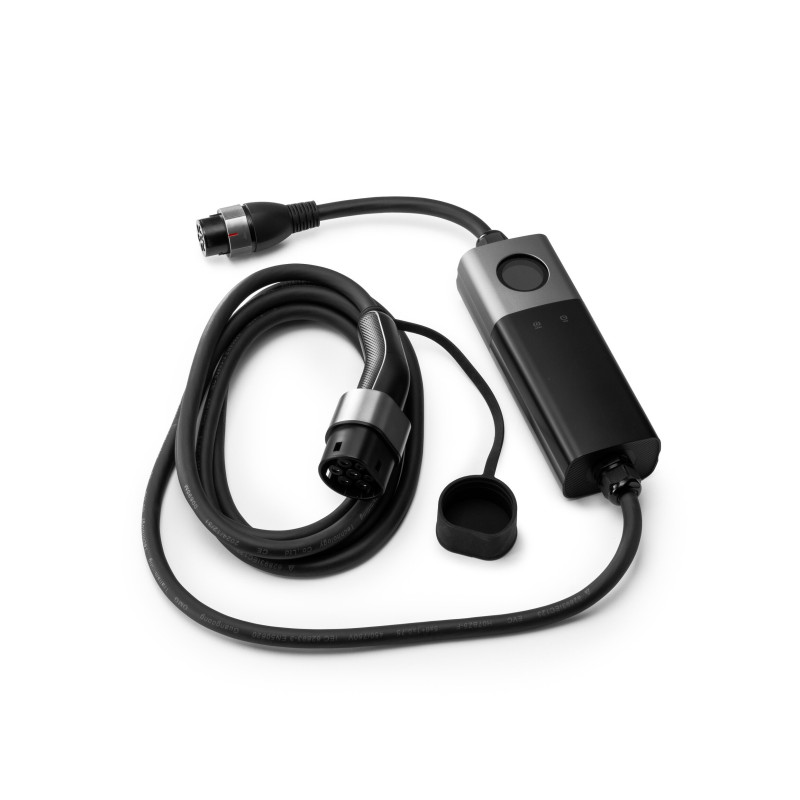

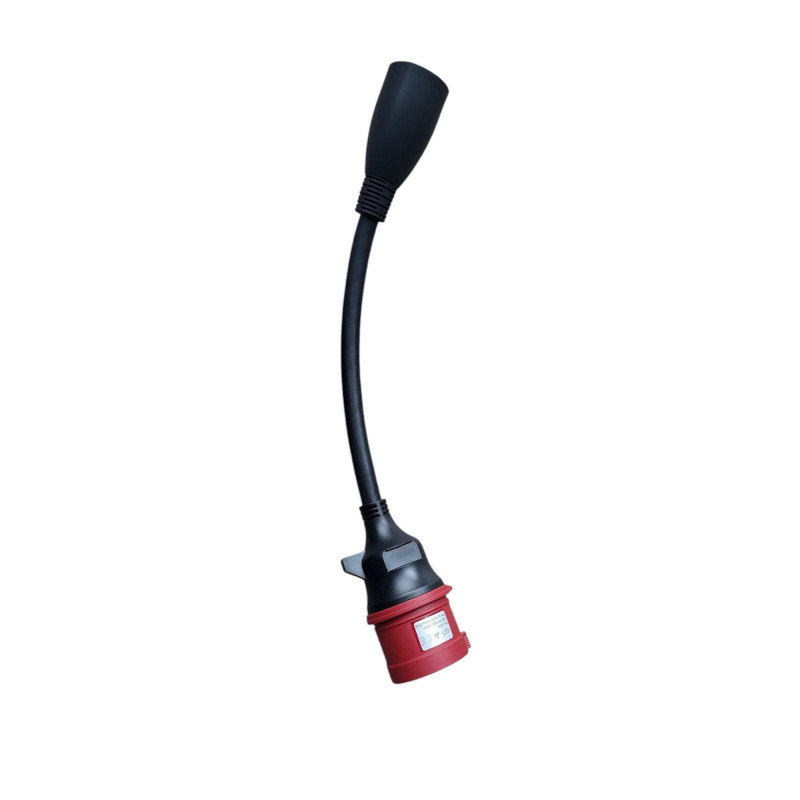

Charging cable 480 V - type 2 (32A, 3 phases 22 kW) with Wi-fi function

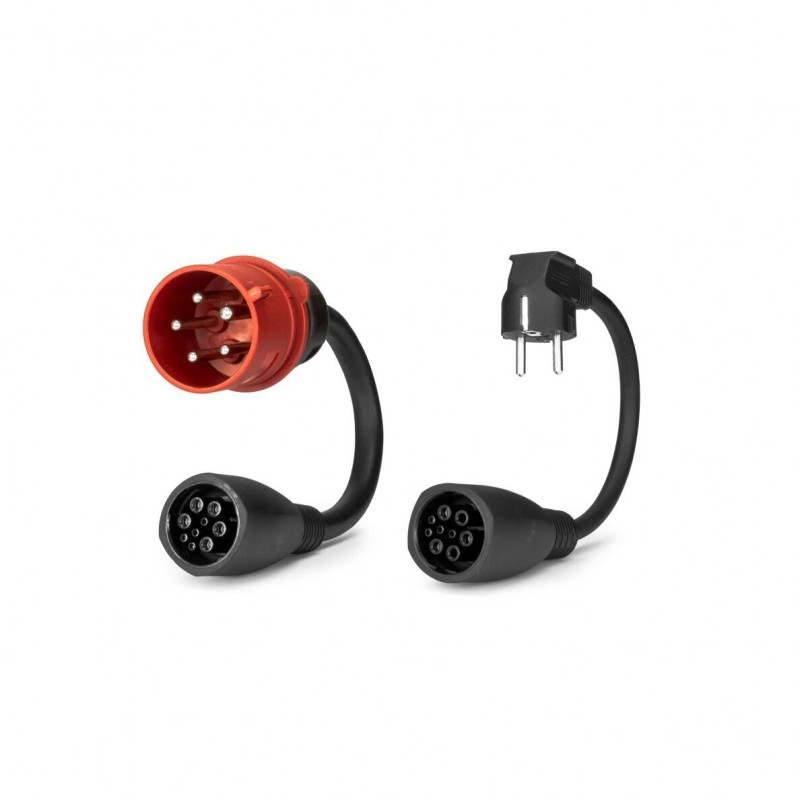

Electric vehicle charging cable 32A, 3 phases, from a three-phase socket to a type 2 connector with Wi-Fi function

Specification:

• Power plug:

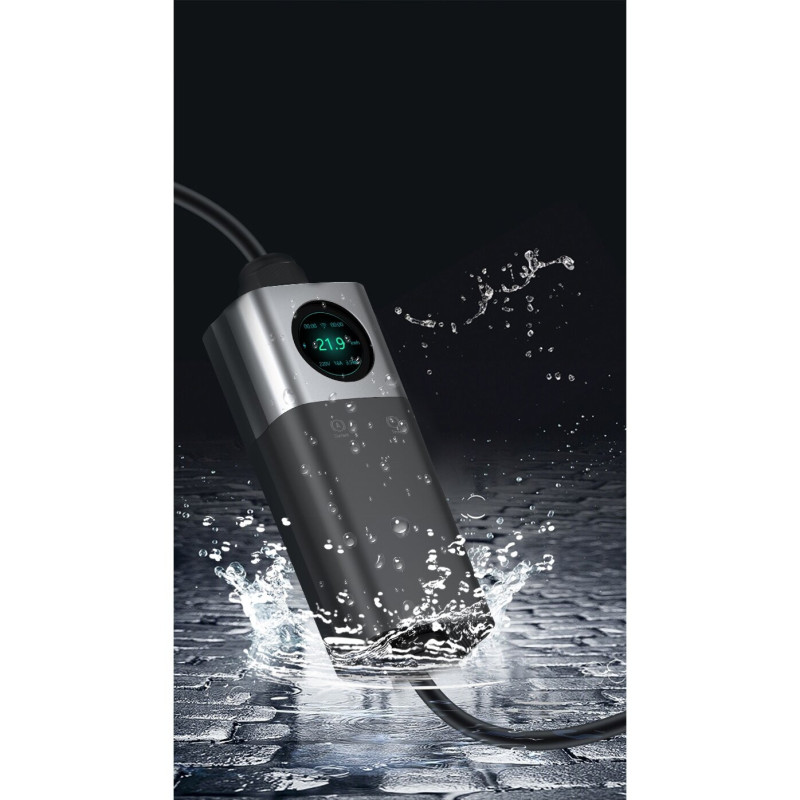

• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 22 KW
• Total length: 5 meters
• Mechanical life: turn on/offgt; 10000 times
• External force effect: 1 m drop and 2 t vehicle pressure can be achieved
• Insulation resistance:gt; 1000MD (DC500V)
• Terminal temperature rise: lt;50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction to fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of burning tests of the 10S sample, the flame was extinguished within 10 seconds. No burning objects should fall.)

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

This is a compact portable electric car charging cable, which is an ideal solution for cheaply charging your electric car at work, while traveling, or in other places where there is a household outlet.

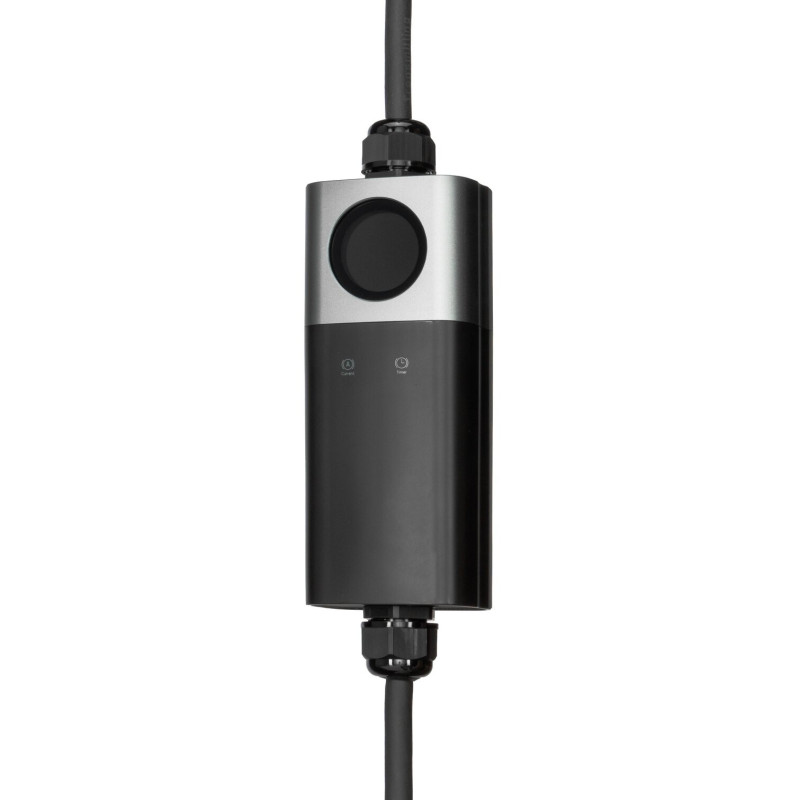

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

Kai control box temperature exceeds 85°C, the protection will stop charging and start charging, kai temperature will drop to 65 °C.

The LED screen shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable by 6A/10A/16A/20A/24A/32A )

7. Charging speed kW

Method of use:

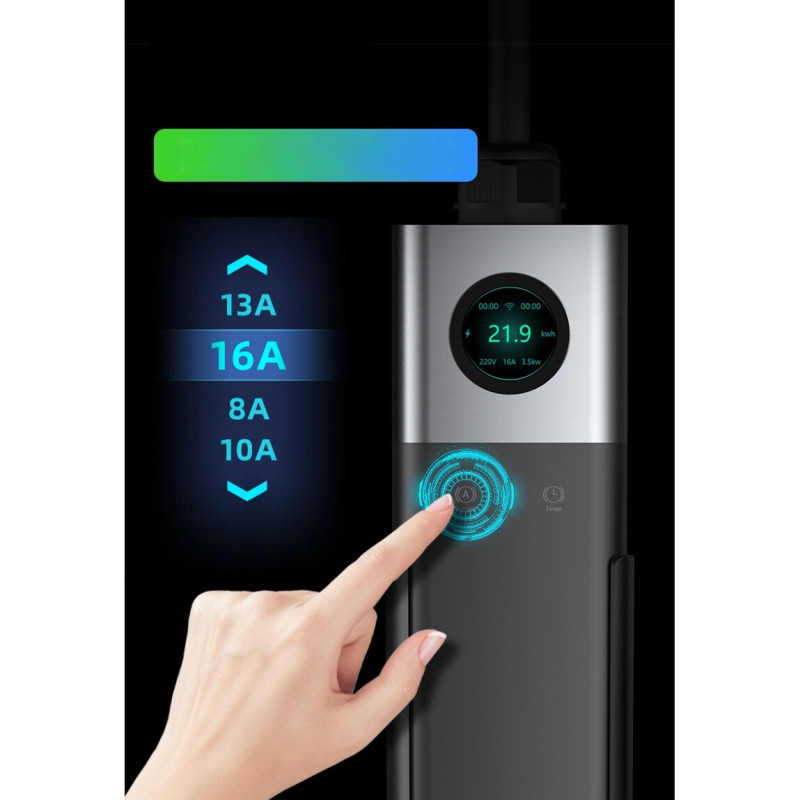

The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE Type 1 J1772 (or Type 2) plug is disconnected. Kai you will get the desired current, connect it and start charging.

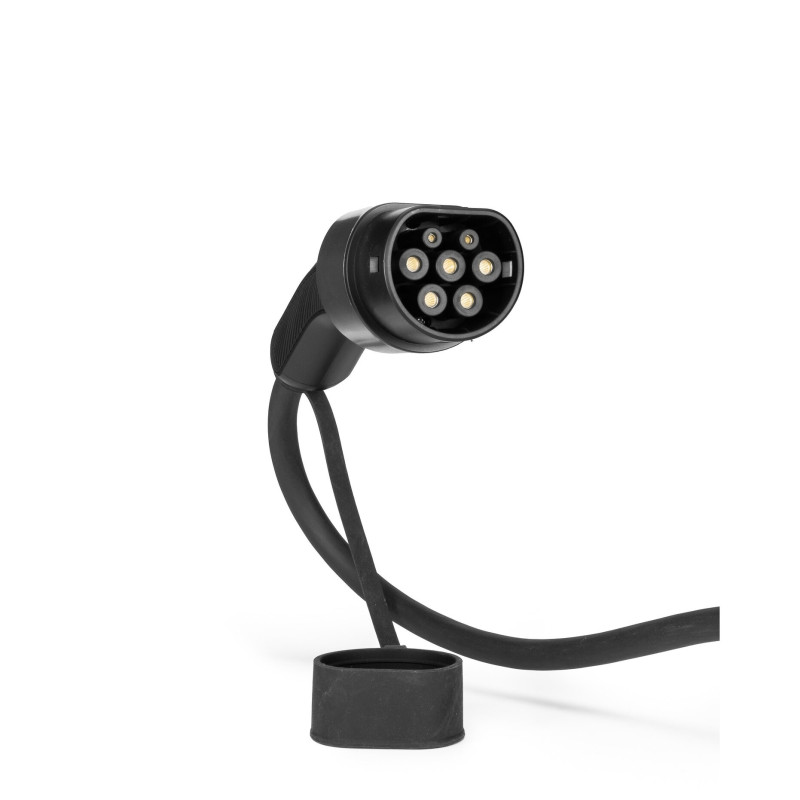

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 designed for the European market or others
