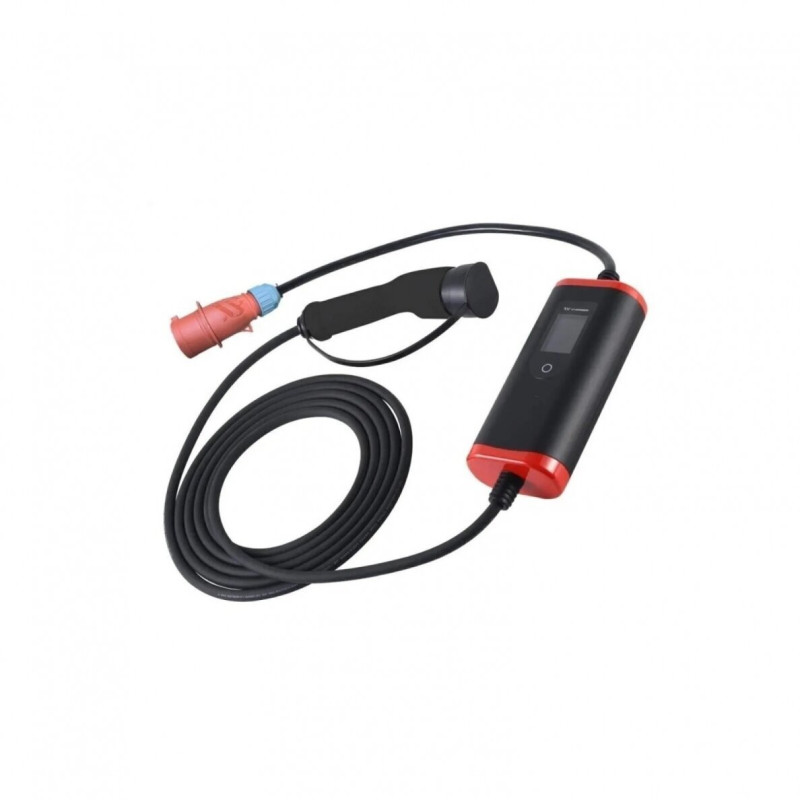

Charging cable 480 V - type 2 (16A, 3 phases 11 kW)

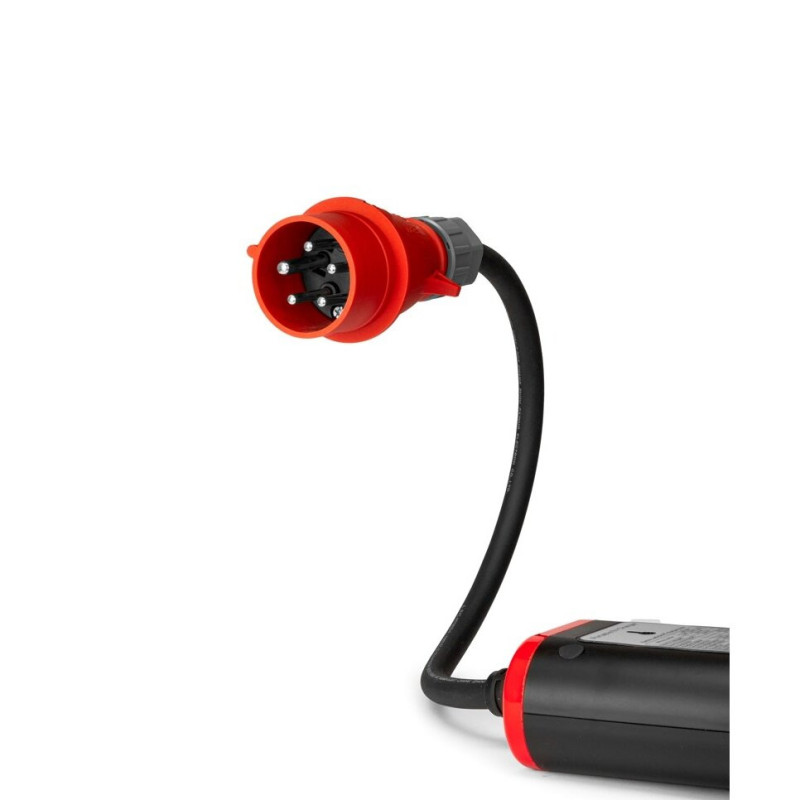

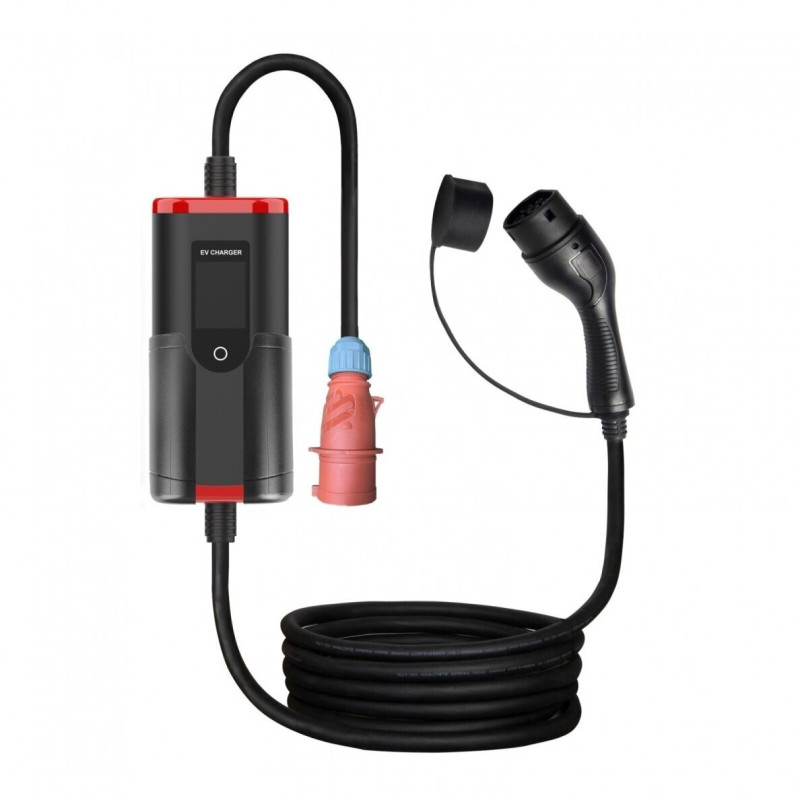

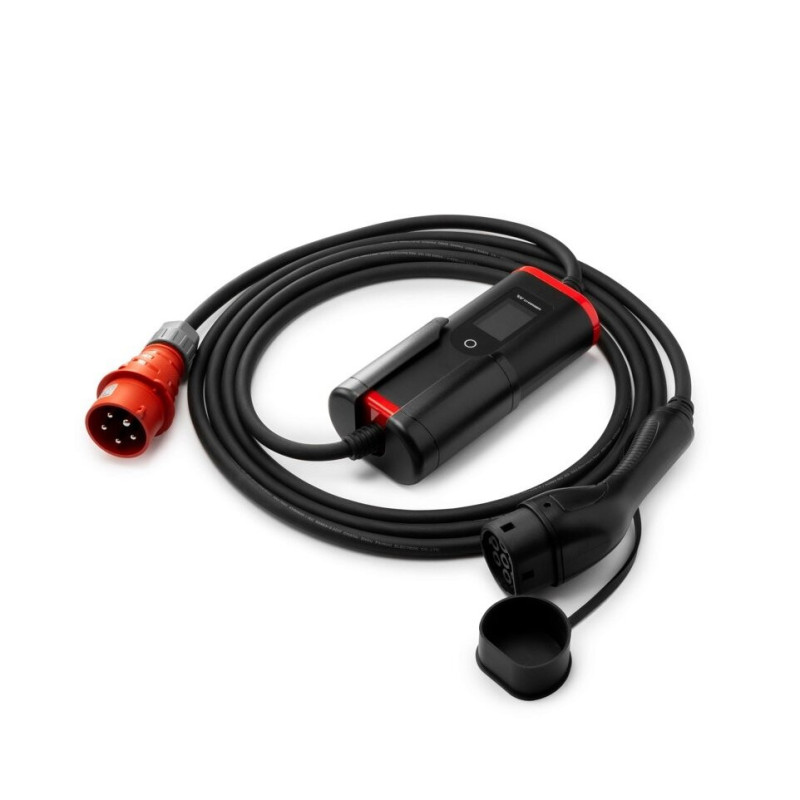

Electric vehicle charging cable 16A, 3 phases, from a three-phase socket to a type 2 connector

Charging cable 480 V - Type 2 (16A, 3 phases, 11 kW) - compact 5 m long electric vehicle charging cable, compliant with the European Type 2 standard. Safety is ensured by protection against leakage, overload and overheating. The LED display shows the charging parameters, and the current is adjustable with a button.

Specification:

• Power plug:
• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480V AC
• Output power: 11KW
• Total length: 5 meters
• Mechanical life: switch on/off > 10000 times
• External force impact: can reach 1m drop and 2t vehicle pressure
• Insulation resistance: > 1000MD (DC500V)
• Terminal temperature rise: <50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction to fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of 10S sample burning tests, the flame is extinguished within 10 seconds. No burning objects should fall.)

Functions:

The screen displays real-time charging status data (charging time, charging power kW, temperature, how many kWh of electricity consumed)

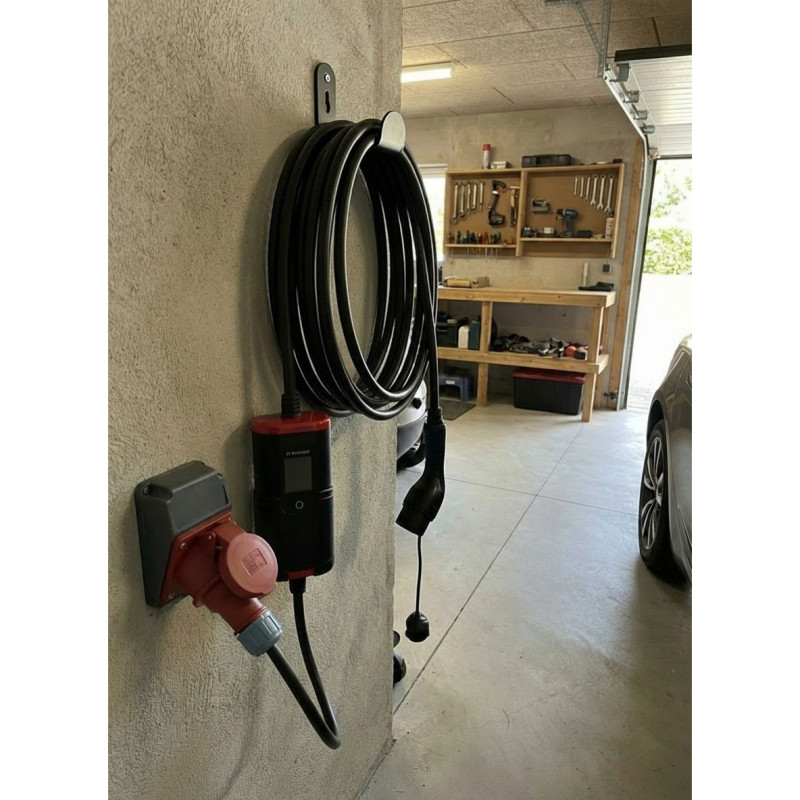

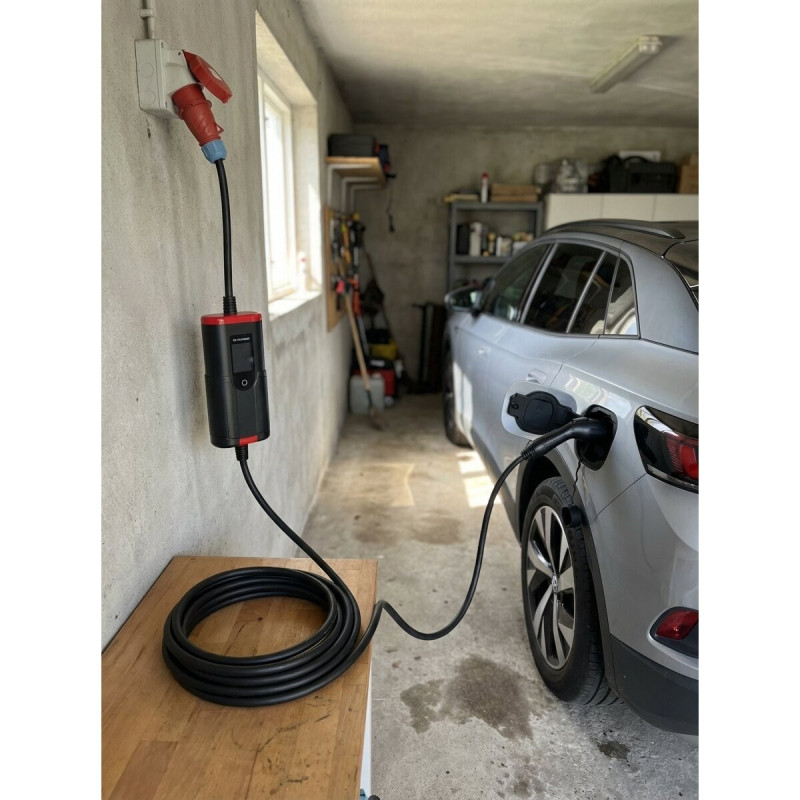

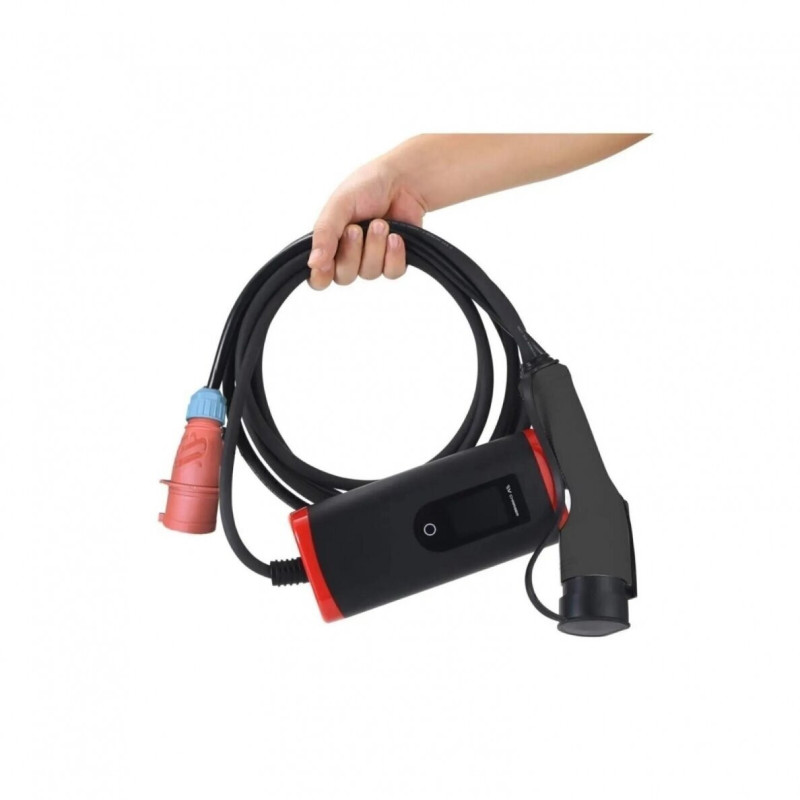

This is a compact portable electric vehicle charging cable, which is an ideal solution for cheaply charging an electric vehicle at work, travel or other places where there is household electricity. socket

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or low voltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65°C.

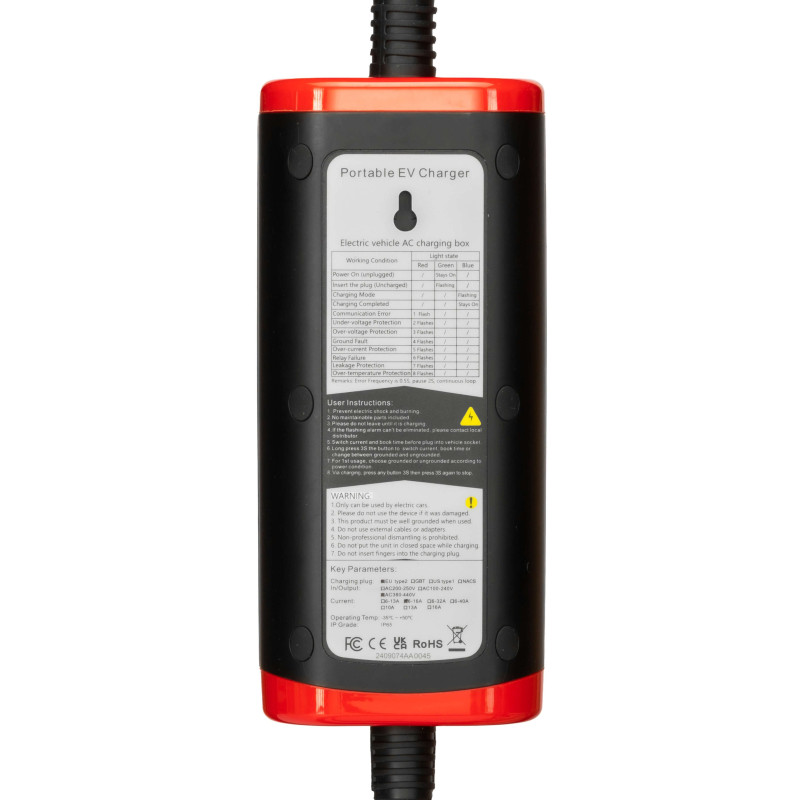

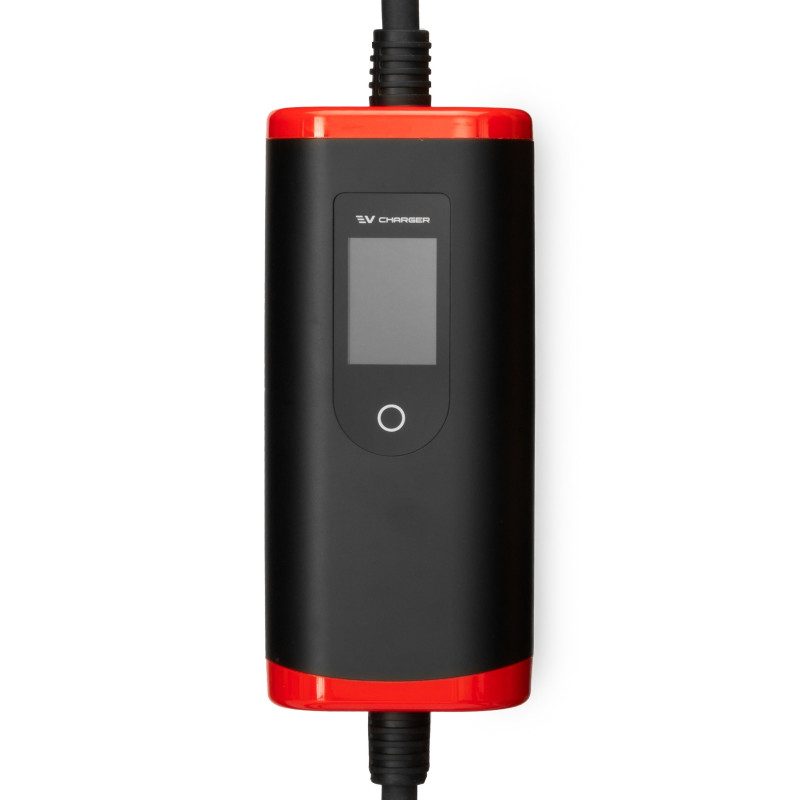

The LED display shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable 10 13 16 A)

7. Charging speed kW

Usage:

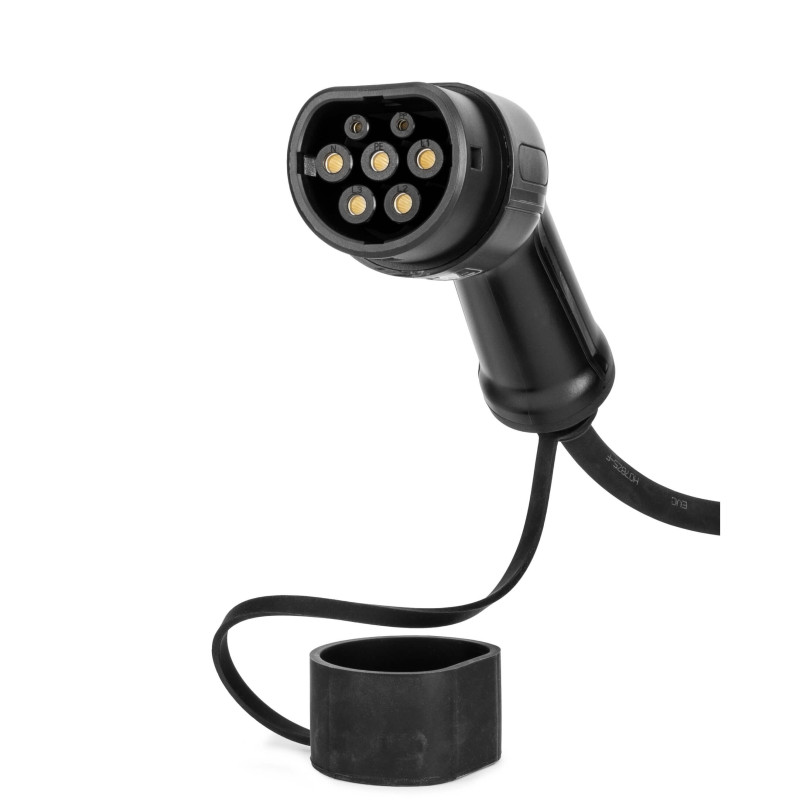

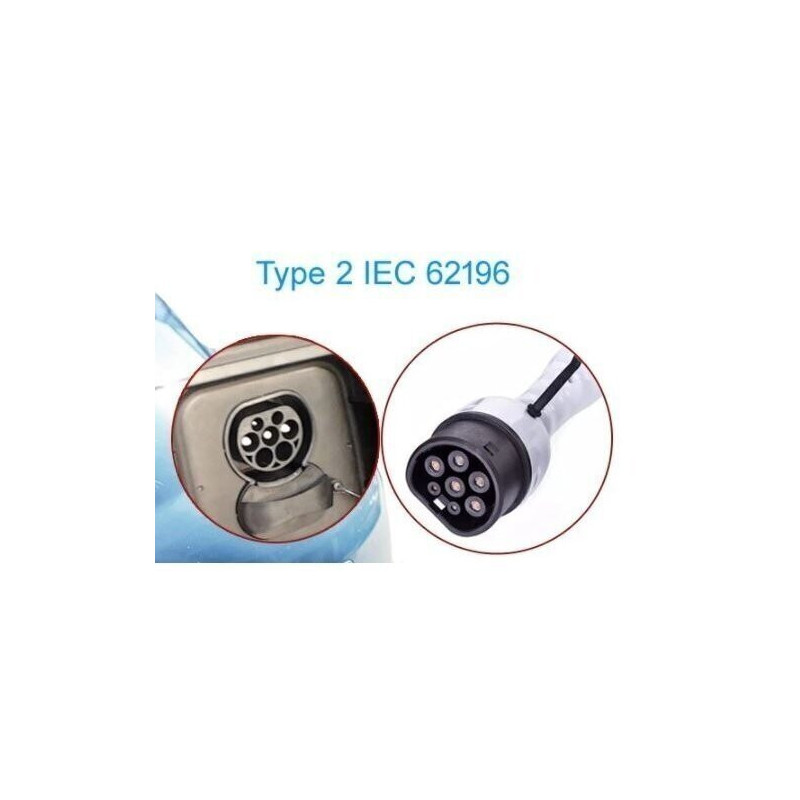

Type 2 - European standard used by European-made electric cars, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 for the European market or others
