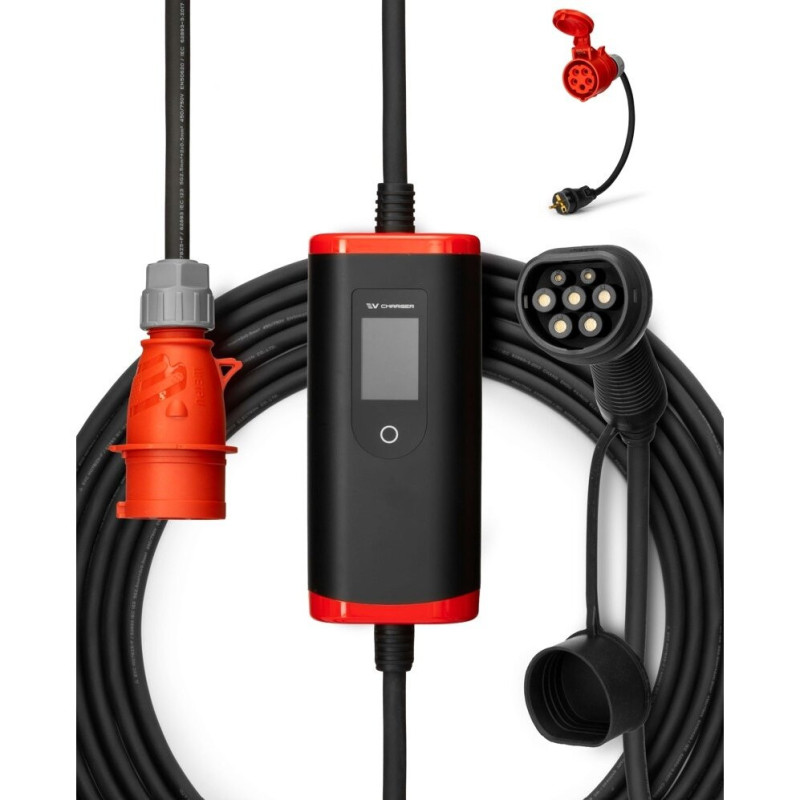

Charging cable 480 V - type 2 (16A, 3 phases 11 kW - 15m)

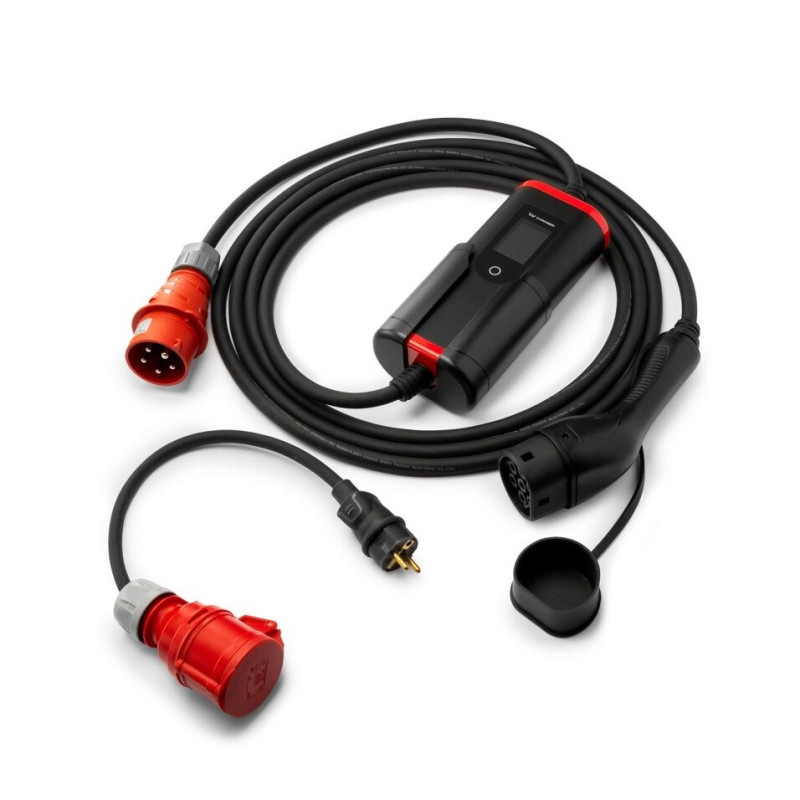

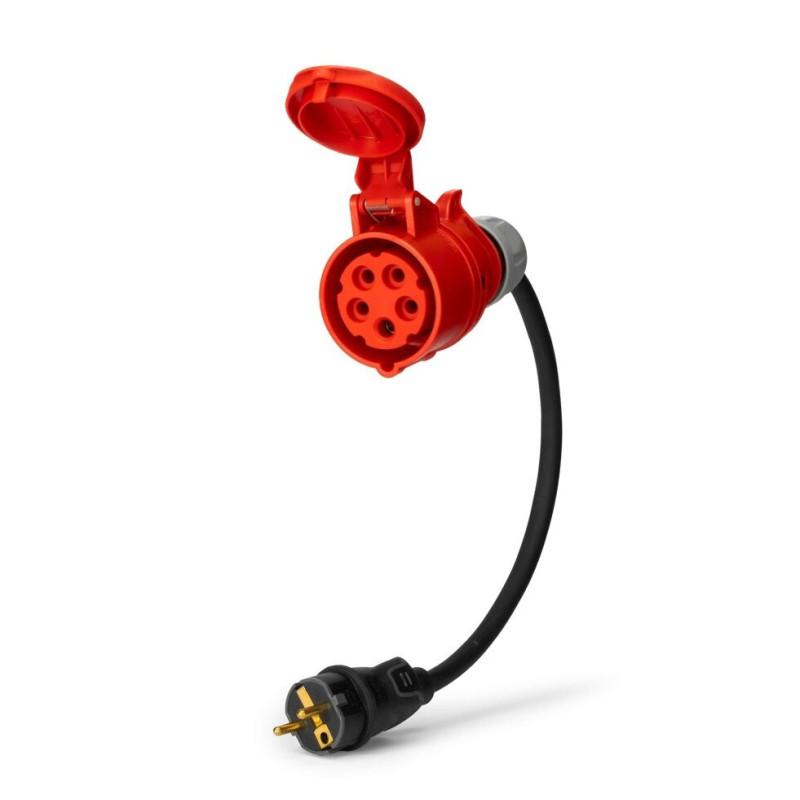

Electric vehicle charging cable 16A, 3 phases, from a household socket 220V and a three-phase socket to a type 2 connector

Specification:

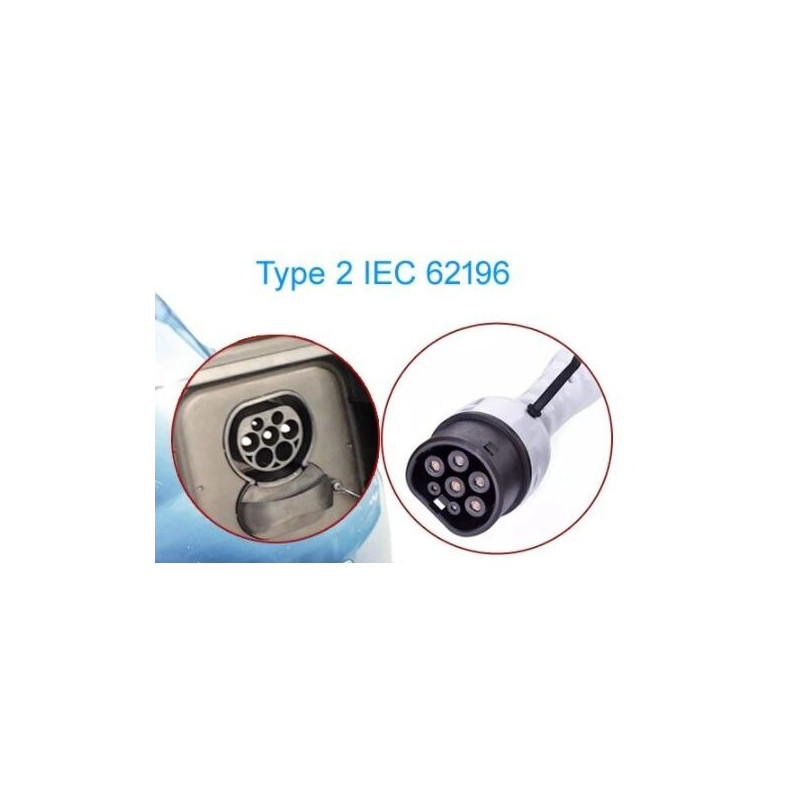

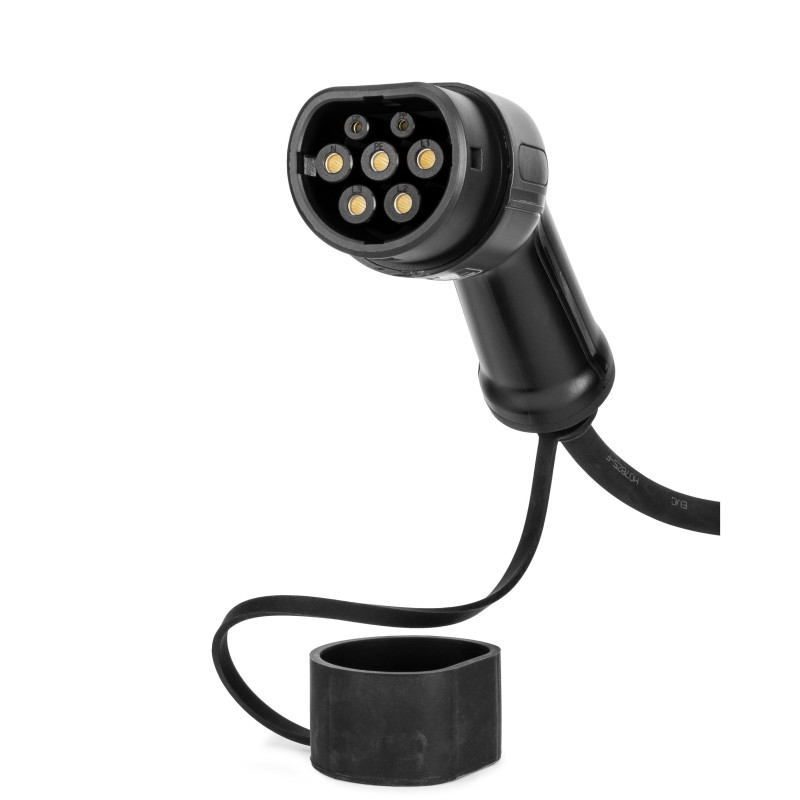

• Plug: IEC62196 Type 2 or

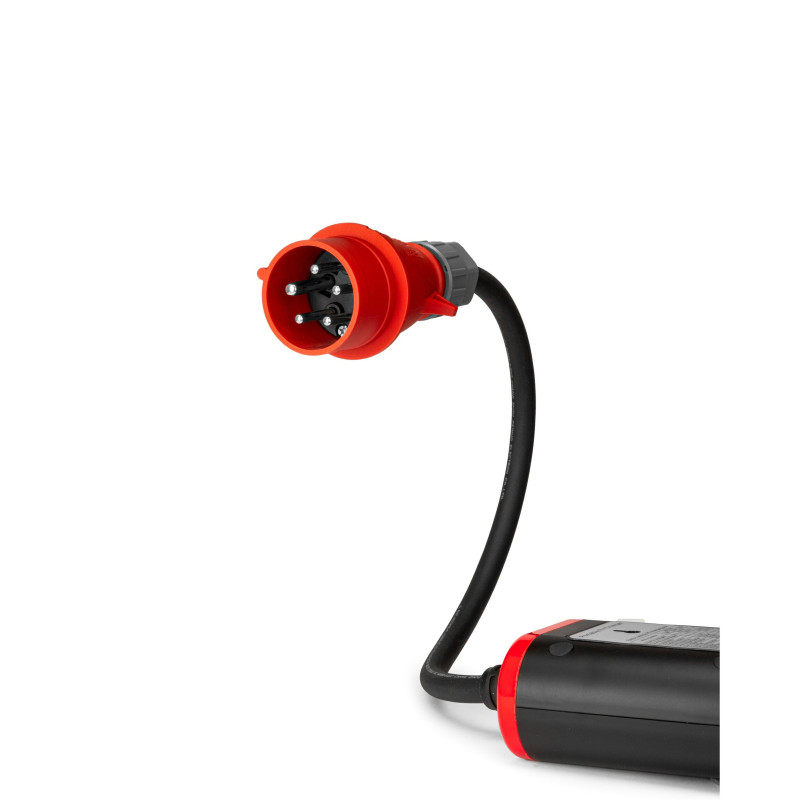

• Power plug:
• Degree of protection: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 11 KW
• Total length: 15 meters
• Mechanical life: switch on/offgt; 10000 times
• External force impact: can reach 1m drop and 2t vehicle pressure
• Insulation resistance:gt; 1000MD (DC500V)
• Terminal temperature rise: lt;50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction of fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of burning tests of the 10S sample, the flame was extinguished within 10 seconds. No burning objects should fall.)

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

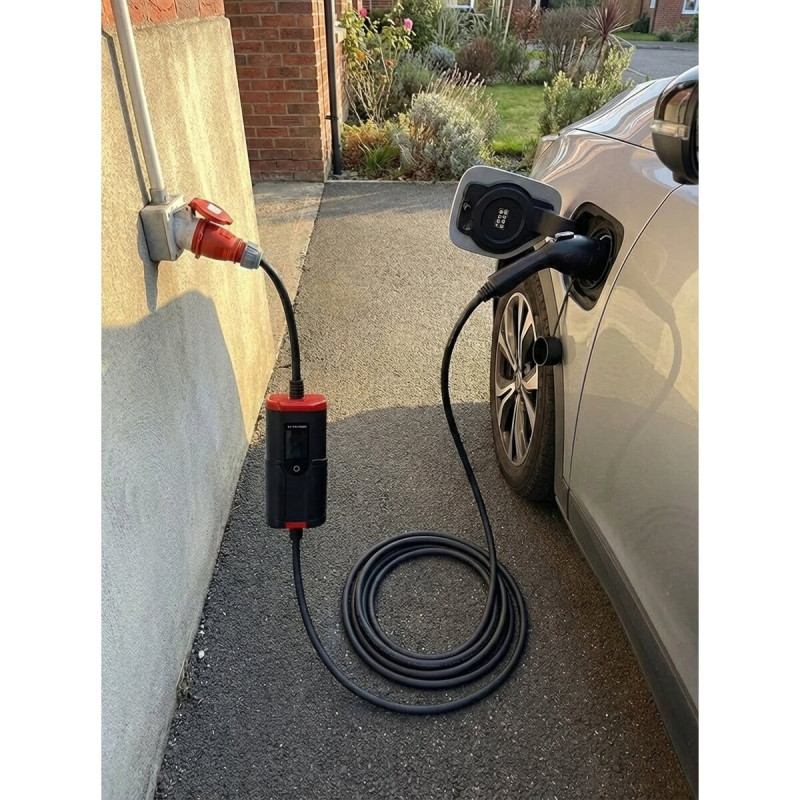

This is a compact portable electric car charging cable, which is an ideal solution for cheaply charging an electric car at work, while traveling, or in other places where there is a household outlet

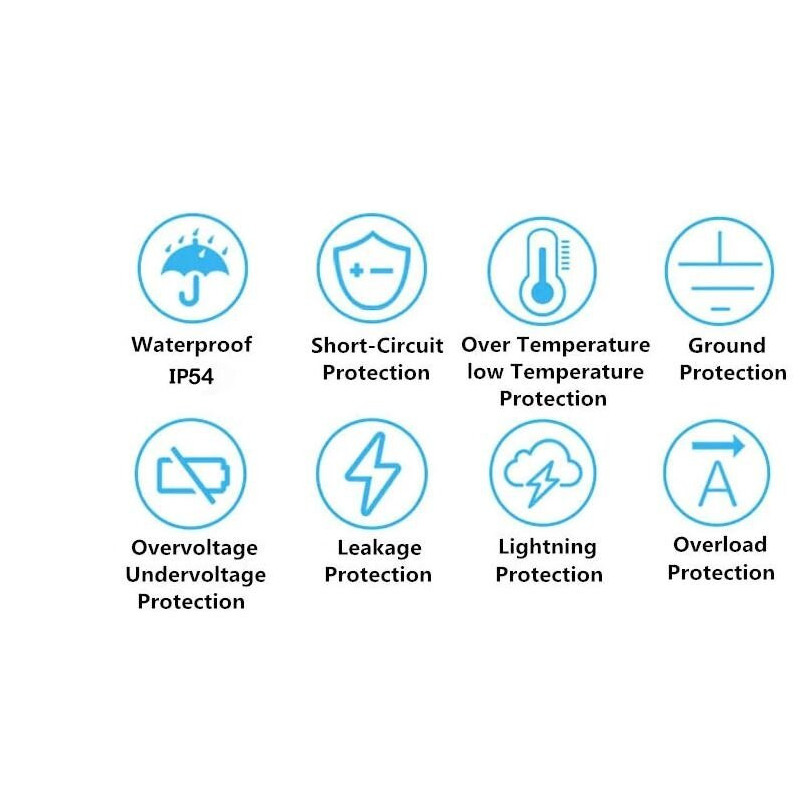

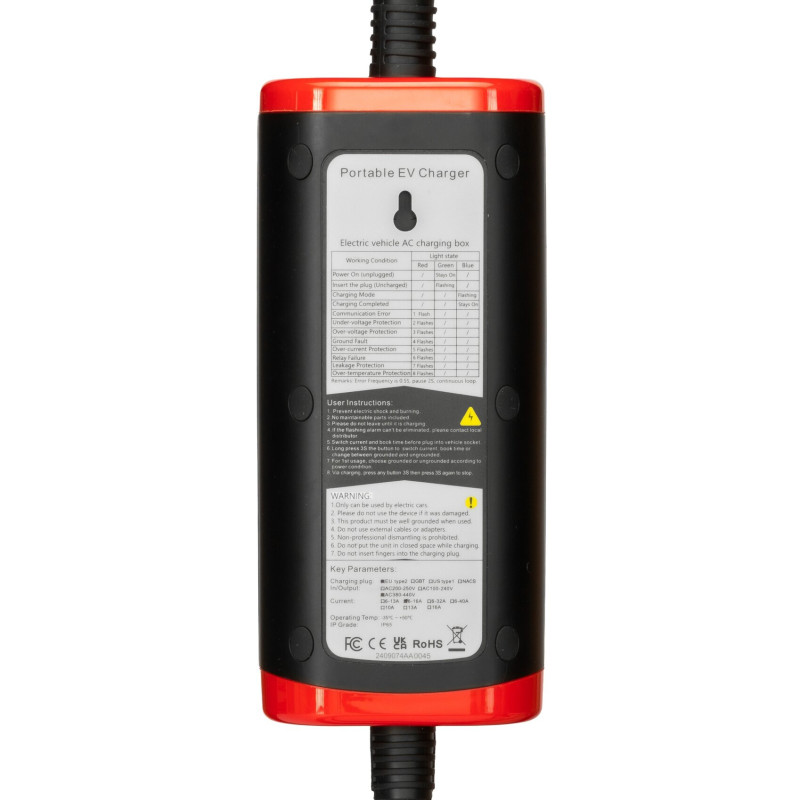

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

Kai control box temperature exceeds 85°C, the protection will stop charging and start charging, kai temperature will drop to 65 °C.

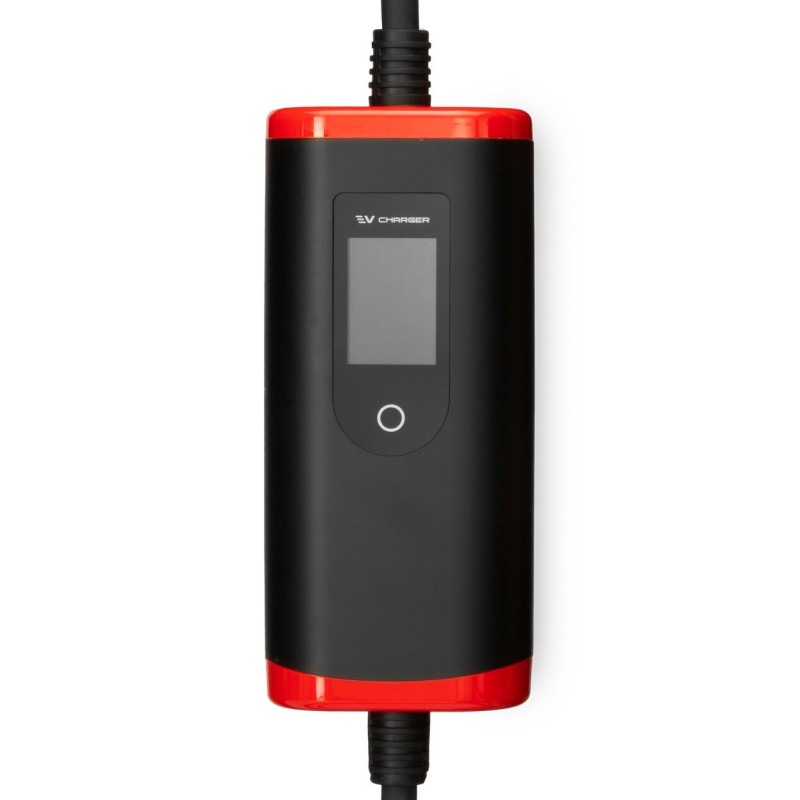

The LED screen shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable 10 13 16 A)

7. Charging speed kW

How to use:
The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE Type 1 J1772 (or Type 2) plug is disconnected. Kai you will get the desired current, connect it and start charging.

Type 2 - European standard used by Electric cars made in Europe , such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and the Volkswagen e-Golf for the European market or BMW i3 or others
