Charging cable 480 V - type 2 (16A, 3 phases 11 kW)

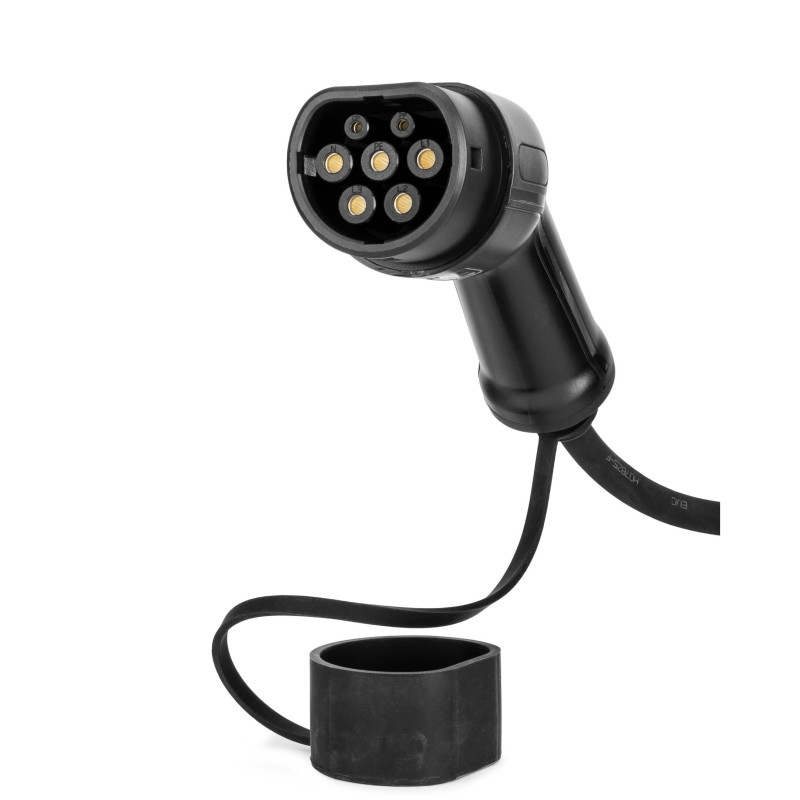

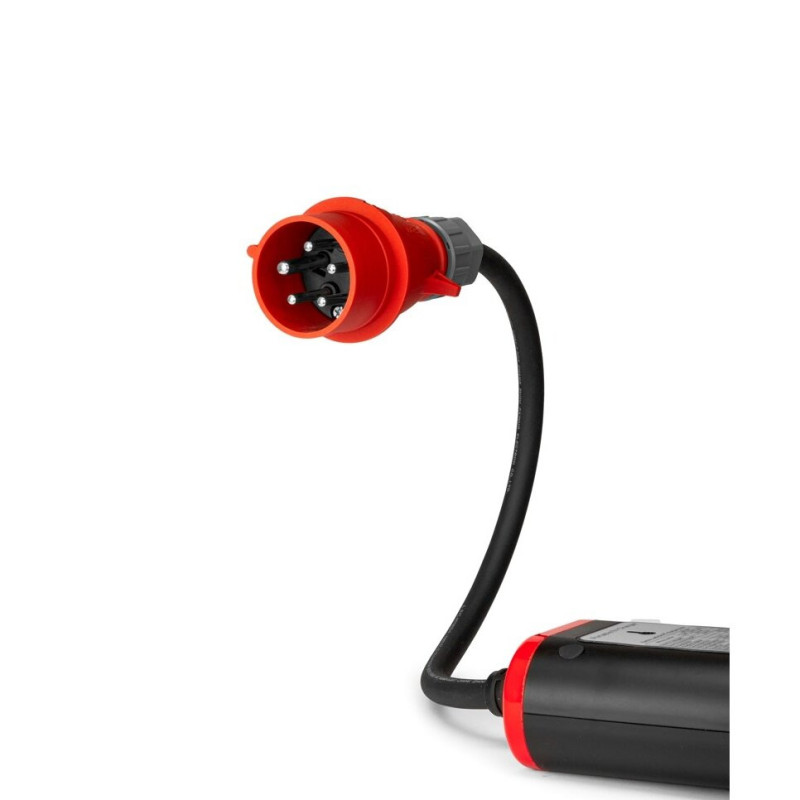

Electric vehicle charging cable 16A, 3 phases, from three-phase socket to type 2 connector

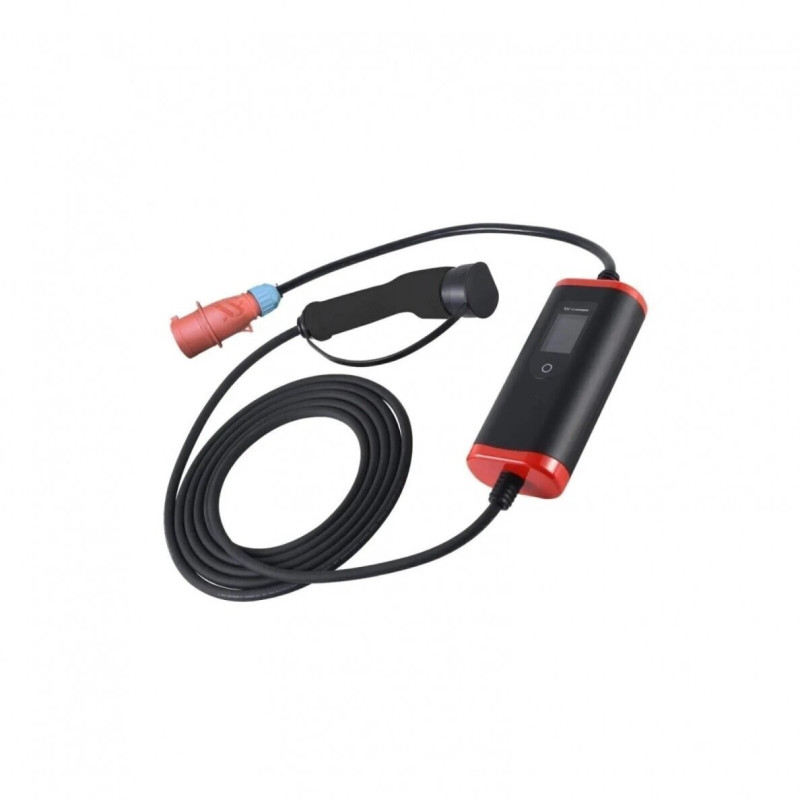

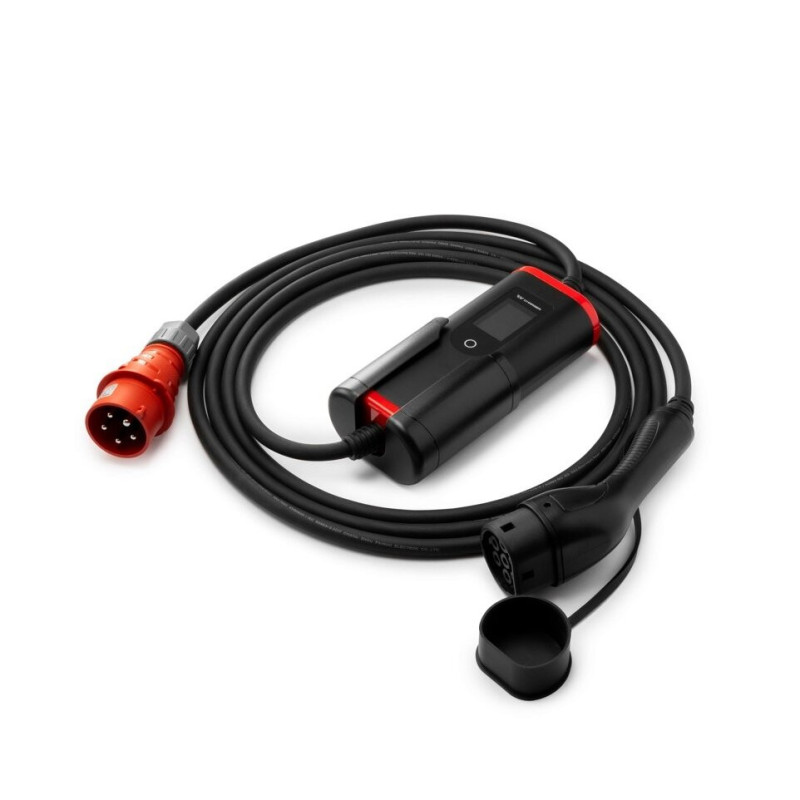

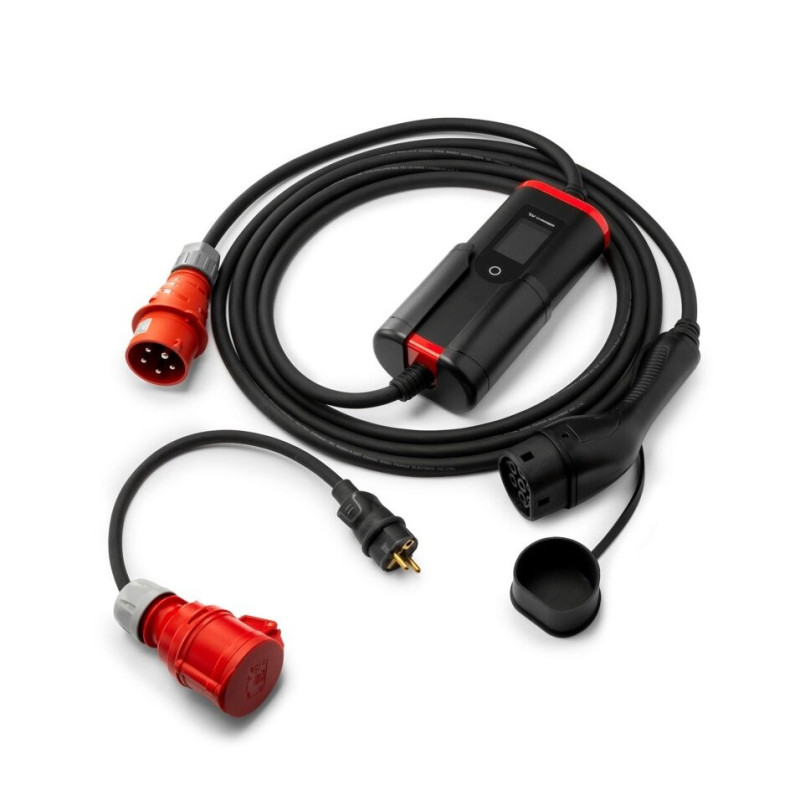

Charging cable 480 V - Type 2 (16A, 3 phases, 11 kW) - Compact 5 m long electric vehicle charging cable, compliant with the European Type 2 standard. Safety is ensured by protection against leakage, overload and overheating. LED display shows charging parameters, and the current is adjusted with a button.

Specification:

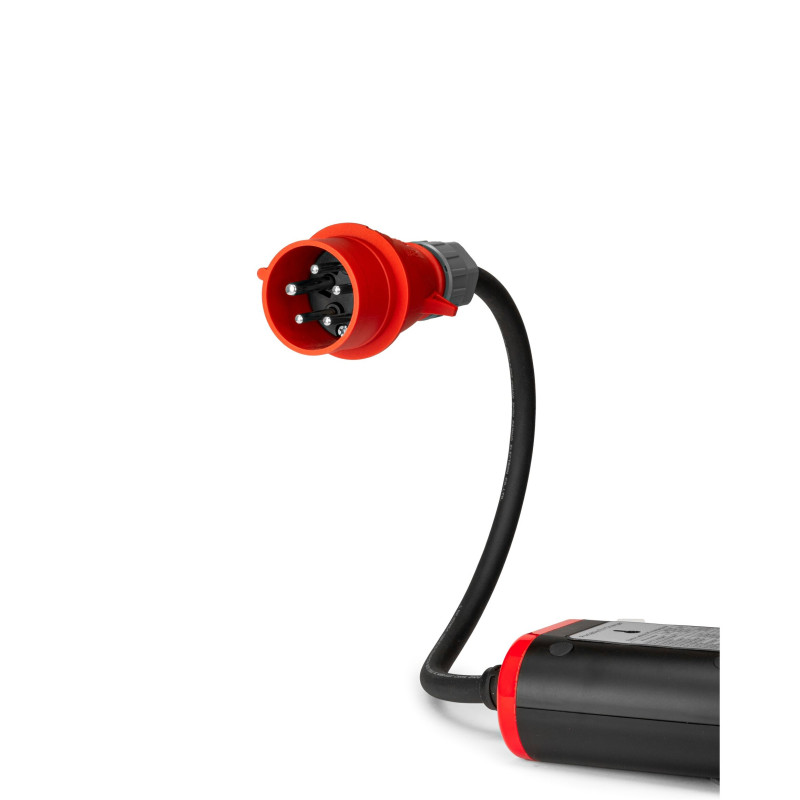

• Power plug:
• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 480 V AC
• Output power: 11 KW
• Total length: 5 meters
• Mechanical life: switch on/off > 10000 times
• External force impact: 1 m drop and 2 t vehicle pressure can be achieved
• Insulation resistance: > 1000MD (DC500V)
• Terminal temperature rise: lt;50K
• Housing fire resistance: UL94V-0. Make charging simple and safe!
(Introduction to fire-retardant level: The grade of flame-retardant plastic is gradually increased from HB, V-2, V-1 to V-0. About UL94V-0: After two times of burning tests of the 10S sample, the flame was extinguished within 10 seconds. No burning objects should fall.)

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

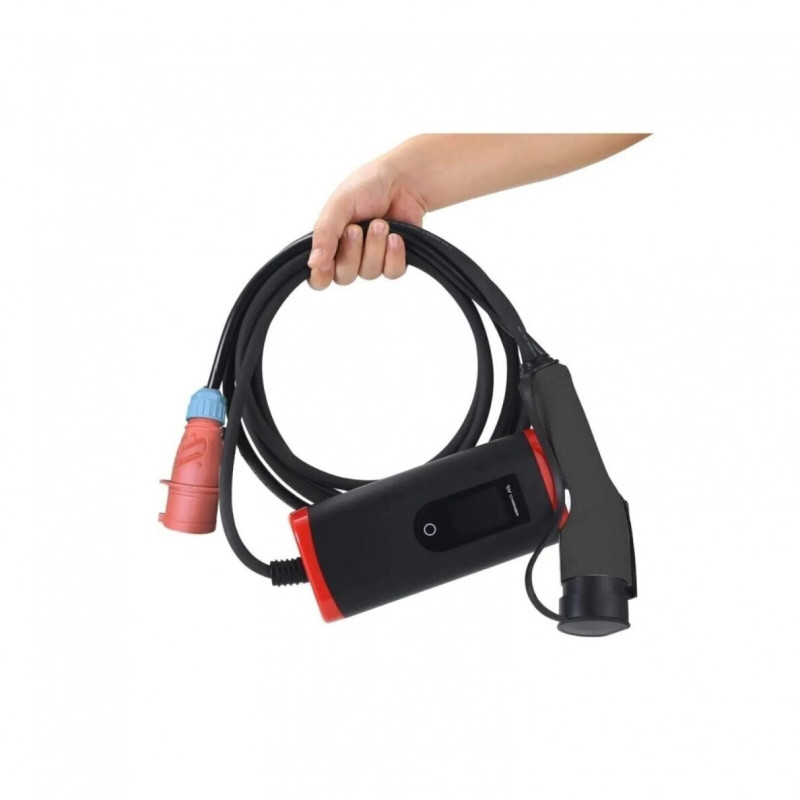

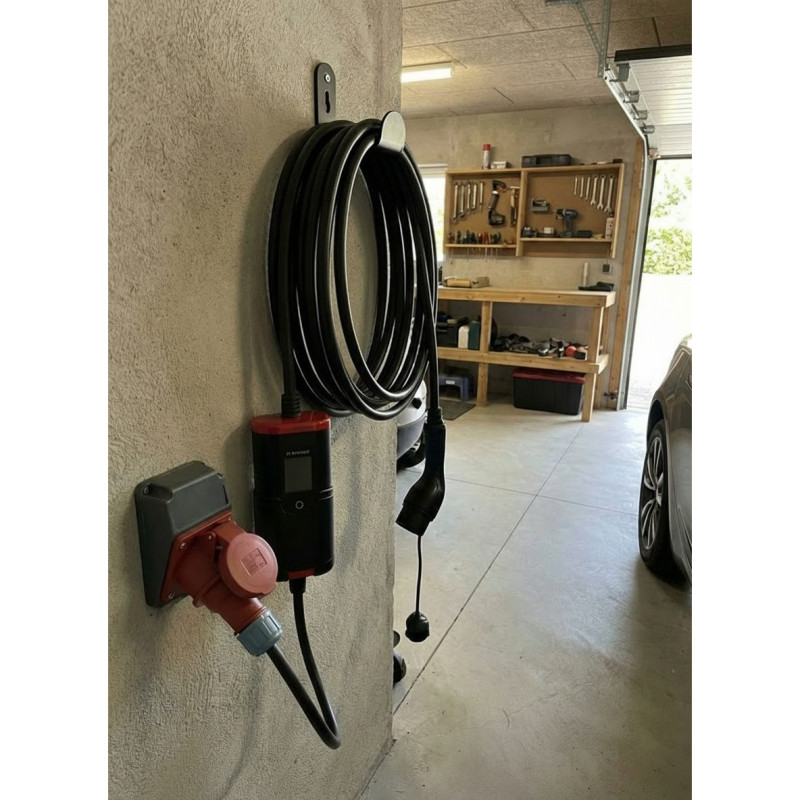

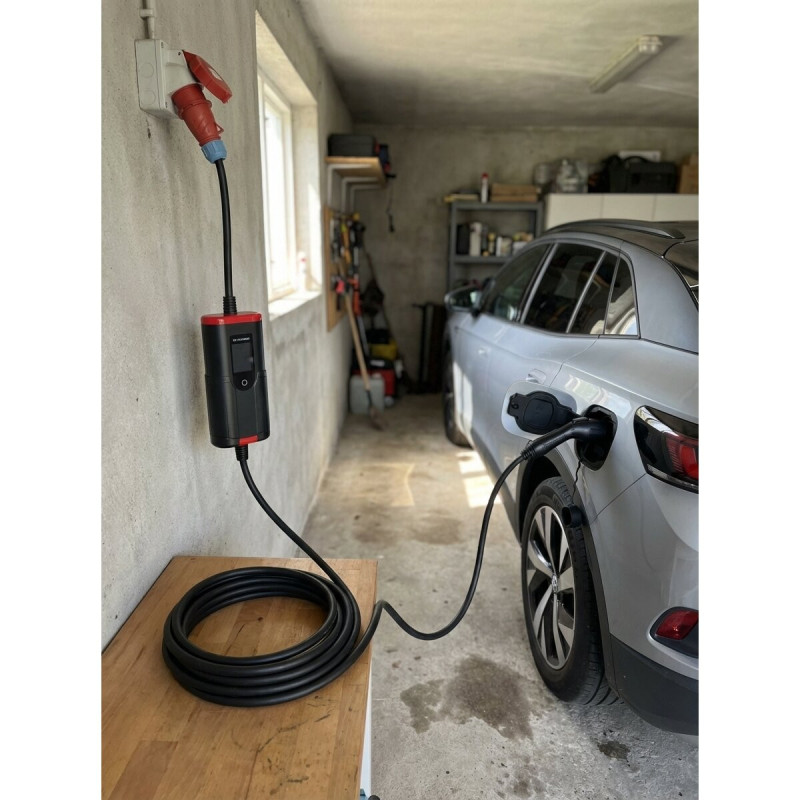

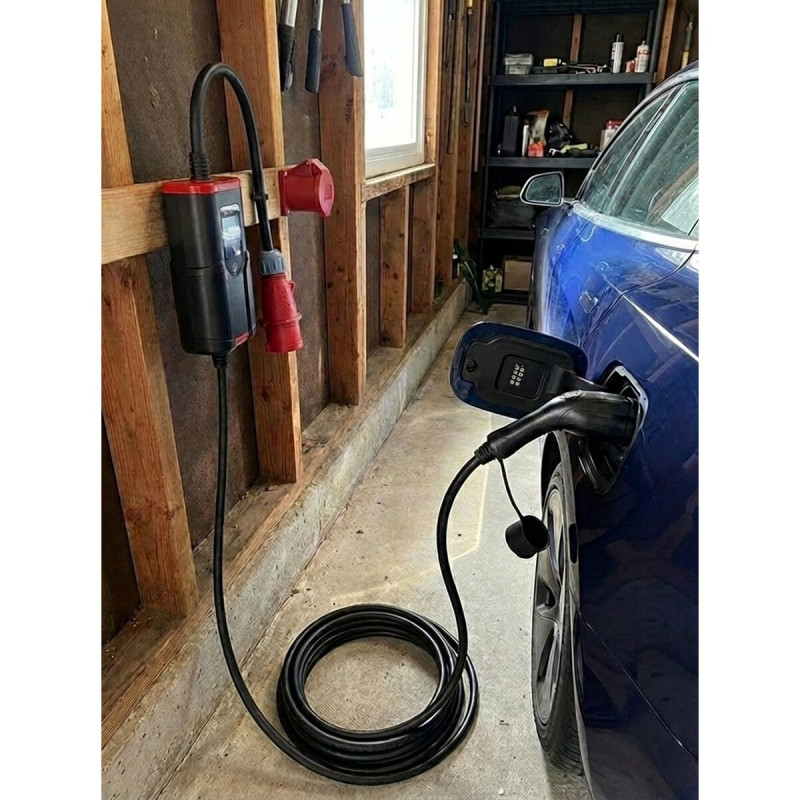

This is a compact portable electric car charging cable, which is an ideal solution for cheaply charging your electric car at work, while traveling, or in other places where there is a household outlet.

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65 °C.

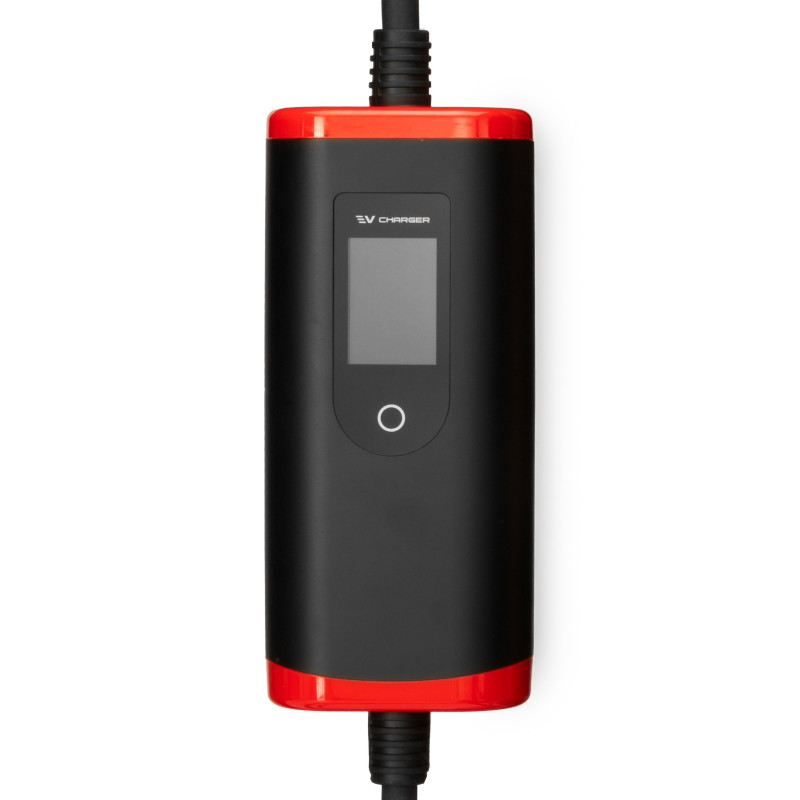

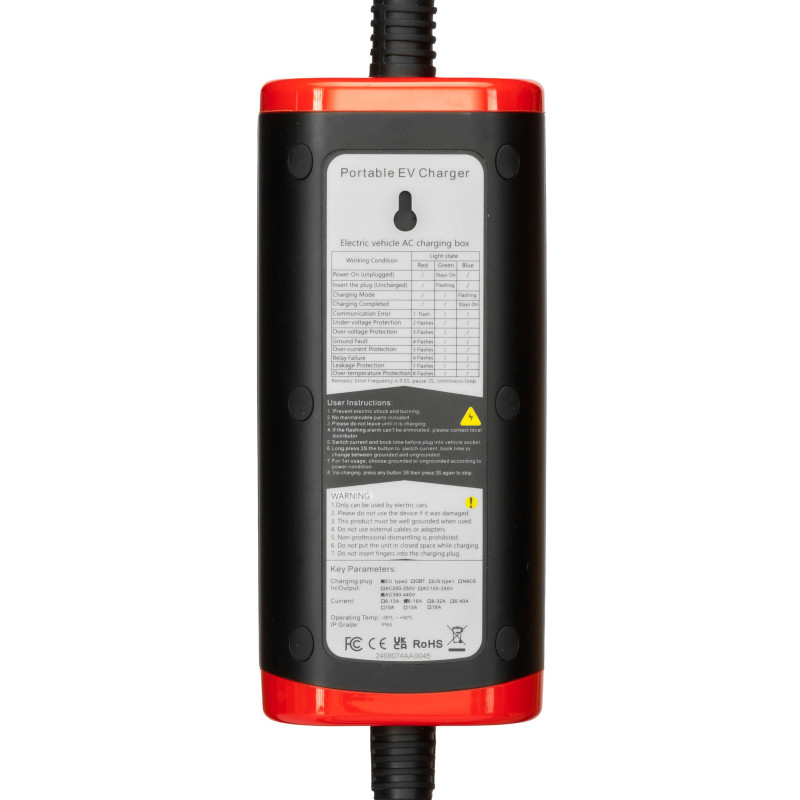

The LED screen shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable 10 13 16 A)

7. Charging speed kW

Method of use:

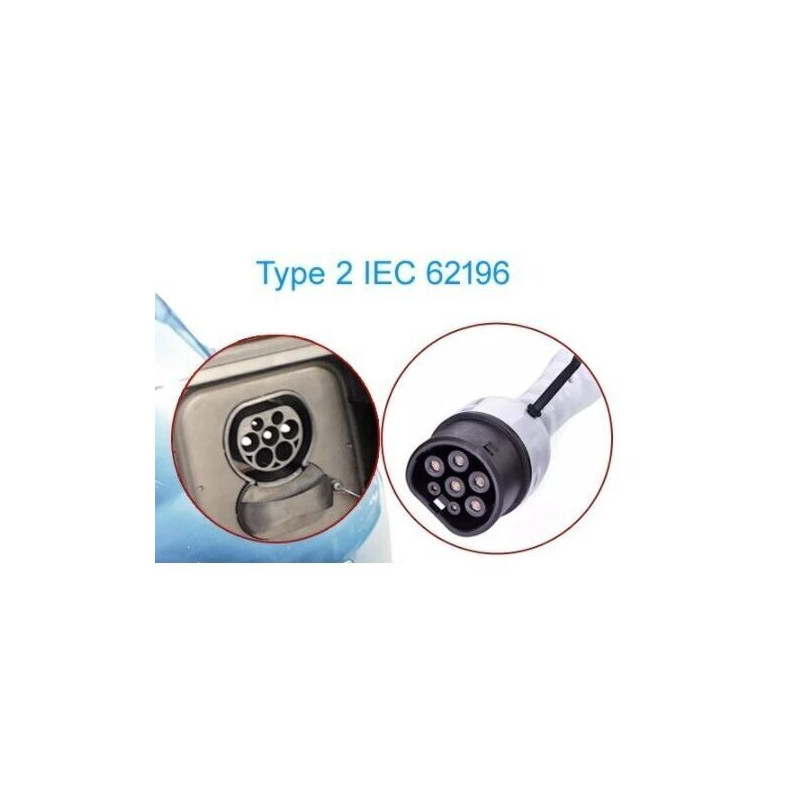

Type 2 - European standard used by electric cars manufactured in Europe, such as: Volkswagen e-Up!, Hyundai Ioniq, Renault ZOE, Nissan Leaf, and Volkswagen e-Golf or BMW i3 designed for the European market or others
