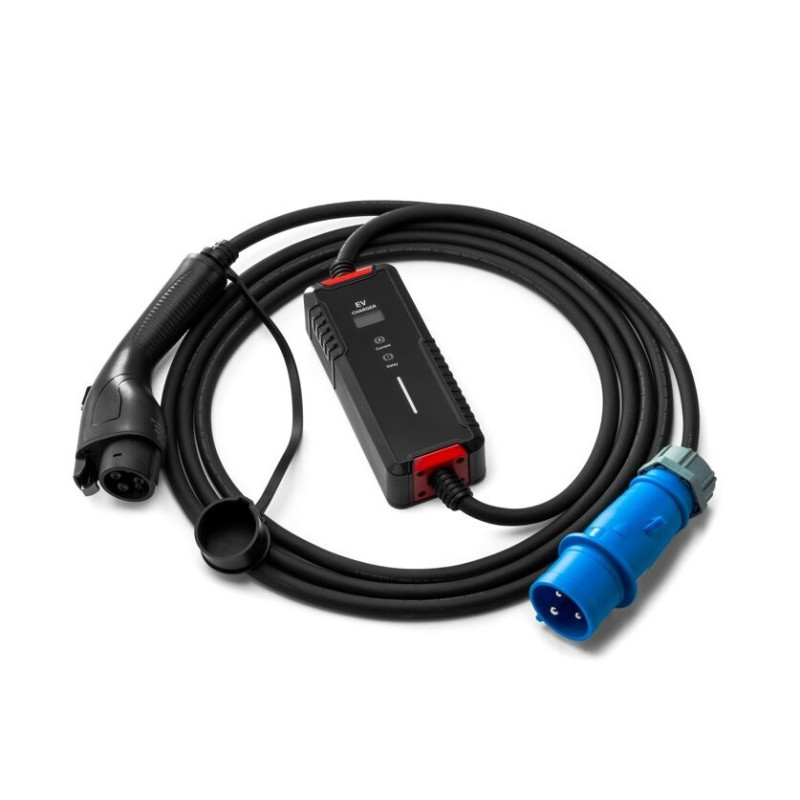

Charging cable 220V - type 1 (32A, 1 phase 7.2 kW)

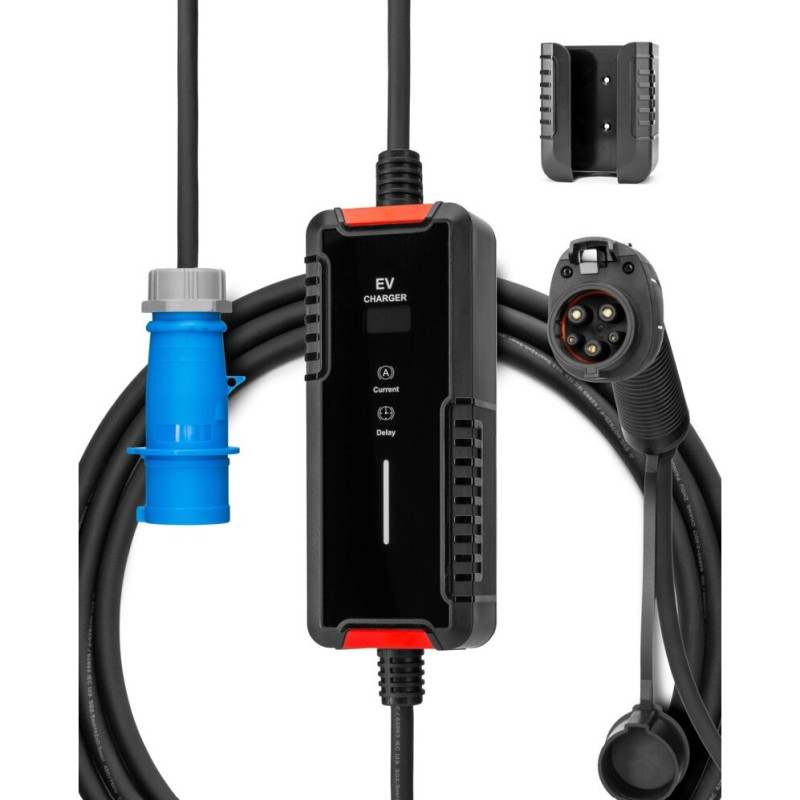

charging cable 32A, 1 phase, from household socket 220V to type 1 connector with time function

Specification:

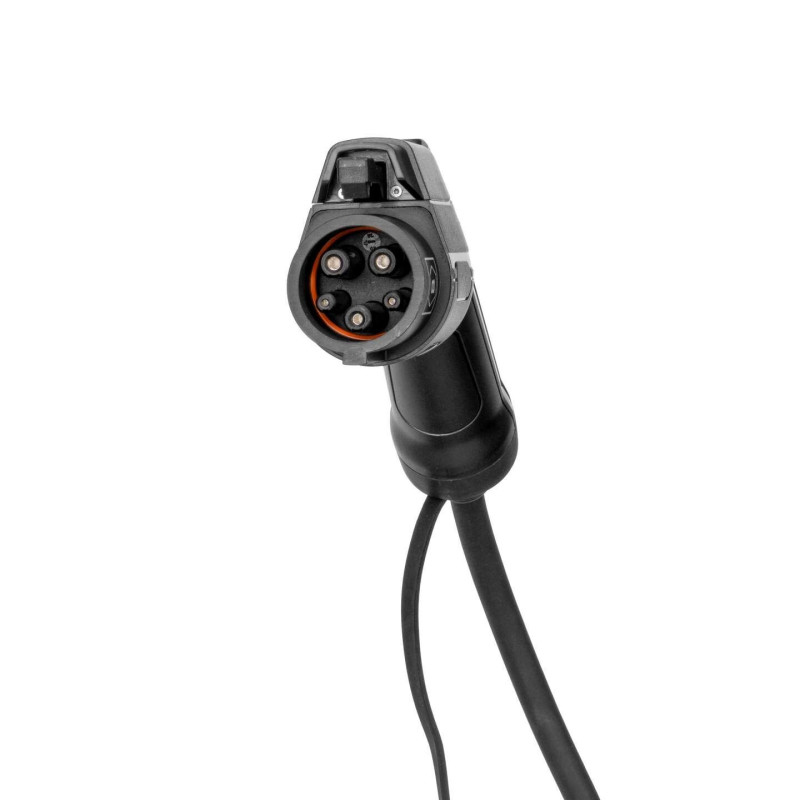

• Plug: IEC62196 type 1

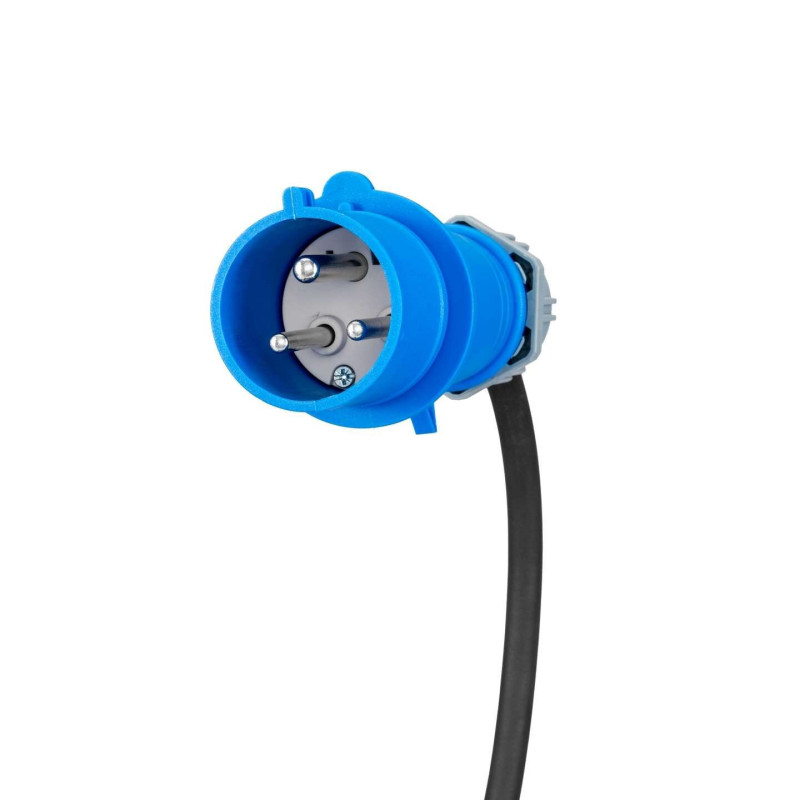

• Power plug: CEE 3 pins
• Protection degree: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 110V-250V AC
• Output power: 7.2 kW
• Total length: 5 meters
• Mechanical life: switch on/off > 10000 times
• External force impact: can reach 1 m drop and 2 t vehicle pressure
• Insulation resistance: > 1000MD (DC500V)
• Terminal temperature rise: <50K

Functions:

The screen displays the real charging status data (charging time, charging power kW, temperature, how many kWh consumed electric)

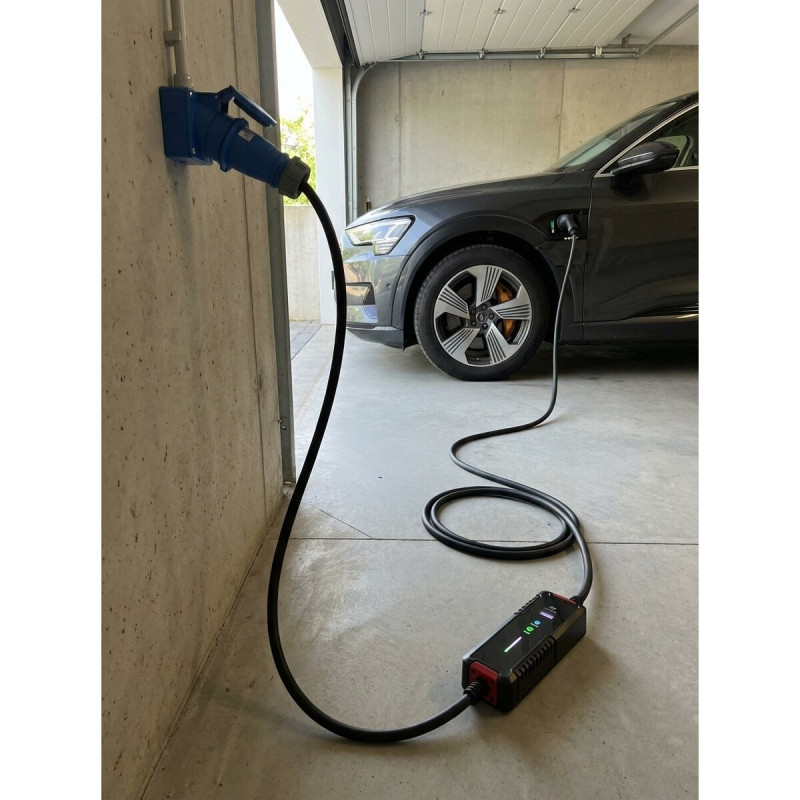

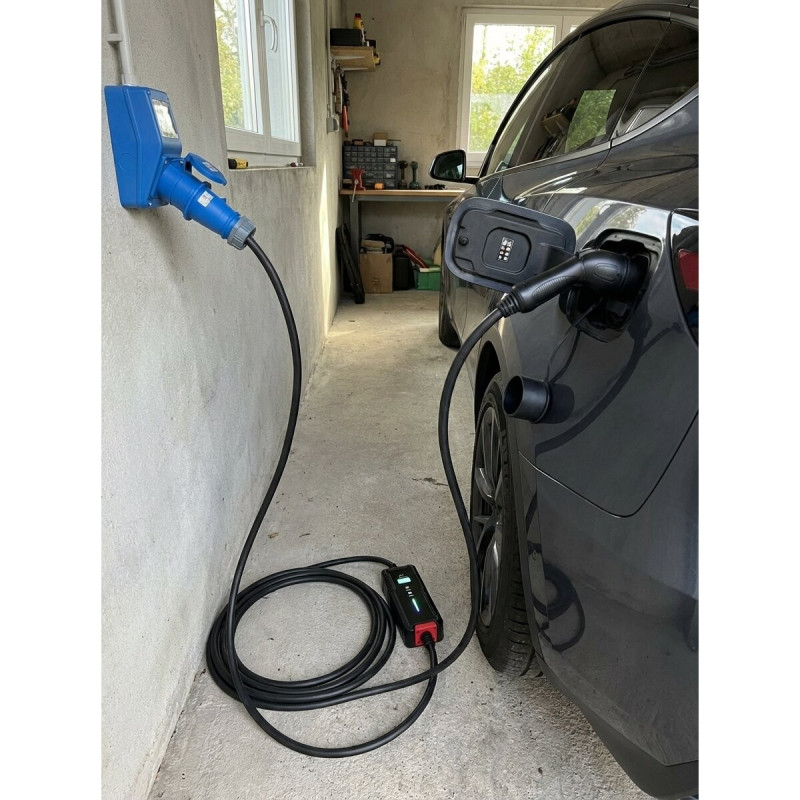

This is a compact portable electric vehicle charging cable , which is an ideal solution for cheaply charging an electric vehicle at work, traveling or other places where there is a household outlet

The charging cable has the following protections installed:

1. Leakage protection

2. Overvoltage or low voltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65°C.

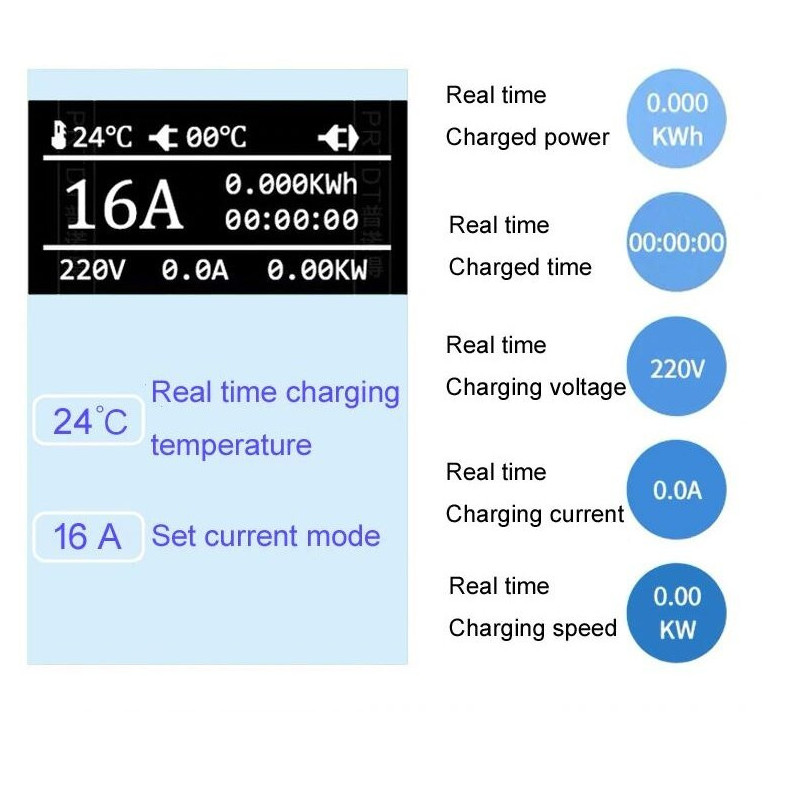

The LED display shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged KW/h

5. Charged time.

6. Set the current (adjustable 10 13 16 20 24 32A)

7. Charging speed kW

How to use:

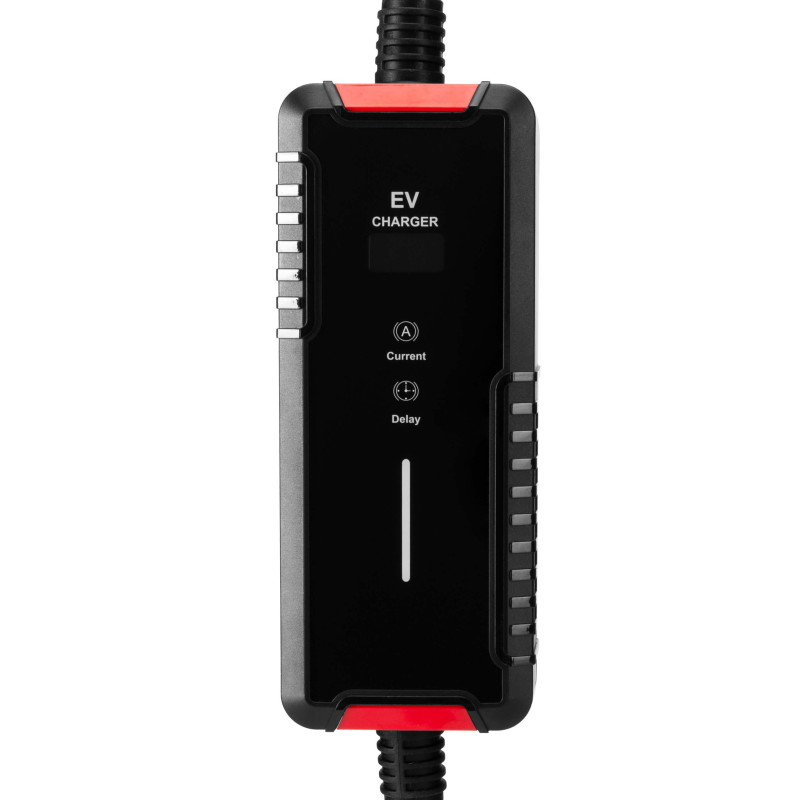

The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE J1772 Type 1 (or Type 2) plug is disconnected. When you get the desired current, connect it and start charging.

Temperature protection, so charging is safe!

When the temperature of the control box exceeds 85°C, the protection will stop charging and start charging when the temperature drops to 65°C.

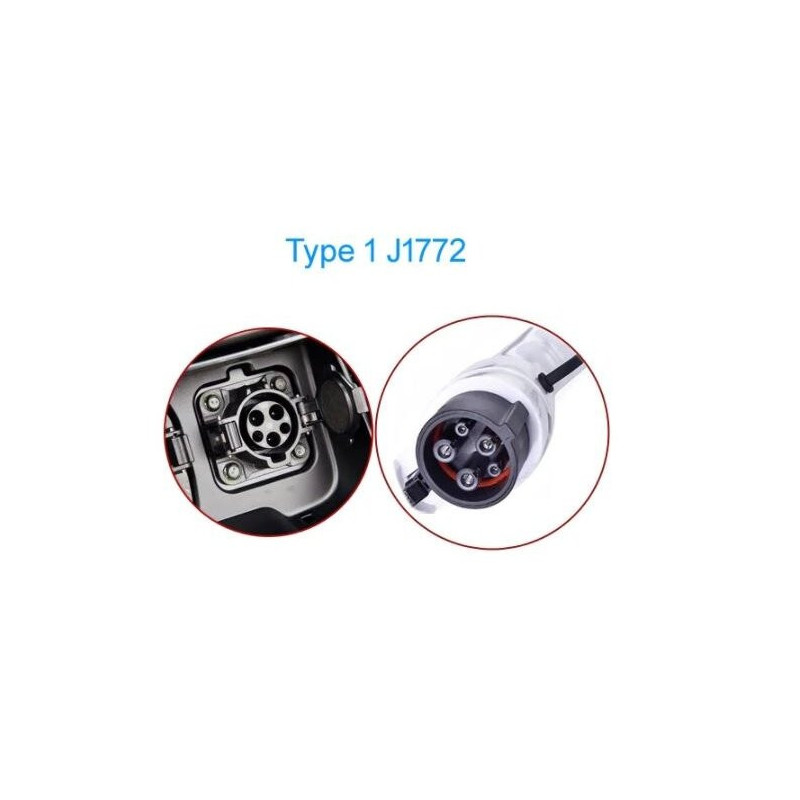

The Type 1 connector is popular in the USA and Japan. This connector is used by the following electric cars - Nissan Leaf, KIA Soul EV, Chevrolet Volt and the American market BMW i3 or Volkswagen e-Golf
