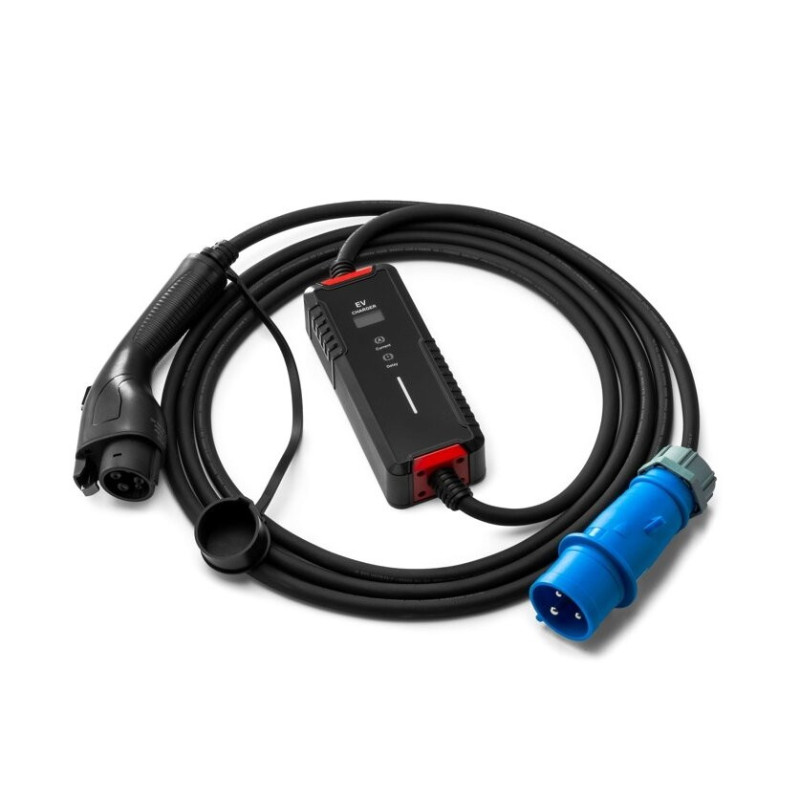

Charging cable 220V - type 1 (32A, 1 phase 7.2 kW)

charging cable 32A, 1 phase, from a household socket 220V to a type 1 connector with time function

Specification:

• Plug: IEC62196 Type 1

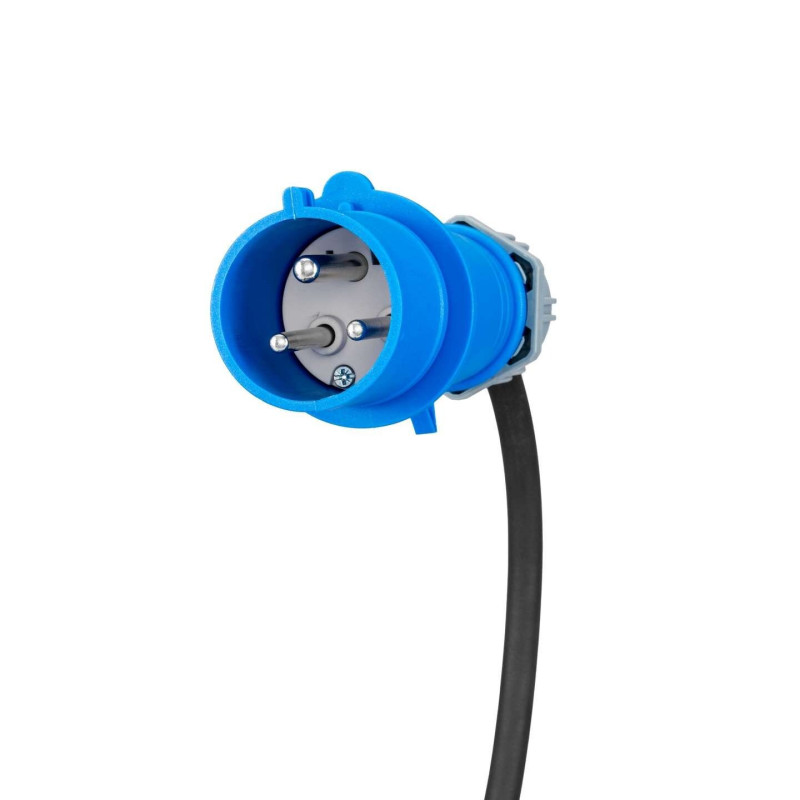

• Power plug: CEE 3 pins
• Degree of protection: IP54 (working condition)
• Contact sleeve: copper alloy, silver + thermoplastic on top
• Input power: 110V-250V AC
• Output power: 7.2 kW
• Total length: 5 meters
• Mechanical life: switch on/offgt; 10000 times
• External force impact: can reach 1m drop and 2t vehicle pressure
• Insulation resistance:gt; 1000MD (DC500V)
• Terminal temperature rise: lt;50K

Features:

The screen shows real charging status data (charging time, charging power in kW, temperature, how many kWh of electricity were consumed)

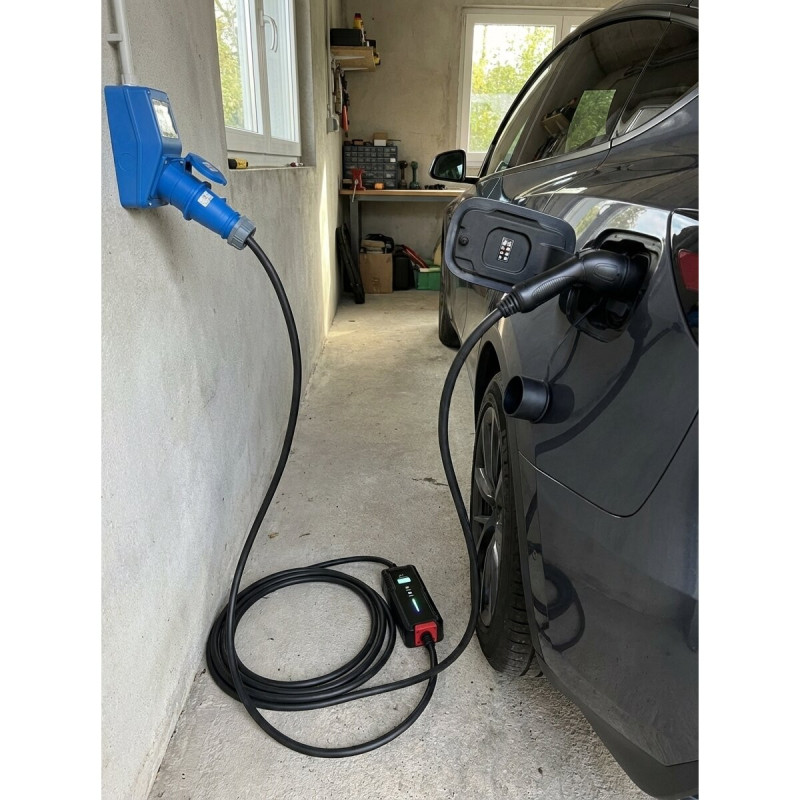

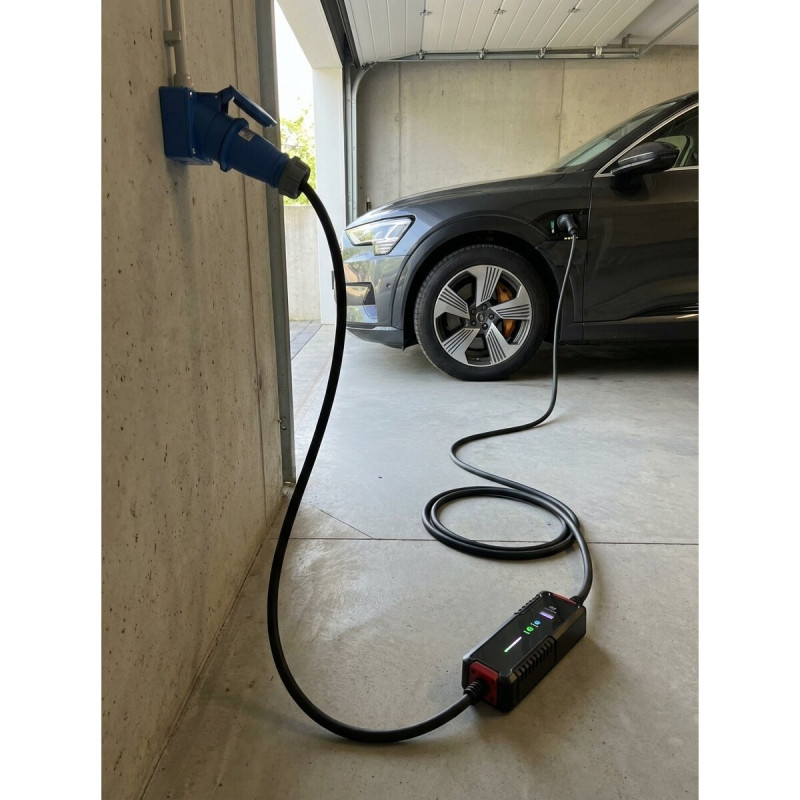

This is a compact portable electric car charger. charging cable, which is an ideal solution for cheaply charging an electric car at work, while traveling, or in other places where there is a household outlet

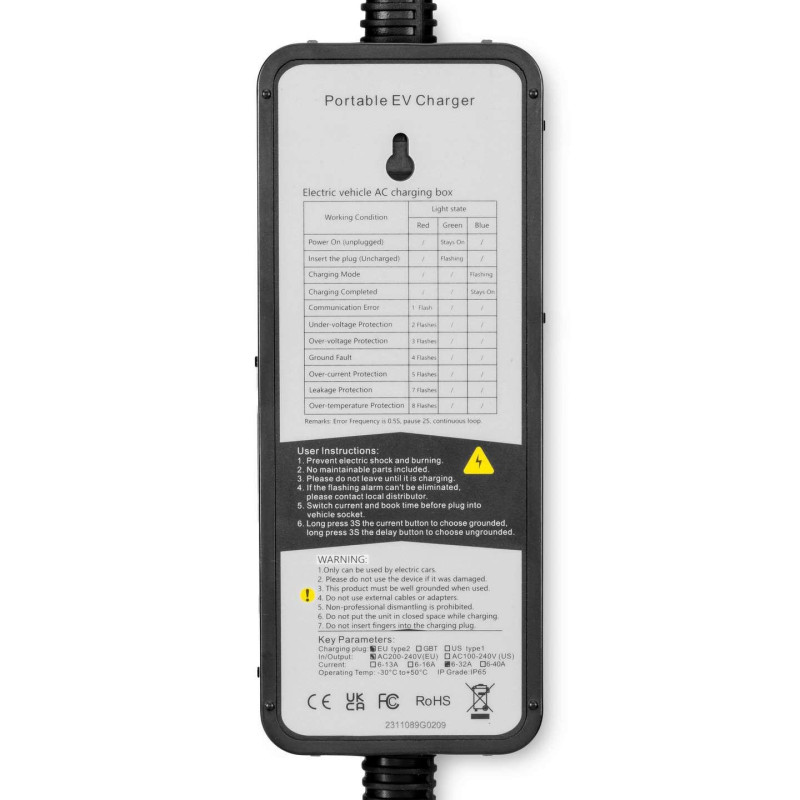

The charging cable has the following protections:

1. Leakage protection

2. Overvoltage or undervoltage protection

3. Overload protection

4. Lightning protection

5. Overheating protection

Temperature protection, so charging is safe!

Kai control box temperature exceeds 85°C, the protection will stop charging and start charging, kai temperature will drop to 65 °C.

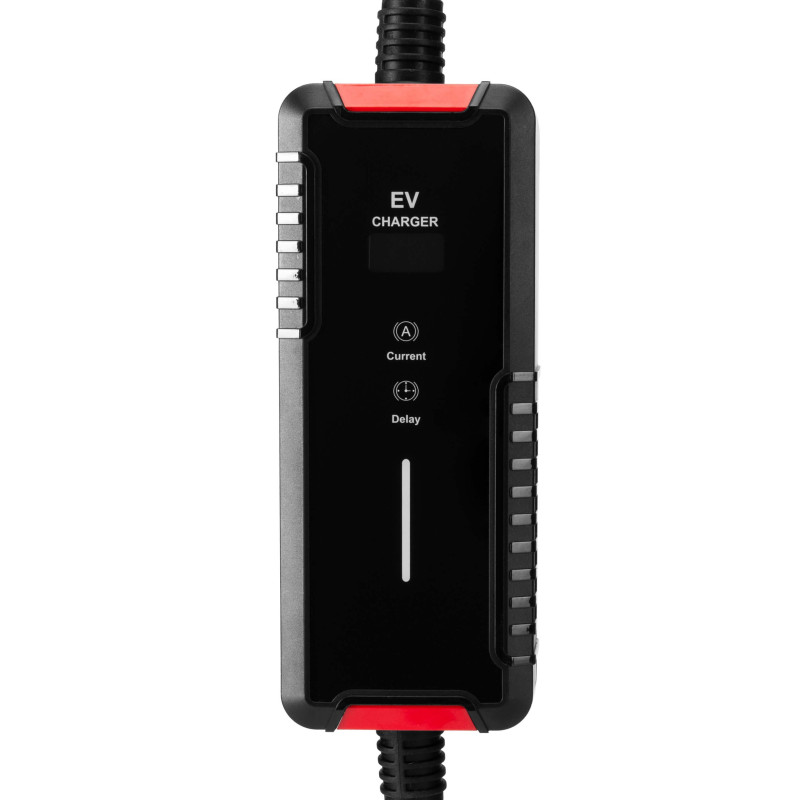

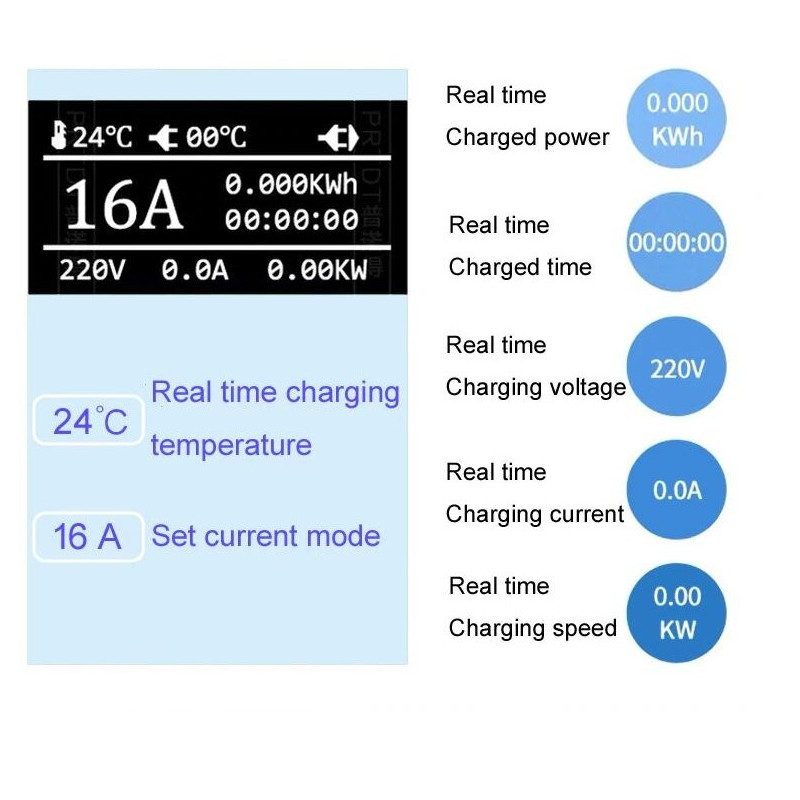

The LED screen shows:

1. Charging temperature

2. Charging current

3. Charging voltage

4. Energy charged in KW/h

5. Charged time.

6. Set the current (adjustable 10 13 16 20 24 32A)

7. Charging speed kW

How to use:
The blue button is for adjusting the current. To change the current, press the blue button. When adjusting the current, the power plug is always connected, the SAE Type 1 J1772 (or Type 2) plug is disconnected. Kai you will get the desired current, connect it and start charging.

Temperature protection, so charging is safe!

Kai control box temperature exceeds 85°C, the protection will stop charging and start charging, kai temperature will drop to 65 °C.

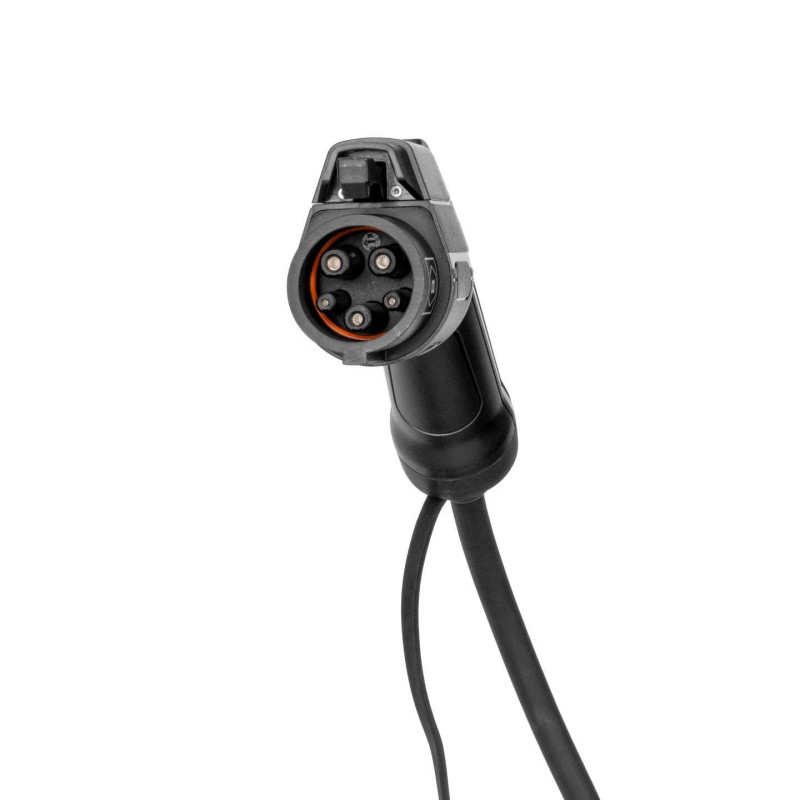

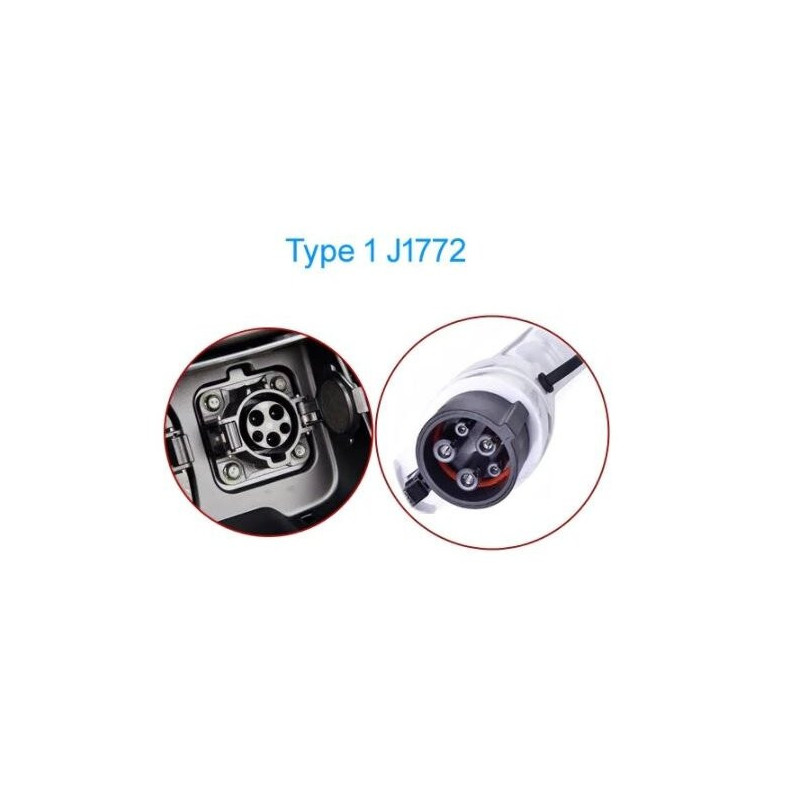

The Type 1 connector is popular in the US and Japan. This connector is used by such electric cars as the Nissan Leaf, KIA Soul EV, Chevrolet Volt, and the American-market BMW i3 or Volkswagen e-Golf.
