CCS2 - CCS1 adapter
Product reference:
32-1546989087865
CCS2 - CCS1 adapter
Product reference:
32-1546989087865
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

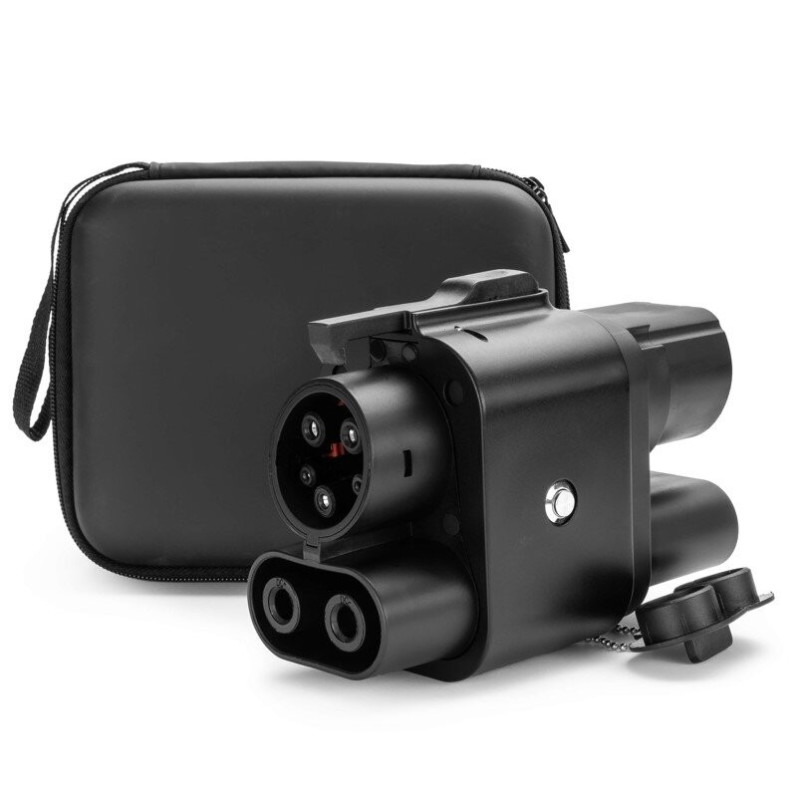

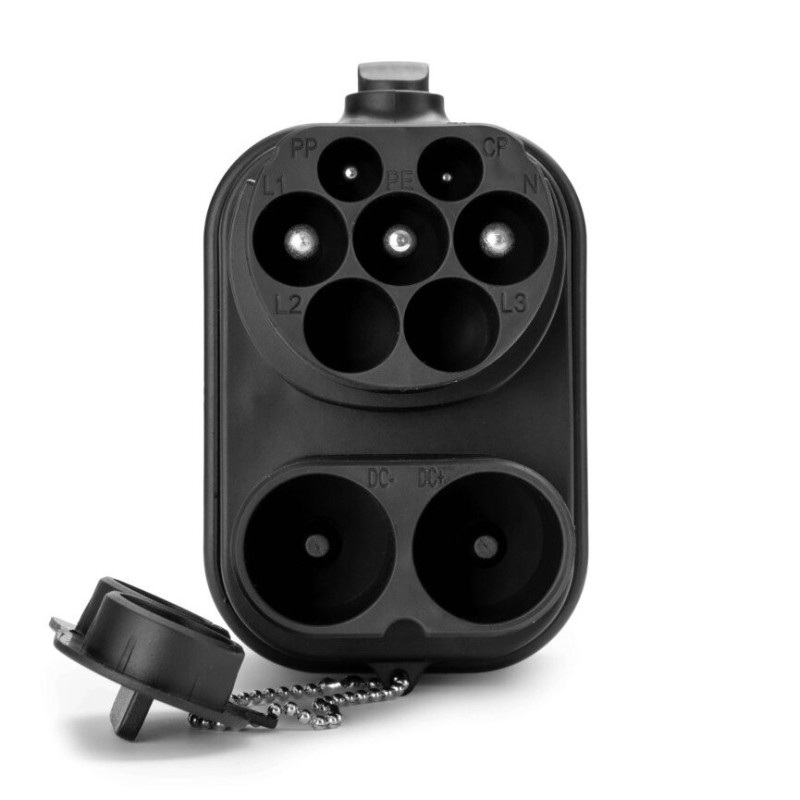

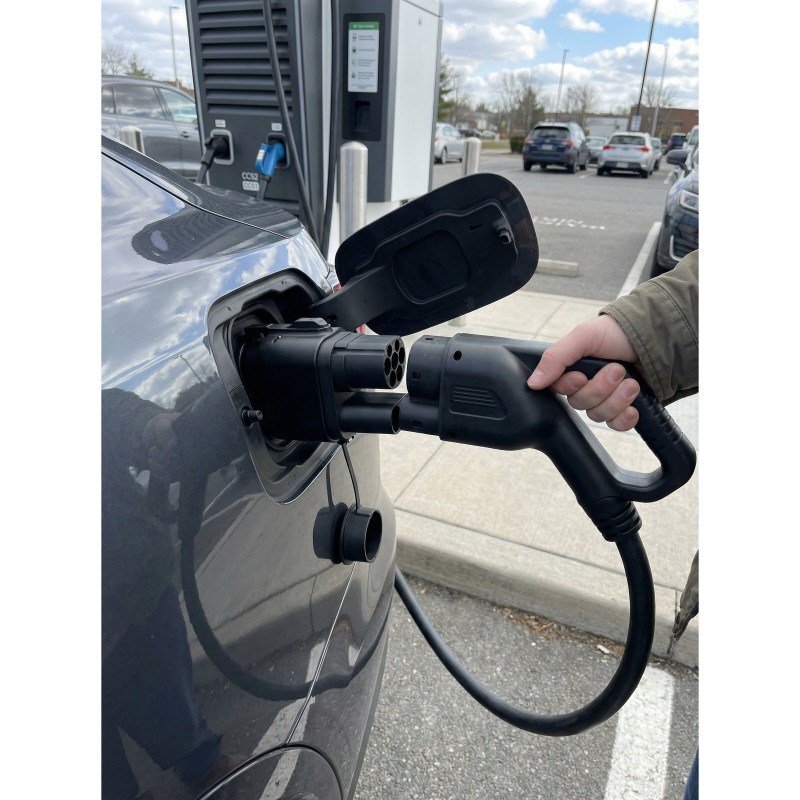

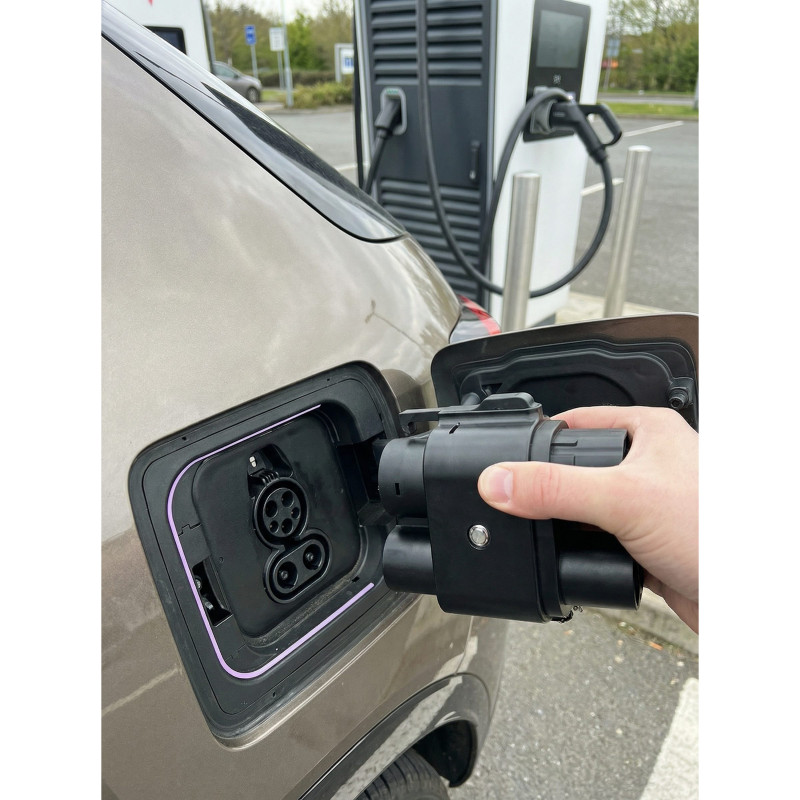

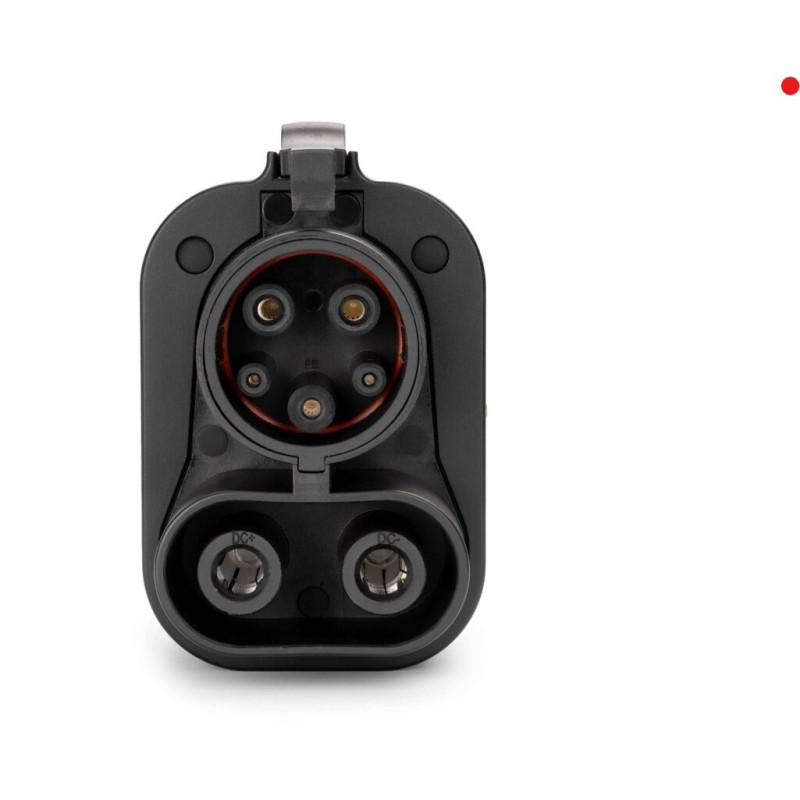

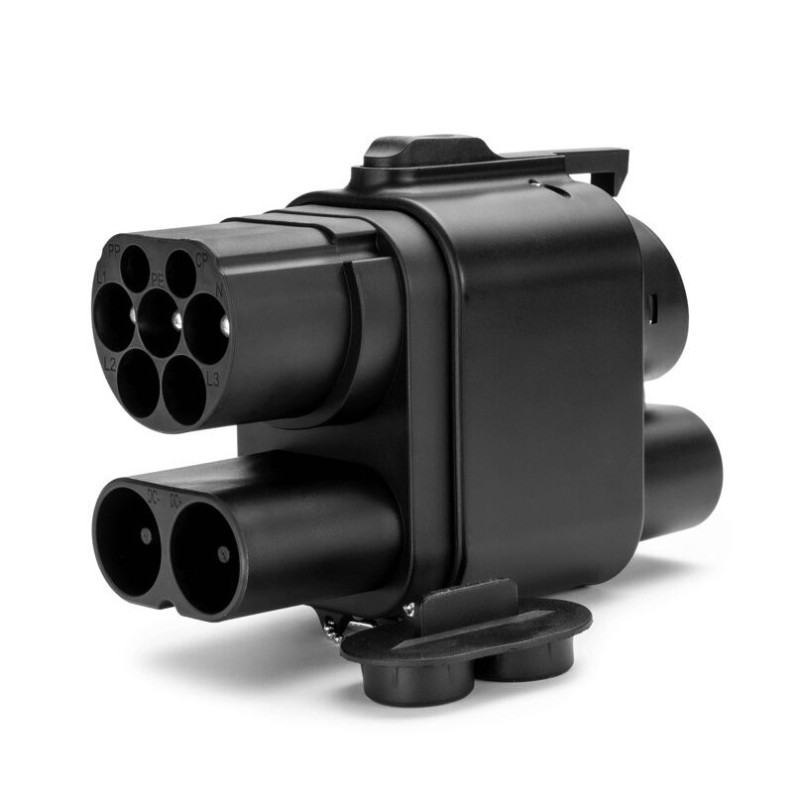

CCS2 to CCS1 adapter - connector that allows electric vehicles with a CCS1 (US standard) port to be charged via CCS2 (European standard) fast charging stations. Supports charging power from 50 kW to 250 kW, waterproof (IP67), made of high-quality materials to ensure safe and reliable charging.
CCS2-CCS1 adapter is designed for cars that have a CCS1 American connector and want to charge via a European CCS2 fast charging connector
Product features
Complies with IEC62196-3: 2014 standards
Rated current: from 50 A to 250 A
Charging power: from 50 kW to 250 kW
Mechanical life: ＞ 5000 times on/off
Rated voltage: 1000 VAC
Environmental properties Insulation resistance: > 1000MΩ (DC500V)
Operating temperature: -30 - +50 % Pin temperature rise: <50 K
Materials withstanding voltage: 3200V
Pins: copper alloy with silver. Contact resistance: ≤ 0.5 mΩ
Internal materials: thermoplastic, flame retardant UL94V-0
Housing: thermoplastic, flame retardant UL94V-0
Protection level: IP67
| Height | 250 mm |
| Power | 250 kW |
| Length | 200 mm |
| Charging location | From city stops |
| Cable type | CCS2 |
| Width | 200 mm |
| Weight | 900 g |
