CCS2 - CCS1 adapter
Product reference:
32-6936589587587
CCS2 - CCS1 adapter
Product reference:
32-6936589587587
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 4
business days

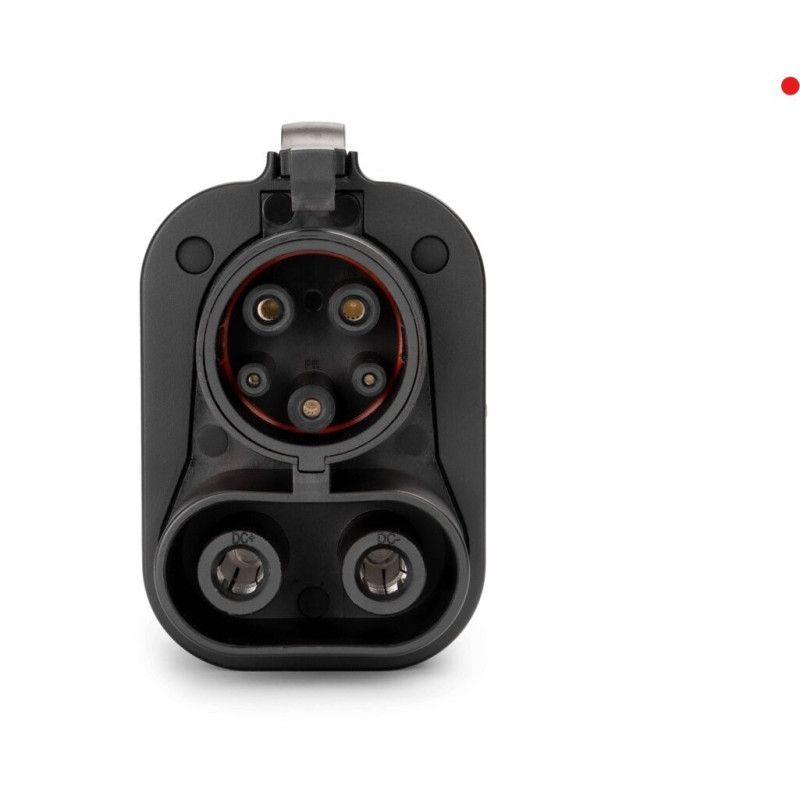

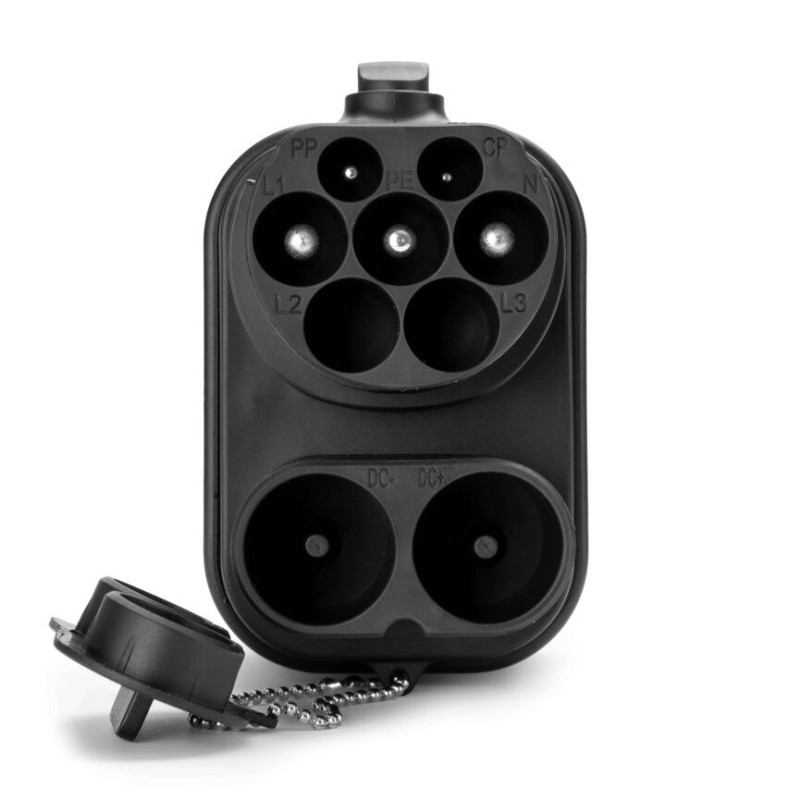

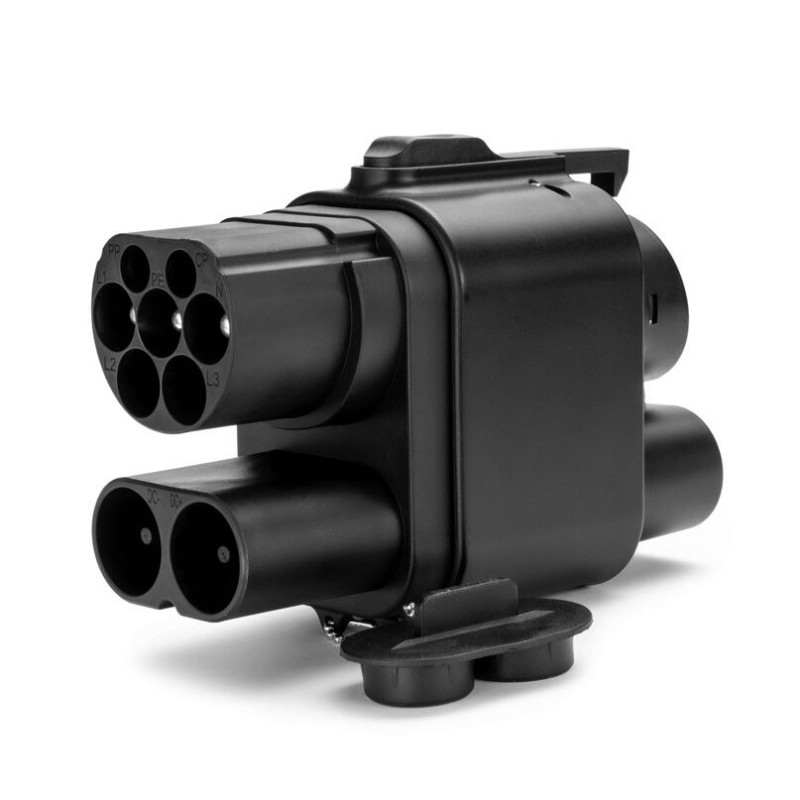

CCS2 to CCS1 adapter - connector that allows electric vehicles with a CCS1 (US standard) port to charge via CCS2 (European standard) fast charging stations. Supports charging power from 50 kW to 250 kW, waterproof (IP67), made of high-quality materials ensuring safe and reliable charging.

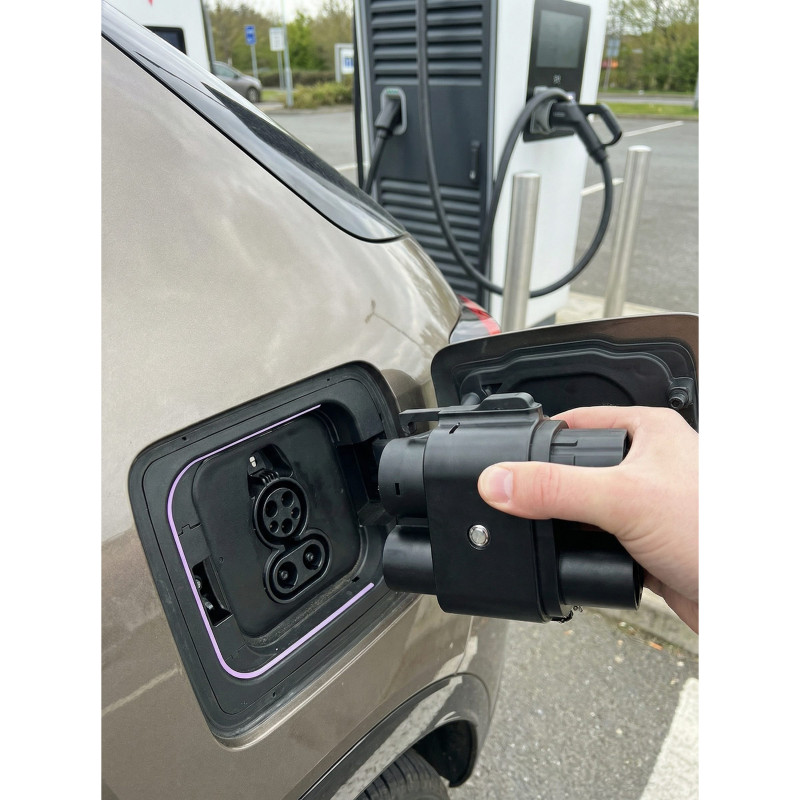

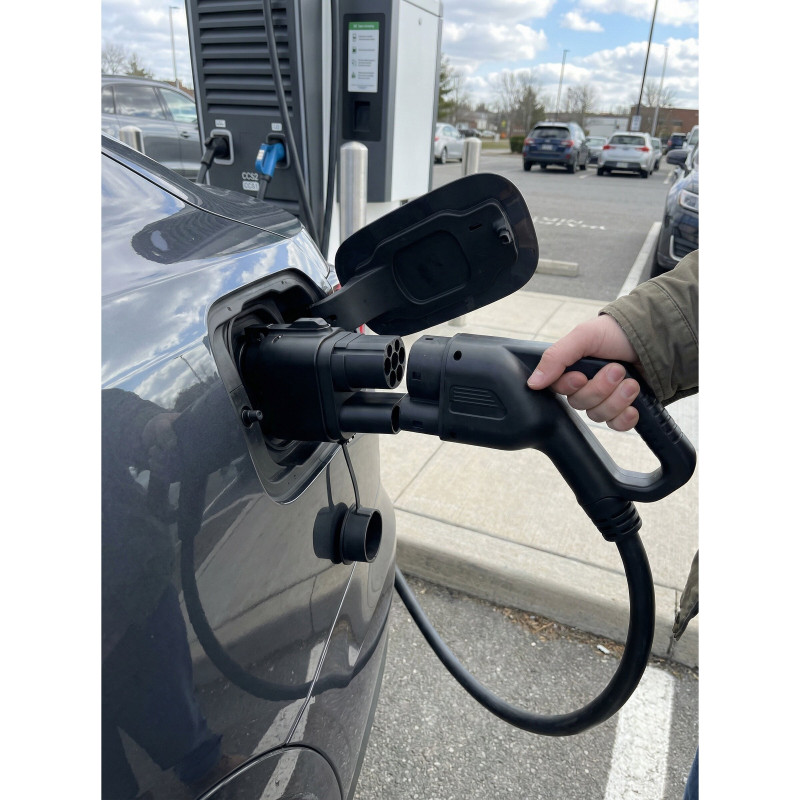

The CCS2-CCS1 adapter is designed for cars that have a CCS1 American connector and want to charge via a European CCS2 fast charging connector.
Product features
Complies with IEC62196-3:2014 standards
Rated current: from 50 A to 250A
Charging power: from 50 kW to 250 kW
Mechanical life: ＞5000 times on/off
Rated voltage: 1000 VAC
Environmental properties Insulation resistance: > 1000MΩ (DC500V)
Operating temperature: -30 - +50 % Pin temperature rise: <50 K
Materials withstanding voltage: 3200V
Pins: Copper alloy with silver. Contact resistance: ≤ 0.5 mΩ
Internal materials: thermoplastic, fire resistant UL94V-0
Housing: thermoplastic, fire resistant UL94V-0
Protection level: IP67
| Power | 250 kW |
| Cable type | CCS2 |
| Loading area | From city stops |
| Length | 200mm |
| Height | 250mm |
| Width | 200mm |
| Weight | 900g |
