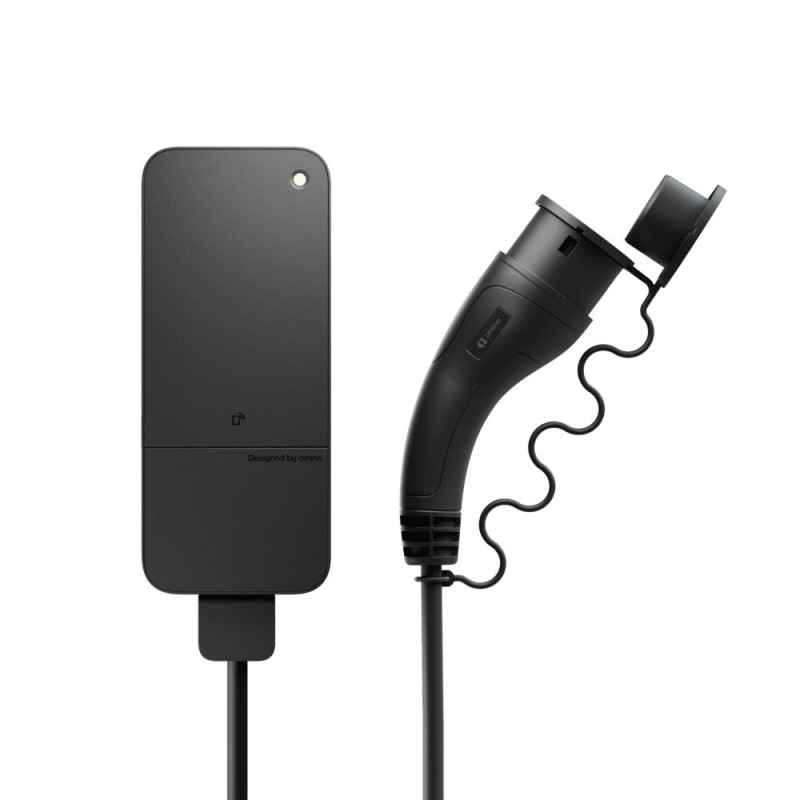

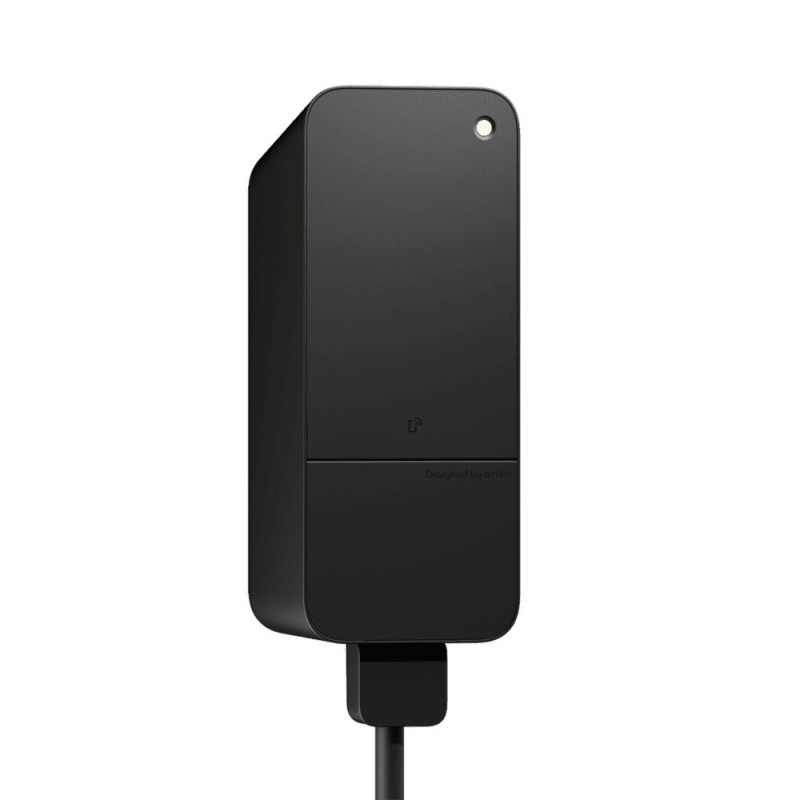

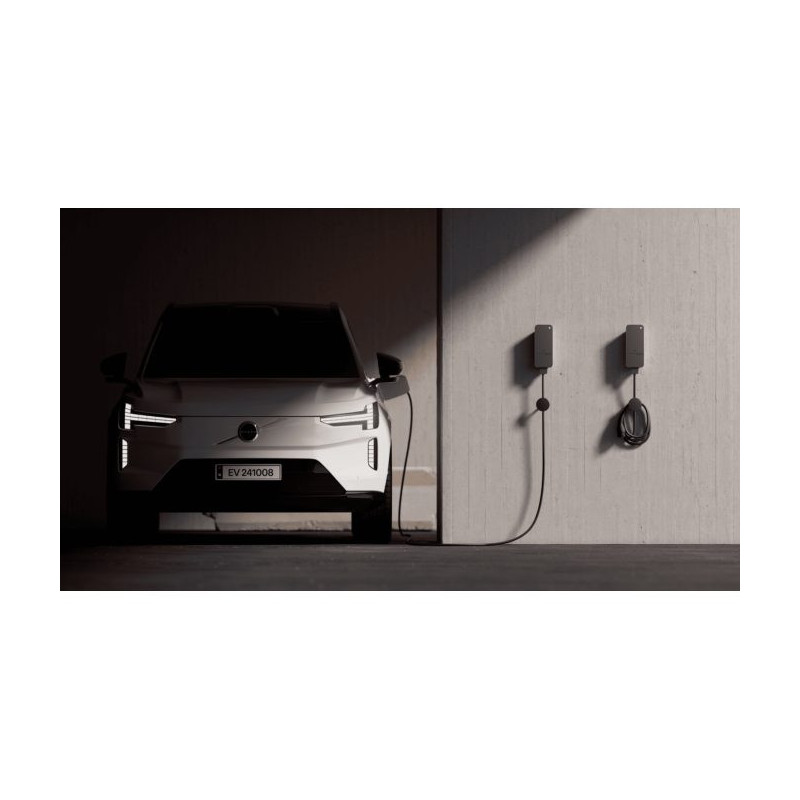

Amina S charging station 22 kW with 6m cable and 5-year warranty

Amina S 32A, with interrogated 6m cable Type 2 . (1-phase: 1.4 - 7.4 kW / 3-phase: 3.7 - 22 kW )

With 5-year warranty, made in Norway

Scandinavian quality,

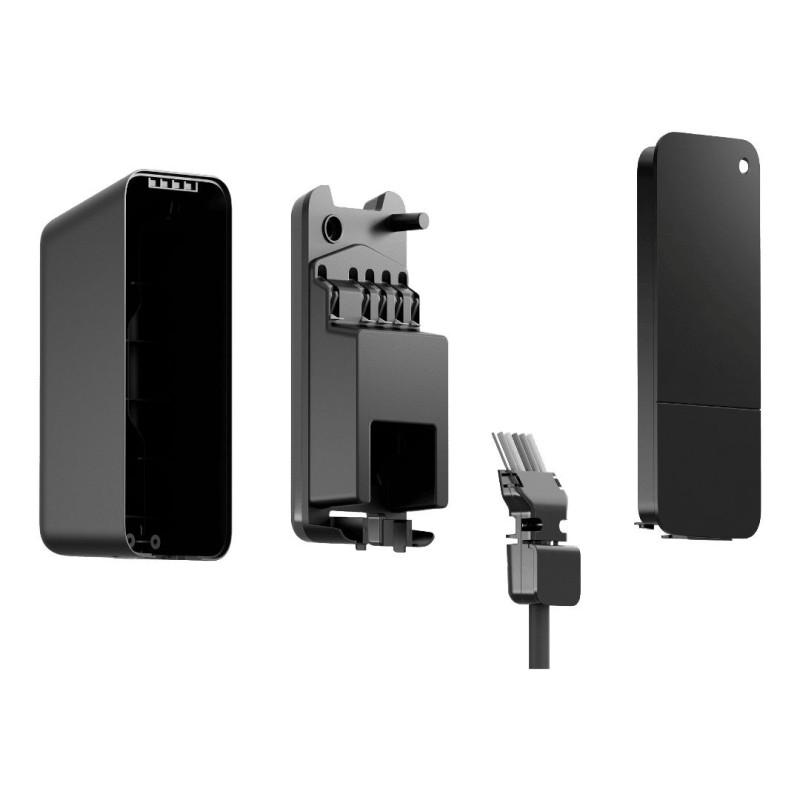

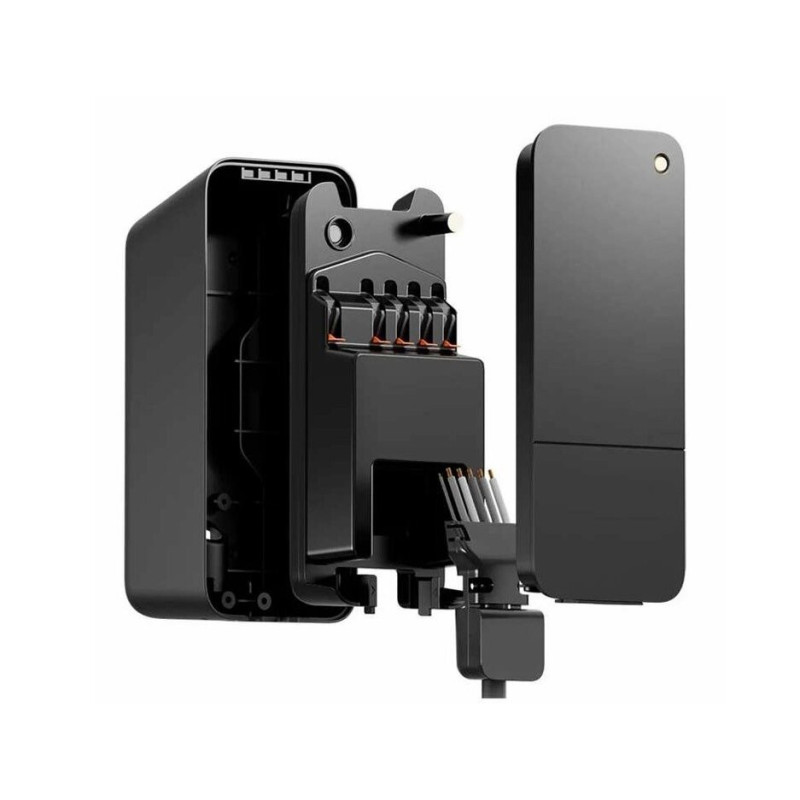

Unique and modern design super easy installation

Integrated 6m Type 2 cable (20A/32A) one of the thinnest and lightest on the market

Control with app via Enegic Powerlink power balancing adapter with nordpool, charging schedule, solar integration.

Amina S 32A, with integrated 6m cable Type 2. (1-phase: 1.4 - 7.4 kW / 3-phase: 3.7 - 22 kW )

Bluetooth LE / Zigbee

Integrated residual current protection RDC-DD (6mA DC)

Meets ENA support requirements

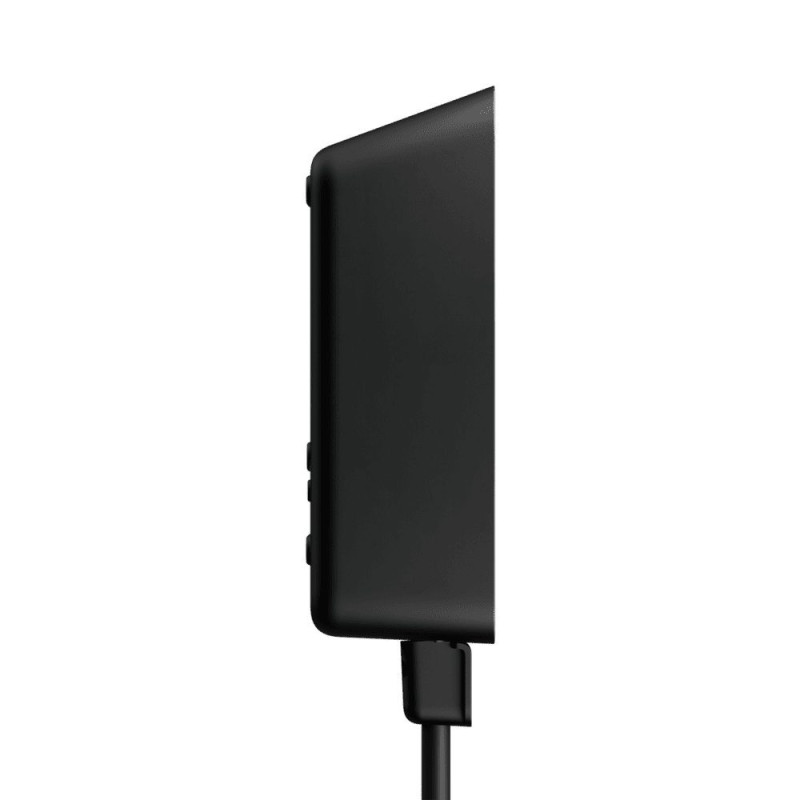

Dimensions: 264mm x 112mm x 89mm

Operating temperature: -30°C to +40°C

3.4kg with 6m 3-phase 32A cable

TN, IT and TT
230V/400V AC 3-phase w Neutral
(neutral wire) 230V AC 1-phase

Fixed cable (replaceable) Type 2 plug (EN
62196)
AST100/32:6m 3-phase 32A, AST100/20:6m 3
phase 32A

3-phase power: 3.7 - 22.0 kW

1-phase power: 1.4 - 7.4 kW

Bluetooth LE, and Zigbee
Frequency: 2400 - 2483.5 MHz
Maximum output power: 10mW

IP54
IK08
UV
resistant

Protection class I
Overvoltage category III (4kV)

Regulations and
standards

RED 2014/53/EU
EN IEC 62311:2020
EN IEC 61851-1:2019
EN 62196-1:2014
EN 62196-2:2012+A11:2013+A12:2014 IEC
62955:2018
EN IEC 61851-21-2:2021
EN 301 489-1 v2.2.3
EN 301 489-17 v3.2.4
EN 300 328 v2.2.2
RoHS 2011/65/EU
EN IEC 63000:2018

Dynamic power controller for Enegic Powerlink Amina S charging station (Nordpool tariffs):

Enegic Powerlink (Hub and Monitor) P1 RJ12 connector works with ESO new type meters - 270 eur

Enegic Powerlink (Hub and Monitor) 3x16 mm with current transformers - 300 eur

Enegic Powerlink (Hub and Monitor) 4x16 mm with current transformers (solar power plants) - 320 eur

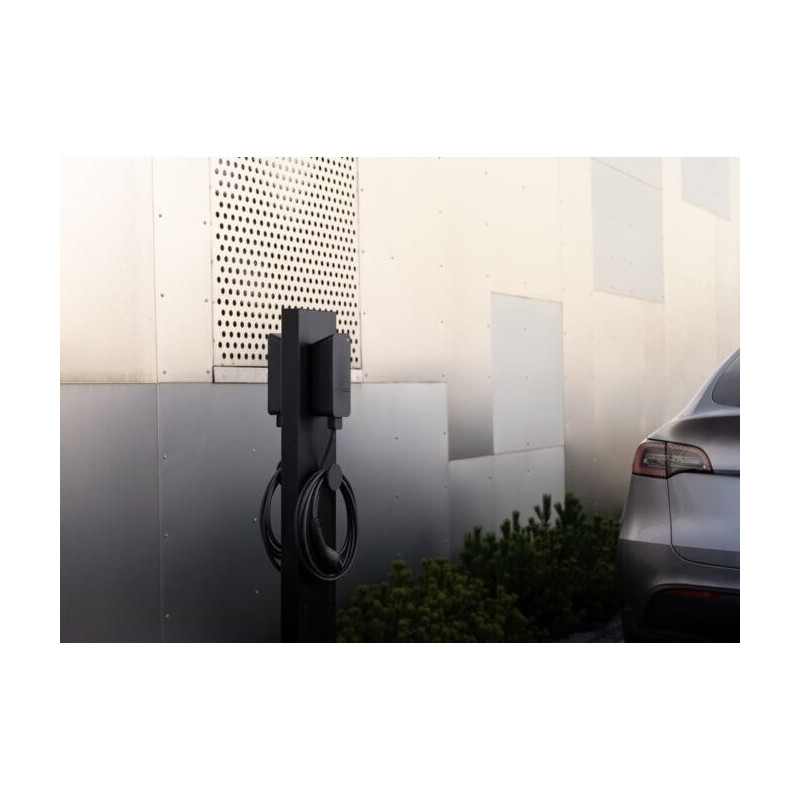

Stand for Amina station, Black stainless steel

(can be installed 1-2 stations):

Universal stand, black. H1400xW150xD50 mm - 190 eur/pc.

OUR PRACTICAL ADVICE

If you have a single-phase electric vehicle or a Plug-in hybrid vehicle (which accept up to 7kW per 1 phase), it is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing a 22 kW electric vehicle charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW in power, you will be able to achieve approximately 7 kW of charging power with a single phase.

This is an efficient and effective solution for those seeking maximum charging power for their electric or hybrid vehicle.
