Amina S charging station 22 kW with 6m cable and 5-year warranty

Amina S 32A, with integrated 6m cable Type 2. (1-fazė: 1.4 - 7.4 kW / 3-fazės: 3.7 - 22 kW)

With 5-year warranty, made in Norway

Scandinavian quality,

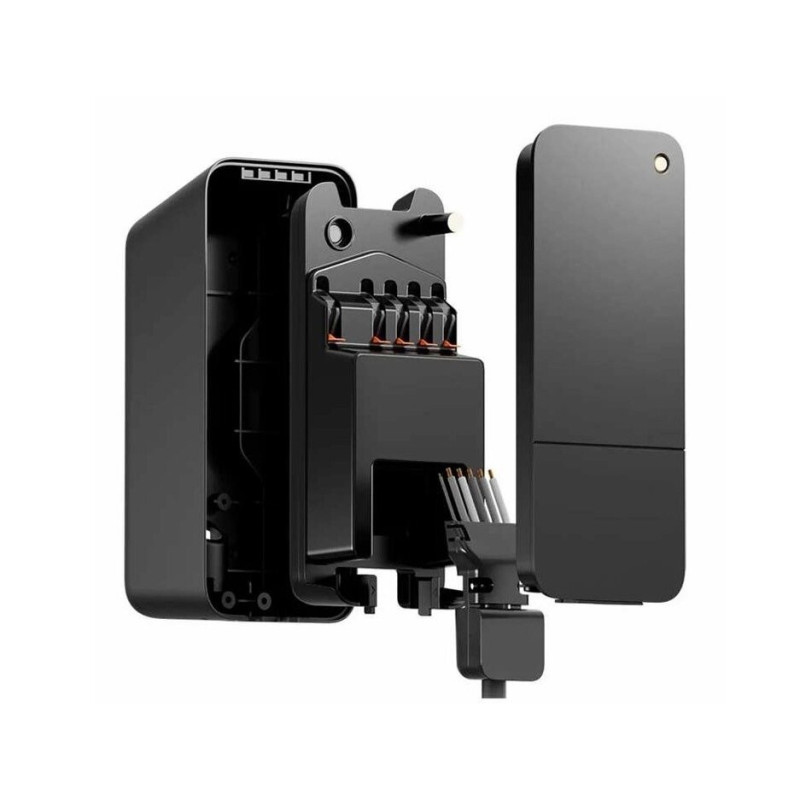

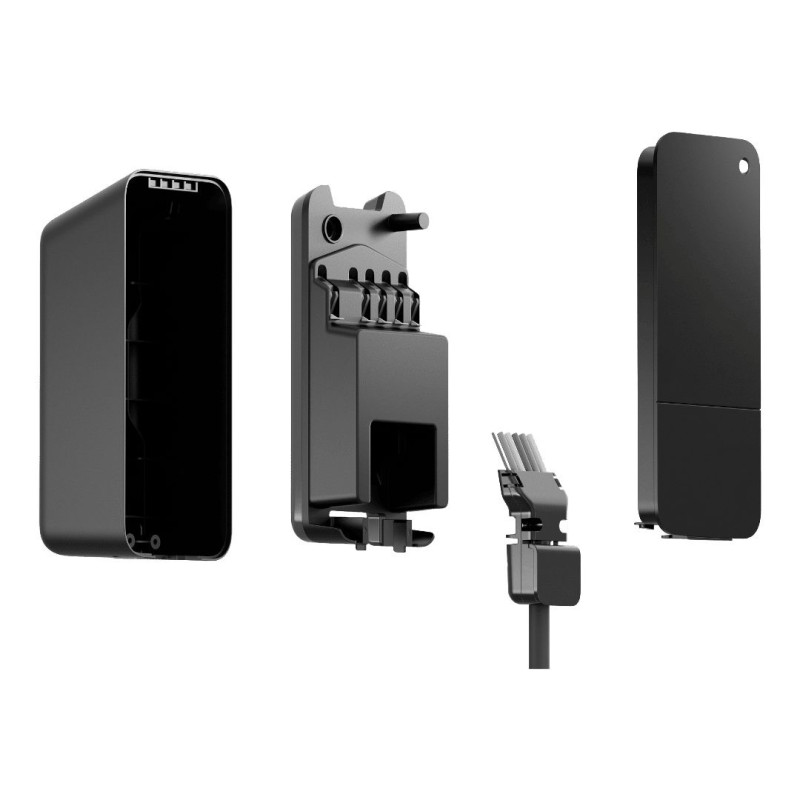

Unique and modern design, super easy installation

Integrated 6m Type 2 cable (20A/32A) one of the thinnest and lightest on the market

App control via Enegic Powerlink power balancing adapter with Nordpool, charging schedule, and solar integration.

Amina S 32A, with integrated 6m cable Type 2. (1-fazė: 1.4 - 7.4 kW / 3-fazės: 3.7 - 22 kW )

Bluetooth LE / Zigbee

Integrated current leakage protection RDC-DD (6mA DC)

Meets ENA support requirements

Dimensions: 264mm x 112mm x 89mm

Operating temperature: -30°C to +40°C

3,4kg with 6m 3-fazių 32A cable

TN, IT and TT
230V/400V AC 3-fazės w Neutral
(neutral wire) 230V AC 1-fazė

Fixed cable (replaceable) type 2 plug (EN
62196)
AST100/32:6m 3-phase 32A, AST100/20:6m 3
32A

3-fazių power: 3.7 - 22.0 kW

1-fazės power: 1.4 - 7.4 kW

Bluetooth LE, and Zigbee
Frequency: 2400 - 2483.5 MHz
Maximum output power: 10mW

IP54
IK08
Resistant to UV
rays

Protection class I
Overvoltage category III (4kV)

Regulations and
standards

RED 2014/53/EU
EN IEC 62311:2020
EN IEC 61851-1:2019
EN 62196-1:2014
EN 62196-2:2012+A11:2013+A12:2014 IEC
62955:2018
EN IEC 61851-21-2:2021
EN 301 489-1 v2.2.3
EN 301 489-17 v3.2.4
EN 300 328 v2.2.2
RoHS 2011/65/EU
EN IEC 63000:2018

Dynamic power controller for Enegic Powerlink Amina S charging station (Nordpool tariffs):

Enegic Powerlink (Hub and Monitor) P1 RJ12 works with ESO's new type of meters via the connection - 270 euros

Enegic Powerlink (Hub and Monitor) 3x16 mm with current transformers - 300 euros

Enegic Powerlink (Hub and Monitor) 4x16 mm with current transformers (solar power plants) - 320 euros

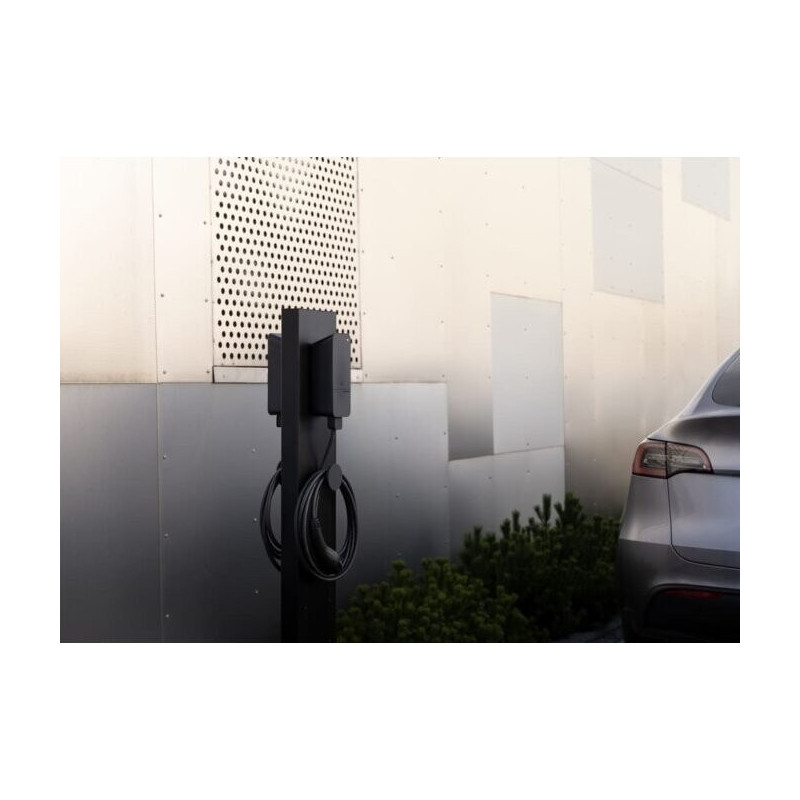

Stand for Amina station, Black stainless steel

(1-2 stations can be installed):

Universal stand, black. H1400xW150xD50 mm - 190 euros/piece.

OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a plug-in hybrid car (which accepts up to 7kW during phase 1), It is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you will be able to achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
