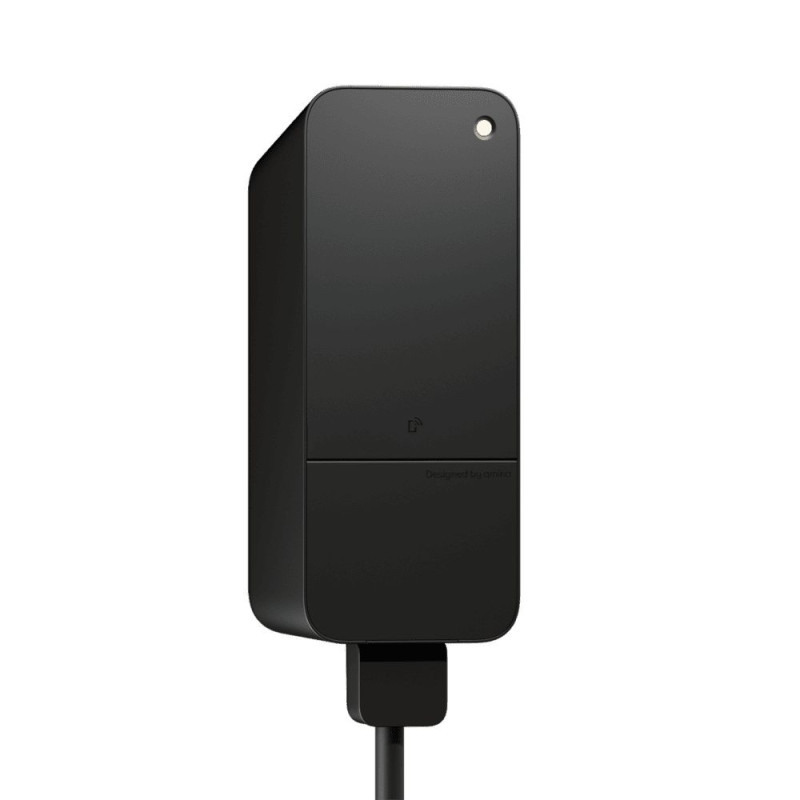

Amina S charging station 11kW with 6m cable and 5-year warranty - eligible for state support

Amina S 20A, with integrated 6m cable Type 2. (1-fazė: 1.4 - 4.6 kW / 3-fazės: 3.7 - 13.8 kW)

With 5-year warranty, made in Norway

Scandinavian quality,

Unique and modern design, super easy installation

Integrated 6m Type 2 cable (20A ) one of the thinnest and lightest on the market

App control via Enegic Powerlink power balancing adapter with Nordpool, charging schedule, and solar integration.

Amina S 20A, with integrated 6m cable Type 2. (1-fazė: 1.4 - 4.6 kW / 3-fazės: 3.7 - 13.8 kW )

Bluetooth LE / Zigbee

Integrated current leakage protection RDC-DD (6mA DC)

Meets ENA support requirements

Dimensions: 264mm x 112mm x 89mm
Operating temperature: -30°C to +40°C

2,4kg with 6m 3-fazių 20A cable

TN, IT and TT
230V/400V AC 3-fazės w Neutral
(neutral wire) 230V AC 1-fazė

Fixed cable (replaceable) type 2 plug (EN
62196)
AST100/32:6m 3-phase 32A, AST100/20:6m 3
20A

3-fazių power: 3.7 - 13.8 kW
1-fazės power: 1.4 - 4.6 kW

Bluetooth LE, and Zigbee

Frequency: 2400 - 2483.5 MHz
Maximum output power: 10mW

IP54
IK08
Resistant to UV
rays

Protection class I
Overvoltage category III (4kV)

Regulations and
standards

RED 2014/53/EU
EN IEC 62311:2020
EN IEC 61851-1:2019
EN 62196-1:2014
EN 62196-2:2012+A11:2013+A12:2014 IEC
62955:2018
EN IEC 61851-21-2:2021
EN 301 489-1 v2.2.3
EN 301 489-17 v3.2.4
EN 300 328 v2.2.2
RoHS 2011/65/EU
EN IEC 63000:2018

Dynamic power controller for Enegic Powerlink Amina S charging station (Nordpool tariffs):

Enegic Powerlink (Hub and Monitor) P1 RJ12 works with ESO's new type of meters via the connection - 270 euros

Enegic Powerlink (Hub and Monitor) 3x16 mm with current transformers - 300 euros

Enegic Powerlink (Hub and Monitor) 4x16 mm with current transformers (solar power plants) - 320 euros

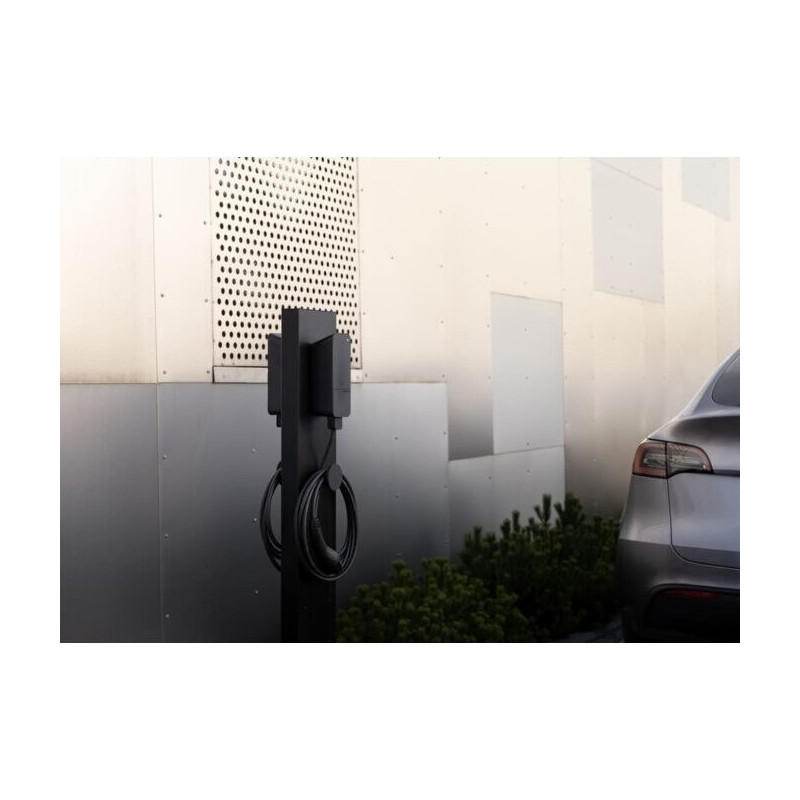

Stand for Amina station, Black stainless steel

(1-2 stations can be installed):

Universal stand, black. H1400xW150xD50 mm - 190 euros/piece.
