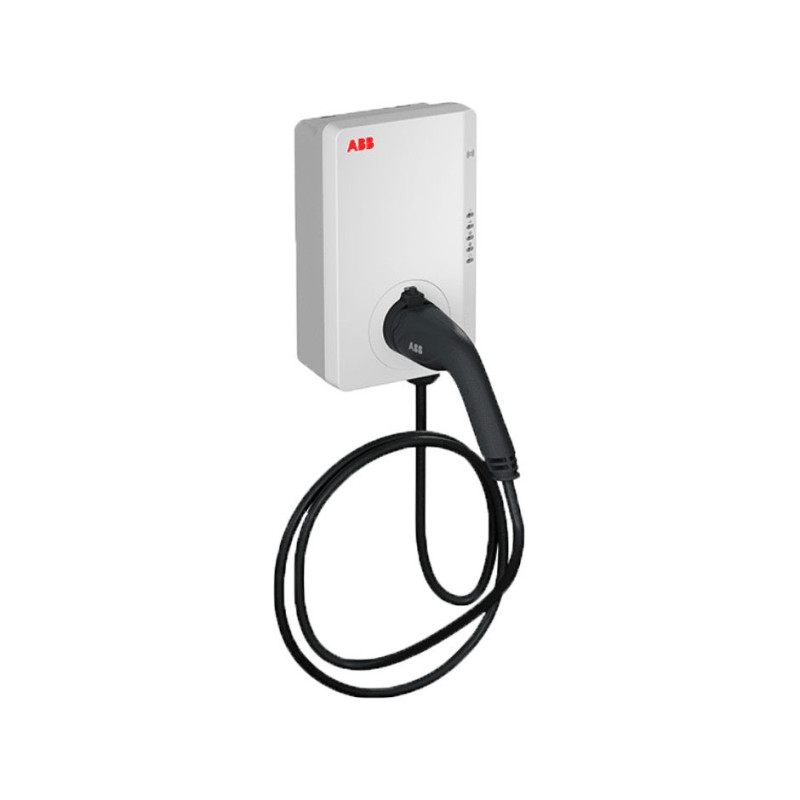

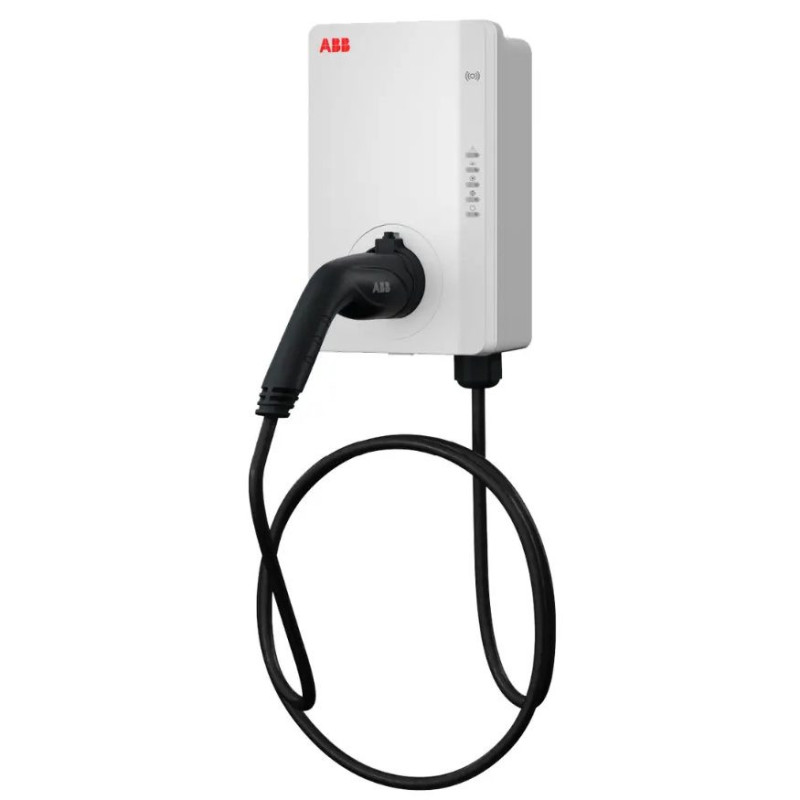

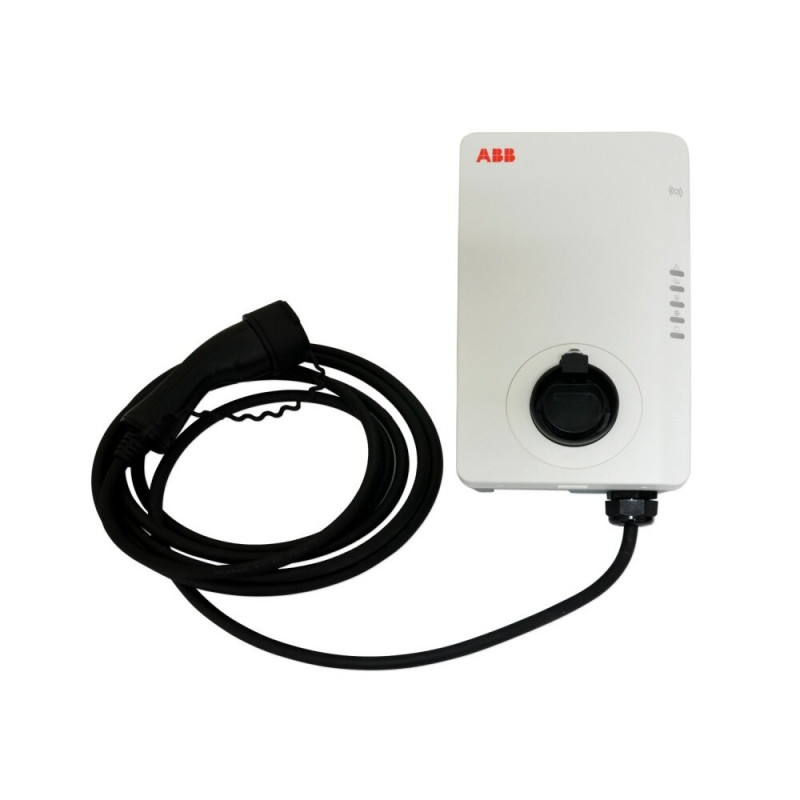

ABB charging station Terra AC W11-G5-R-0 - 11kW

ABB Terra AC charging station - an easily compatible and intelligent charging solution for homes, businesses or public spaces.

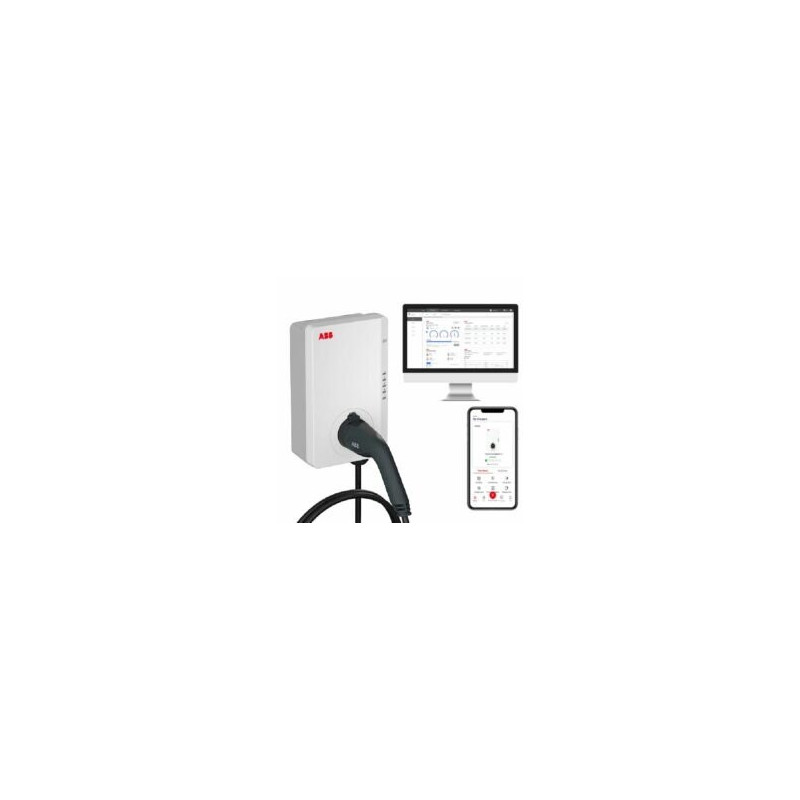

The intelligent functionality of the station allows you to set a charging schedule, monitor the charging process of the station remotely, manage the availability of other users and adjust the power via a mobile app.

This charging station supports dynamic power management functionality, which effectively uses the available electrical power of the building, distributing it according to the set priority. This function ensures that the power supply to the facility is not interrupted due to excess power.

Main features of the ABB Terra AC station with Type 2 socket:

Integrated protection against: overcurrent, overvoltage, voltage fluctuations, protection against ground fault, including DC and AC leakage

Communication: "Wifi", "Ethernet" (RJ45), "Bluetooth", RS485/P1 in each charger and 4G / 3G only in variants with 4G communication

User authentication by app or RFID card

OCPP1.6 communication protocol

Integrated e. energy metering device

Ready for integration with external electronic energy metering device for dynamic power management

Single-phase up to 7.4kW / 32A

Three-phase up to 22kW / 32A

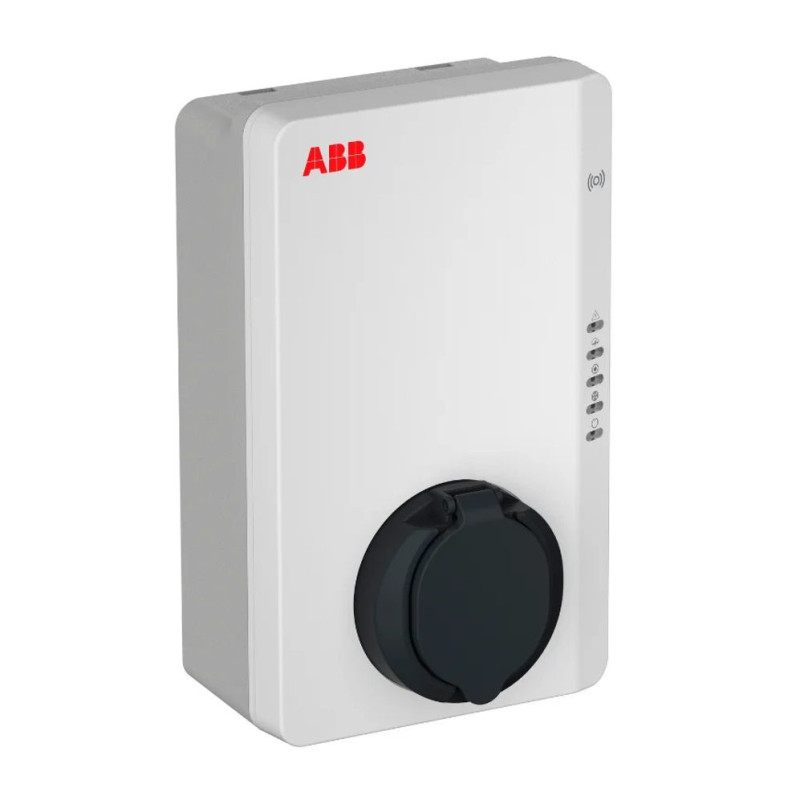

Type 2 socket

ABB Terra AC stations with Type 2 socket protection class IP54 / IK10

5-color LED status indicators

Bluetooth, Wifi, Ethernet RFID, OCPP are installed
