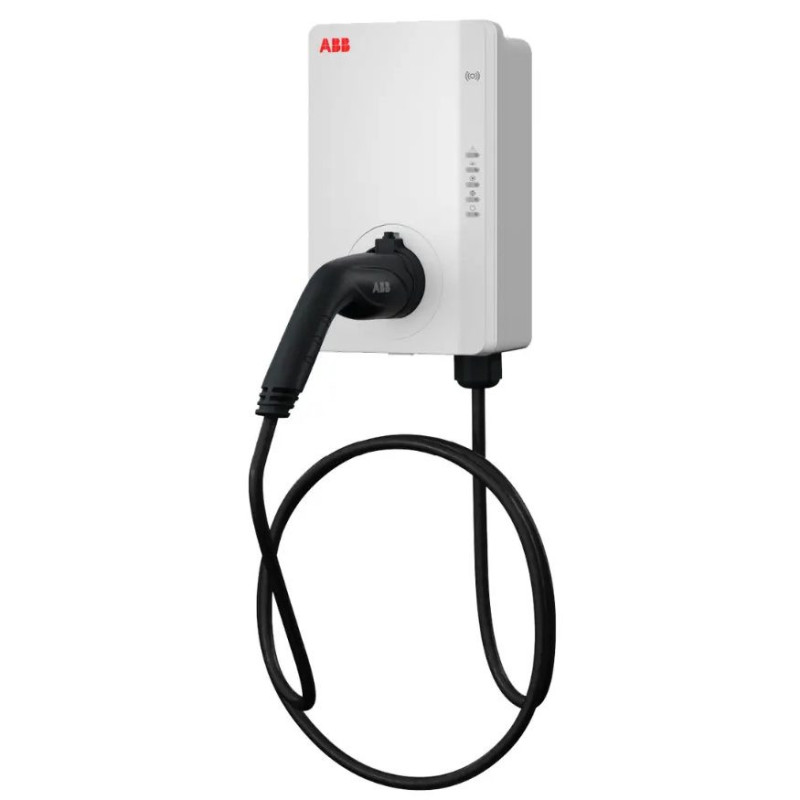

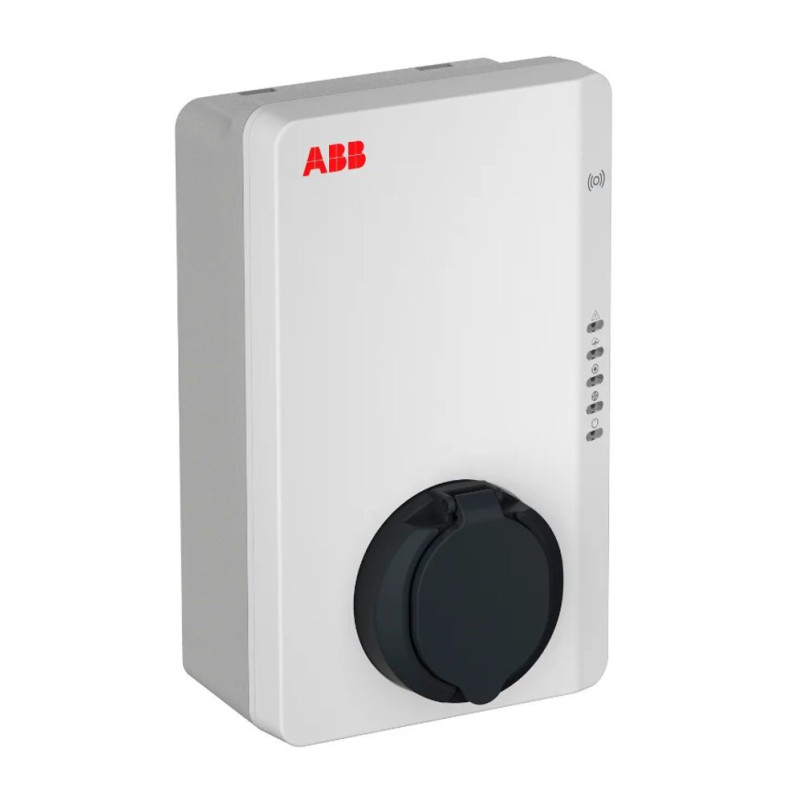

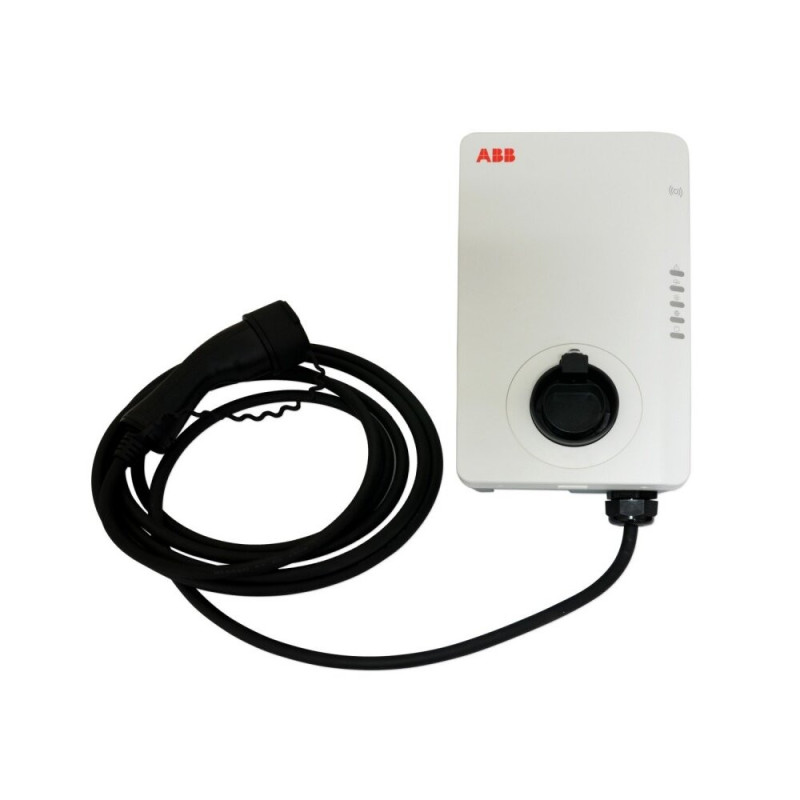

ABB charging station Terra AC W11-G5-R-0 - 11kW

ABB Terra AC charging station - an easily compatible and smart charging solution suitable for homes, businesses or public spaces.

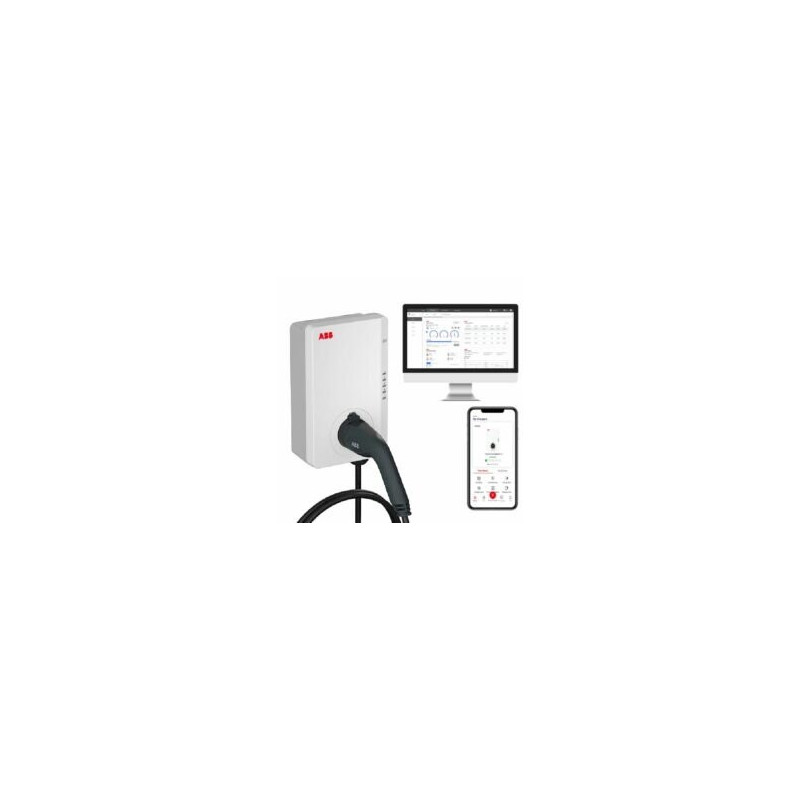

The smart functionality of the station allows you to set a charging schedule, monitor the charging process of the station remotely, manage accessibility to other users, and adjust power via a mobile app.

This charging station supports dynamic power management functionality, which efficiently utilizes the building's available electrical power by distributing it according to set priority. This feature ensures that the facility does not experience power outages due to excess power.

Main features of the ABB Terra AC station with Type 2 socket:

Integrated protection against: overcurrent, overvoltage, voltage fluctuations, protection against ground fault, including DC and AC leakage

Communication: Wifi, Ethernet (RJ45), Bluetooth, RS485/P1 in each charger and 4G / 3G only in variants with 4G communication

User authentication via app or RFID card

OCPP1.6 communication protocol

Integrated el. energy metering device

Ready for integration with external el. energy metering device for dynamic power management

Single-phase up to 7,4kW / 32A

Three-phase up to 22kW / 32A

Type 2 socket

ABB Terra AC protection class of stations with Type 2 socket IP54 / IK10

5 colored LED light status indicators

Bluetooth, Wifi, Ethernet RFID, OCPP are installed
