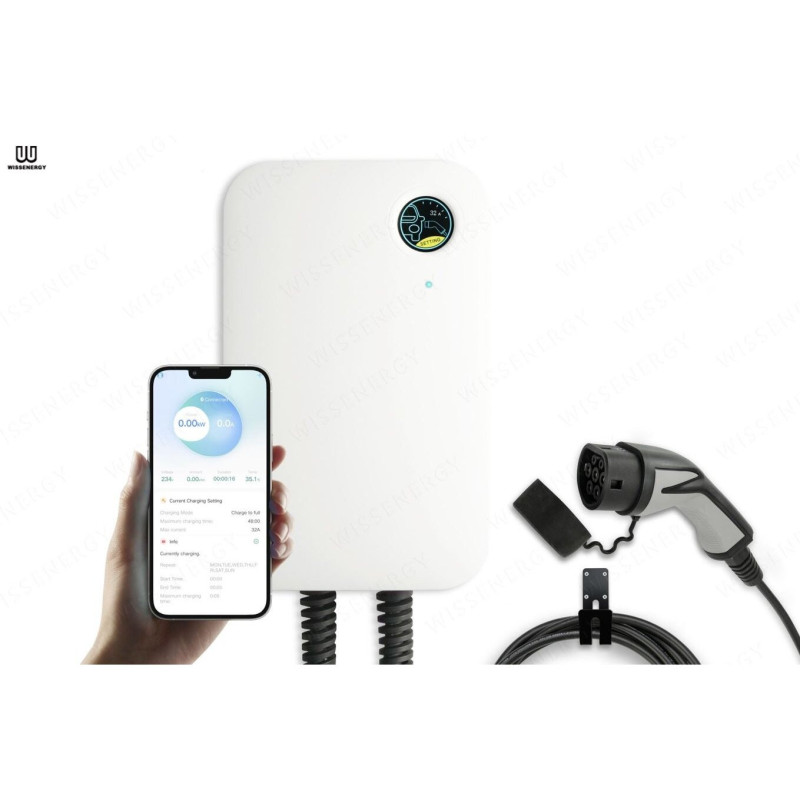

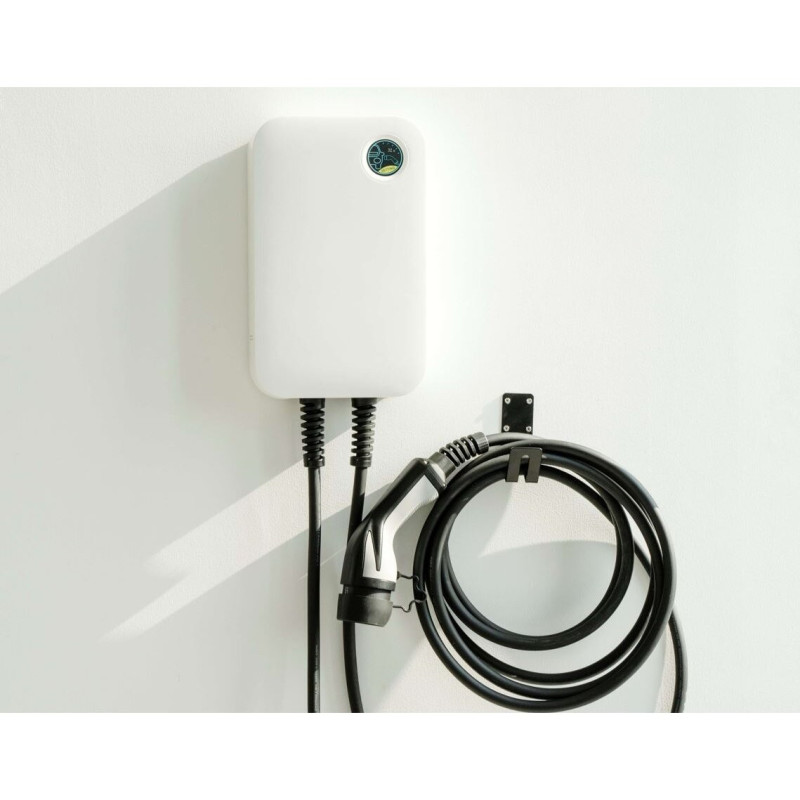

7kW 1 Phase wallbox charging station WB20 with Wi-fi function

WB20 charging station 1 phase, 7kW with type 2 cable - 5m long.

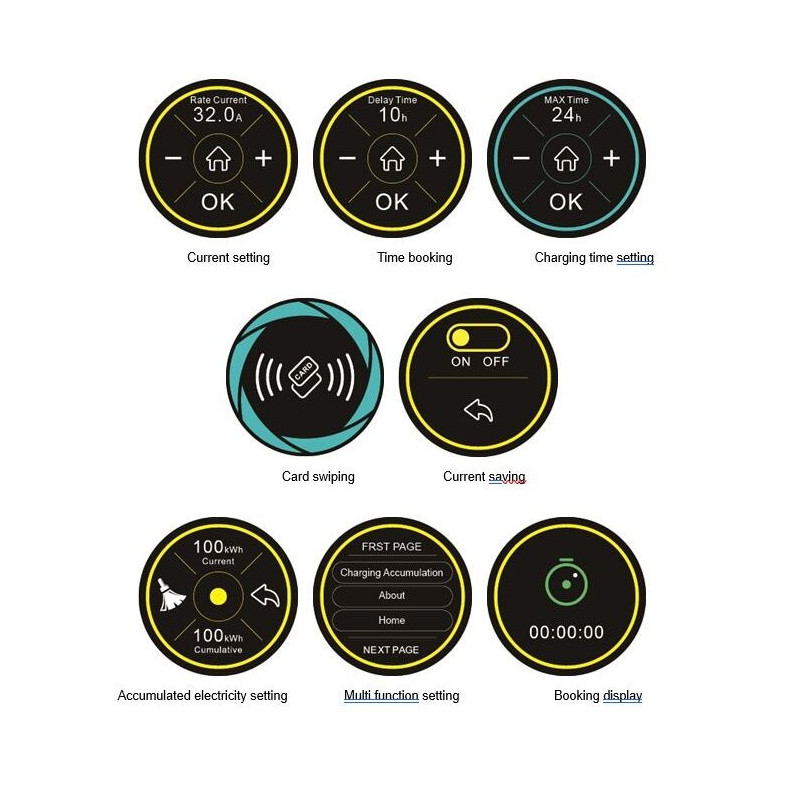

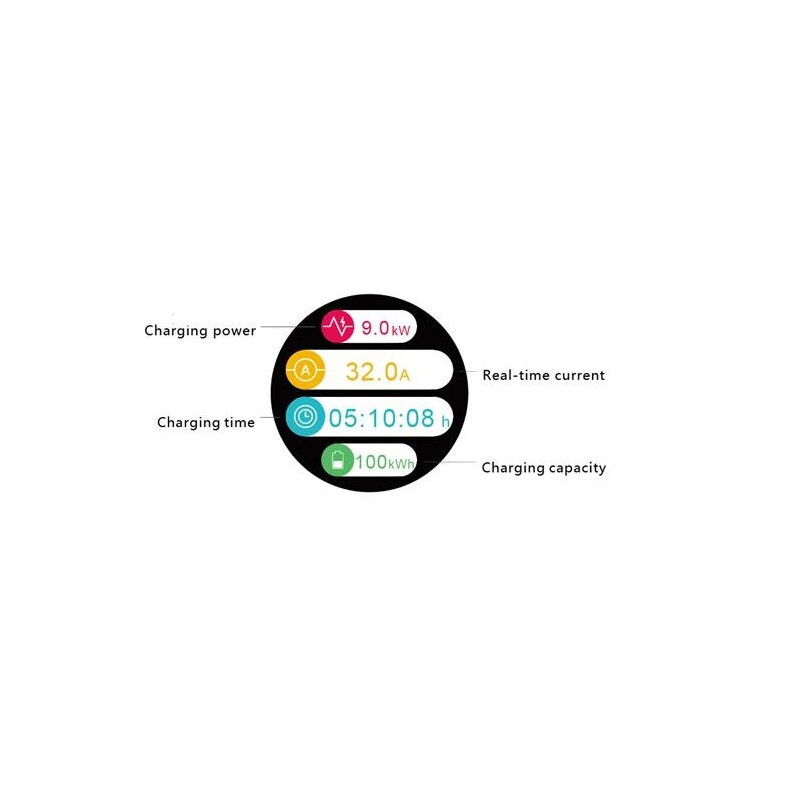

It is very convenient to control charging functions via the LCD screen, i.e. duration, power and other settings, and see consumption history.

Housing material: ABS+PC Plastic housing

Power cord connected from the bottom of the station

Charging interface Charging connector

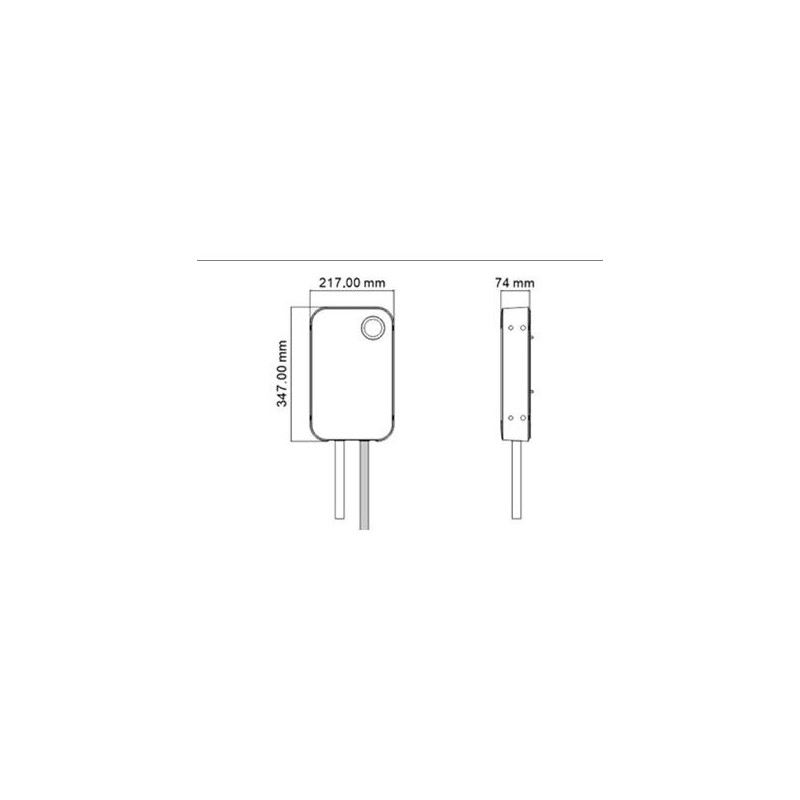

Charging station dimensions 347*217*74mm

Weight 5-9kg

Input voltage 230V/400V AC Three-phase five-wire system
(A phase, B phase, C phase, neutral, PE)

Input current 32A, 1 phase

Frequency 50Hz /60Hz

Maximum power 7KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 32A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+55

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP66

Safety protections:

Overvoltage protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Earth fault protection Yes

Overheat protection Yes

Lightning protection Yes

LED light Yes

RFID Only available with RFID version

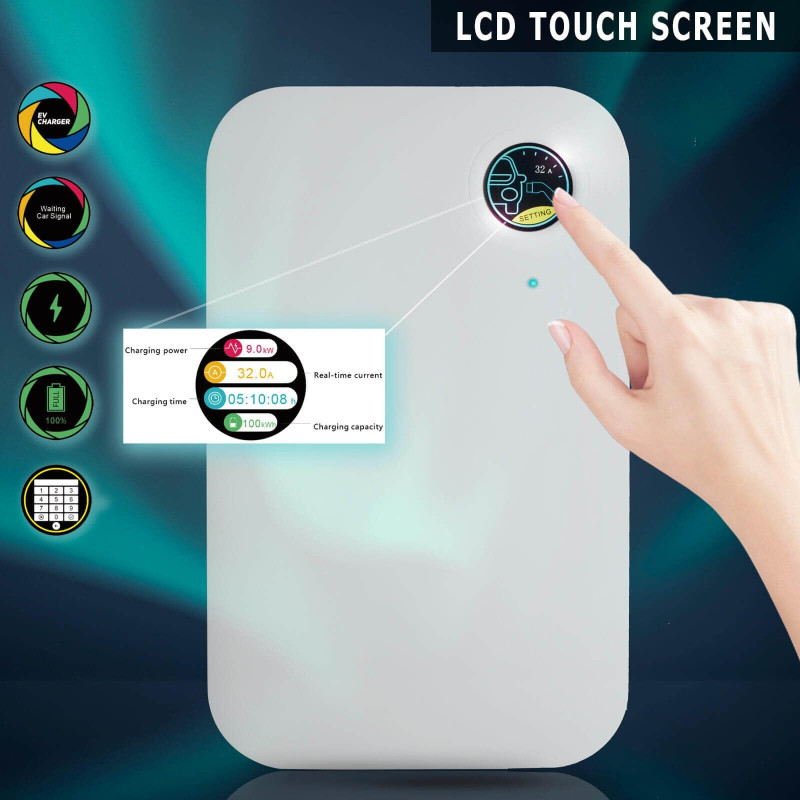

Touch screen Yes
