7-pin trailer plug standard EPTA10

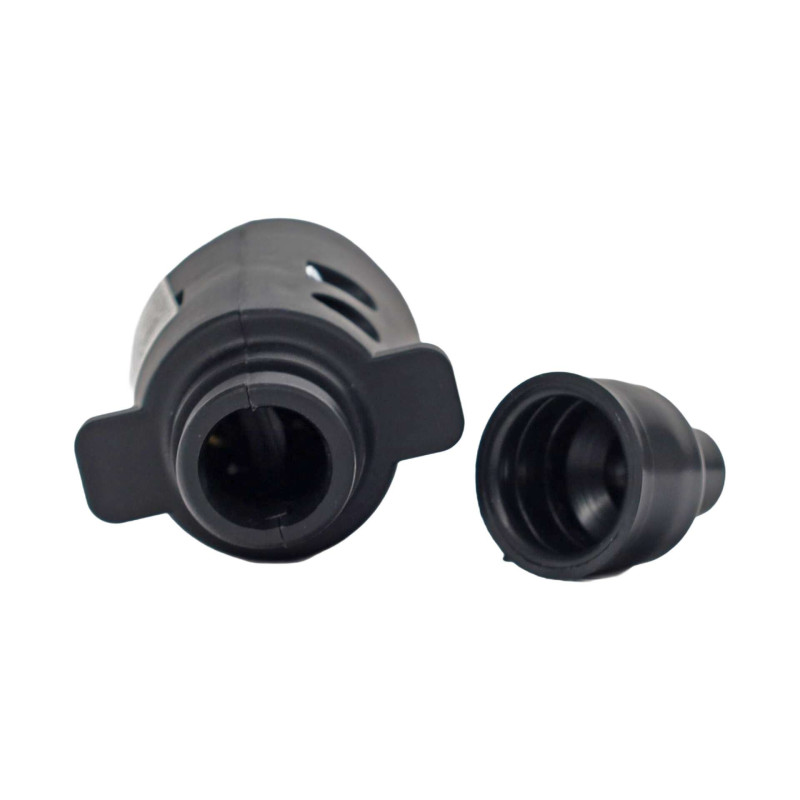

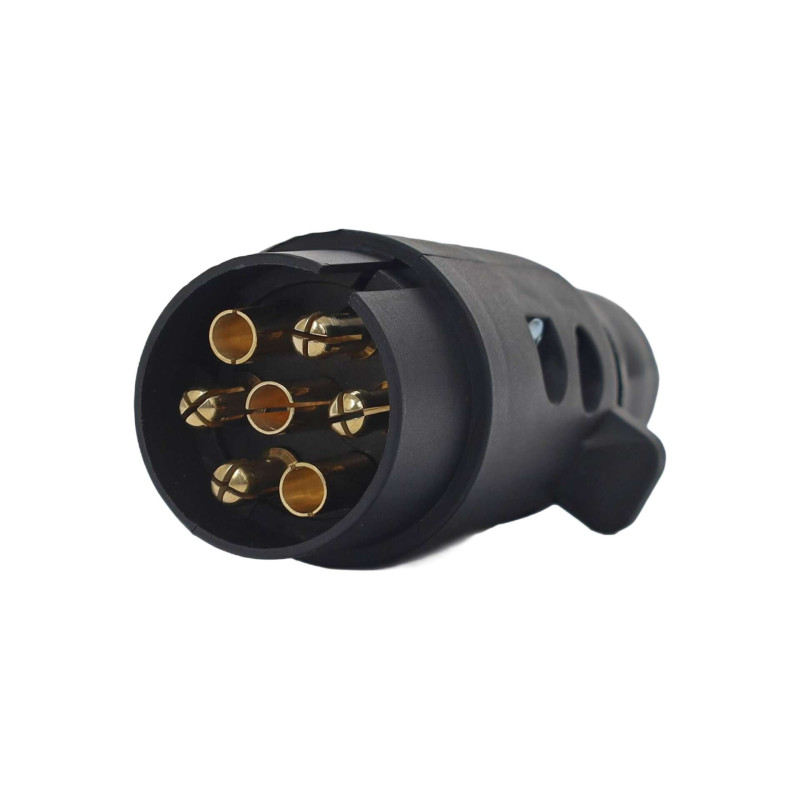

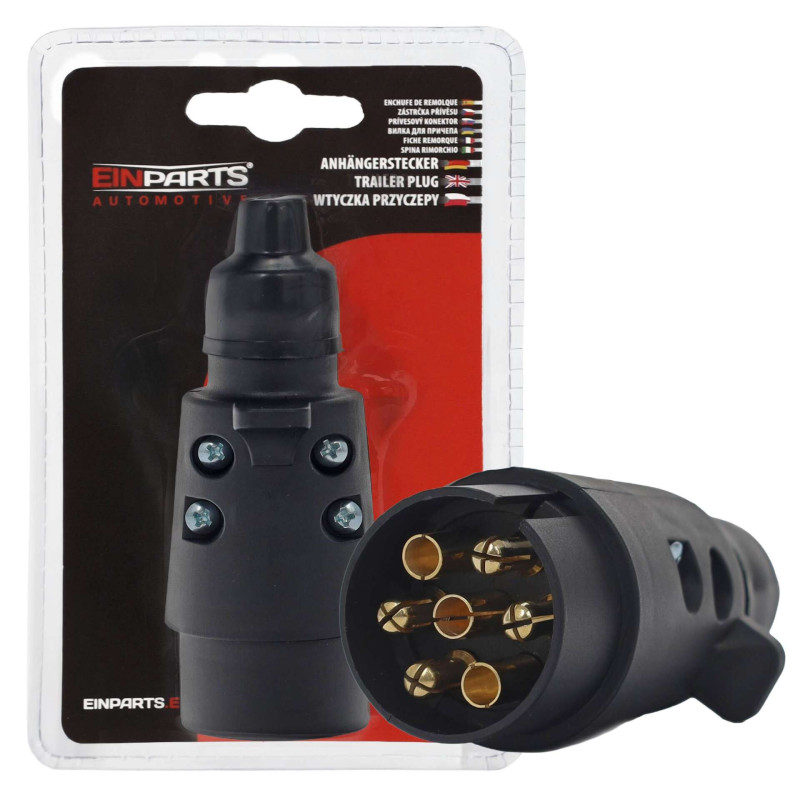

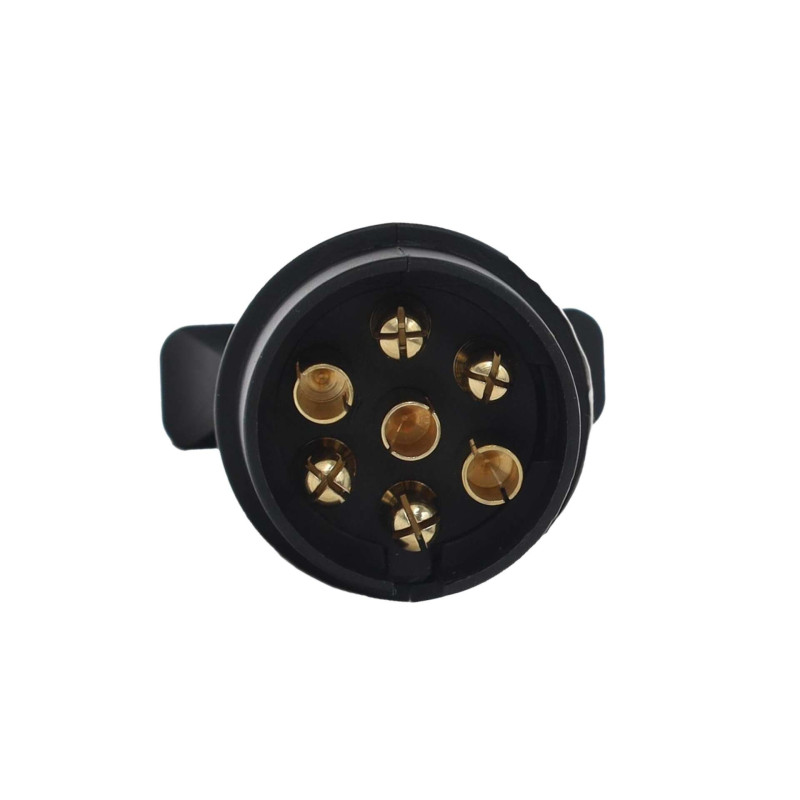

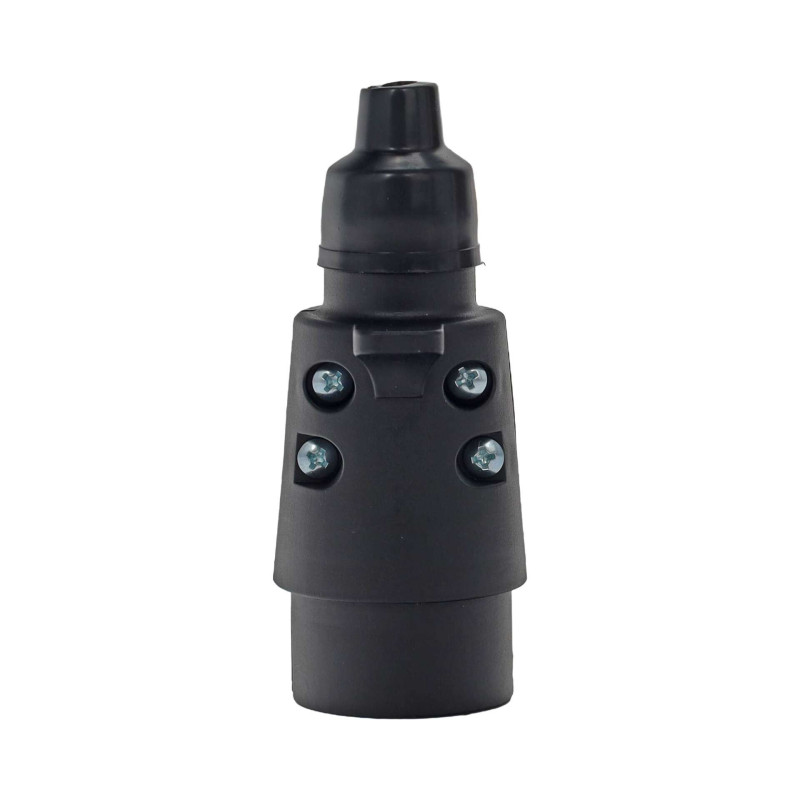

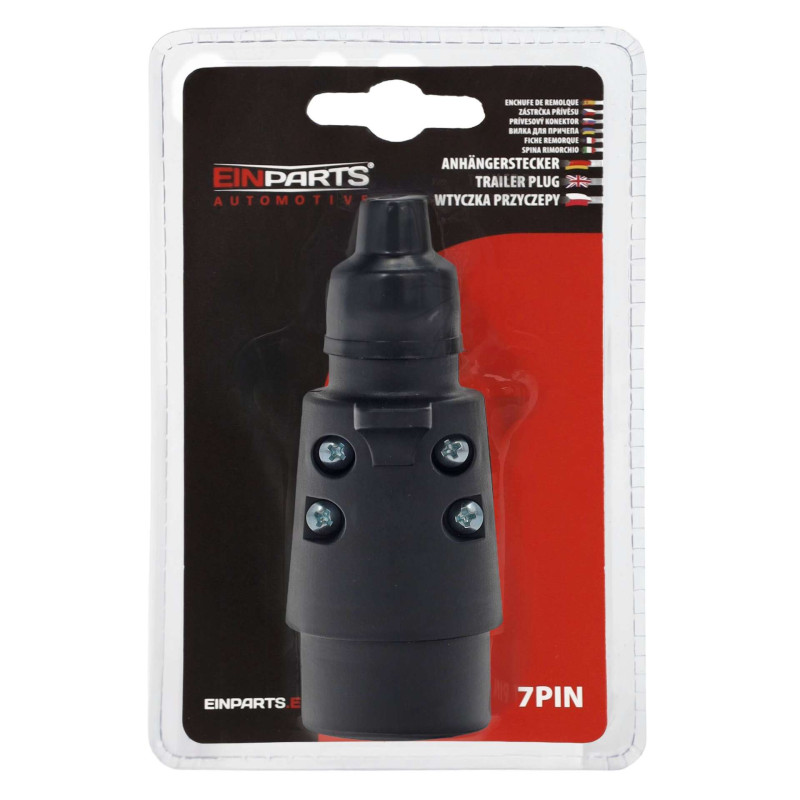

EPTA10 12V 7-pin Trailer PlugUniversal electrical plug designed to connect a trailer, flatbed trailer, or caravan's electrical system to the vehicle's towbar socket. 7-pin It allows you to control basic trailer lighting functions, such as turn signals, position lights, brake lights, and fog lights. This model features a plastic housing and a rubber cable cover that helps protect the wiring harness. This plug is useful for repairing wiring, replacing a damaged connector, or making a new electrical connection to the trailer. 7-pin connector diagram (ISO 1724 compliant):

• Pole 1 (L) - Function: left turn signal - Wire: yellow
• Pole 2 (54G) - Function: Fog Lights - Wire: Blue
• Pole 3 (31) - Function: ground - Wire: white
• Pole 4 (R) - Function: Right turn signal - Wire: Green
• Pole 5 (58R) - Function: right side lights - Wire: brown
• Pole 6 (54) - Function: Brake lights - Wire: Red
• Pole 7 (58L) - Function: left side lights - Wire: black

Type: trailer plug Voltage: 12V Number of pins: 7-pin Standard: ISO 1724 Material: plastic Color: black Cable fastening: rubber cover / cable grommet Application: transport trailers, tow trucks, caravans, agricultural machines
